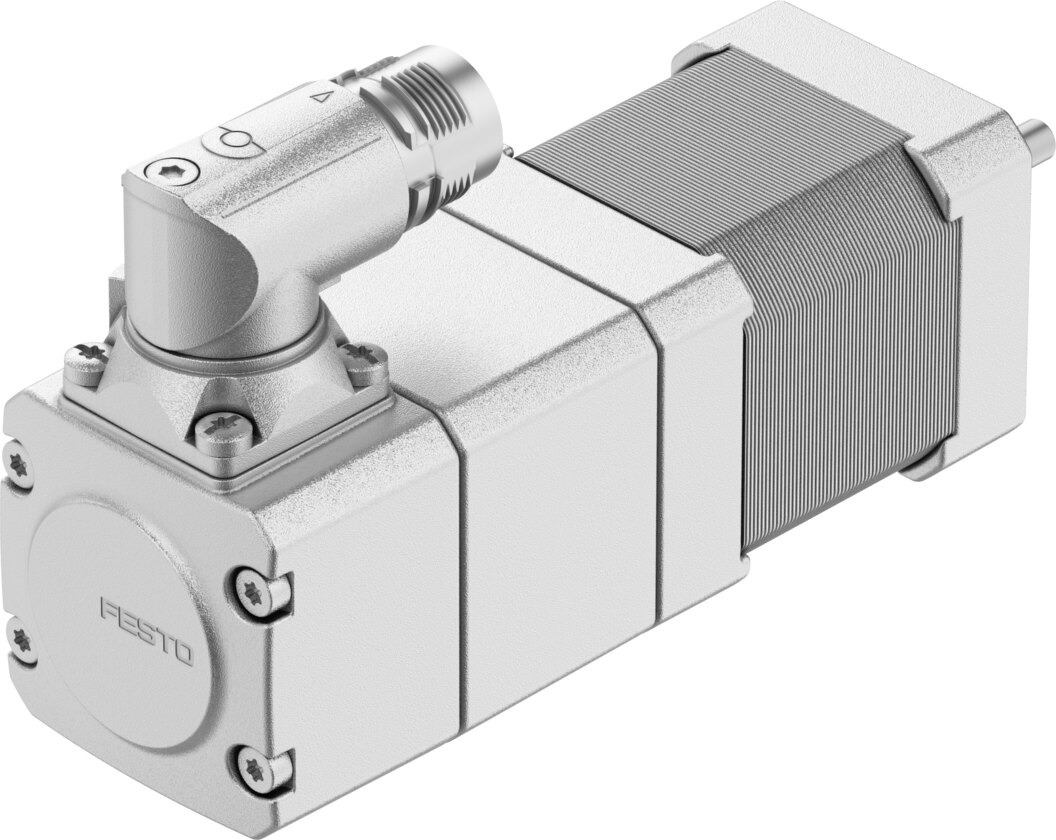

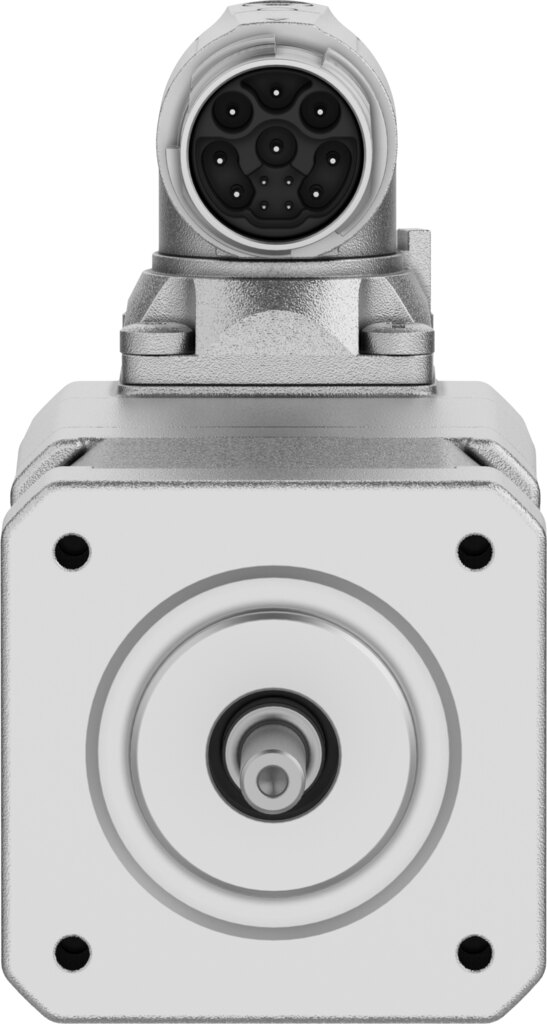

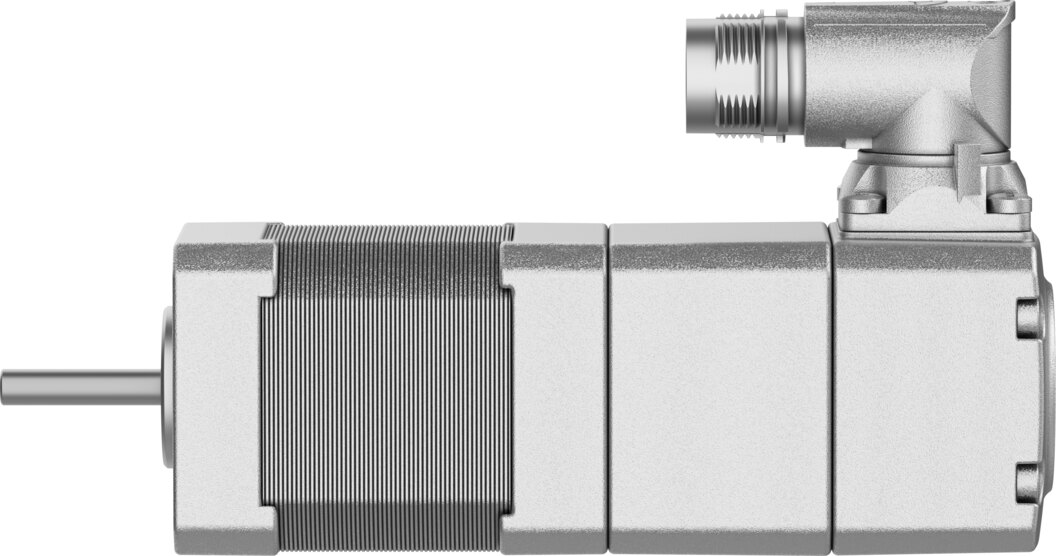

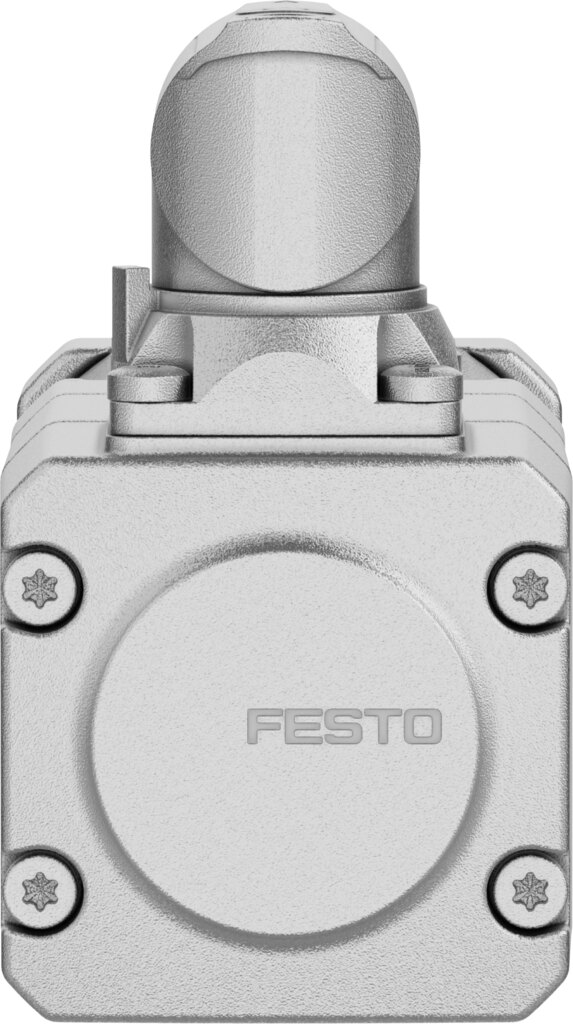

Stepper motor 48 V, 0.63 Nm holding torque, multi-turn absolute encoder, holding brake EMMT-ST-42-L-RMB - Festo 8156172

Festo ✓ Original product Brand new

The stepper motor EMMT-ST-42-L-RMB delivers 0.54 Nm nominal torque at 1000 1/min and briefly reaches 0.63 Nm. An integrated multi-turn absolute encoder with BiSS-C handles position control. The integrated 24 V holding brake holds 0.63 Nm at standstill.

Net
€660.11
excl. VAT
Item FES-8156172
Manufacturer no. EMMT-ST-42-L-RMB
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Festo stepper motor EMMT-ST-42-L-RMB is designed for 48 V and delivers 0.54 Nm nominal torque at 1000 1/min.

Benefits

  • Reserve for acceleration: peak torque 0.63 Nm at 0.54 Nm nominal torque
  • Multi-turn absolute encoder: BiSS-C, 17 bit, 65536 revolutions absolute
  • Holding brake: 0.63 Nm holding torque, operating voltage 24 V DC
  • Connection: hybrid plug M17x0.75, 12 pins
  • Degree of protection: IP40 at the shaft, IP65 for housing and connection components
  • Step angle: 1.8° at full step

Applications

Typical tasks are electric axes, rotary tables and toothed belt drives where 0.54 Nm nominal torque is sufficient.

Technical data

Ambient temperature-15 to 40 °C
Note on ambient temperatureUp to 80°C with derating -2%/°C
Maximum installation height4000 m
Note on maximum installation heightAs of 1,000 m: only with derating of -1.0% per 100 m
Storage temperature-20 to 70 °C
Relative air humidityNon-condensing
Conforms to standardIEC 60034
Temperature class as per EN 60034-1B
Maximum winding temperature130 °C
Rating class as per EN 60034-1S1
Temperature monitoringDigital motor temperature transmission via BiSS-C
Motor type to EN 60034-7IM V1, IM V3
Mounting positionAny
Degree of protectionIP40
Note on degree of protectionIP40 motor shaft, IP65 for motor housing, including connection technology
Interface code, motor out42A
Electrical connection 1, connection typeHybrid plug
Electrical connection 1, connector systemM17x0.75
Electrical connection 1, number of connections/cores12
Note on materialsRoHS compliant
Corrosion resistance class CRC0 - No corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
ApprovalRCM, c UL us - Recognised (Oil)
CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive
UKCA marking (see declaration of conformity)To UK RoHS instructions
Certificate issuing authorityUL E342973
Nominal operating voltage DC48 V
Number of pole pairs50
Motor holding torque0.63 Nm
Nominal torque0.54 Nm
Peak torque0.63 Nm
Nominal rotary speed1000 1/min
Maximum rotational speed3200 1/min
Maximum mechanical speed9000 1/min
Stepper angle for complete step1.8 deg
Stepping angle tolerance±5%
Nominal power rating of motor56 W
Continuous stall current3.7 A
Nominal motor current3.4 A
Peak current4 A
Motor constant0.162 Nm/A
Voltage constant, phase10.6 mVmin
Phase winding resistance0.6 Ohm
Phase winding inductance0.8 mH
Winding longitudinal inductivity Ld (phase)1.45 mH
Winding cross inductivity Lq (phase)0.8 mH
Electric time constant1.3 ms
Thermal time constant16 min
Thermal resistance2 K/W
Measuring flange200 x 200 x 15 mm, steel
Total mass moment of inertia of output0.09 kgcm²
Product weight770 g
Permissible axial shaft load10 N
Permissible radial shaft load28 N
Rotor position sensorAbsolute encoder, multi-turn
rotor position sensor, manufacturer designationKCD-BC33B-1617-JP4F-GRQ-009
rotor position sensor, absolute detectable revolutions65536
Rotor position encoder interfaceBiSS-C
Rotor position sensor, encoder measuring principlemagnetic
rotor position sensor, DC operating voltage5 V
rotor position sensor, DC operating voltage range4.5 to 5.5 V
Rotor position encoder, sine/cosine periods per revolution2
rotor position sensor, position values per revolution131072
Rotor position transducer resolution17 bit
rotor position sensor, system accuracy of angle measurement-310 to 310 arcsec
Brake holding torque0.63 Nm
Operating voltage DC for brake24 V
Brake current consumption0.34 A
Power consumption, brake8.2 W
Brake coil resistance70.9 Ohm
Brake coil inductivity146 mH
Brake separation time28 ms
Brake closing time41 ms
DC brake response delay8 ms
Maximum brake no-load speed9000 1/min
Maximum friction per braking process1500 J
Number of emergency stops per hour1
Mass moment of inertia of brake0.006 kgcm²
Switching cycles holding brake10 million idle actuations (without friction work)
Mean time to failure (MTTF), subcomponent20 years, rotor position encoder
Weight0.95 kg
ManufacturerFesto
Hersteller-NrEMMT-ST-42-L-RMB
EAN4052568639600
Zolltarifnummer85015100
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Operating voltage48 V DC
SeriesEMMT
Protection ratingIP40
Temperature (max.)40
