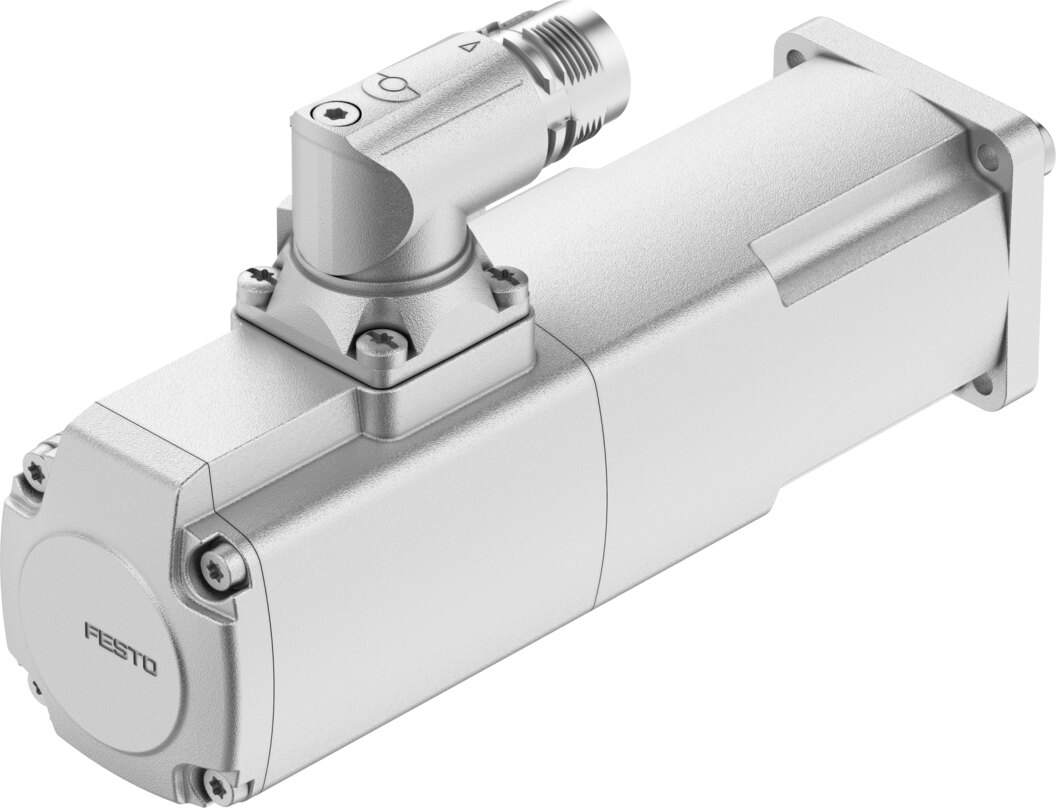

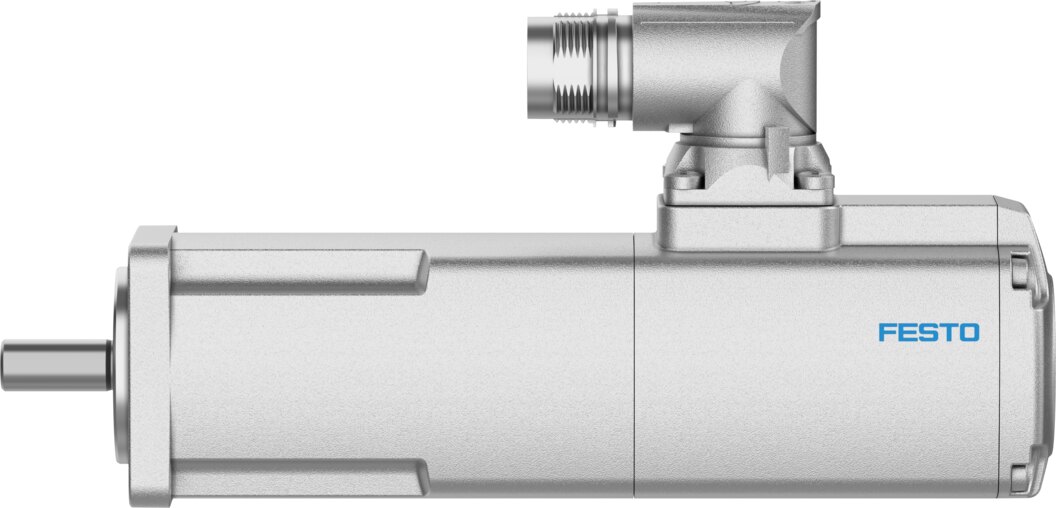

Servo motor 48 V, 0.45 Nm standstill torque, single-turn absolute encoder, holding brake EMMT-EC-40-M-ES-R1SCB - Festo 8171406
The servo motor EMMT-EC-40-M-ES-R1SCB delivers 0.44 Nm nominal torque at 3000 1/min and briefly reaches 1.32 Nm. Rotor position is captured by a single-turn absolute encoder with 16 bit resolution. The integrated 24 V holding brake holds 0.45 Nm at standstill.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
For positioning drives at 48 V, the servo motor EMMT-EC-40-M-ES-R1SCB offers 0.44 Nm continuous nominal torque and peaks up to 1.32 Nm.
Benefits
- Reserve for acceleration: peak torque 1.32 Nm at 0.44 Nm nominal torque
- Single-turn absolute encoder: BiSS-C, 16 bit
- Holding brake: 0.45 Nm holding torque, operating voltage 24 V DC
- Connection: hybrid plug M17x0.75, 12 pins
- Degree of protection: IP40 at the shaft, IP65 for housing and connection components
- Bearing service life: 20000 h under nominal conditions
Applications
The motor suits linear and rotary axes with interface code 40P. Temperature class F to EN 60034-1 and rating class S1 permit continuous duty at 0.44 Nm.
Technical data
| Ambient temperature | -40 to 40 °C |
|---|---|
| Note on ambient temperature | Up to 80°C with derating of -1.5% per degree Celsius |
| Maximum installation height | 4000 m |
| Note on maximum installation height | As of 1,000 m: only with derating of -1.0% per 100 m |
| Storage temperature | -40 to 70 °C |
| Relative air humidity | 0 - 90% |
| Conforms to standard | IEC 60034 |
| Temperature class as per EN 60034-1 | F |
| Maximum winding temperature | 155 °C |
| Rating class as per EN 60034-1 | S1 |
| Motor type to EN 60034-7 | IM V1, IM V3 |
| Mounting position | Any |
| Degree of protection | IP40 |
| Note on degree of protection | IP40 for motor shaft without rotary shaft seal, IP65 for motor housing, including connection technology, IP65 for motor shaft with rotary shaft seal |
| Concentricity, coaxiality, axial runout to DIN SPEC 42955 | N |
| Balance quality | G 2.5 |
| Detent torque | below 1.0% of peak torque |
| Bearing lifetime under nominal conditions | 20000 h |
| Interface code, motor out | 40P |
| Electrical connection 1, connection type | Hybrid plug |
| Electrical connection 1, connector system | M17x0.75 |
| Electrical connection 1, number of connections/cores | 12 |
| Pollution degree | 2 |
| Note on materials | RoHS compliant |
| Corrosion resistance class CRC | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Vibration resistance | Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Approval | RCM, c UL us - Recognised (Oil) |
| CE mark (see declaration of conformity) | To EU EMC Directive, In accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) | To UK RoHS instructions, To UK regulations for electrical equipment |
| Certificate issuing authority | UL E342973 |
| Nominal operating voltage DC | 48 V |
| Type of winding switch | Star inside |
| Number of pole pairs | 5 |
| Standstill torque | 0.45 Nm |
| Nominal torque | 0.44 Nm |
| Peak torque | 1.32 Nm |
| Nominal rotary speed | 3000 1/min |
| Maximum rotational speed | 5770 1/min |
| Maximum mechanical speed | 15000 1/min |
| Angular acceleration | 100000 rad/s² |
| Nominal power rating of motor | 138 W |
| Continuous stall current | 5.2 A |
| Nominal motor current | 5.2 A |
| Peak current | 20 A |
| Motor constant | 0.085 Nm/A |
| Standstill torque constant | 0.1 Nm/A |
| Voltage constant, phase-to-phase | 5.8 mVmin |
| Phase-phase winding resistance | 0.87 Ohm |
| Phase-phase winding inductance | 0.89 mH |
| Winding longitudinal inductivity Ld (phase) | 0.34 mH |
| Winding cross inductivity Lq (phase) | 0.45 mH |
| Electric time constant | 1.02 ms |
| Thermal time constant | 21.4 min |
| Thermal resistance | 1.35 K/W |
| Measuring flange | 200 x 200 x 15 mm, steel |
| Total mass moment of inertia of output | 0.076 kgcm² |
| Product weight | 800 g |
| Permissible axial shaft load | 30 N |
| Permissible radial shaft load | 150 N |
| Rotor position sensor | Absolute encoder, single turn |
| rotor position sensor, manufacturer designation | Festo iC-MHM |
| rotor position sensor, absolute detectable revolutions | 1 |
| Rotor position encoder interface | BiSS-C |
| Rotor position sensor, encoder measuring principle | magnetic |
| rotor position sensor, DC operating voltage | 5 V |
| rotor position sensor, DC operating voltage range | 4.5 to 5.5 V |
| rotor position sensor, position values per revolution | 65536 |
| Rotor position transducer resolution | 16 bit |
| rotor position sensor, system accuracy of angle measurement | -1800 to 1800 arcsec |
| Brake holding torque | 0.45 Nm |
| Operating voltage DC for brake | 24 V |
| Brake current consumption | 0.34 A |
| Power consumption, brake | 8.2 W |
| Brake coil resistance | 70.9 Ohm |
| Brake coil inductivity | 146 mH |
| Brake separation time | 28 ms |
| Brake closing time | 41 ms |
| DC brake response delay | 8 ms |
| Maximum brake no-load speed | 12000 1/min |
| Maximum friction per braking process | 1500 J |
| Number of emergency stops per hour | 1 |
| Total brake friction | 1.5 kJ |
| Mass moment of inertia of brake | 0.0058 kgcm² |
| Switching cycles holding brake | 10 million idle actuations (without friction work) |
| Mean time to failure (MTTF), subcomponent | 190 years, rotor position encoder |
| Weight | 0.9 kg |
| Manufacturer | Festo |
| Hersteller-Nr | EMMT-EC-40-M-ES-R1SCB |
| EAN | 4052568943271 |
| Zolltarifnummer | 85015100 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Operating voltage | 48 V DC |
| Series | EMMT |
| Protection rating | IP40 |
| Temperature (max.) | 40 |
