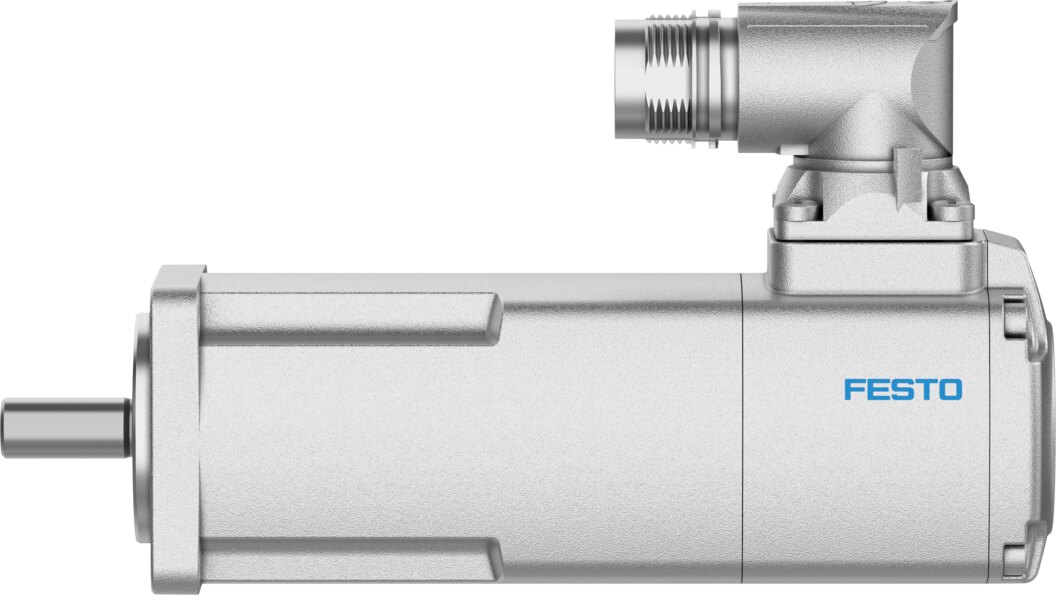

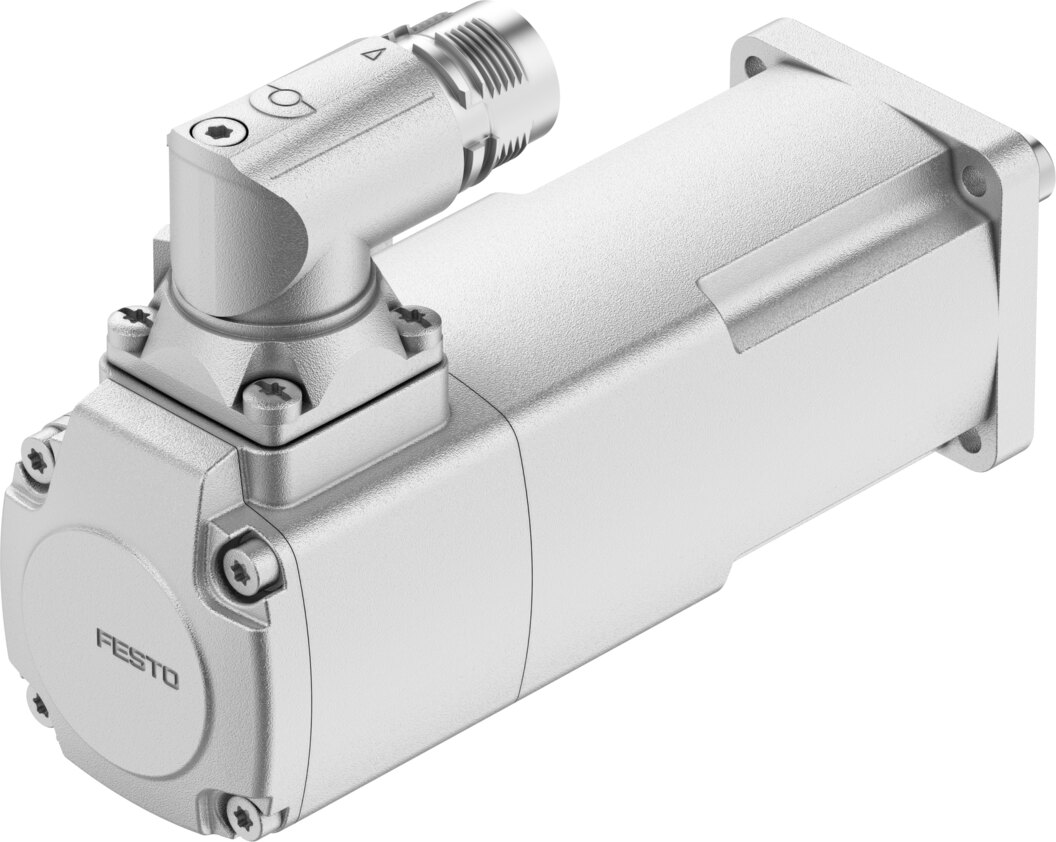

Servo motor 48 V, 0.45 Nm standstill torque, multi-turn absolute encoder EMMT-EC-40-M-ES-R1MC - Festo 8171405

Festo ✓ Original product Brand new

The servo motor EMMT-EC-40-M-ES-R1MC delivers 0.44 Nm nominal torque at 3000 1/min and briefly reaches 1.32 Nm. A multi-turn absolute encoder with BiSS-C reports the rotor position at 17 bit. Motor housing and connector are rated IP65. It is connected via a hybrid plug M17x0.75 with 12 pins.

Net
€786.69
excl. VAT
Item FES-8171405
Manufacturer no. EMMT-EC-40-M-ES-R1MC
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Festo servo motor EMMT-EC-40-M-ES-R1MC is designed for 48 V and delivers 0.44 Nm nominal torque at 3000 1/min.

Benefits

  • Reserve for acceleration: peak torque 1.32 Nm at 0.44 Nm nominal torque
  • Multi-turn absolute encoder: BiSS-C, 17 bit, 4096 revolutions absolute
  • Connection: hybrid plug M17x0.75, 12 pins
  • Degree of protection: IP40 at the shaft, IP65 for housing and connection components
  • Bearing service life: 20000 h under nominal conditions
  • Mass moment of inertia: 0.07 kgcm² total at output

Applications

It is used in electric drives for assembly, handling and packaging at ambient temperatures of -40 to 40 °C.

Technical data

Ambient temperature-40 to 40 °C
Note on ambient temperatureUp to 80°C with derating of -1.5% per degree Celsius
Maximum installation height4000 m
Note on maximum installation heightAs of 1,000 m: only with derating of -1.0% per 100 m
Storage temperature-40 to 70 °C
Relative air humidity0 - 90%
Conforms to standardIEC 60034
Temperature class as per EN 60034-1F
Maximum winding temperature155 °C
Rating class as per EN 60034-1S1
Temperature monitoringDigital motor temperature transmission via BiSS-C
Motor type to EN 60034-7IM V1, IM V3
Mounting positionAny
Degree of protectionIP40
Note on degree of protectionIP40 for motor shaft without rotary shaft seal, IP65 for motor housing, including connection technology, IP65 for motor shaft with rotary shaft seal
Concentricity, coaxiality, axial runout to DIN SPEC 42955N
Balance qualityG 2.5
Detent torquebelow 1.0% of peak torque
Bearing lifetime under nominal conditions20000 h
Interface code, motor out40P
Electrical connection 1, connection typeHybrid plug
Electrical connection 1, connector systemM17x0.75
Electrical connection 1, number of connections/cores12
Pollution degree2
Note on materialsRoHS compliant
Corrosion resistance class CRC0 - No corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
ApprovalRCM, c UL us - Recognised (Oil)
CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive
UKCA marking (see declaration of conformity)To UK RoHS instructions, To UK regulations for electrical equipment
Certificate issuing authorityUL E342973
Nominal operating voltage DC48 V
Type of winding switchStar inside
Number of pole pairs5
Standstill torque0.45 Nm
Nominal torque0.44 Nm
Peak torque1.32 Nm
Nominal rotary speed3000 1/min
Maximum rotational speed5770 1/min
Maximum mechanical speed15000 1/min
Angular acceleration100000 rad/s²
Nominal power rating of motor138 W
Continuous stall current5.2 A
Nominal motor current5.2 A
Peak current20 A
Motor constant0.085 Nm/A
Standstill torque constant0.1 Nm/A
Voltage constant, phase-to-phase5.8 mVmin
Phase-phase winding resistance0.87 Ohm
Phase-phase winding inductance0.89 mH
Winding longitudinal inductivity Ld (phase)0.34 mH
Winding cross inductivity Lq (phase)0.45 mH
Electric time constant1.02 ms
Thermal time constant21.4 min
Thermal resistance1.35 K/W
Measuring flange200 x 200 x 15 mm, steel
Total mass moment of inertia of output0.07 kgcm²
Product weight700 g
Permissible axial shaft load30 N
Permissible radial shaft load150 N
Rotor position sensorAbsolute encoder, multi-turn
rotor position sensor, manufacturer designationKCD-BC33B-1617-JP4F-GRQ-009
rotor position sensor, absolute detectable revolutions4096
Rotor position encoder interfaceBiSS-C
Rotor position sensor, encoder measuring principlemagnetic
rotor position sensor, DC operating voltage5 V
rotor position sensor, DC operating voltage range4.5 to 5.5 V
rotor position sensor, position values per revolution131072
Rotor position transducer resolution17 bit
rotor position sensor, system accuracy of angle measurement-320 to 320 arcsec
Mean time to failure (MTTF), subcomponent190 years, rotor position encoder
Weight0.75 kg
ManufacturerFesto
Hersteller-NrEMMT-EC-40-M-ES-R1MC
EAN4052568943264
Zolltarifnummer85015100
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Operating voltage48 V DC
SeriesEMMT
Protection ratingIP40
Temperature (max.)40
