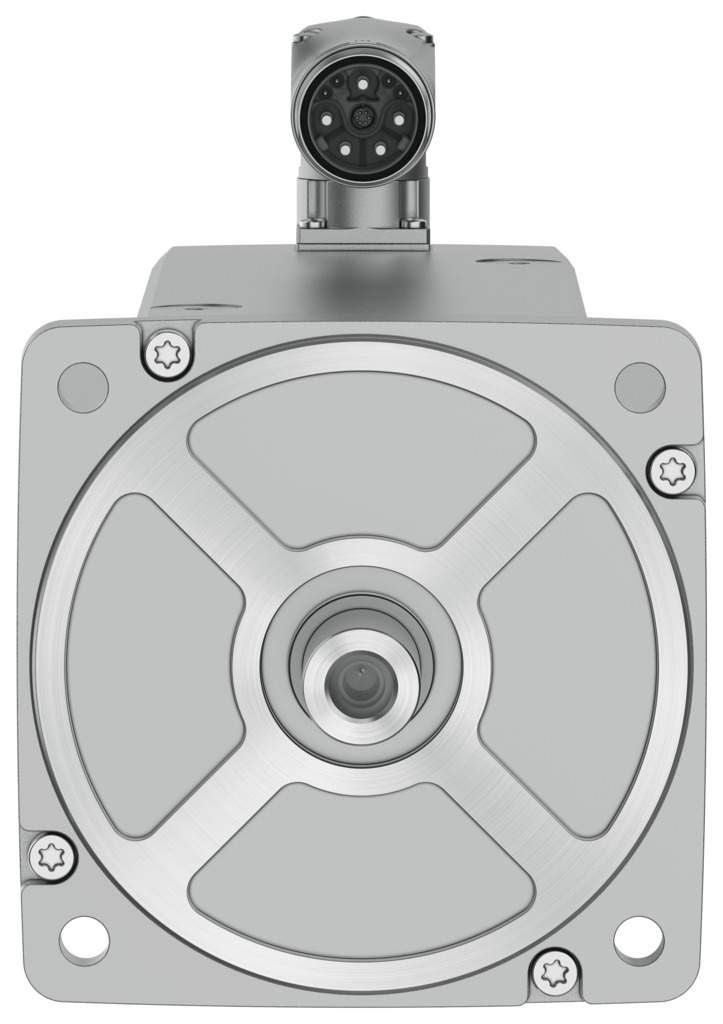

Servo motor 7427 W, 76.7 Nm standstill torque, holding brake, multi-turn encoder EMMT-AS-190-MKR-HS-R3MB - Festo 8148388

Festo ✓ Original product Brand new

The EMMT-AS-190-MKR-HS-R3MB servo motor delivers 59.1 Nm nominal torque and up to 118.3 Nm for short acceleration phases. Rated power 7427 W at 1200 1/min, designed for 680 V DC. A multi-turn absolute encoder (EnDat 22) captures the rotor position, the holding brake holds 115 Nm.

Net
€4,843.16
excl. VAT
Item FES-8148388
Manufacturer no. EMMT-AS-190-MKR-HS-R3MB
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Festo EMMT-AS-190-MKR-HS-R3MB servo motor: 7427 W rated power, 59.1 Nm nominal torque, up to 118.3 Nm in peak operation. Total moment of inertia is 160 kgcm².

Benefits

  • Peak torque 118.3 Nm for short cycles and acceleration phases
  • Speed up to 2163 1/min, nominal speed 1200 1/min
  • Multi-turn absolute encoder with 4096 absolute revolutions, no homing run after power-up
  • Holding brake 115 Nm, operating voltage 24 V DC
  • Cogging torque below 1.0 % of peak torque, smooth running even at low speeds
  • Degree of protection IP21, ambient temperature -15 to 40 °C

Application

Typical uses are positioning axes, feed systems and pick-and-place units. Before mounting, match the interface and shaft loads of the EMMT-AS-190-MKR-HS-R3MB to the mechanics.

Technical data

TypeEMMT-AS-190-MKR-HS-R3MB
Festo part no.8148388
Ambient temperature-15 to 40 °C
Note on ambient temperatureUp to 80°C with derating of -1.5% per degree Celsius
Maximum installation height4000 m
Note on maximum installation heightAs of 1,000 m: only with derating of -1.0% per 100 m
Storage temperature-20 to 70 °C
Relative air humidity0 - 90%
Conforms to standardIEC 60034
Temperature class as per EN 60034-1F
Maximum winding temperature155 °C
Rating class as per EN 60034-1S1
Temperature monitoringDigital motor temperature transmission via EnDat® 2.2
Motor type to EN 60034-7IM V1, IM V3
Mounting positionAny
Degree of protectionIP21
Note on degree of protectionIP67 for motor housing including connection components
Concentricity, coaxiality, axial runout to DIN SPEC 42955N
Balance qualityG 2.5
Detent torque&lt,1.0% of peak torque
Bearing lifetime under nominal conditions20000 h
Featherkey shaft typeDIN 6885, A 10 x 8 x 45
Interface code, motor out190B
Electrical connection 1, connection typeHybrid plug
Electrical connection 1, connector systemM40x1
Electrical connection 1, number of connections/cores15
Electrical connection 1, connection pattern00997380
Pollution degree2
Note on materialsRoHS compliant
Corrosion resistance class CRC0 - No corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Vibration resistanceAs per EN 60068-2-6
Shock resistanceAs per EN 60068-2-29, 15 g/11 ms to EN 60068-2-27
ApprovalRCM, c UL us - Recognized (OL)
CE mark (see declaration of conformity)To EU EMC Directive, To EU Low Voltage Directive, In accordance with EU RoHS Directive
UKCA marking (see declaration of conformity)To UK RoHS instructions, To UK regulations for electrical equipment
Certificate issuing authorityUL E342973
Nominal operating voltage DC680 V
Type of winding switchStar inside
Number of pole pairs5
Standstill torque76.7 Nm
Nominal torque59.1 Nm
Peak torque118.3 Nm
Nominal rotary speed1200 1/min
Maximum rotational speed2163 1/min
Maximum mechanical speed8000 1/min
Angular acceleration100000 rad/s²
Nominal power rating of motor7427 W
Continuous stall current25 A
Nominal motor current19.2 A
Peak current41.5 A
Motor constant3.08 Nm/A
Standstill torque constant3.56 Nm/A
Voltage constant, phase-to-phase215.2 mVmin
Phase-phase winding resistance0.285 Ohm
Phase-phase winding inductance12.3 mH
Winding longitudinal inductivity Ld (phase)5.65 mH
Winding cross inductivity Lq (phase)6.15 mH
Electric time constant39.6 ms
Thermal time constant70 min
Thermal resistance0.31 K/W
Measuring flange450 x 450 x 30 mm, steel
Total mass moment of inertia of output160 kgcm²
Product weight50600 g
Permissible axial shaft load500 N
Permissible radial shaft load2530 N
Rotor position sensorAbsolute encoder, multi-turn
Rotor position sensor, manufacturer designationEQI 1331
Rotor position sensor, absolute detectable revolutions4096
Rotor position encoder interfaceEnDat 22
Rotor position sensor, encoder measuring principleInductive
Rotor position sensor, DC operating voltage5 V
Rotor position sensor, DC operating voltage range3.6 to 14 V
Rotor position sensor, position values per revolution524288
Rotor position transducer resolution19 bit
Rotor position sensor, system accuracy of angle measurement-65 to 65 arcsec
Brake holding torque115 Nm
Operating voltage DC for brake24 V
Brake current consumption2.08 A
Power consumption, brake50 W
Brake separation time190 ms
Brake closing time65 ms
DC brake response delay12 ms
Maximum brake no-load speed8000 1/min
Maximum friction per braking process62000 J
Number of emergency stops per hour1
Total brake friction13000 kJ
Mass moment of inertia of brake50 kgcm²
Switching cycles holding brake5 million idle actuations (without friction work)
Mean time to failure (MTTF), subcomponent190 years, rotor position encoder
Energy efficiencyENEFF (CN) / Class 1
ManufacturerFesto
Hersteller-NrEMMT-AS-190-MKR-HS-R3MB
EAN4052568592288
Zolltarifnummer85015230
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
AusführungMultiturn-Absolutwertgeber, mit Haltebremse
NormDIN EN 60034-1, DIN EN 60034-7, DIN EN 60034
SeriesEMMT
Protection ratingIP21
Temperature (max.)40
