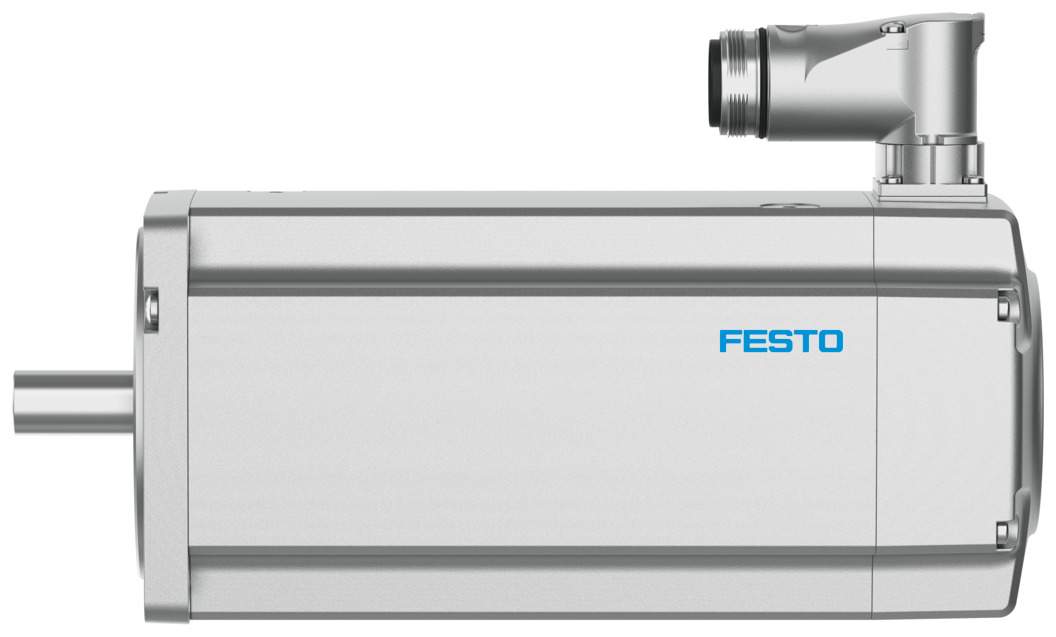

Servo motor 6377 W, 45.5 Nm standstill torque, holding brake, single-turn encoder EMMT-AS-150-L-HS-R3SB - Festo 8148327

Festo ✓ Original product Brand new

29 Nm nominal torque and 87 Nm peak torque make the EMMT-AS-150-L-HS-R3SB a drive for dynamic positioning tasks. Rated power 6377 W at 2100 1/min, designed for 680 V DC. A single-turn absolute encoder (EnDat 22) captures the rotor position, the holding brake holds 65 Nm.

Net
€3,300.51
excl. VAT
Item FES-8148327
Manufacturer no. EMMT-AS-150-L-HS-R3SB
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Festo EMMT-AS-150-L-HS-R3SB servo motor: 6377 W rated power, 29 Nm nominal torque, up to 87 Nm in peak operation. Total moment of inertia is 70.1 kgcm².

Benefits

  • Peak torque 87 Nm for short cycles and acceleration phases
  • Speed up to 3495 1/min, nominal speed 2100 1/min
  • Single-turn absolute encoder with 19 bit resolution, EnDat 22 interface
  • Holding brake 65 Nm, operating voltage 24 V DC
  • Cogging torque below 1.0 % of peak torque, smooth running even at low speeds
  • Degree of protection IP21, ambient temperature -15 to 40 °C

Application

The EMMT-AS-150-L-HS-R3SB drives linear axes, spindles and gear units. Permitted radial shaft load is 1370 N.

Technical data

TypeEMMT-AS-150-L-HS-R3SB
Festo part no.8148327
Ambient temperature-15 to 40 °C
Note on ambient temperatureUp to 80°C with derating of -1.5% per degree Celsius
Maximum installation height4000 m
Note on maximum installation heightAs of 1,000 m: only with derating of -1.0% per 100 m
Storage temperature-20 to 70 °C
Relative air humidity0 - 90%
Conforms to standardIEC 60034
Temperature class as per EN 60034-1F
Maximum winding temperature155 °C
Rating class as per EN 60034-1S1
Temperature monitoringDigital motor temperature transmission via EnDat® 2.2
Motor type to EN 60034-7IM V1, IM V3
Mounting positionAny
Degree of protectionIP21
Note on degree of protectionIP67 for motor housing including connection components
Concentricity, coaxiality, axial runout to DIN SPEC 42955N
Balance qualityG 2.5
Detent torque&lt,1.0% of peak torque
Bearing lifetime under nominal conditions20000 h
Interface code, motor out150A
Electrical connection 1, connection typeHybrid plug
Electrical connection 1, connector systemM40x1
Electrical connection 1, number of connections/cores15
Electrical connection 1, connection pattern00997380
Pollution degree2
Note on materialsRoHS compliant
Corrosion resistance class CRC0 - No corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Vibration resistanceAs per EN 60068-2-6
Shock resistanceAs per EN 60068-2-29, 15 g/11 ms to EN 60068-2-27
ApprovalRCM, c UL us - Recognized (OL)
CE mark (see declaration of conformity)To EU EMC Directive, To EU Low Voltage Directive, In accordance with EU RoHS Directive
UKCA marking (see declaration of conformity)To UK RoHS instructions, To UK regulations for electrical equipment
Certificate issuing authorityUL E342973
Nominal operating voltage DC680 V
Type of winding switchStar inside
Number of pole pairs5
Standstill torque45.5 Nm
Nominal torque29 Nm
Peak torque87 Nm
Nominal rotary speed2100 1/min
Maximum rotational speed3495 1/min
Maximum mechanical speed8000 1/min
Angular acceleration100000 rad/s²
Nominal power rating of motor6377 W
Continuous stall current23.6 A
Nominal motor current15.4 A
Peak current49.5 A
Motor constant1.88 Nm/A
Standstill torque constant2.23 Nm/A
Voltage constant, phase-to-phase135.1 mVmin
Phase-phase winding resistance0.25 Ohm
Phase-phase winding inductance4.4 mH
Winding longitudinal inductivity Ld (phase)2.15 mH
Winding cross inductivity Lq (phase)2.2 mH
Electric time constant17.1 ms
Thermal time constant55 min
Thermal resistance0.39 K/W
Measuring flange450 x 450 x 30 mm, steel
Total mass moment of inertia of output70.1 kgcm²
Product weight29700 g
Permissible axial shaft load274 N
Permissible radial shaft load1370 N
Rotor position sensorAbsolute encoder, single turn
Rotor position sensor, manufacturer designationECI 1319
Rotor position sensor, absolute detectable revolutions1
Rotor position encoder interfaceEnDat 22
Rotor position sensor, encoder measuring principleInductive
Rotor position sensor, DC operating voltage5 V
Rotor position sensor, DC operating voltage range3.6 to 14 V
Rotor position sensor, position values per revolution524288
Rotor position transducer resolution19 bit
Rotor position sensor, system accuracy of angle measurement-65 to 65 arcsec
Brake holding torque65 Nm
Operating voltage DC for brake24 V
Brake current consumption1.08 A
Power consumption, brake26 W
Brake separation time200 ms
Brake closing time40 ms
DC brake response delay10 ms
Maximum brake no-load speed8000 1/min
Maximum friction per braking process40000 J
Number of emergency stops per hour1
Total brake friction4500 kJ
Mass moment of inertia of brake12.5 kgcm²
Switching cycles holding brake5 million idle actuations (without friction work)
Mean time to failure (MTTF), subcomponent190 years, rotor position encoder
Energy efficiencyENEFF (CN) / Class 1
ManufacturerFesto
Hersteller-NrEMMT-AS-150-L-HS-R3SB
EAN4052568591670
Zolltarifnummer85015230
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
AusführungSingleturn-Absolutwertgeber, mit Haltebremse
NormDIN EN 60034-1, DIN EN 60034-7, DIN EN 60034
SeriesEMMT
Protection ratingIP21
Temperature (max.)40
