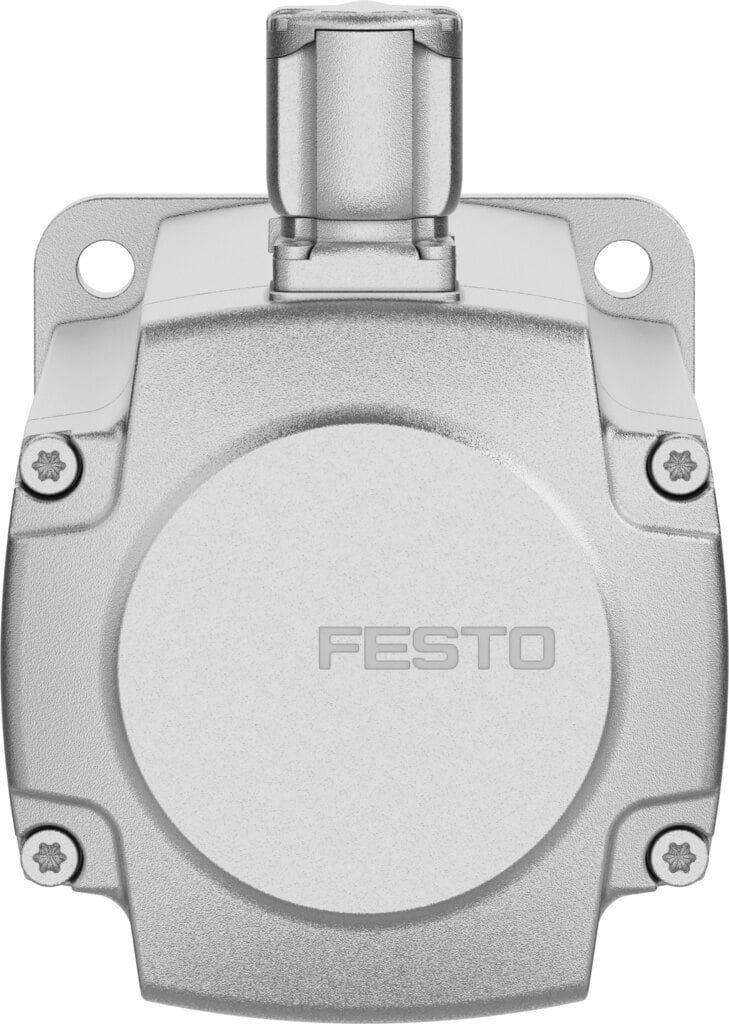

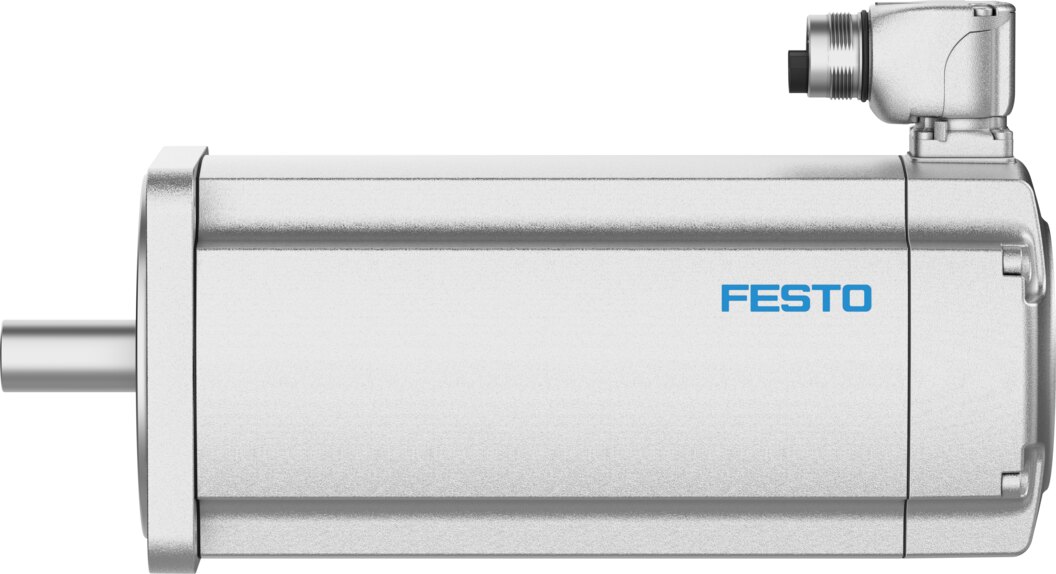

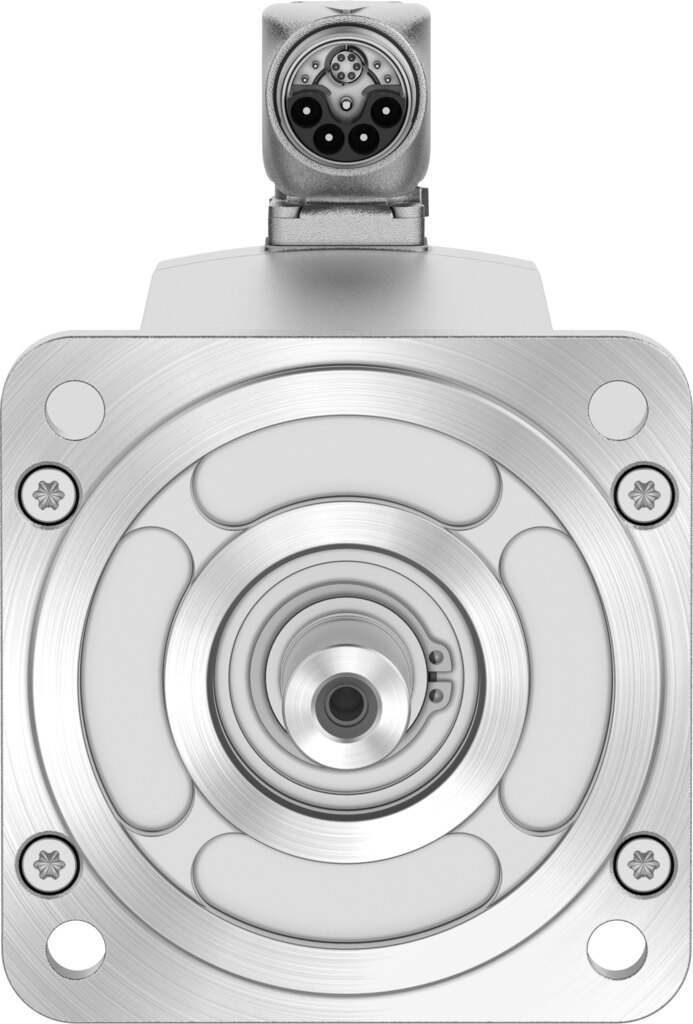

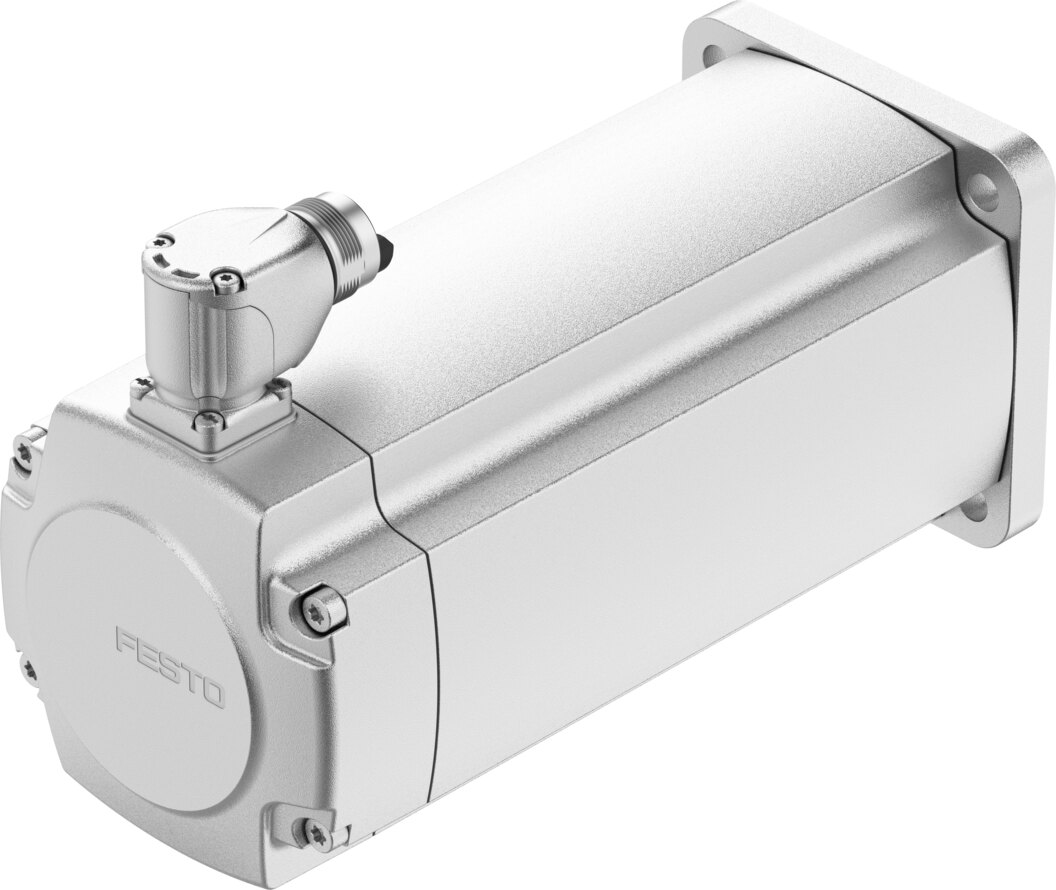

Servo motor 680 V, 6.3 Nm standstill torque, multi-turn safety encoder, holding brake EMMT-AS-100-S-HS-RMYB - Festo 8160655

Festo ✓ Original product Brand new

The servo motor EMMT-AS-100-S-HS-RMYB delivers 5.1 Nm nominal torque at 2700 1/min and briefly reaches 13.7 Nm. An integrated multi-turn safety encoder with EnDat 22 handles position control. A 11 Nm holding brake secures the load when the drive is switched off.

Net
€1,313.78
excl. VAT
Item FES-8160655
Manufacturer no. EMMT-AS-100-S-HS-RMYB
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Festo servo motor EMMT-AS-100-S-HS-RMYB is designed for 680 V and delivers 5.1 Nm nominal torque at 2700 1/min.

Benefits

  • Reserve for acceleration: peak torque 13.7 Nm at 5.1 Nm nominal torque
  • Multi-turn safety encoder: EnDat 22, 19 bit, 4096 revolutions absolute
  • Holding brake: 11 Nm holding torque, operating voltage 24 V DC
  • Connection: hybrid plug M23x1, 15 pins
  • Degree of protection: IP40 at the shaft, IP67 for housing and connection components
  • Functional safety: SIL 3 and PL e, category 3 (see user documentation)

Applications

It is used in electric drives for assembly, handling and packaging at ambient temperatures of -40 to 40 °C.

Technical data

Ambient temperature-40 to 40 °C
Note on ambient temperatureUp to 80°C with derating of -1.5% per degree Celsius
Maximum installation height4000 m
Note on maximum installation heightAs of 1,000 m: only with derating of -1.0% per 100 m
Storage temperature-40 to 70 °C
Relative air humidity0 - 90%
Conforms to standardIEC 60034
Temperature class as per EN 60034-1F
Maximum winding temperature155 °C
Rating class as per EN 60034-1S1
Temperature monitoringDigital motor temperature transmission via EnDat 2.2
Motor type to EN 60034-7IM V1, IM V3
Mounting positionAny
Degree of protectionIP40
Note on degree of protectionIP67 for motor housing including connection components
Concentricity, coaxiality, axial runout to DIN SPEC 42955N
Balance qualityG 2.5
Detent torquebelow 1.0% of peak torque
Bearing lifetime under nominal conditions20000 h
Interface code, motor out100A
Electrical connection 1, connection typeHybrid plug
Electrical connection 1, connector systemM23x1
Electrical connection 1, number of connections/cores15
Pollution degree2
Note on materialsRoHS compliant
Corrosion resistance class CRC0 - No corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
ApprovalRCM, German Technical Control Board (TÜV), c UL us - Recognised (Oil)
CE mark (see declaration of conformity)To EU EMC Directive, To EU Low Voltage Directive, In accordance with EU RoHS Directive
UKCA marking (see declaration of conformity)To UK RoHS instructions, To UK regulations for electrical equipment
Certificate issuing authorityTÜV 968/INS 464.00/24, UL E342973
Nominal operating voltage DC680 V
Type of winding switchStar inside
Number of pole pairs5
Standstill torque6.3 Nm
Nominal torque5.1 Nm
Peak torque13.7 Nm
Nominal rotary speed2700 1/min
Maximum rotational speed4770 1/min
Maximum mechanical speed13000 1/min
Angular acceleration100000 rad/s²
Nominal power rating of motor1450 W
Continuous stall current4.4 A
Nominal motor current3.5 A
Peak current13.7 A
Motor constant1.45 Nm/A
Standstill torque constant1.67 Nm/A
Voltage constant, phase-to-phase101 mVmin
Phase-phase winding resistance3.35 Ohm
Phase-phase winding inductance32.4 mH
Winding longitudinal inductivity Ld (phase)17.8 mH
Winding cross inductivity Lq (phase)24.3 mH
Electric time constant14.5 ms
Thermal time constant74 min
Thermal resistance0.6 K/W
Measuring flange300 x 300 x 20 mm, steel
Total mass moment of inertia of output4.04 kgcm²
Product weight6700 g
Permissible axial shaft load200 N
Permissible radial shaft load1110 N
Rotor position sensorAbsolute multi-turn safety encoder
rotor position sensor, manufacturer designationEQI 1331
rotor position sensor, absolute detectable revolutions4096
Rotor position encoder interfaceEnDat 22
Rotor position sensor, encoder measuring principleInductive
rotor position sensor, DC operating voltage5 V
rotor position sensor, DC operating voltage range3.6 to 14 V
rotor position sensor, position values per revolution524288
Rotor position transducer resolution19 bit
rotor position sensor, system accuracy of angle measurement-65 to 65 arcsec
Brake holding torque11 Nm
Operating voltage DC for brake24 V
Brake current consumption0.75 A
Power consumption, brake18 W
Brake coil resistance32 Ohm
Brake coil inductivity900 mH
Brake separation time80 ms
Brake closing time20 ms
DC brake response delay4 ms
Maximum brake no-load speed10000 1/min
Maximum friction per braking process12000 J
Number of emergency stops per hour1
Total brake friction1335 kJ
Mass moment of inertia of brake0.74 kgcm²
Switching cycles holding brake10 million idle actuations (without friction work)
Safety deviceSafety device
Maximum SILSafety integrity level 3, See user documentation
Safety sub-functions up to SIL2Reliable recording and transmission of single-turn position data
Safety sub-functions up to SIL3Reliable recording and transmission of single-turn position data, only with additional software function in the servo drive
Maximum PL and categoryPerformance Level e, category 3, See user documentation
Safety sub-function up to PL d, category 3Reliable recording and transmission of single-turn position data
Safety sub-function up to PL e, category 3Reliable recording and transmission of single-turn position data, only with additional software function in the servo drive
PFHd, subcomponent15 x 10 × 10⁻⁹, encoder
Duration of use Tm, subcomponent20 years, rotor position encoder
Energy efficiencyENEFF (CN) / Class 2
Weight7 kg
ManufacturerFesto
Hersteller-NrEMMT-AS-100-S-HS-RMYB
EAN4052568652210
Zolltarifnummer85015220
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
SeriesEMMT
Protection ratingIP40
Temperature (max.)40
