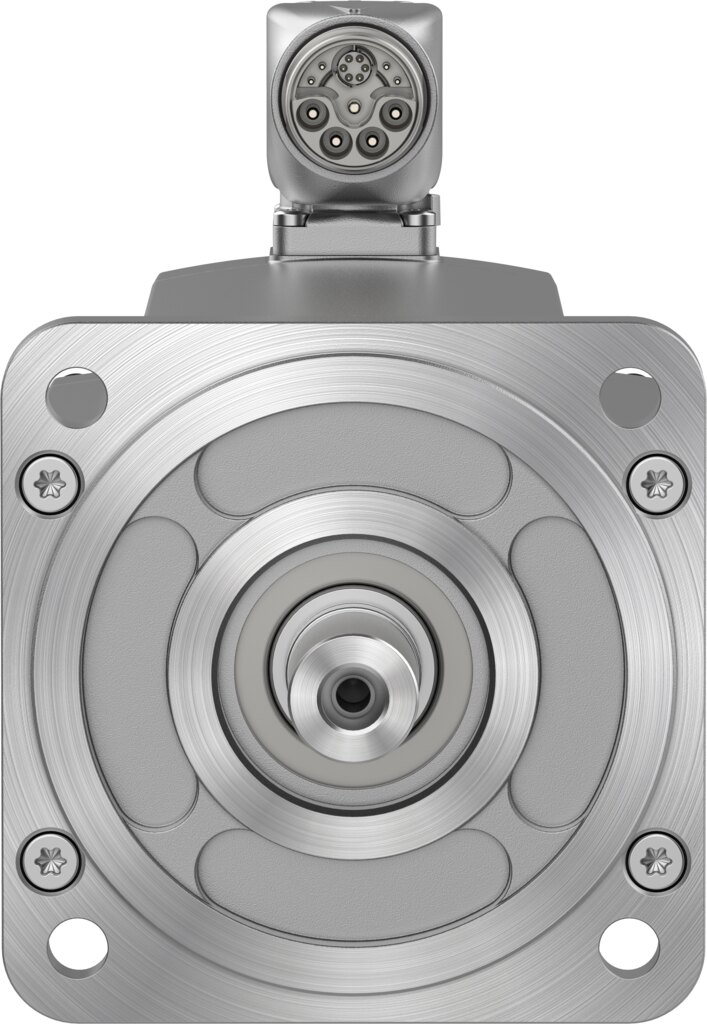

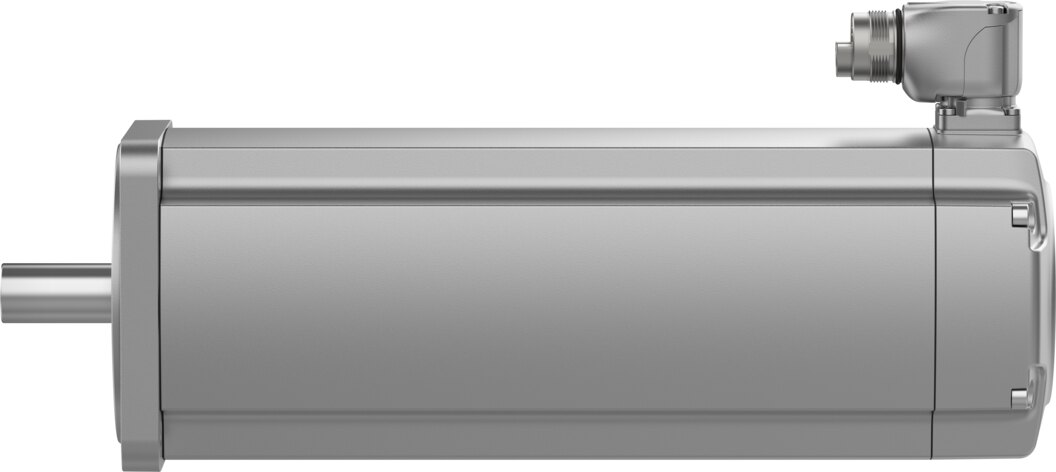

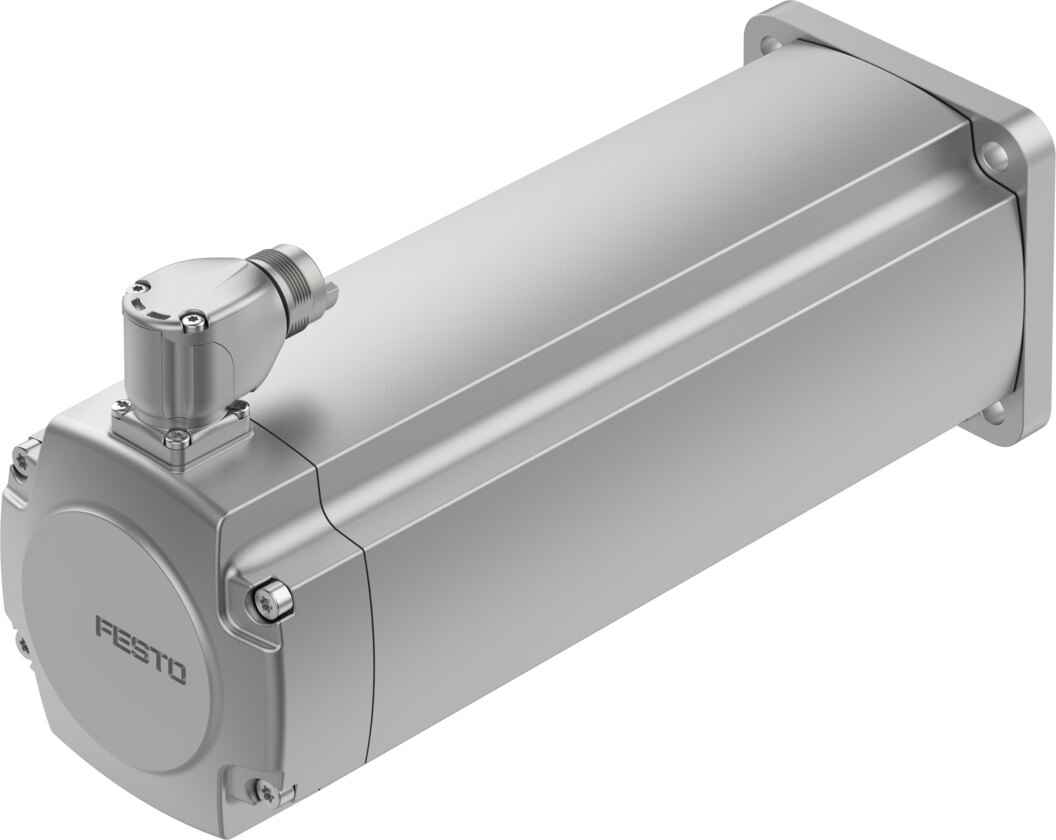

Servo motor 680 V, 12.4 Nm standstill torque, single-turn absolute encoder, holding brake EMMT-AS-100-H-HS-RSB - Festo 8182015

Festo ✓ Original product Brand new

Servo motor EMMT-AS-100-H-HS-RSB for 680 V DC link voltage with 12.4 Nm standstill torque and up to 38.7 Nm peak torque. An integrated single-turn absolute encoder with EnDat 22 handles position control. The integrated 24 V holding brake holds 18 Nm at standstill.

Net
€1,733.97
excl. VAT
Item FES-8182015
Manufacturer no. EMMT-AS-100-H-HS-RSB
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Festo servo motor EMMT-AS-100-H-HS-RSB is designed for 680 V and delivers 7.3 Nm nominal torque at 2700 1/min.

Benefits

  • Reserve for acceleration: peak torque 38.7 Nm at 7.3 Nm nominal torque
  • Single-turn absolute encoder: EnDat 22, 19 bit
  • Holding brake: 18 Nm holding torque, operating voltage 24 V DC
  • Connection: hybrid plug M23x1, 15 pins
  • Degree of protection: IP40 at the shaft, IP67 for housing and connection components
  • Bearing service life: 20000 h under nominal conditions

Applications

Typical tasks are electric axes, rotary tables and toothed belt drives where 7.3 Nm nominal torque is sufficient.

Technical data

Ambient temperature-40 to 40 °C
Note on ambient temperatureUp to 80°C with derating of -2.25% per degree Celsius
Maximum installation height4000 m
Note on maximum installation heightAs of 1,000 m: only with derating of -1.0% per 100 m
Storage temperature-40 to 70 °C
Relative air humidity0 - 90%
Conforms to standardIEC 60034
Temperature class as per EN 60034-1F
Maximum winding temperature155 °C
Rating class as per EN 60034-1S1
Temperature monitoringDigital motor temperature transmission via EnDat 2.2
Motor type to EN 60034-7IM V1, IM V3
Mounting positionAny
Degree of protectionIP40
Note on degree of protectionIP67 for motor housing including connection components
Concentricity, coaxiality, axial runout to DIN SPEC 42955N
Balance qualityG 2.5
Detent torquebelow 1.0% of peak torque
Bearing lifetime under nominal conditions20000 h
Interface code, motor out100A
Electrical connection 1, connection typeHybrid plug
Electrical connection 1, connector systemM23x1
Electrical connection 1, number of connections/cores15
Pollution degree2
Note on materialsRoHS compliant
Corrosion resistance class CRC0 - No corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
ApprovalRCM, c UL us - Recognised (Oil)
CE mark (see declaration of conformity)To EU EMC Directive, To EU Low Voltage Directive, In accordance with EU RoHS Directive
UKCA marking (see declaration of conformity)To UK RoHS instructions, To UK regulations for electrical equipment
Certificate issuing authorityUL E342973
Nominal operating voltage DC680 V
Type of winding switchStar inside
Number of pole pairs5
Standstill torque12.4 Nm
Nominal torque7.3 Nm
Peak torque38.7 Nm
Nominal rotary speed2700 1/min
Maximum rotational speed5150 1/min
Maximum mechanical speed13000 1/min
Angular acceleration100000 rad/s²
Nominal power rating of motor2060 W
Continuous stall current9.5 A
Nominal motor current5.5 A
Peak current36 A
Motor constant1.32 Nm/A
Standstill torque constant1.54 Nm/A
Voltage constant, phase-to-phase93.2 mVmin
Phase-phase winding resistance0.81 Ohm
Phase-phase winding inductance9 mH
Winding longitudinal inductivity Ld (phase)5.7 mH
Winding cross inductivity Lq (phase)6.8 mH
Electric time constant16.7 ms
Thermal time constant68 min
Thermal resistance0.39 K/W
Measuring flange300 x 300 x 20 mm, steel
Total mass moment of inertia of output11.09 kgcm²
Product weight13300 g
Permissible axial shaft load200 N
Permissible radial shaft load915 N
Rotor position sensorAbsolute encoder, single turn
rotor position sensor, manufacturer designationECI 1319
rotor position sensor, absolute detectable revolutions1
Rotor position encoder interfaceEnDat 22
Rotor position sensor, encoder measuring principleInductive
rotor position sensor, DC operating voltage5 V
rotor position sensor, DC operating voltage range3.6 to 14 V
rotor position sensor, position values per revolution524288
Rotor position transducer resolution19 bit
rotor position sensor, system accuracy of angle measurement-65 to 65 arcsec
Brake holding torque18 Nm
Operating voltage DC for brake24 V
Brake current consumption1 A
Power consumption, brake24 W
Brake coil resistance24 Ohm
Brake coil inductivity900 mH
Brake separation time80 ms
Brake closing time40 ms
DC brake response delay5 ms
Maximum brake no-load speed10000 1/min
Maximum friction per braking process15000 J
Number of emergency stops per hour1
Total brake friction3600 kJ
Mass moment of inertia of brake2.15 kgcm²
Switching cycles holding brake10 million idle actuations (without friction work)
Mean time to failure (MTTF), subcomponent190 years, rotor position encoder
Energy efficiencyENEFF (CN) / Class 2
Weight14 kg
ManufacturerFesto
Hersteller-NrEMMT-AS-100-H-HS-RSB
EAN4052568624040
Zolltarifnummer85015220
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
SeriesEMMT
Protection ratingIP40
Temperature (max.)40
