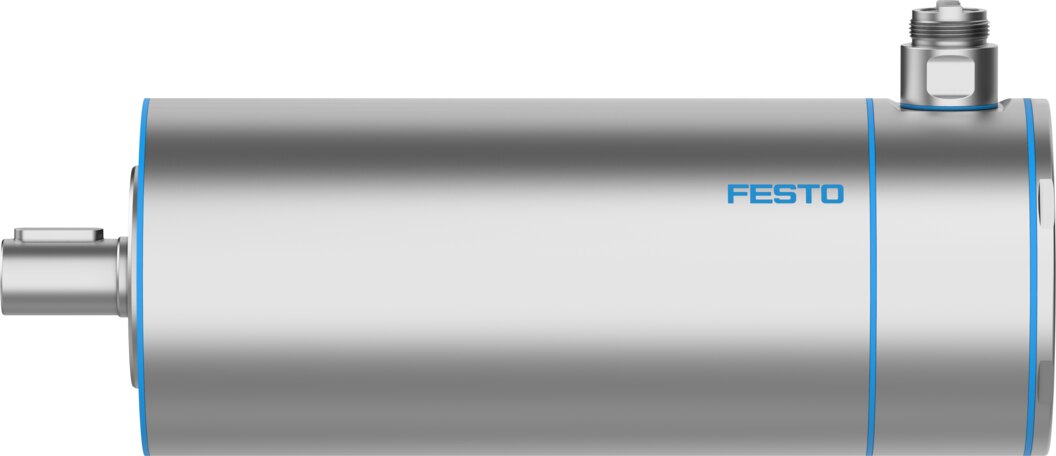

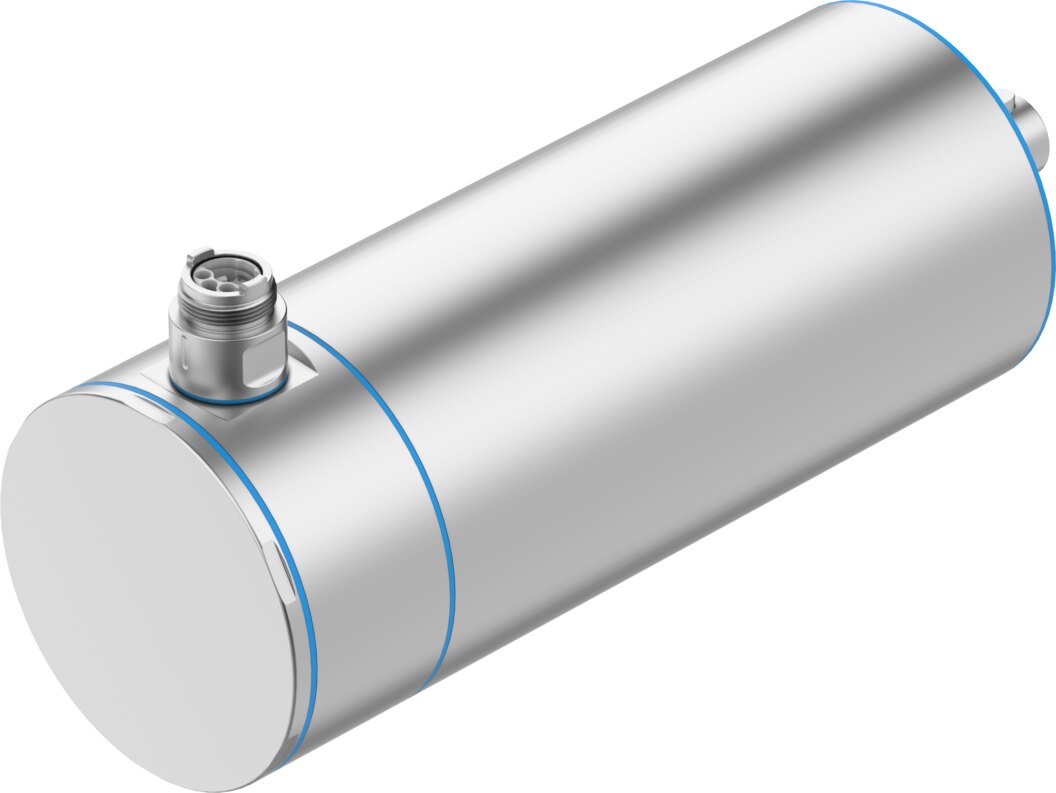

Servo motor IP69K 680 V, 3.95 Nm standstill torque, multi-turn absolute encoder, holding brake EMMH-AS-88-HKA-HS-S1MB-T - Festo 8215356

Festo ✓ Original product Brand new

The servo motor EMMH-AS-88-HKA-HS-S1MB-T delivers 1.8 Nm nominal torque at 3100 1/min and briefly reaches 14.3 Nm. Rotor position is captured by a multi-turn absolute encoder with 19 bit resolution. A 6 Nm holding brake secures the load when the drive is switched off.

Net
€4,105.50
excl. VAT
Item FES-8215356
Manufacturer no. EMMH-AS-88-HKA-HS-S1MB-T
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

For positioning drives at 680 V, the servo motor EMMH-AS-88-HKA-HS-S1MB-T offers 1.8 Nm continuous nominal torque and peaks up to 14.3 Nm.

Benefits

  • Reserve for acceleration: peak torque 14.3 Nm at 1.8 Nm nominal torque
  • Multi-turn absolute encoder: EnDat 22, 19 bit, 4096 revolutions absolute
  • Holding brake: 6 Nm holding torque, operating voltage 24 V DC
  • Connection: hybrid plug M21x1, 15 pins
  • Hygienic design: IP69K, corrosion resistance class CRC 4, approved for direct food contact
  • Bearing service life: 20000 h under nominal conditions

Applications

IP69K and approval for direct food contact make the motor suitable for food and beverage machines with wet cleaning.

Technical data

Ambient temperature-30 to 40 °C
Note on ambient temperatureUp to 80°C with derating of -1.5% per degree Celsius
Maximum installation height3000 m
Note on maximum installation heightAs of 1,000 m: only with derating of -1.0% per 100 m
Storage temperature-20 to 70 °C
Relative air humidity0 - 100%
Conforms to standardIEC 60034
Temperature class as per EN 60034-1F
Maximum winding temperature155 °C
Rating class as per EN 60034-1S1
Temperature monitoringDigital motor temperature transmission via EnDat 2.2
Motor type to EN 60034-7IM B14, IM V18
Mounting positionAny
Degree of protectionIP69K
Concentricity, coaxiality, axial runout to DIN SPEC 42955N
Balance qualityG 2.5
Detent torquebelow 1.0% of peak torque
Bearing lifetime under nominal conditions20000 h
Interface code, motor out88C
Electrical connection 1, connection typeHybrid plug
Electrical connection 1, connector systemM21x1
Electrical connection 1, number of connections/cores15
Pollution degree2
Note on materialsRoHS compliant
Corrosion resistance class CRC4 - Very high corrosion stress, (except laser marking)
LABS (PWIS) conformityVDMA24364 zone III
Suitable for use with foodApproved for direct contact with food
Vibration resistanceAs per EN 60068-2-6
Shock resistanceAs per EN 60068-2-29, 15 g/11 ms to EN 60068-2-27
ApprovalRCM, c UL us - Recognised (Oil)
CE mark (see declaration of conformity)To EU EMC Directive, To EU Low Voltage Directive, In accordance with EU RoHS Directive
UKCA marking (see declaration of conformity)To UK RoHS instructions, To UK regulations for electrical equipment
Certificate issuing authorityUL E342973
Nominal operating voltage DC680 V
Type of winding switchStar inside
Number of pole pairs5
Standstill torque3.95 Nm
Nominal torque1.8 Nm
Peak torque14.3 Nm
Nominal rotary speed3100 1/min
Maximum rotational speed8000 1/min
Maximum mechanical speed8000 1/min
Angular acceleration100000 rad/s²
Nominal power rating of motor580 W
Continuous stall current4.6 A
Nominal motor current2.3 A
Peak current16.5 A
Motor constant0.79 Nm/A
Standstill torque constant0.83 Nm/A
Voltage constant, phase-to-phase55.3 mVmin
Phase-phase winding resistance1.8 Ohm
Phase-phase winding inductance7.1 mH
Winding longitudinal inductivity Ld (phase)3.5 mH
Winding cross inductivity Lq (phase)3.9 mH
Electric time constant3.9 ms
Thermal time constant62 min
Thermal resistance1.01 K/W
Measuring flange300 x 300 x 30 mm, steel
Mass moment of inertia of rotor2.09 kgcm²
Total mass moment of inertia of output2.56 kgcm²
Product weight6700 g
Permissible axial shaft load86 N
Permissible radial shaft load430 N
Rotor position sensorAbsolute encoder, multi-turn
rotor position sensor, manufacturer designationEQI 1131
rotor position sensor, absolute detectable revolutions4096
Rotor position encoder interfaceEnDat 22
Rotor position sensor, encoder measuring principleInductive
rotor position sensor, DC operating voltage5 V
rotor position sensor, DC operating voltage range3.6 to 14 V
rotor position sensor, position values per revolution524288
Rotor position transducer resolution19 bit
rotor position sensor, system accuracy of angle measurement-120 to 120 arcsec
Brake holding torque6 Nm
Operating voltage DC for brake24 V
Brake current consumption0.5 A
Power consumption, brake12 W
Brake coil resistance48 Ohm
Brake coil inductivity2100 mH
Brake separation time50 ms
Brake closing time45 ms
DC brake response delay10 ms
Maximum brake no-load speed10000 1/min
Maximum friction per braking process570 J
Number of emergency stops per hour1
Total brake friction570 kJ
Mass moment of inertia of brake0.41 kgcm²
Switching cycles holding brake10 million idle actuations (without friction work)
Mean time to failure (MTTF), subcomponent190 years, rotor position encoder
Energy efficiencyENEFF (CN) / Class 2
Weight8 kg
ManufacturerFesto
Hersteller-NrEMMH-AS-88-HKA-HS-S1MB-T
EAN4052568788063
Zolltarifnummer85015100
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Protection ratingIP69K
