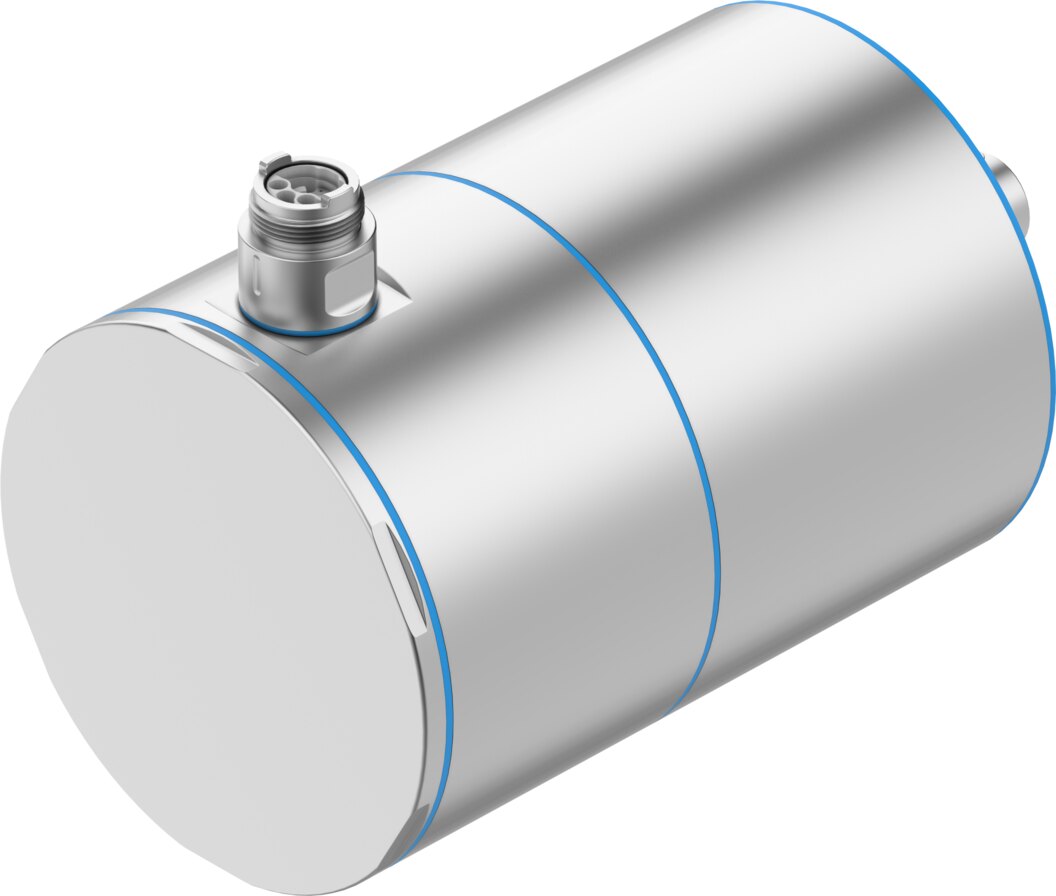

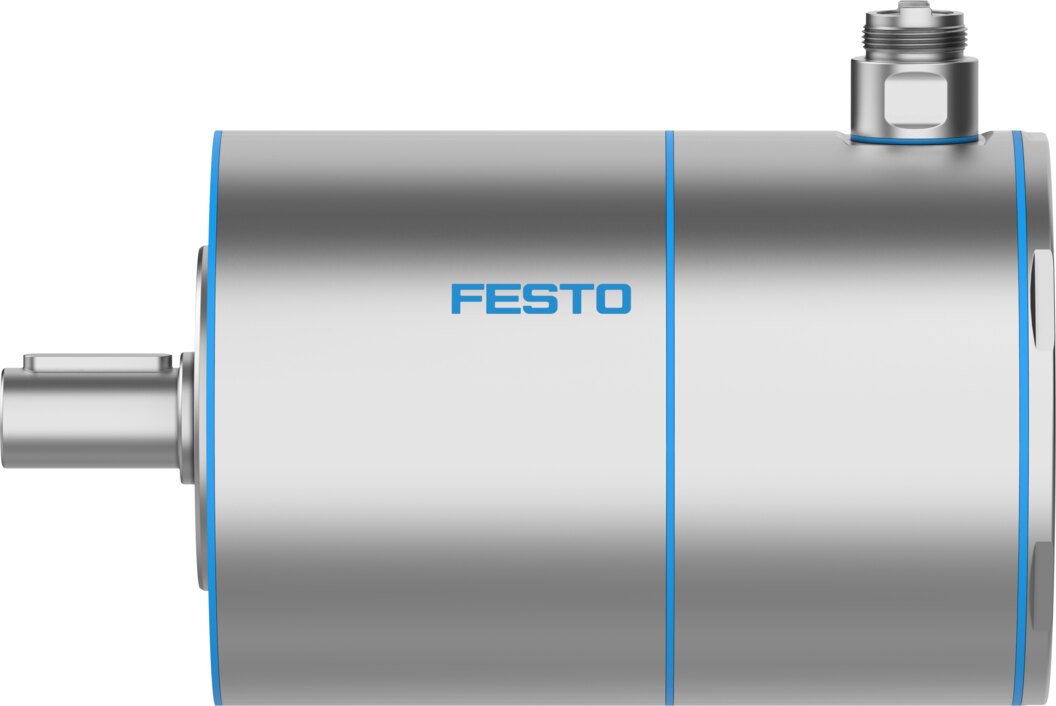

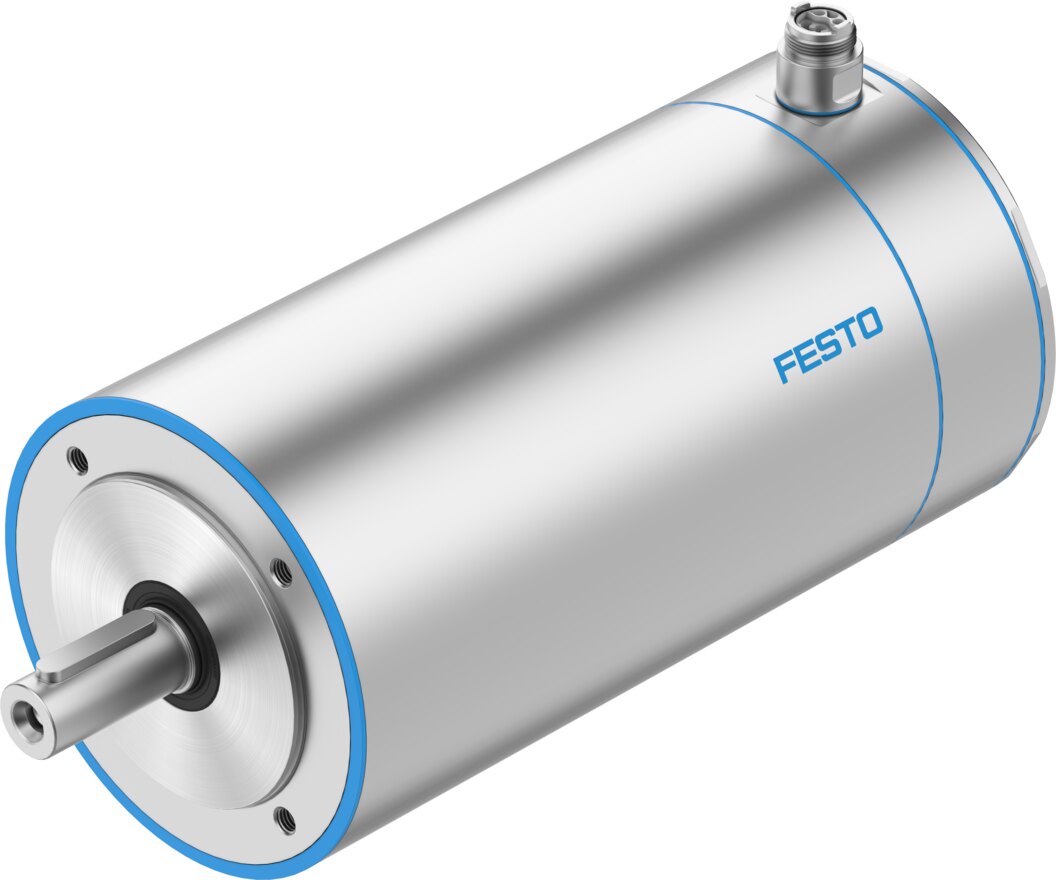

Servo motor EMMH-AS-108-MKA-HS-S1M-T - Festo 8215358
Net
excl. VAT
€4,140.00
Item
FES-8215358
Manufacturer no.
EMMH-AS-108-MKA-HS-S1M-T
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Ambient temperature | -30 ... 40 °C |
|---|---|
| Note on ambient temperature | Up to 80°C with derating -2%/°C |
| Max. installation height | 3000 m |
| Note on max. installation height | As of 1,000 m: only with derating of -1.0% per 100 m |
| Storage temperature | -20 ... 70 °C |
| Relative air humidity | 0 - 100% |
| Conforms to standard | IEC 60034 |
| Temperature class as per EN 60034-1 | F |
| Max. winding temperature | 155 °C |
| Rating class as per EN 60034-1 | S1 |
| Temperature monitoring | Digital motor temperature transmission via EnDat® 2.2 |
| Motor type to EN 60034-7 | IM B14, IM V18 |
| Mounting position | Any |
| Degree of protection | IP69K |
| Concentricity, coaxiality, axial runout to DIN SPEC 42955 | N |
| Balance quality | G 2.5 |
| Detent torque | <1.0% of peak torque |
| Bearing lifetime under nominal conditions | 20000 h |
| Interface code, motor out | 108C |
| Electrical connection 1, connection type | Hybrid plug |
| Electrical connection 1, connector system | M21x1 |
| Electrical connection 1, number of connections/cores | 15 |
| Electrical connection 1, connection pattern | 00997714 |
| Pollution degree | 2 |
| Note on materials | RoHS compliant |
| Corrosion resistance class CRC | 4 - Very high corrosion stress, (except laser marking) |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Suitable for use with food | Approved for direct contact with food |
| Vibration resistance | As per EN 60068-2-6 |
| Shock resistance | As per EN 60068-2-29, 15 g/11 ms to EN 60068-2-27 |
| Approval | RCM, c UL us - Recognised (Oil) |
| CE mark (see declaration of conformity) | To EU EMC Directive, To EU Low Voltage Directive, In accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) | To UK RoHS instructions, To UK regulations for electrical equipment |
| Certificate issuing authority | UL E342973 |
| Nominal operating voltage DC | 680 V |
| Type of winding switch | Star inside |
| Number of pole pairs | 5 |
| Standstill torque | 5.9 Nm |
| Nominal torque | 4 Nm |
| Peak torque | 19 Nm |
| Nominal rotary speed | 2000 1/min |
| Max. rotational speed | 7000 1/min |
| Max. mechanical speed | 7000 1/min |
| Angular acceleration | 100000 rad/s² |
| Nominal power rating of motor | 840 W |
| Continuous stall current | 6.5 A |
| Nominal motor current | 4.5 A |
| Peak current | 22.8 A |
| Motor constant | 0.89 Nm/A |
| Standstill torque constant | 0.92 Nm/A |
| Voltage constant, phase-to-phase | 59.5 mVmin |
| Phase-phase winding resistance | 1.03 Ohm |
| Phase-phase winding inductance | 5.3 mH |
| Winding longitudinal inductivity Ld (phase) | 2.4 mH |
| Winding cross inductivity Lq (phase) | 2.7 mH |
| Electric time constant | 5.2 ms |
| Thermal time constant | 82 min |
| Thermal resistance | 0.77 K/W |
| Measuring flange | 300 x 300 x 30 mm, steel |
| Mass moment of inertia of rotor | 3.57 kgcm² |
| Total mass moment of inertia of output | 3.57 kgcm² |
| Product weight | 7300 g |
| Permissible axial shaft load | 137 N |
| Permissible radial shaft load | 685 N |
| Rotor position sensor | Absolute encoder, multi-turn |
| rotor position sensor, manufacturer designation | EQI 1331 |
| rotor position sensor, absolute detectable revolutions | 4096 |
| Rotor position encoder interface | EnDat 22 |
| Rotor position sensor, encoder measuring principle | Inductive |
| rotor position sensor, DC operating voltage | 5 V |
| rotor position sensor, DC operating voltage range | 3.6 ... 14 V |
| rotor position sensor, position values per revolution | 524288 |
| Rotor position transducer resolution | 19 bit |
| rotor position sensor, system accuracy of angle measurement | -65 ... 65 arcsec |
| Mean time to failure (MTTF), subcomponent | 190 years, rotor position encoder |
| Energy efficiency | ENEFF (CN) / Class 2 |
| Manufacturer | Festo |
| Hersteller-Nr | EMMH-AS-108-MKA-HS-S1M-T |
| EAN | 4052568788087 |
| Zolltarifnummer | 85015220 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
