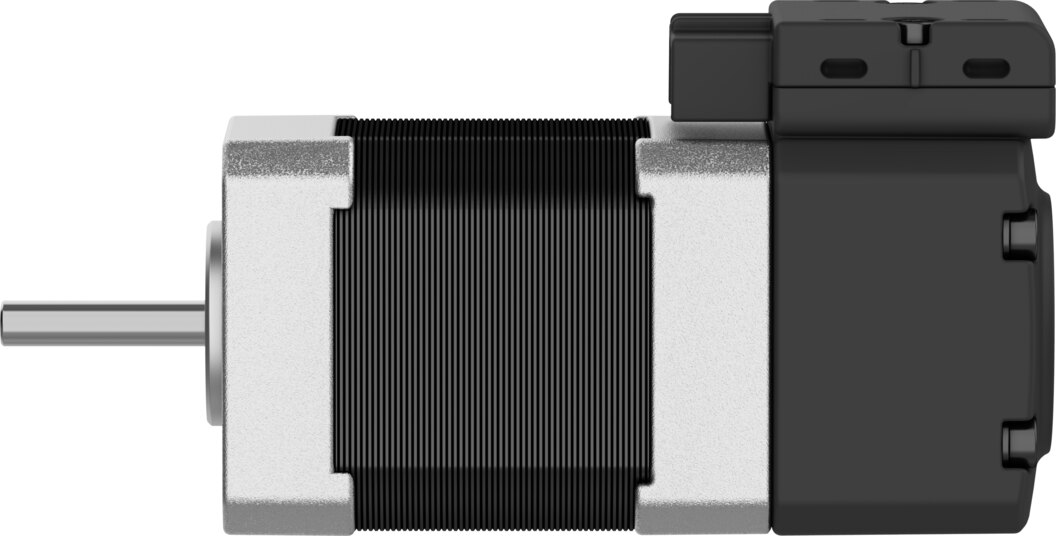

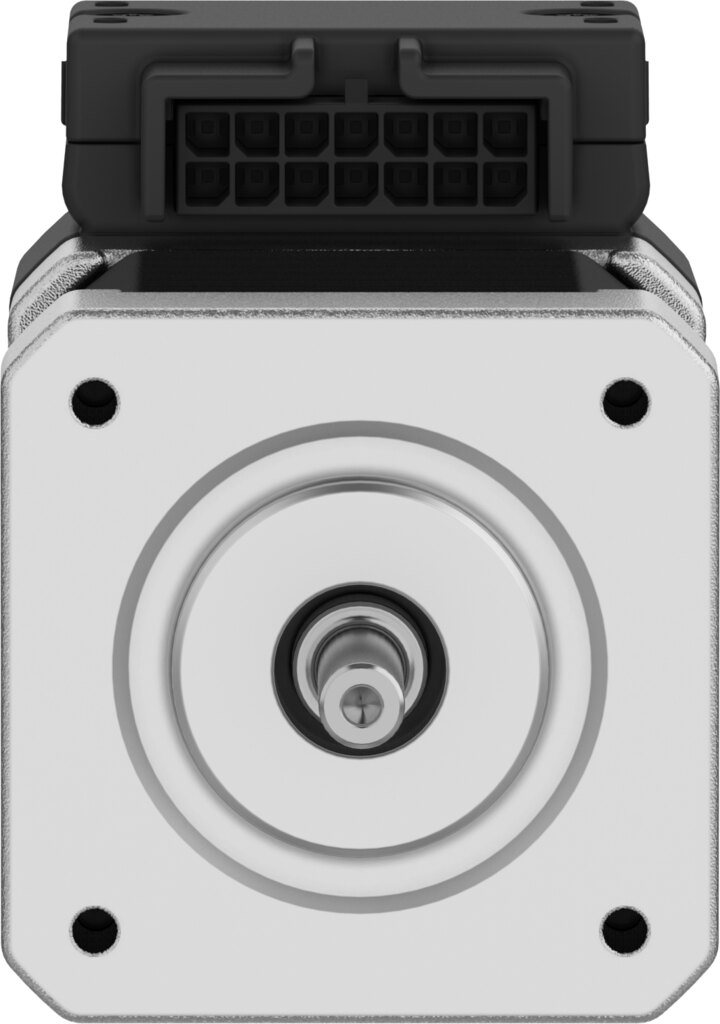

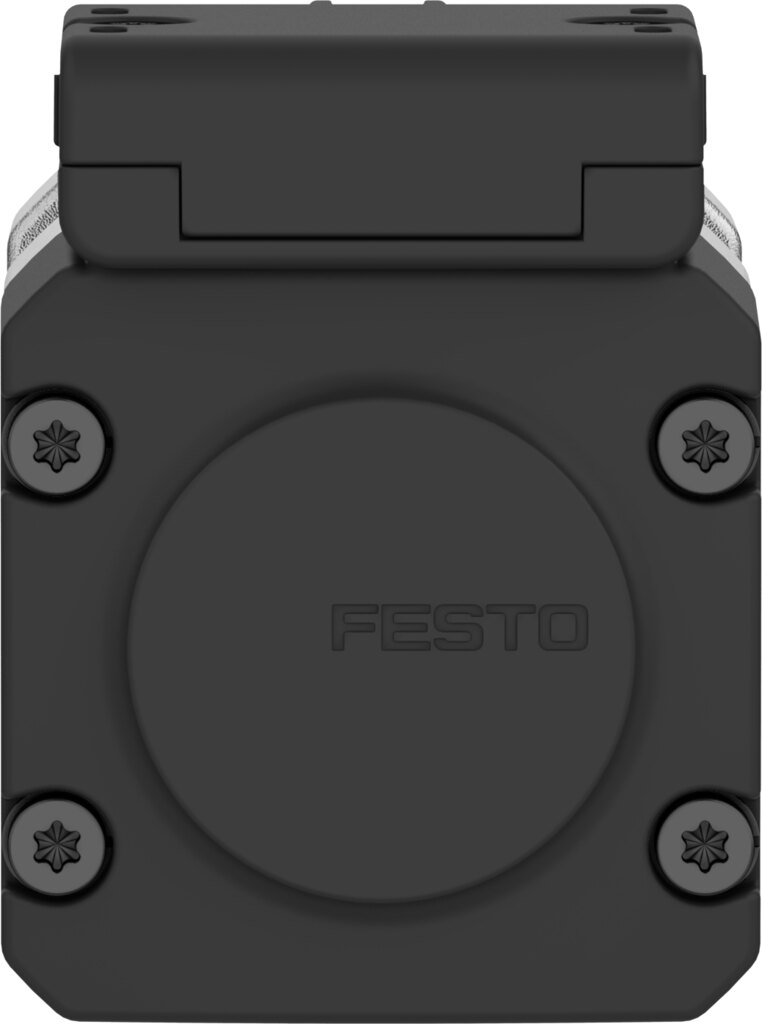

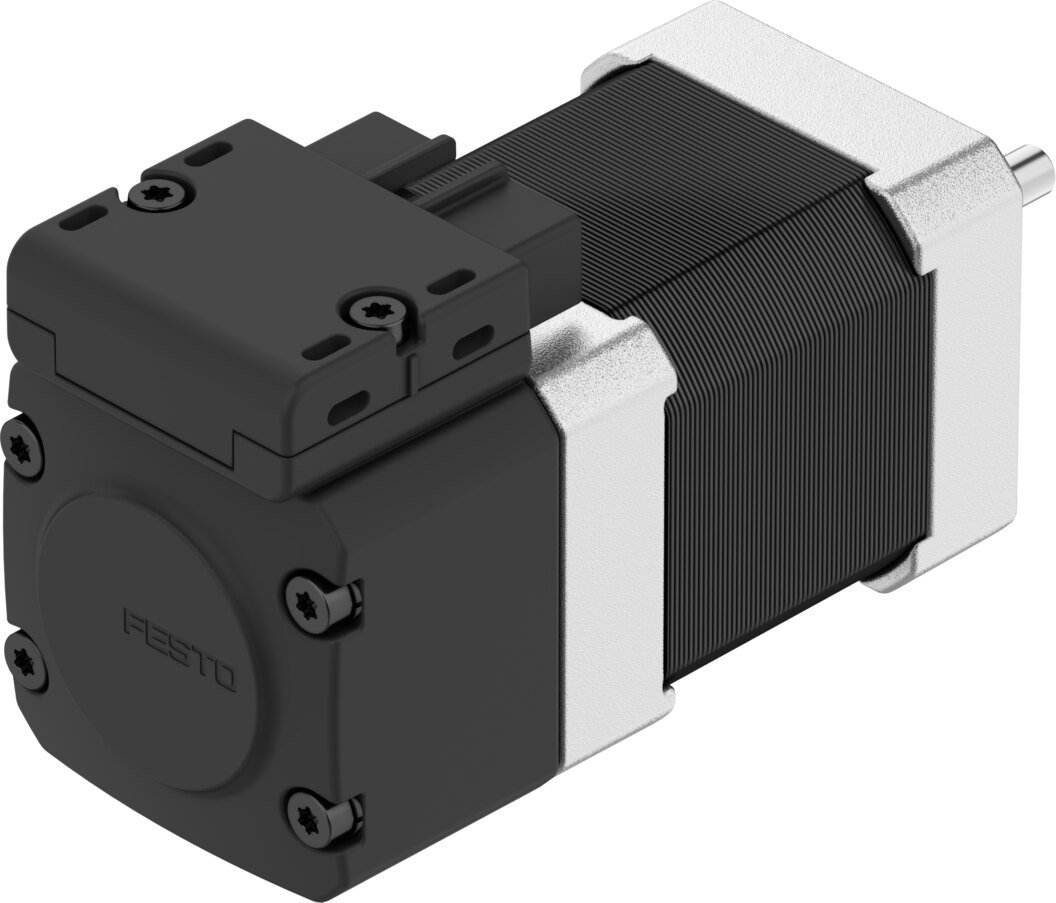

Stepper motor 48 V, 0.63 Nm holding torque EMMB-ST-42-L-S - Festo 8156131

Festo ✓ Original product Brand new

Stepper motor EMMB-ST-42-L-S for 48 V DC link voltage with 0.63 Nm holding torque and up to 0.63 Nm peak torque. The full-step angle is 1.8°. Degree of protection IP20. Connection is made via hybrid plug with connection pattern L5. At 48 V nominal operating voltage the nominal current is 2.9 A.

Net
€117.99
excl. VAT
Item FES-8156131
Manufacturer no. EMMB-ST-42-L-S
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

For positioning drives at 48 V, the stepper motor EMMB-ST-42-L-S offers 0.63 Nm holding torque and peaks up to 0.63 Nm.

Benefits

  • Reserve for acceleration: peak torque 0.63 Nm at 0.63 Nm holding torque
  • Connection: hybrid plug with connection pattern L5, 14 pins
  • Step angle: 1.8° at full step
  • Mass moment of inertia: 0.082 kgcm² total at output

Applications

It is used in electric drives for assembly, handling and packaging at ambient temperatures of -15 to 40 °C.

Technical data

Ambient temperature-15 to 40 °C
Note on ambient temperatureUp to 80°C with derating -2%/°C
Maximum installation height4000 m
Note on maximum installation heightAs of 1,000 m: only with derating of -1.0% per 100 m
Storage temperature-20 to 70 °C
Relative air humidityNon-condensing
Conforms to standardIEC 60034
Temperature class as per EN 60034-1B
Maximum winding temperature130 °C
Rating class as per EN 60034-1S1
Motor type to EN 60034-7IM V1, IM V3
Mounting positionAny
Degree of protectionIP20
Note on degree of protectionIP40 motor shaft
Interface code, motor out42A
Electrical connection 1, connection typeHybrid plug
Electrical connection 1, connector systemConnection pattern L5
Electrical connection 1, number of connections/cores14
Note on materialsRoHS compliant
Corrosion resistance class CRC0 - No corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
ApprovalRCM, c UL us - Recognised (Oil)
CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive
UKCA marking (see declaration of conformity)To UK RoHS instructions
Certificate issuing authorityUL E342973
Nominal operating voltage DC48 V
Number of pole pairs50
Motor holding torque0.63 Nm
Peak torque0.63 Nm
Maximum rotational speed3200 1/min
Maximum mechanical speed9000 1/min
Stepper angle for complete step1.8 deg
Stepping angle tolerance±5%
Continuous stall current3.7 A
Nominal motor current2.9 A
Peak current4 A
Motor constant0.162 Nm/A
Voltage constant, phase10.6 mVmin
Phase winding resistance0.6 Ohm
Phase winding inductance0.8 mH
Winding longitudinal inductivity Ld (phase)1.45 mH
Winding cross inductivity Lq (phase)0.8 mH
Electric time constant1.3 ms
Thermal time constant16 min
Thermal resistance2.4 K/W
Measuring flange200 x 200 x 15 mm, steel
Total mass moment of inertia of output0.082 kgcm²
Product weight490 g
Permissible axial shaft load10 N
Permissible radial shaft load28 N
Weight0.6 kg
ManufacturerFesto
Hersteller-NrEMMB-ST-42-L-S
EAN4052568639099
Zolltarifnummer85015100
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Operating voltage48 V DC
Protection ratingIP20
Temperature (max.)40
