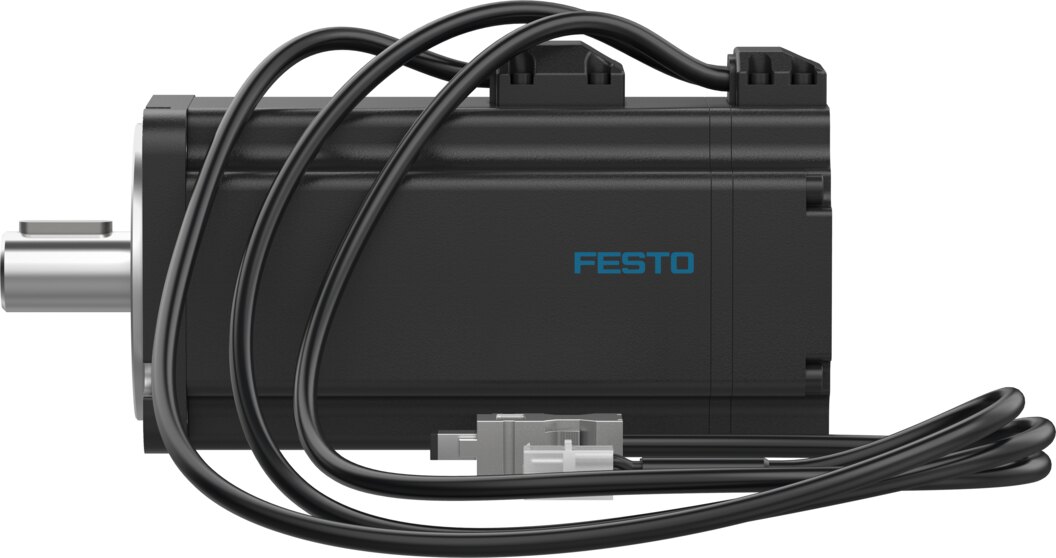

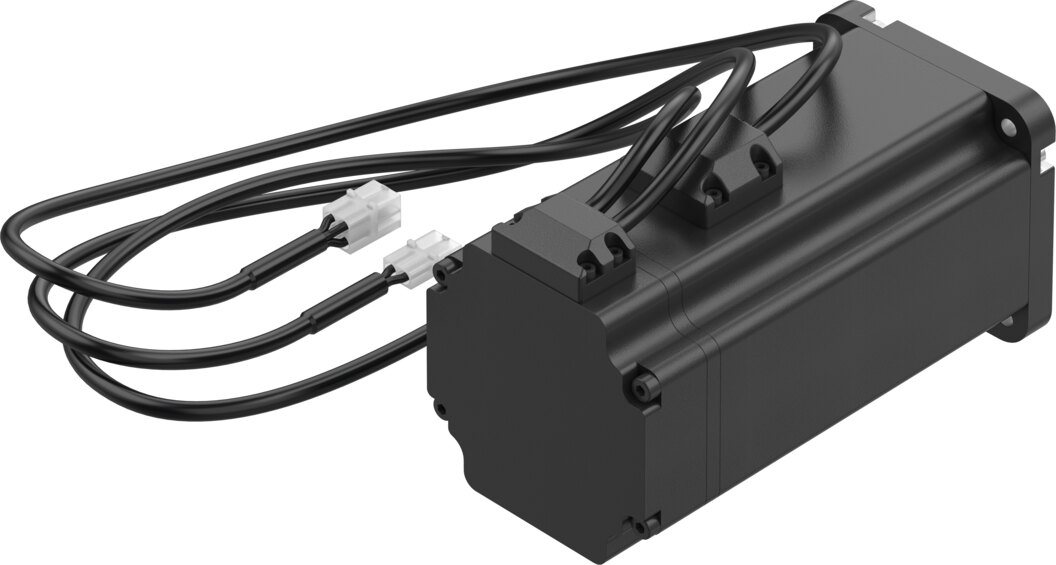

Servo motor 750 W, 2.63 Nm standstill torque, holding brake, single-turn encoder EMMB-AS-80-07-K-S30SB - Festo 8097190

Festo ✓ Original product Brand new

With 2.63 Nm standstill torque and 7.17 Nm peak torque, the Festo EMMB-AS-80-07-K-S30SB holds and accelerates loads precisely. Rated power 750 W at 3000 1/min, designed for 300 V DC. A single-turn absolute encoder (Nikon A-Format) captures the rotor position, the holding brake holds 3.2 Nm.

Net
€679.98
excl. VAT
Item FES-8097190
Manufacturer no. EMMB-AS-80-07-K-S30SB
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Festo EMMB-AS-80-07-K-S30SB is a servo motor with 750 W rated power and 2.63 Nm standstill torque. Total moment of inertia is 0.978 kgcm².

Benefits

  • Peak torque 7.17 Nm for short cycles and acceleration phases
  • Speed up to 5000 1/min, nominal speed 3000 1/min
  • Single-turn absolute encoder with 20 bit resolution, Nikon A-Format interface
  • Holding brake 3.2 Nm, operating voltage 24 V DC
  • Degree of protection IP65, ambient temperature -15 to 40 °C

Application

Typical uses are positioning axes, feed systems and pick-and-place units. Before mounting, match the interface and shaft loads of the EMMB-AS-80-07-K-S30SB to the mechanics.

Technical data

TypeEMMB-AS-80-07-K-S30SB
Festo part no.8097190
Weight3.6 kg
Ambient temperature-15 to 40 °C
Note on ambient temperatureUp to 60°C with derating of -1.5% per degree Celsius
Maximum installation height4000 m
Note on maximum installation heightAs of 1,000 m: only with derating of -1.0% per 100 m
Storage temperature-20 to 55 °C
Relative air humidity0 - 90%
Conforms to standardIEC 60034
Temperature class as per EN 60034-1F
Maximum winding temperature155 °C
Rating class as per EN 60034-1S1
Temperature monitoringDigital motor temperature transmission via Nikon A format
Motor type to EN 60034-7IM V1, IM V3
Mounting positionAny
Degree of protectionIP65
Note on degree of protectionIP40 for motor shaft without rotary shaft seal, IP54 for motor shaft with rotary shaft seal, IP65 for motor housing without connection technology
Concentricity, coaxiality, axial runout to DIN SPEC 42955N
Balance qualityG 2.5
Bearing lifetime under nominal conditions20000 h
Featherkey shaft typeDIN 6885, A 6 x 6 x 22
Electrical connection 1, connection typePlug
Electrical connection 1, connector systemConnection pattern RE
Electrical connection 1, number of connections/cores6
Electrical connection 1, connection pattern00995792
Pollution degree2
Note on materialsRoHS compliant
Corrosion resistance class CRC0 - No corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Approvalc UL us - Recognized (OL)
CE mark (see declaration of conformity)To EU EMC Directive, To EU Low Voltage Directive, In accordance with EU RoHS Directive
UKCA marking (see declaration of conformity)To UK RoHS instructions, To UK regulations for electrical equipment
Certificate issuing authorityUL E342973
Nominal operating voltage DC300 V
Nominal voltage DC300 V
Type of winding switchStar inside
Number of pole pairs3
Standstill torque2.63 Nm
Nominal torque2.39 Nm
Peak torque7.17 Nm
Nominal rotary speed3000 1/min
Maximum rotational speed5000 1/min
Maximum mechanical speed10000 1/min
Nominal power rating of motor750 W
Continuous stall current4.2 A
Nominal motor current3.8 A
Peak current11.4 A
Motor constant0.662 Nm/A
Voltage constant, phase-to-phase40 mVmin
Phase-phase winding resistance2.1 Ohm
Phase-phase winding inductance10.5 mH
Electric time constant5 ms
Measuring flange255 x 255 x 8 mm, aluminium
Total mass moment of inertia of output0.978 kgcm²
Product weight3400 g
Permissible axial shaft load167.5 N
Permissible radial shaft load335 N
Rotor position sensorAbsolute encoder, single turn
Rotor position sensor, manufacturer designationSAR-ML50AJC00
Rotor position sensor, absolute detectable revolutions1
Rotor position encoder interfaceNikon A-format
Rotor position sensor, encoder measuring principleOptical
Rotor position sensor, DC operating voltage5 V
Rotor position sensor, DC operating voltage range4.75 to 5.25 V
Rotor position sensor, position values per revolution1048576
Rotor position transducer resolution20 bit
Rotor position sensor, system accuracy of angle measurement-120 to 120 arcsec
Brake holding torque3.2 Nm
Operating voltage DC for brake24 V
Power consumption, brake11.5 W
Energy efficiencyENEFF (CN) / Class 2
ManufacturerFesto
Hersteller-NrEMMB-AS-80-07-K-S30SB
EAN4052568459178
Zolltarifnummer85015100
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
AusführungSingleturn-Absolutwertgeber, mit Haltebremse
NormDIN EN 60034-1, DIN EN 60034-7, DIN EN 60034
Operating voltage300 V DC
Protection ratingIP65
Temperature (max.)40
