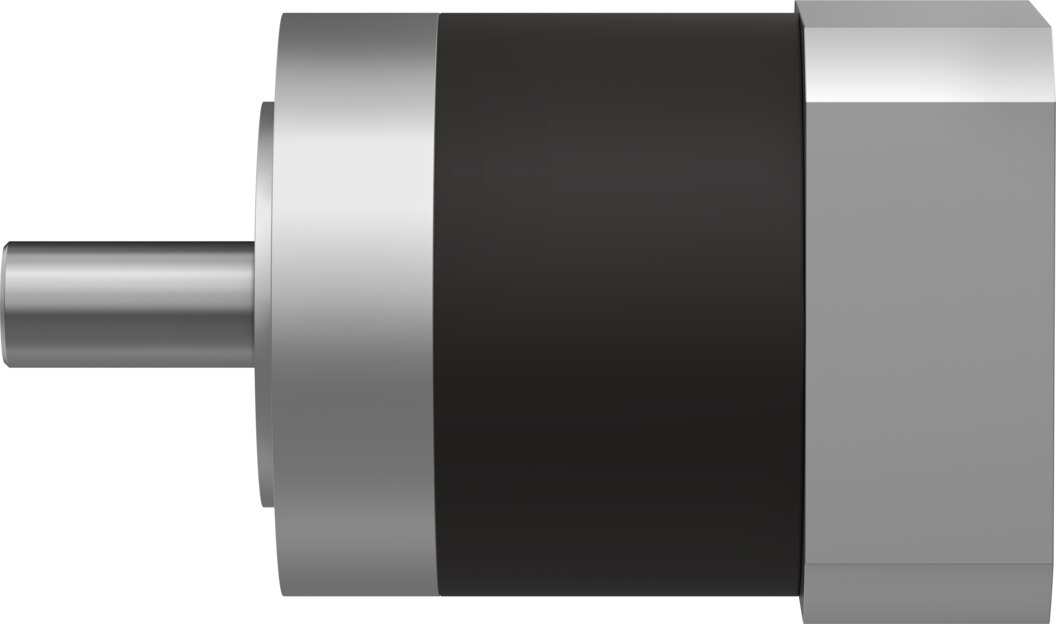

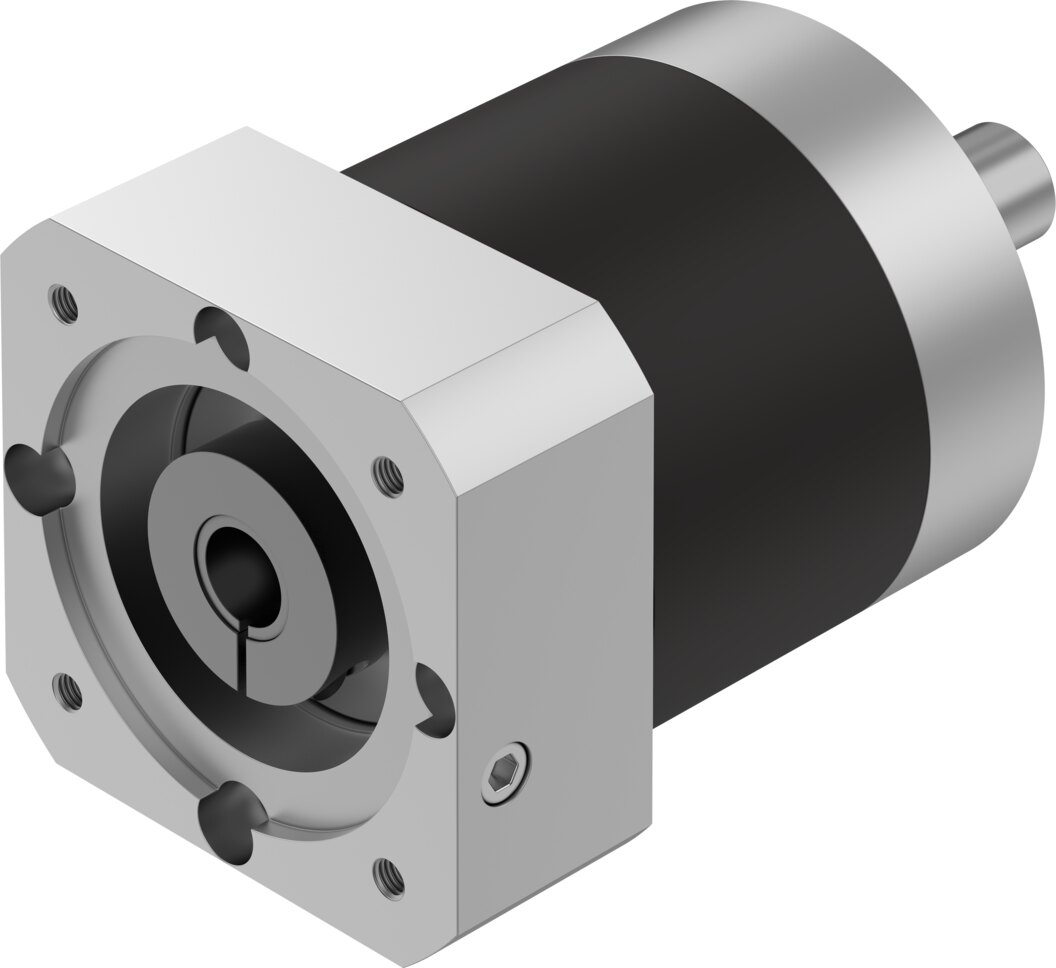

Planetary gear unit 20:1, 260 Nm continuous output torque, flange 120 mm, motor 100 mm EMGA-120-P-G20-SAS-100 - Festo 8141755

Festo ✓ Original product Brand new

260 Nm continuous output torque, 416 Nm briefly: the EMGA-120-P-G20-SAS-100 planetary gear unit multiplies motor torque at a ratio of 20:1. Torsional backlash 0.15°, efficiency up to 96 %. Motor side flange 100 mm with interface 100A, output side 120 mm.

Net
€1,346.54
excl. VAT
Item FES-8141755
Manufacturer no. EMGA-120-P-G20-SAS-100
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

260 Nm continuously at the output with a 20:1 ratio: the Festo EMGA-120-P-G20-SAS-100 planetary gear unit sits between motor and axis.

Benefits

  • Ratio 20:1, continuous output torque 260 Nm
  • Max. output torque 416 Nm for start-up and braking
  • Torsional backlash 0.15° for repeatable positions
  • Efficiency up to 96 %
  • Torsional stiffness 22 Nm/arcmin
  • Input speed up to 6500 1/min

Application

The EMGA-120-P-G20-SAS-100 reduces speed, multiplies torque by a factor of 20 and improves the inertia ratio between load and motor.

Technical data

TypeEMGA-120-P-G20-SAS-100
Festo part no.8141755
Weight8 kg
Gear unit flange size120 mm
Motor flange size100 mm
Torsional backlash0.15°
Type of gear unitPlanetary gear set
Gear unit ratio20:1
Maximum drive speed6500 1/min
Operating temperature of gear unit-25 to 90 °C
LABS (PWIS) conformityVDMA24364-B2-L
Degree of protectionIP54
Continuous output torque260 Nm
Mass moment of inertia of gear unit1.573 kgcm²
Maximum output torque416 Nm
Maximum efficiency96 %
Torsional rigidity22 Nm/arcmin
Product weight8000 g
Permissible axial shaft load2500 N
Permissible radial shaft load1750 N
Gear unit interface, output shaft120G
Gear unit interface, drive shaft100A
Note on materialsRoHS compliant
ManufacturerFesto
Hersteller-NrEMGA-120-P-G20-SAS-100
EAN4052568565343
Zolltarifnummer84834090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
AusführungPlanetengetriebe 20:1
SeriesEMGA
Protection ratingIP54
Temperature (max.)90
