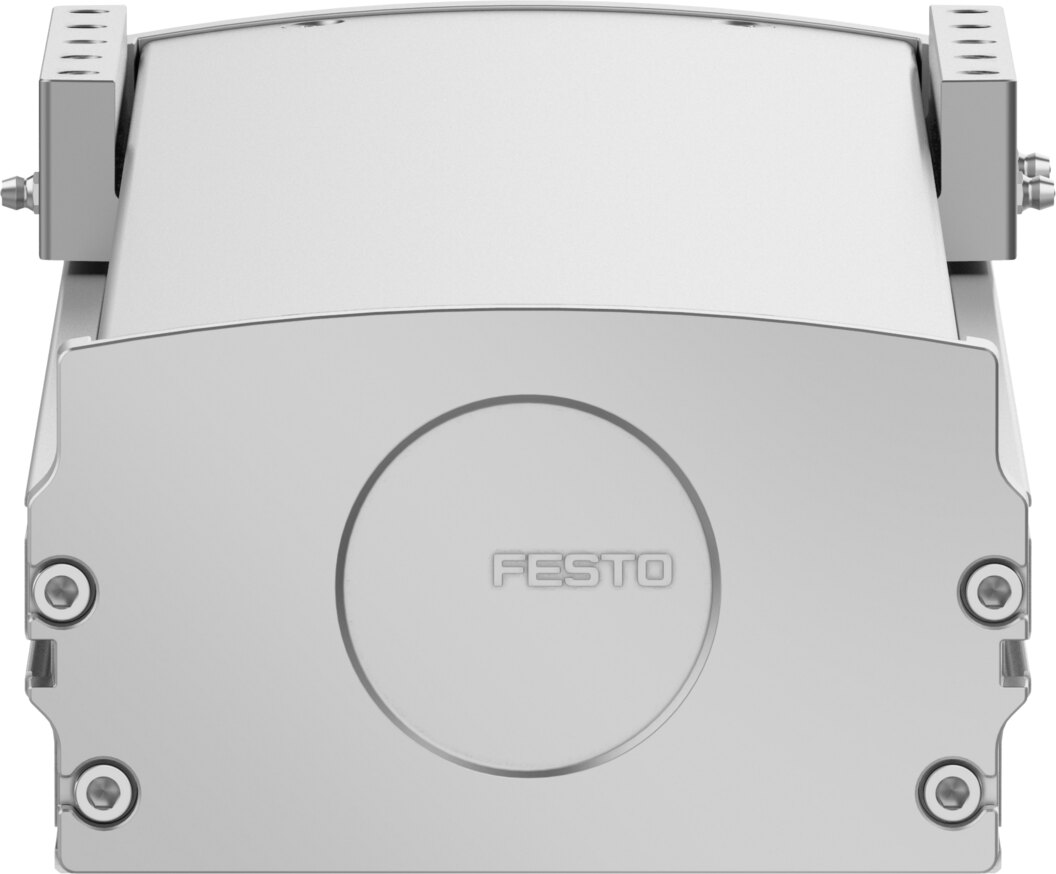

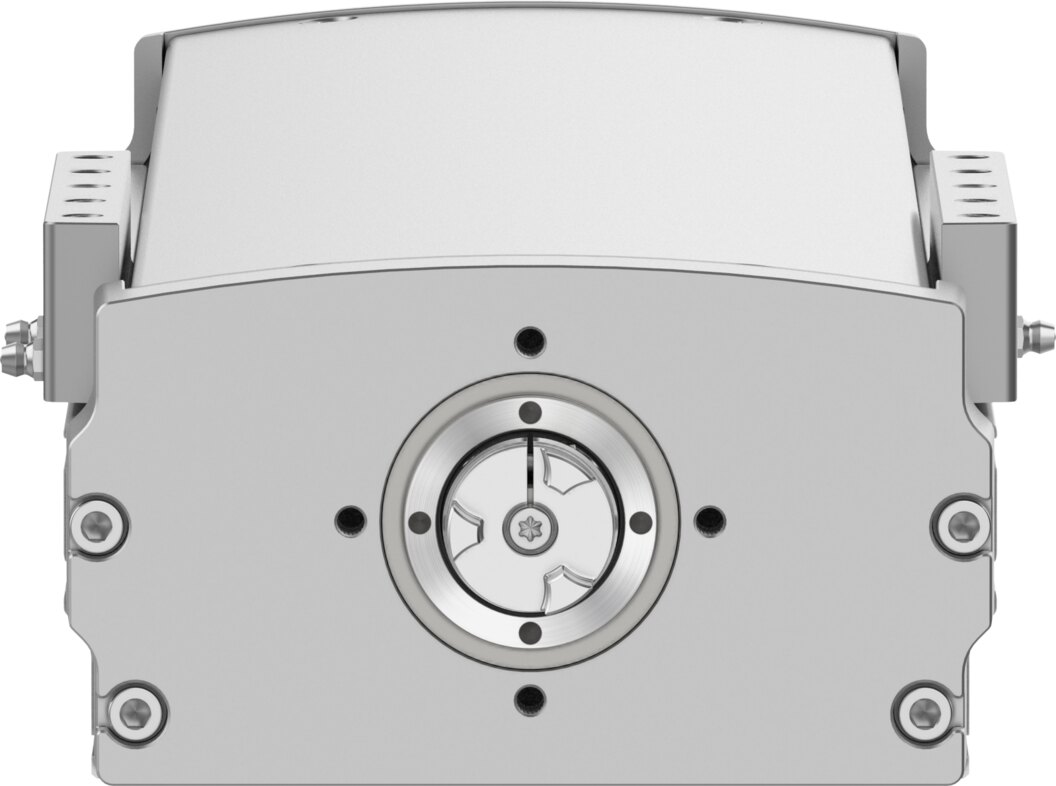

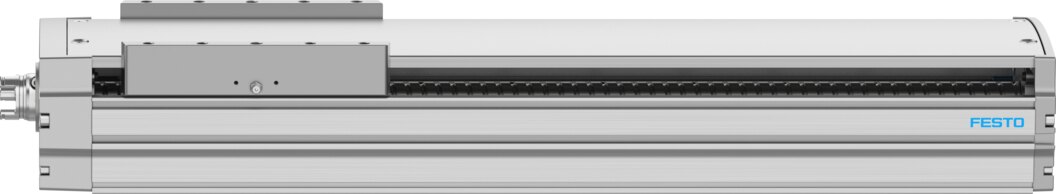

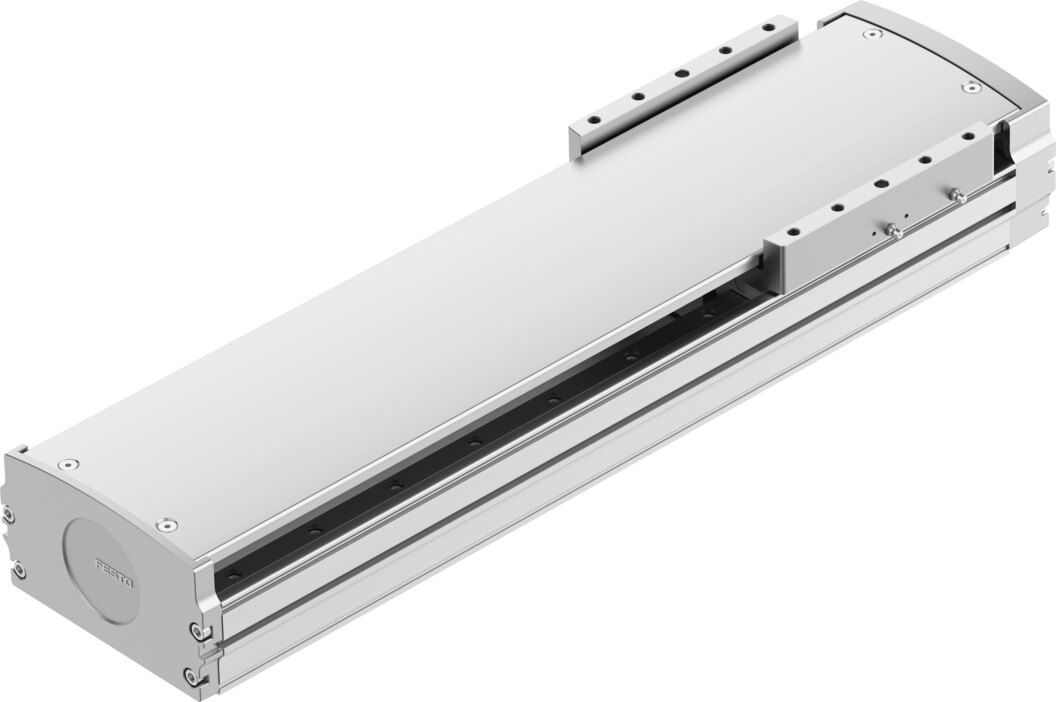

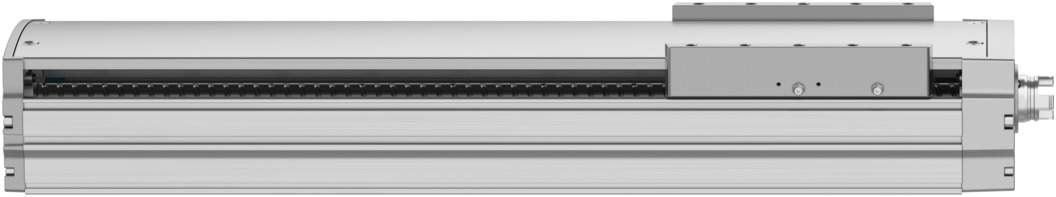

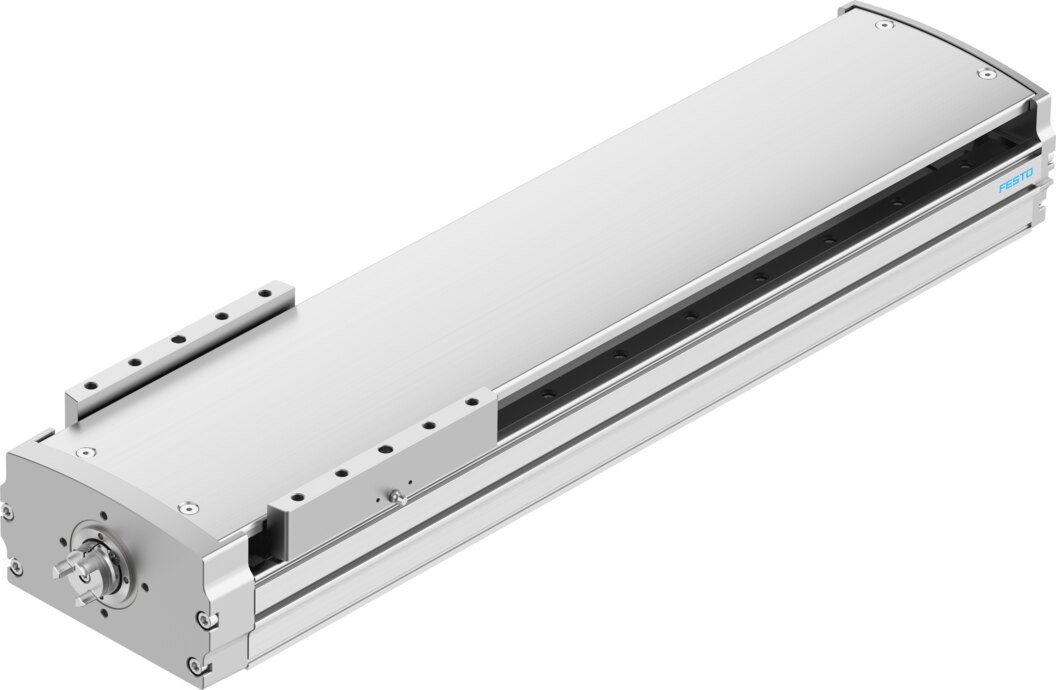

Ball screw axis size 160 stroke 400 mm pitch 10 mm ELGT-BS-160-400-10P - Festo 8124515

Festo ✓ Original product Brand new

The ball screw axis ELGT-BS-160-400-10P travels at up to 0.5 m/s and accelerates at 15 m/s² over a working stroke of 400 mm. It positions with a repetition accuracy of ±0.02 mm and pushes with up to 1575 N. Per motor revolution the slide travels 10 mm via the ball screw. Weight 17 kg.

Net
€3,038.13
excl. VAT
Item FES-8124515
Manufacturer no. ELGT-BS-160-400-10P
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

400 mm of working stroke, up to 0.5 m/s and ±0.02 mm repetition accuracy: these are the key values of the Festo ball screw axis ELGT-BS-160-400-10P in size 160.

Your benefits

  • Up to 0.5 m/s travel speed and 15 m/s² acceleration for short cycle times
  • Repetition accuracy of ±0.02 mm for reproducible positions
  • Feed force up to 1575 N
  • Recirculating ball bearing guide for transverse forces up to 9550 N (Fy) and 11370 N (Fz) and moments up to 560 Nm (My)
  • Spindle pitch of 10 mm/rev with a 20 mm spindle diameter for a defined feed per revolution
  • Cleanroom suitable: Class 8 according to ISO 14644-1

Applications

Positioning and infeed tasks with 400 mm of stroke where feed force and repeatability count, for example in assembly and test equipment. The ELGT-BS-160-400-10P is designed for stepper and servo motors, its actuator interface code is T46. Any mounting position is possible.

Technical data

TypeELGT-BS-160-400-10P
Festo part number8124515
Working stroke400 mm
Size160
Stroke reserve0 mm
Reversing backlash, theoretical150 µm
Spindle diameter20 mm
Spindle pitch10 mm/U
Mounting positionAny
GuideRecirculating ball bearing guide
DesignWith ball screw
Type of motorStepper motor, Servo motor
Spindle typeBall screw
VariantsMetals with copper, zinc or nickel by mass as main constituent are excluded from use, Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils
Maximum acceleration15 m/s²
Maximum rotational speed3000 1/min
Maximum speed0.5 m/s
Repetition accuracy±0.02 mm
Duty cycle100%
LABS (PWIS) conformityVDMA24364 zone III
Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14Class 8 according to ISO 14644-1
Degree of protectionIP20
Ambient temperature0 to 50 °C
Continuous feed force1575 N
2nd moment of area Iy1411000 mm⁴
2nd moment of area Iz15257000 mm⁴
Idle torque at vmax0.4 Nm
Idle torque at vmin0.2 Nm
Maximum force Fy9550 N
Maximum force Fz11370 N
Fy at theoretical life value of 100 km (only guide consideration)35183 N
Fz at theoretical life value of 100 km (only guide consideration)41887 N
Maximum moment Mx600 Nm
Maximum moment My560 Nm
Maximum moment Mz560 Nm
Mx at theoretical life value of 100 km (only guide consideration)2210 Nm
My at theoretical life value of 100 km (only guide consideration)2063 Nm
Mz at theoretical life value of 100 km (only guide consideration)2063 Nm
Maximum radial force at drive shaft340 N
Maximum feed force Fx1575 N
Torsional mass moment of inertia It726000 mm⁴
Mass moment of inertia JH per metre of stroke0.809 kgcm²
Mass moment of inertia JL per kg of working load0.0253 kgcm²
Mass moment of inertia JO0.3175 kgcm²
Feed constant10 mm/U
Moving mass3855 g
Product weight17066 g
Basic weight for 0 mm stroke9564 g
Additional weight per 10 mm stroke188 g
Dynamic deflection (moving load)0.05% of the axis length, max, 0.5 mm
Static deflection (load in standstill)0.1% of the axis length
Interface code, actuatorT46
Material end capPainted die cast aluminium
Material profileAnodised wrought aluminium alloy
Note on materialsRoHS compliant
Material drive coverPainted die cast aluminium
Material guide slideSteel
Material guide railSteel
Material slideAnodised wrought aluminium alloy
Material ball screw nutSteel
Material spindleSteel
Weight17 kg
ManufacturerFesto
Hersteller-NrELGT-BS-160-400-10P
EAN4052568555344
Zolltarifnummer84799070
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Stroke [mm]400
Housing materialAluminium, anodised
Protection ratingIP20
Temperaturbereich0-50 °C
Temperature (max.)50
