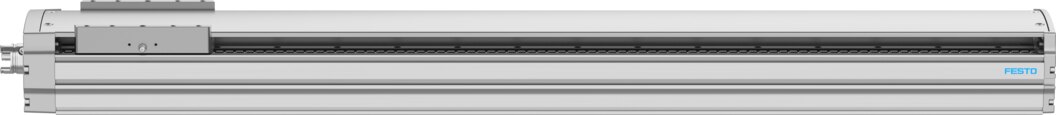

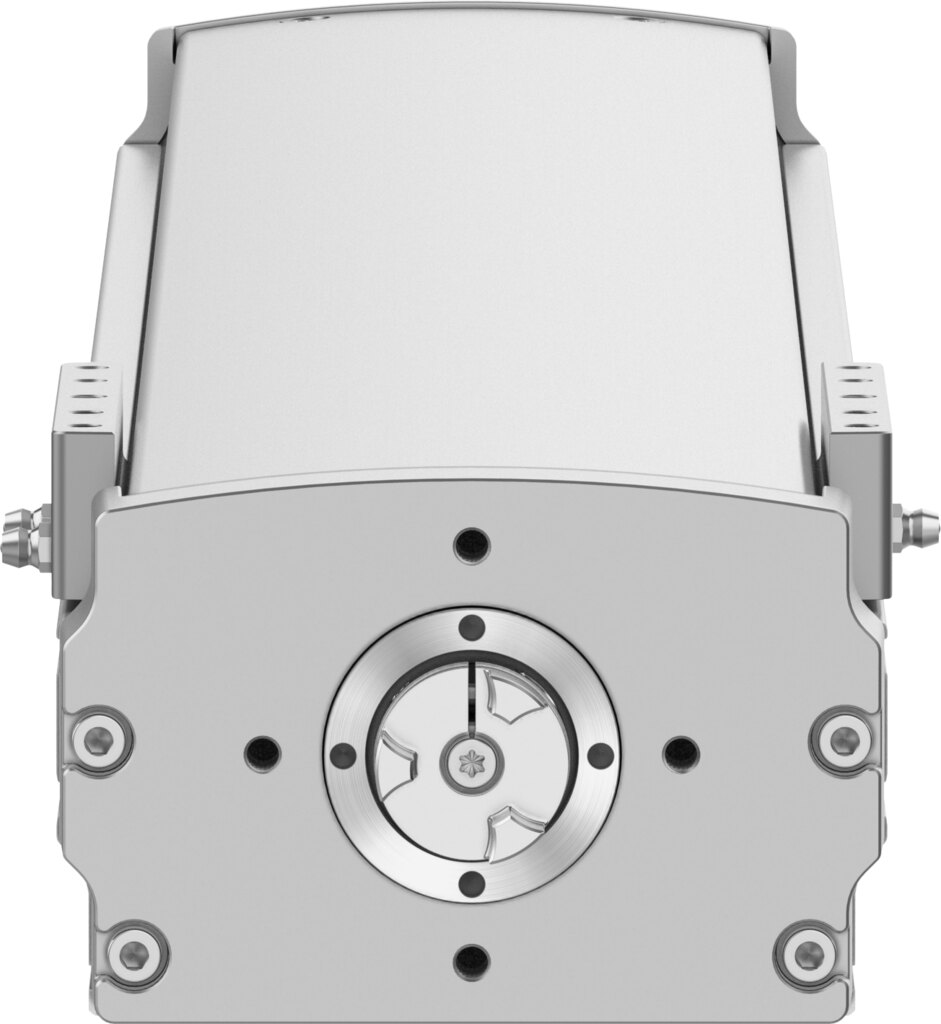

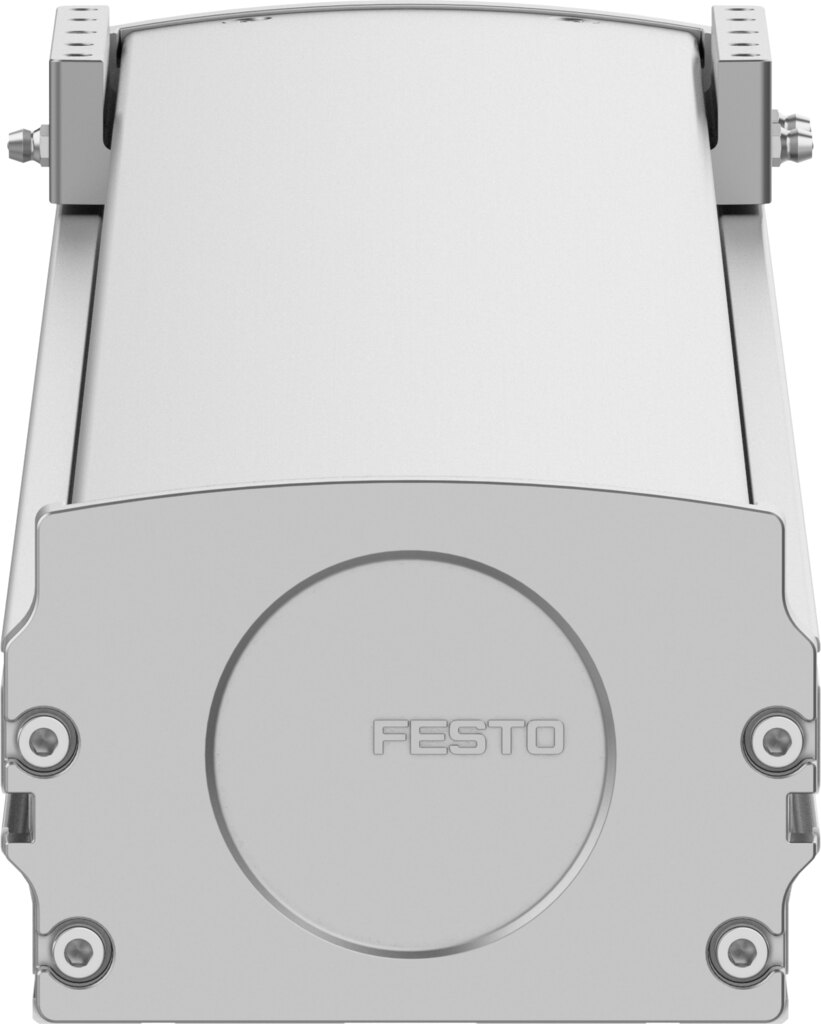

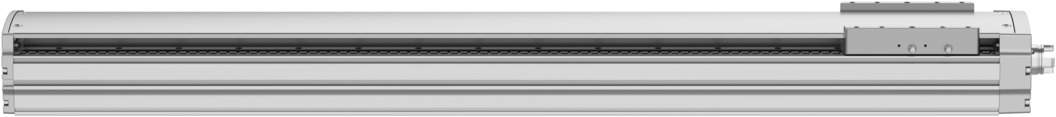

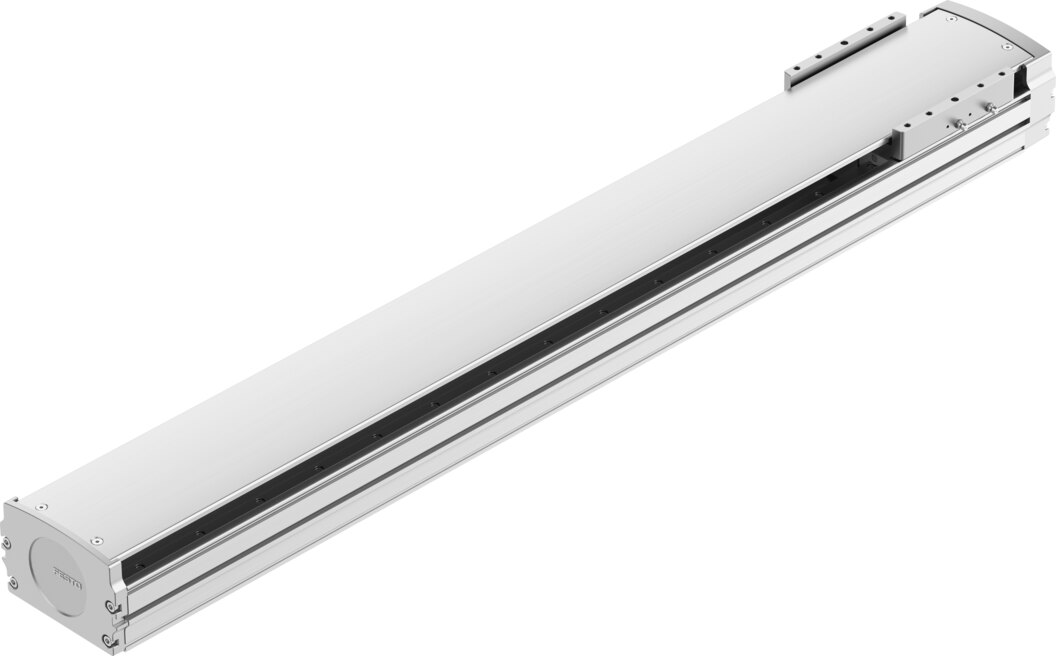

Ball screw axis size 120 stroke 800 mm pitch 20 mm ELGT-BS-120-800-20P - Festo 8124506
Over a working stroke of 800 mm, the ball screw axis ELGT-BS-120-800-20P positions loads in size 120 at up to 1 m/s. 805 N of feed force and ±0.02 mm repetition accuracy make the movement strong and repeatable. The ball screw with a 20 mm pitch turns every motor revolution into 20 mm of feed.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
800 mm of working stroke, up to 1 m/s and ±0.02 mm repetition accuracy: these are the key values of the Festo ball screw axis ELGT-BS-120-800-20P in size 120.
Benefits
- Up to 1 m/s travel speed and 15 m/s² acceleration for short cycle times
- Repetition accuracy of ±0.02 mm for reproducible positions
- Feed force up to 805 N
- Recirculating ball bearing guide for transverse forces up to 6800 N (Fy) and 8090 N (Fz) and moments up to 310 Nm (My)
- Spindle pitch of 20 mm/rev with a 15 mm spindle diameter for a defined feed per revolution
- Cleanroom suitable: Class 8 according to ISO 14644-1
Applications
For assembly, lab automation and test engineering, where 800 mm of stroke is approached with a defined force. The ELGT-BS-120-800-20P is designed for stepper and servo motors, its actuator interface code is T46. Any mounting position is possible.
Technical data
| Type | ELGT-BS-120-800-20P |
|---|---|
| Festo part number | 8124506 |
| Working stroke | 800 mm |
| Size | 120 |
| Stroke reserve | 0 mm |
| Reversing backlash, theoretical | 150 µm |
| Spindle diameter | 15 mm |
| Spindle pitch | 20 mm/U |
| Mounting position | Any |
| Guide | Recirculating ball bearing guide |
| Design | With ball screw |
| Type of motor | Stepper motor, Servo motor |
| Spindle type | Ball screw |
| Variants | Metals with copper, zinc or nickel by mass as main constituent are excluded from use, Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils |
| Maximum acceleration | 15 m/s² |
| Maximum rotational speed | 3000 1/min |
| Maximum speed | 1 m/s |
| Repetition accuracy | ±0.02 mm |
| Duty cycle | 100% |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Suitability for the production of Li-ion batteries | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Cleanroom suitability, measured according to ISO 14644-14 | Class 8 according to ISO 14644-1 |
| Degree of protection | IP20 |
| Ambient temperature | 0 to 50 °C |
| Continuous feed force | 805 N |
| 2nd moment of area Iy | 966000 mm⁴ |
| 2nd moment of area Iz | 6011000 mm⁴ |
| Idle torque at vmax | 0.3 Nm |
| Idle torque at vmin | 0.08 Nm |
| Maximum force Fy | 6800 N |
| Maximum force Fz | 8090 N |
| Fy at theoretical life value of 100 km (only guide consideration) | 25051 N |
| Fz at theoretical life value of 100 km (only guide consideration) | 29804 N |
| Maximum moment Mx | 300 Nm |
| Maximum moment My | 310 Nm |
| Maximum moment Mz | 310 Nm |
| Mx at theoretical life value of 100 km (only guide consideration) | 1105 Nm |
| My at theoretical life value of 100 km (only guide consideration) | 1142 Nm |
| Mz at theoretical life value of 100 km (only guide consideration) | 1142 Nm |
| Maximum radial force at drive shaft | 290 N |
| Maximum feed force Fx | 805 N |
| Torsional mass moment of inertia It | 506000 mm⁴ |
| Mass moment of inertia JH per metre of stroke | 0.2522 kgcm² |
| Mass moment of inertia JL per kg of working load | 0.1013 kgcm² |
| Mass moment of inertia JO | 0.2654 kgcm² |
| Feed constant | 20 mm/U |
| Moving mass | 2036 g |
| Product weight | 14989 g |
| Basic weight for 0 mm stroke | 5235 g |
| Additional weight per 10 mm stroke | 124 g |
| Dynamic deflection (moving load) | 0.05% of the axis length, max, 0.5 mm |
| Static deflection (load in standstill) | 0.1% of the axis length |
| Interface code, actuator | T46 |
| Material end cap | Painted die cast aluminium |
| Material profile | Anodised wrought aluminium alloy |
| Note on materials | RoHS compliant |
| Material drive cover | Painted die cast aluminium |
| Material guide slide | Steel |
| Material guide rail | Steel |
| Material slide | Anodised wrought aluminium alloy |
| Material ball screw nut | Steel |
| Material spindle | Steel |
| Weight | 15 kg |
| Manufacturer | Festo |
| Hersteller-Nr | ELGT-BS-120-800-20P |
| EAN | 4052568555290 |
| Zolltarifnummer | 84799070 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Stroke [mm] | 800 |
| Housing material | Aluminium, anodised |
| Protection rating | IP20 |
| Temperaturbereich | 0-50 °C |
| Temperature (max.) | 50 |
