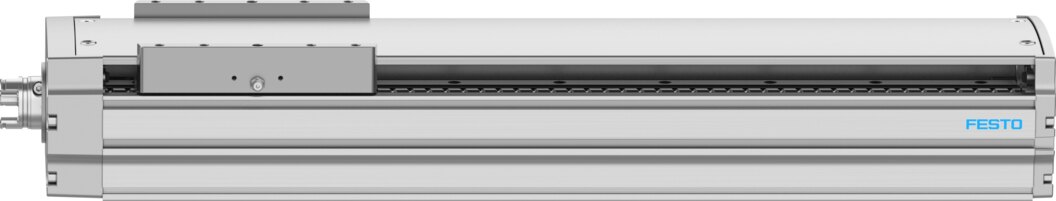

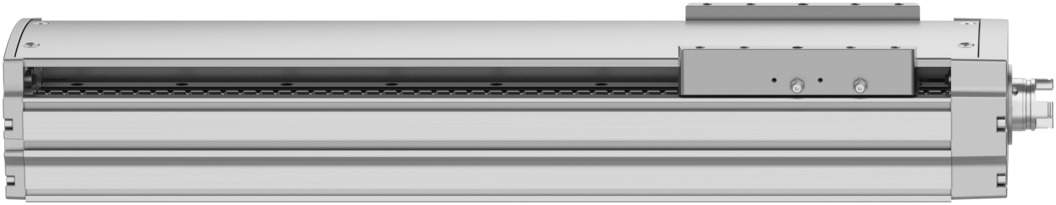

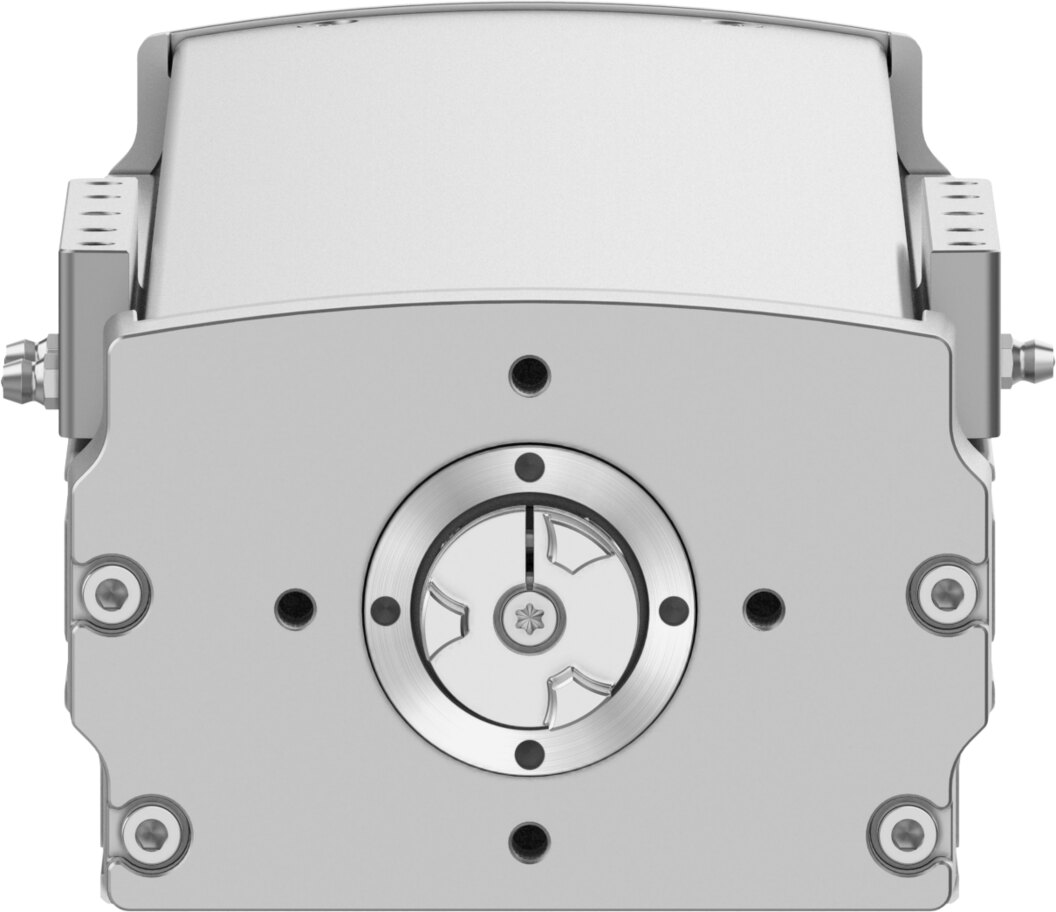

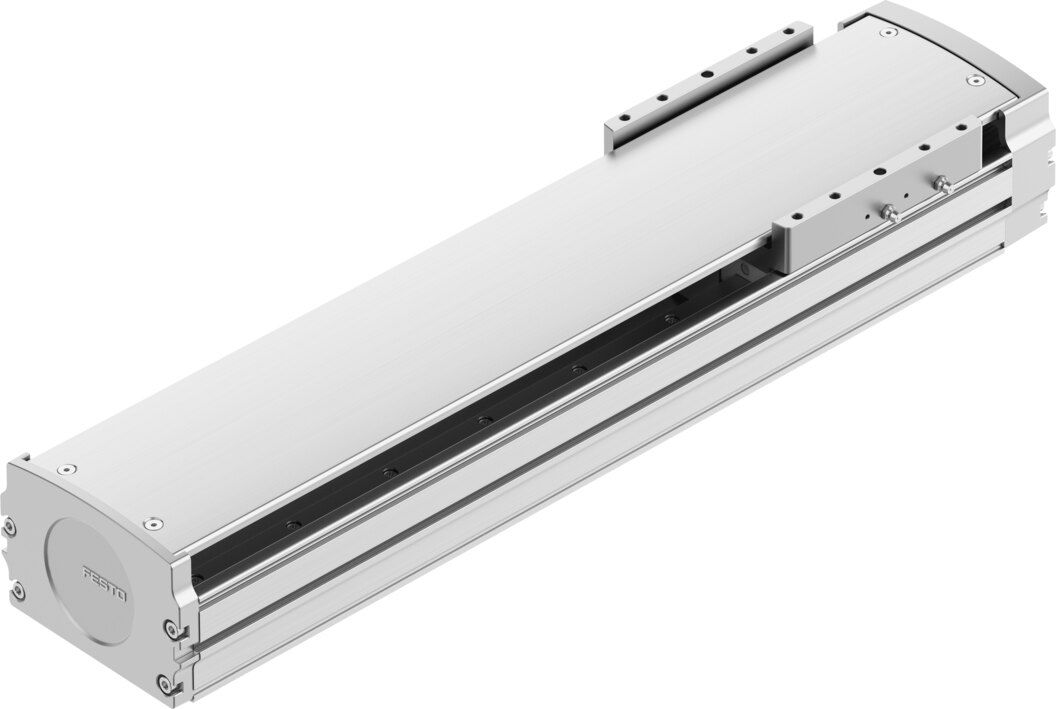

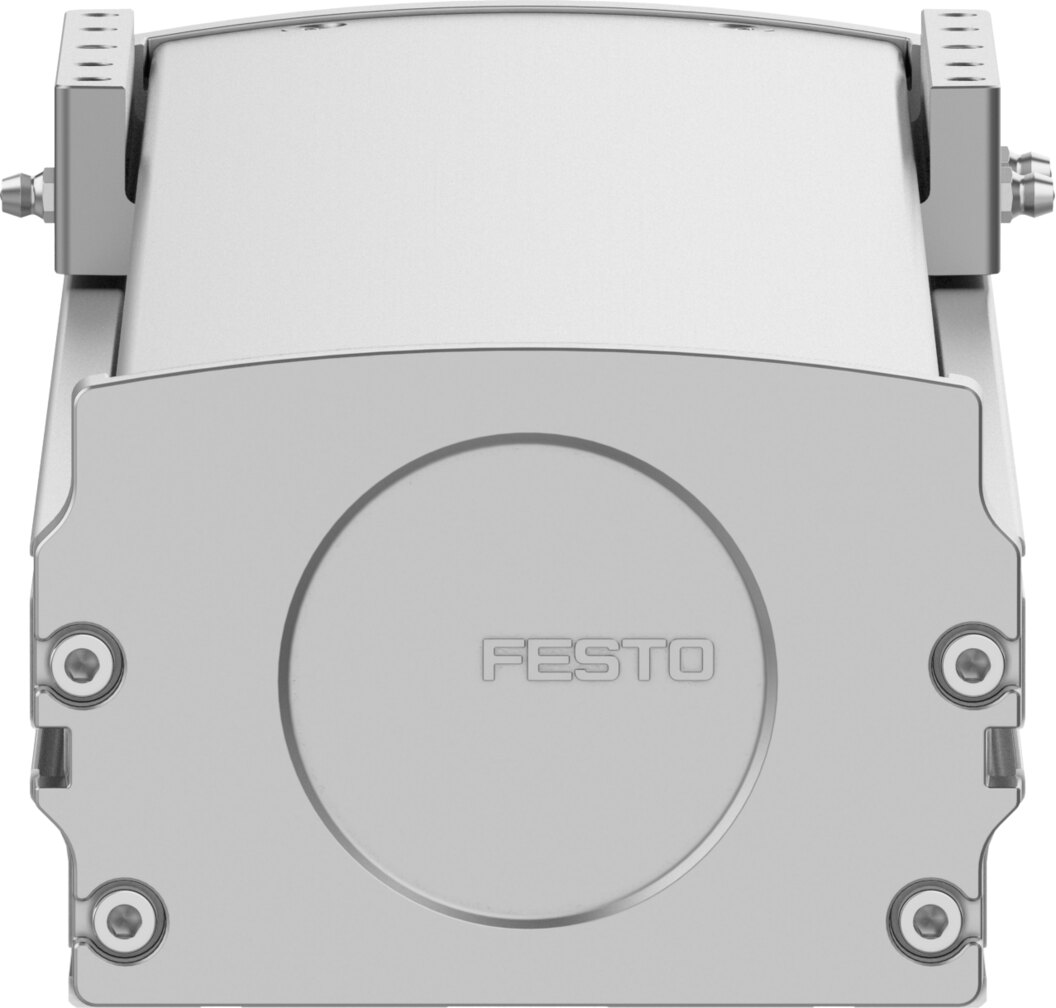

Ball screw axis size 120 stroke 350 mm pitch 20 mm ELGT-BS-120-350-20P - Festo 8124497

Festo ✓ Original product Brand new

The ball screw axis ELGT-BS-120-350-20P travels at up to 1 m/s and accelerates at 15 m/s² over a working stroke of 350 mm. It positions with a repetition accuracy of ±0.02 mm and pushes with up to 805 N. The ball screw with a 20 mm pitch turns every motor revolution into 20 mm of feed. Weight 9 kg.

Net
€2,721.73
excl. VAT
Item FES-8124497
Manufacturer no. ELGT-BS-120-350-20P
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The ball screw axis ELGT-BS-120-350-20P moves loads over 350 mm at up to 1 m/s and arrives repeatably with ±0.02 mm repetition accuracy.

Benefits

  • Up to 1 m/s travel speed and 15 m/s² acceleration for short cycle times
  • Repetition accuracy of ±0.02 mm for reproducible positions
  • Feed force up to 805 N
  • Recirculating ball bearing guide for transverse forces up to 6800 N (Fy) and 8090 N (Fz) and moments up to 310 Nm (My)
  • Spindle pitch of 20 mm/rev with a 15 mm spindle diameter for a defined feed per revolution
  • Cleanroom suitable: Class 8 according to ISO 14644-1

Applications

Positioning and infeed tasks with 350 mm of stroke where feed force and repeatability count, for example in assembly and test equipment. The ELGT-BS-120-350-20P is designed for stepper and servo motors, its actuator interface code is T46. Any mounting position is possible.

Technical data

TypeELGT-BS-120-350-20P
Festo part number8124497
Working stroke350 mm
Size120
Stroke reserve0 mm
Reversing backlash, theoretical150 µm
Spindle diameter15 mm
Spindle pitch20 mm/U
Mounting positionAny
GuideRecirculating ball bearing guide
DesignWith ball screw
Type of motorStepper motor, Servo motor
Spindle typeBall screw
VariantsMetals with copper, zinc or nickel by mass as main constituent are excluded from use, Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils
Maximum acceleration15 m/s²
Maximum rotational speed3000 1/min
Maximum speed1 m/s
Repetition accuracy±0.02 mm
Duty cycle100%
LABS (PWIS) conformityVDMA24364 zone III
Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14Class 8 according to ISO 14644-1
Degree of protectionIP20
Ambient temperature0 to 50 °C
Continuous feed force805 N
2nd moment of area Iy966000 mm⁴
2nd moment of area Iz6011000 mm⁴
Idle torque at vmax0.3 Nm
Idle torque at vmin0.08 Nm
Maximum force Fy6800 N
Maximum force Fz8090 N
Fy at theoretical life value of 100 km (only guide consideration)25051 N
Fz at theoretical life value of 100 km (only guide consideration)29804 N
Maximum moment Mx300 Nm
Maximum moment My310 Nm
Maximum moment Mz310 Nm
Mx at theoretical life value of 100 km (only guide consideration)1105 Nm
My at theoretical life value of 100 km (only guide consideration)1142 Nm
Mz at theoretical life value of 100 km (only guide consideration)1142 Nm
Maximum radial force at drive shaft290 N
Maximum feed force Fx805 N
Torsional mass moment of inertia It506000 mm⁴
Mass moment of inertia JH per metre of stroke0.2522 kgcm²
Mass moment of inertia JL per kg of working load0.1013 kgcm²
Mass moment of inertia JO0.2654 kgcm²
Feed constant20 mm/U
Moving mass2036 g
Product weight9502 g
Basic weight for 0 mm stroke5235 g
Additional weight per 10 mm stroke124 g
Dynamic deflection (moving load)0.05% of the axis length, max, 0.5 mm
Static deflection (load in standstill)0.1% of the axis length
Interface code, actuatorT46
Material end capPainted die cast aluminium
Material profileAnodised wrought aluminium alloy
Note on materialsRoHS compliant
Material drive coverPainted die cast aluminium
Material guide slideSteel
Material guide railSteel
Material slideAnodised wrought aluminium alloy
Material ball screw nutSteel
Material spindleSteel
Weight9 kg
ManufacturerFesto
Hersteller-NrELGT-BS-120-350-20P
EAN4052568555207
Zolltarifnummer84799070
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Stroke [mm]350
Housing materialAluminium, anodised
Protection ratingIP20
Temperaturbereich0-50 °C
Temperature (max.)50
