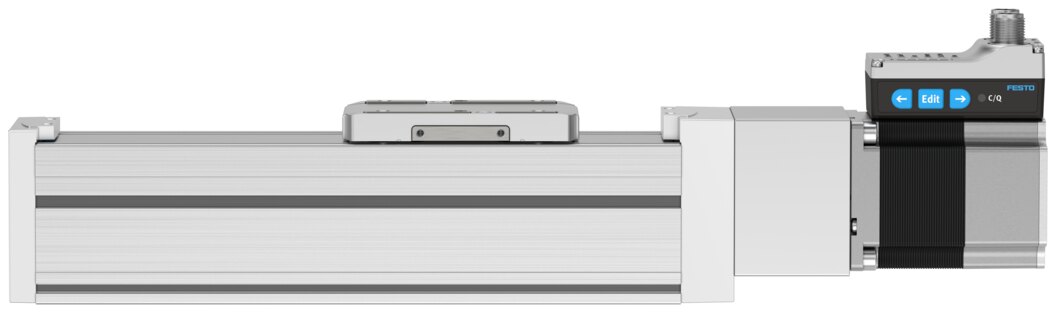

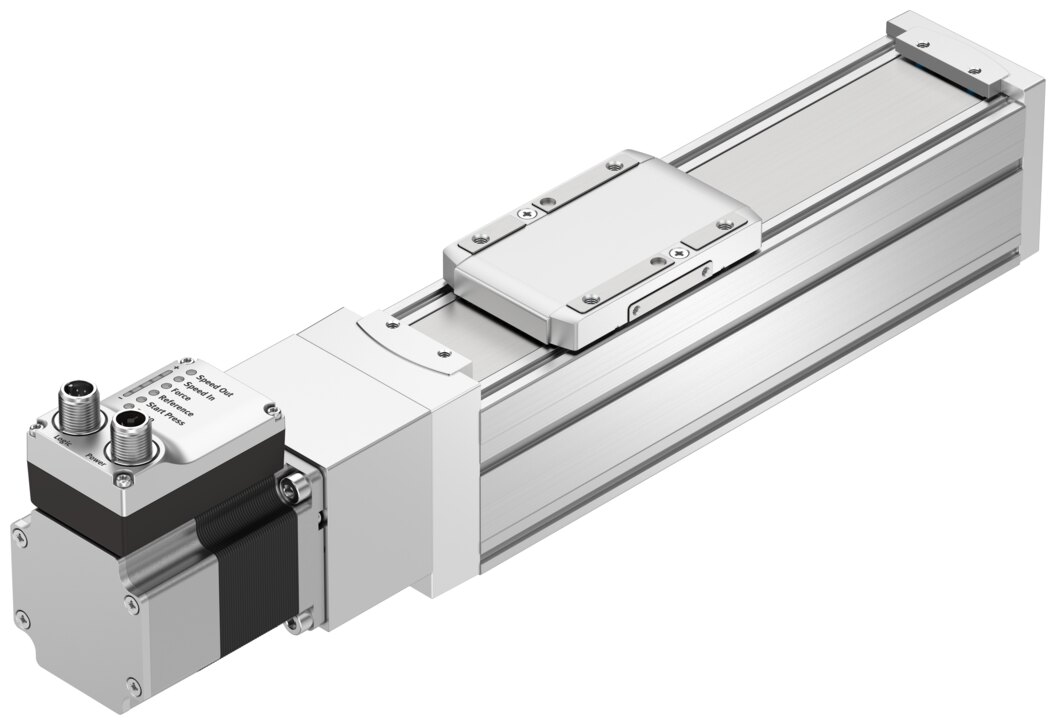

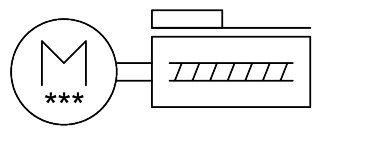

Ball screw axis unit with integrated drive stroke 100 mm ELGS-BS-KF-60-100-12P-ST-M-H1-PLK-AA - Festo 8083383

Festo ✓ Original product Brand new

The ball screw axis unit ELGS-BS-KF-60-100-12P-ST-M-H1-PLK-AA positions over a 100 mm stroke with a repeatability of ±0.01 mm. Ball screw with 12 mm pitch, feed force up to 200 N and travel speed up to 0.25 m/s. Drive and motor encoder are integrated, supply 24 V DC, parameterisation via IO-Link.

Net
€1,348.88
excl. VAT
Item FES-8083383
Manufacturer no. ELGS-BS-KF-60-100-12P-ST-M-H1-PLK-AA
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Festo ball screw axis unit ELGS-BS-KF-60-100-12P-ST-M-H1-PLK-AA at a glance: 100 mm stroke, size 60, up to 0.25 m/s. The ball screw with 12 mm/rev pitch converts motor torque into up to 200 N feed force, while the recirculating ball bearing guide carries transverse forces up to 3641 N.

Advantages

  • Repeatability of ±0.01 mm over the full 100 mm stroke.
  • Integrated drive, motor encoder, end-position detection.
  • Up to 0.25 m/s and 5 m/s² acceleration for short cycle times.
  • Feed force up to 200 N in the direction of motion.
  • Parameterisation via IO-Link, supply 24 V DC.
  • Recirculating ball bearing guide for transverse forces up to 3641 N and moments up to 29.1 Nm.

Application

With its integrated drive, the ball screw axis unit ELGS-BS-KF-60-100-12P-ST-M-H1-PLK-AA shortens wiring and commissioning, the stroke is 100 mm. Mounting position any, ambient temperature 0 to 50 °C. Price-list weight 3.4 kg.

Technical data

TypeELGS-BS-KF-60-100-12P-ST-M-H1-PLK-AA
Working stroke100 mm
Size60
Stroke reserve0 mm
Spindle diameter12 mm
Spindle pitch12 mm/U
Mounting positionAny
GuideRecirculating ball bearing guide
DesignWith ball screw, with integrated drive
Type of motorStepper motor
Spindle typeBall screw
Position detectionMotor encoder, via proximity switch
ReferencingPositive fixed stop block, negative fixed stop block
Rotor position sensorAbsolute encoder, single turn
Rotor position sensor, encoder measuring principlemagnetic
Temperature monitoringSwitch-off for excessive temperature, integrated precise CMOS temperature sensor with analogue output
Additional functionsUser interface, Built-in end-position sensing
DisplayLED
Ready status indicationLED
Maximum acceleration5 m/s²
Maximum speed0.25 m/s
Speed "Speed press"0.01 m/s
Repetition accuracy±0.01 mm
Features of digital logic outputsConfigurable, not galvanically isolated
Duty cycle100%
Insulation protection classB
Maximum current digital logic outputs100 mA
Maximum current consumption5300 mA
Maximum current consumption, logic0.3 A
Nominal voltage DC24 V
Nominal current5.3 A
Parameterisation interfaceIO-Link®, user interface
Rotor position transducer resolution16 bit
Permissible voltage fluctuations+/- 15 %
Power supply, connection typePlug
power supply, connection systemM12x1, T-coded according to EN 61076-2-111
Power supply, number of pins/wires4
ApprovalRCM
KC markKC-EMV
CE mark (see declaration of conformity)To EU EMC Directive, in accordance with EU RoHS Directive
UKCA marking (see declaration of conformity)To UK instructions for EMC, to UK RoHS instructions
Vibration resistanceTransport application test with severity level 1 to FN 942017-4 and EN 60068-2-6
Shock resistanceShock test with severity level 1 to FN 942017-5 and EN 60068-2-27
LABS (PWIS) conformityVDMA24364 zone III
Cleanroom suitability, measured according to ISO 14644-14Class 7 according to ISO 14644-1
Storage temperature-20 to 60 °C
Relative air humidity0 - 90%
Degree of protectionIP40
Protection classIII
Ambient temperature0 to 50 °C
Note on ambient temperaturePower must be reduced by 2% per K at ambient temperatures above 30°C.
2nd moment of area Iy441000 mm⁴
2nd moment of area Iz542000 mm⁴
Maximum force Fy3641 N
Maximum force Fz3641 N
Maximum force Fy total axis600 N
Maximum force Fz total axis1800 N
Fy at theoretical life value of 100 km (only guide consideration)13400 N
Fz at theoretical life value of 100 km (only guide consideration)13400 N
Maximum moment Mx29.1 Nm
Maximum moment My31.8 Nm
Maximum moment Mz31.8 Nm
Maximum moment Mx total axis29.1 Nm
Maximum moment My total axis31.8 Nm
Maximum moment Mz total axis31.8 Nm
Mx at theoretical life value of 100 km (only guide consideration)107 Nm
My at theoretical life value of 100 km (only guide consideration)117 Nm
Mz at theoretical life value of 100 km (only guide consideration)117 Nm
Maximum feed force Fx200 N
Reference value effective load, horizontal20 kg
Reference value effective load, vertical13 kg
Torsional mass moment of inertia It29800 mm⁴
Feed constant12 mm/U
Reference service life5000 km
Maintenance intervalLifetime lubrication
Moving mass525 g
Product weight3372 g
Dynamic deflection (moving load)0.05% of the axis length, maximum 0.5 mm
Static deflection (load in standstill)0.1% of the axis length
Number of digital logic outputs 24 V DC2
Number of digital logic inputs2
Specification logic inputBased on IEC 61131-2, type 1
Working range of logic input24 V
IO-Link, SIO-Mode supportYes
Features of logic inputConfigurable, not galvanically isolated
IO-Link, Protocol versionDevice V 1.1
IO-Link, communication modeCOM3 (230.4 kBaud)
IO-Link, Port classA
IO-Link, Number of ports1
IO-Link, Process data length OUT2 bytes
IO-Link, Process data content OUTMove in 1 bit, move out 1 bit, quit Error 1 bit, move intermediate 1 bit
IO-Link, Process data length IN2 bytes
IO-Link, Process data content INState Device 1 bit, state In 1 bit, state Intermediate 1 bit, state Move 1 bit, state Out 1 bit
IO-Link, Service data IN32 bit Force, 32 bit position, 32 bit speed
IO-Link, Min. cycle time1 ms
IO-Link, Data storage required500 byte
Maximum cable length15 m outputs, 15 m inputs, 20 m with IO-Link® operation
Switching logic for outputsPNP (positive switching)
Switching logic for inputsPNP (positive switching)
IO-Link, connection technologyPlug
Logic interface, connection typePlug
Logic interface, connection technologyM12x1, A-coded according to EN 61076-2-101
Logic interface, number of pins/wires8
Type of mountingWith female thread, with centring sleeve and pin, with accessories
Material end capPainted die cast aluminium
Material profileAnodised wrought aluminium alloy
Note on materialsRoHS compliant
Material cover tapeHigh-alloy stainless steel
Material drive coverPainted die cast aluminium
Material guide slideSteel
Material guide railSteel
Material slideDie-cast aluminium
Material ball screw nutSteel
Material spindleSteel
Weight (price list)3.4 kg
Weight3.4 kg
ManufacturerFesto
Hersteller-NrELGS-BS-KF-60-100-12P-ST-M-H1-PLK-AA
EAN4052568458201
Zolltarifnummer84798997
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Stroke [mm]100
Housing materialAluminium, anodised
Operating voltage24 V DC
Protection ratingIP40
Temperaturbereich0-50 °C
Temperature (max.)50
