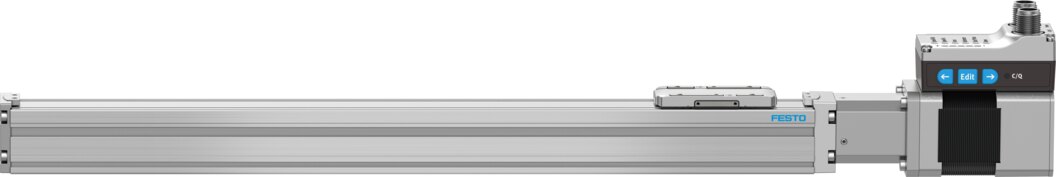

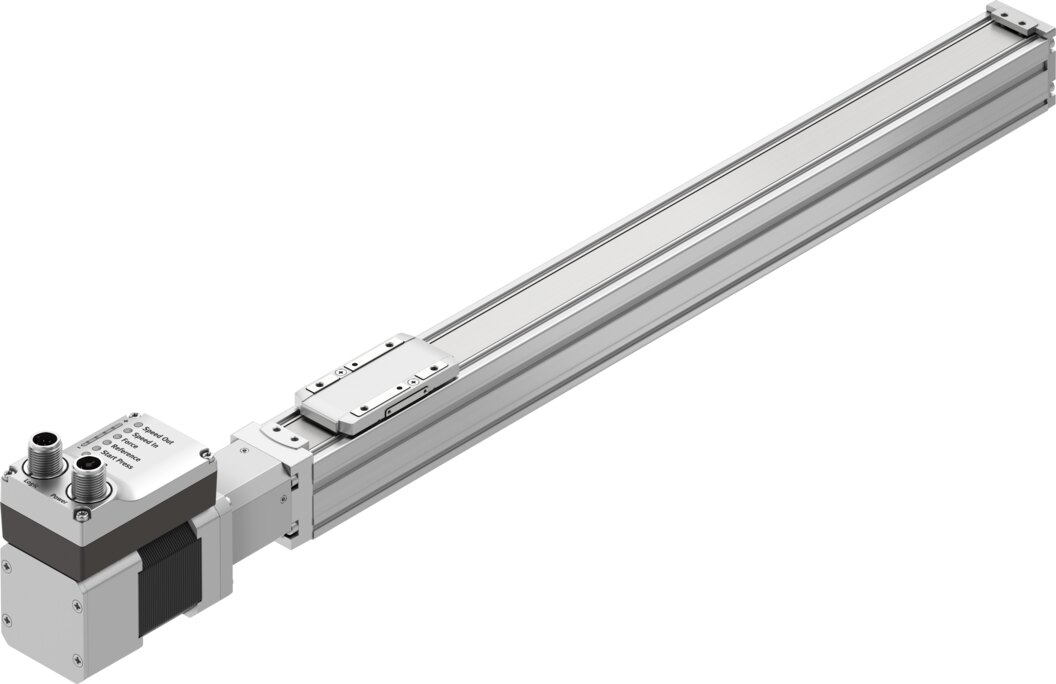

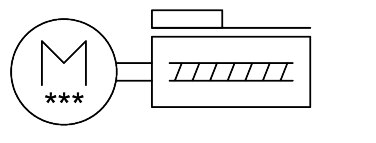

Ball screw axis unit with integrated drive stroke 300 mm ELGS-BS-KF-32-300-8P-ST-M-H1-PLK-AA - Festo 8083426

Festo ✓ Original product Brand new

The ball screw axis unit ELGS-BS-KF-32-300-8P-ST-M-H1-PLK-AA moves loads over a 300 mm stroke and returns to position within ±0.015 mm. Ball screw with 8 mm pitch, feed force up to 40 N and travel speed up to 0.18 m/s.

Net
€1,346.60
excl. VAT
Item FES-8083426
Manufacturer no. ELGS-BS-KF-32-300-8P-ST-M-H1-PLK-AA
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Festo ball screw axis unit ELGS-BS-KF-32-300-8P-ST-M-H1-PLK-AA at a glance: 300 mm stroke, size 32, up to 0.18 m/s. The ball screw with 8 mm/rev pitch converts motor torque into up to 40 N feed force, while the recirculating ball bearing guide carries transverse forces up to 356 N.

Advantages

  • Reproducible end positions with ±0.015 mm repeatability.
  • Integrated drive, motor encoder, end-position detection.
  • Up to 0.18 m/s and 5 m/s² acceleration for short cycle times.
  • Feed force up to 40 N in the direction of motion.
  • Parameterisation via IO-Link, supply 24 V DC.
  • Transverse forces up to 356 N and moments up to 1.3 Nm via the recirculating ball bearing guide.

Application

With its integrated drive, the ball screw axis unit ELGS-BS-KF-32-300-8P-ST-M-H1-PLK-AA shortens wiring and commissioning, the stroke is 300 mm. Mounting position any, ambient temperature 0 to 50 °C. Price-list weight 1.4 kg.

Technical data

TypeELGS-BS-KF-32-300-8P-ST-M-H1-PLK-AA
Working stroke300 mm
Size32
Stroke reserve0 mm
Spindle diameter8 mm
Spindle pitch8 mm/U
Mounting positionAny
GuideRecirculating ball bearing guide
DesignWith ball screw, with integrated drive
Type of motorStepper motor
Spindle typeBall screw
Position detectionMotor encoder, via proximity switch
ReferencingPositive fixed stop block, negative fixed stop block
Rotor position sensorAbsolute encoder, single turn
Rotor position sensor, encoder measuring principlemagnetic
Temperature monitoringSwitch-off for excessive temperature, integrated precise CMOS temperature sensor with analogue output
Additional functionsUser interface, Built-in end-position sensing
DisplayLED
Ready status indicationLED
Maximum acceleration5 m/s²
Maximum speed0.18 m/s
Speed "Speed press"0.01 m/s
Repetition accuracy±0.015 mm
Features of digital logic outputsConfigurable, not galvanically isolated
Duty cycle100%
Insulation protection classB
Maximum current digital logic outputs100 mA
Maximum current consumption3000 mA
Maximum current consumption, logic0.3 A
Nominal voltage DC24 V
Nominal current3 A
Parameterisation interfaceIO-Link®, user interface
Rotor position transducer resolution16 bit
Permissible voltage fluctuations+/- 15 %
Power supply, connection typePlug
power supply, connection systemM12x1, T-coded according to EN 61076-2-111
Power supply, number of pins/wires4
ApprovalRCM
KC markKC-EMV
CE mark (see declaration of conformity)To EU EMC Directive, in accordance with EU RoHS Directive
UKCA marking (see declaration of conformity)To UK instructions for EMC, to UK RoHS instructions
Vibration resistanceTransport application test with severity level 1 to FN 942017-4 and EN 60068-2-6
Shock resistanceShock test with severity level 1 to FN 942017-5 and EN 60068-2-27
LABS (PWIS) conformityVDMA24364 zone III
Cleanroom suitability, measured according to ISO 14644-14Class 7 according to ISO 14644-1
Storage temperature-20 to 60 °C
Relative air humidity0 - 90%
Degree of protectionIP40
Protection classIII
Ambient temperature0 to 50 °C
Note on ambient temperaturePower must be reduced by 2% per K at ambient temperatures above 30°C.
2nd moment of area Iy38000 mm⁴
2nd moment of area Iz45000 mm⁴
Maximum force Fy356 N
Maximum force Fz356 N
Maximum force Fy total axis150 N
Maximum force Fz total axis300 N
Fy at theoretical life value of 100 km (only guide consideration)1310 N
Fz at theoretical life value of 100 km (only guide consideration)1310 N
Maximum moment Mx1.3 Nm
Maximum moment My1.1 Nm
Maximum moment Mz1.1 Nm
Maximum moment Mx total axis1.3 Nm
Maximum moment My total axis1.1 Nm
Maximum moment Mz total axis1.1 Nm
Mx at theoretical life value of 100 km (only guide consideration)5 Nm
My at theoretical life value of 100 km (only guide consideration)4 Nm
Mz at theoretical life value of 100 km (only guide consideration)4 Nm
Maximum feed force Fx40 N
Reference value effective load, horizontal2 kg
Reference value effective load, vertical2 kg
Torsional mass moment of inertia It1700 mm⁴
Feed constant8 mm/U
Reference service life5000 km
Maintenance intervalLifetime lubrication
Moving mass83.4 g
Product weight1429 g
Dynamic deflection (moving load)0.05% of the axis length, maximum 0.5 mm
Static deflection (load in standstill)0.1% of the axis length
Number of digital logic outputs 24 V DC2
Number of digital logic inputs2
Specification logic inputBased on IEC 61131-2, type 1
Working range of logic input24 V
IO-Link, SIO-Mode supportYes
Features of logic inputConfigurable, not galvanically isolated
IO-Link, Protocol versionDevice V 1.1
IO-Link, communication modeCOM3 (230.4 kBaud)
IO-Link, Port classA
IO-Link, Number of ports1
IO-Link, Process data length OUT2 bytes
IO-Link, Process data content OUTMove in 1 bit, move out 1 bit, quit Error 1 bit, move intermediate 1 bit
IO-Link, Process data length IN2 bytes
IO-Link, Process data content INState Device 1 bit, state In 1 bit, state Intermediate 1 bit, state Move 1 bit, state Out 1 bit
IO-Link, Service data IN32 bit Force, 32 bit position, 32 bit speed
IO-Link, Min. cycle time1 ms
IO-Link, Data storage required500 byte
Maximum cable length15 m outputs, 15 m inputs, 20 m with IO-Link® operation
Switching logic for outputsPNP (positive switching)
Switching logic for inputsPNP (positive switching)
IO-Link, connection technologyPlug
Logic interface, connection typePlug
Logic interface, connection technologyM12x1, A-coded according to EN 61076-2-101
Logic interface, number of pins/wires8
Type of mountingWith female thread, with centring sleeve and pin, with accessories
Material end capPainted die cast aluminium
Material profileAnodised wrought aluminium alloy
Note on materialsRoHS compliant
Material cover tapeHigh-alloy stainless steel
Material drive coverPainted die cast aluminium
Material guide slideSteel
Material guide railSteel
Material slideDie-cast aluminium
Material ball screw nutSteel
Material spindleSteel
Weight (price list)1.4 kg
Weight1.4 kg
ManufacturerFesto
Hersteller-NrELGS-BS-KF-32-300-8P-ST-M-H1-PLK-AA
EAN4052568458294
Zolltarifnummer84798997
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Stroke [mm]300
Housing materialAluminium, anodised
Operating voltage24 V DC
Protection ratingIP40
Temperaturbereich0-50 °C
Temperature (max.)50
