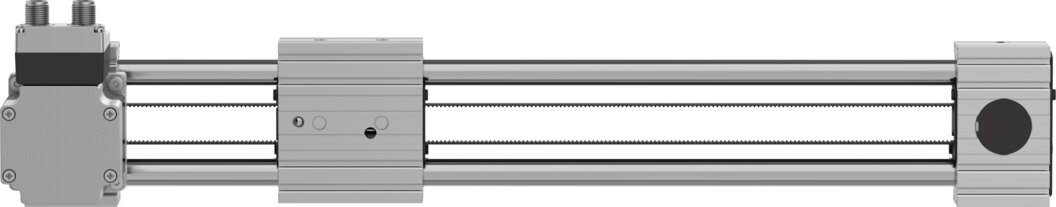

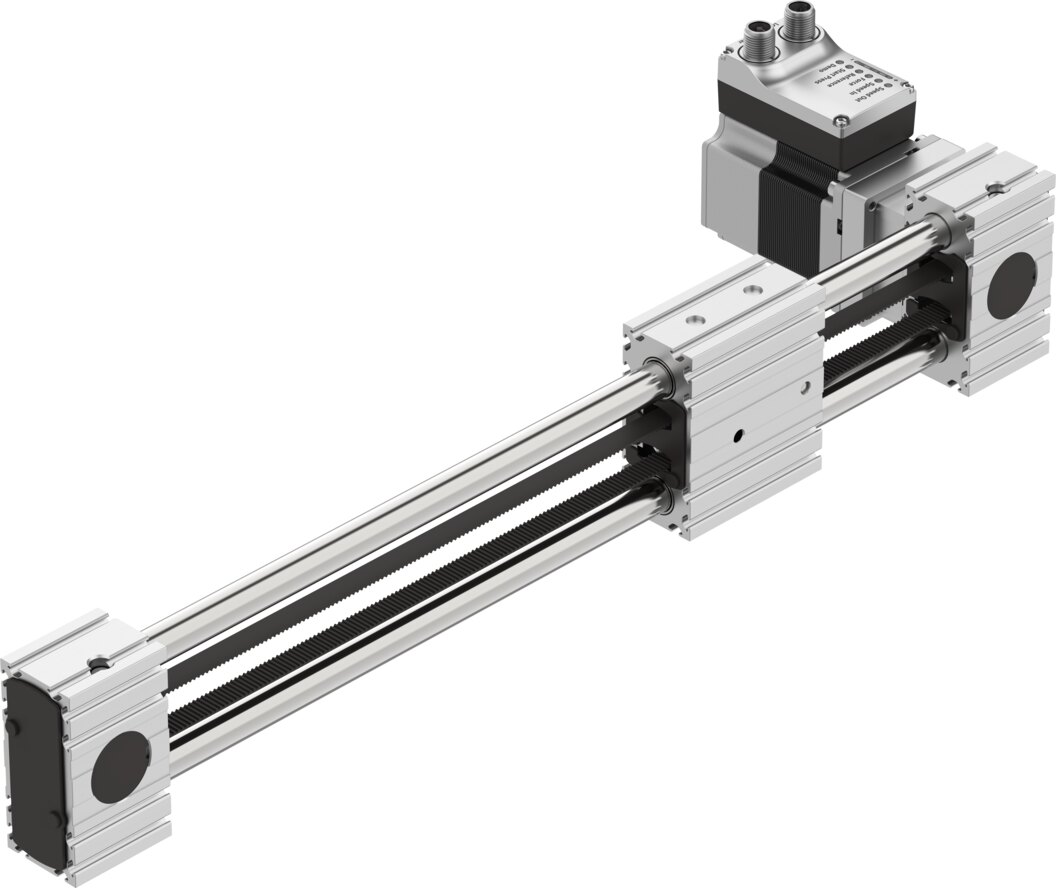

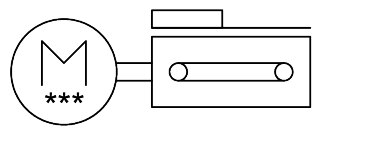

Toothed belt axis unit with toothed belt, size 35, stroke 400 mm, IO-Link ELGE-TB-35-400-0H-ST-M-H1-PLK-AA-AT-FR - Festo 8083934
Toothed belt axis unit with integrated stepper motor, encoder and controller: 400 mm stroke, up to 50 N feed force and ±0.1 mm repetition accuracy. The ELGE-35 is controlled via digital I/O or IO-Link, so no separate motor controller is needed.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
400 mm stroke, 50 N feed force and ±0.1 mm repetition accuracy: the ELGE-TB-35-400-0H-ST-M-H1-PLK-AA-AT-FR is a toothed belt axis unit with toothed belt that already contains motor, encoder and controller. It is suited to fast transfer and repositioning movements.
Benefits

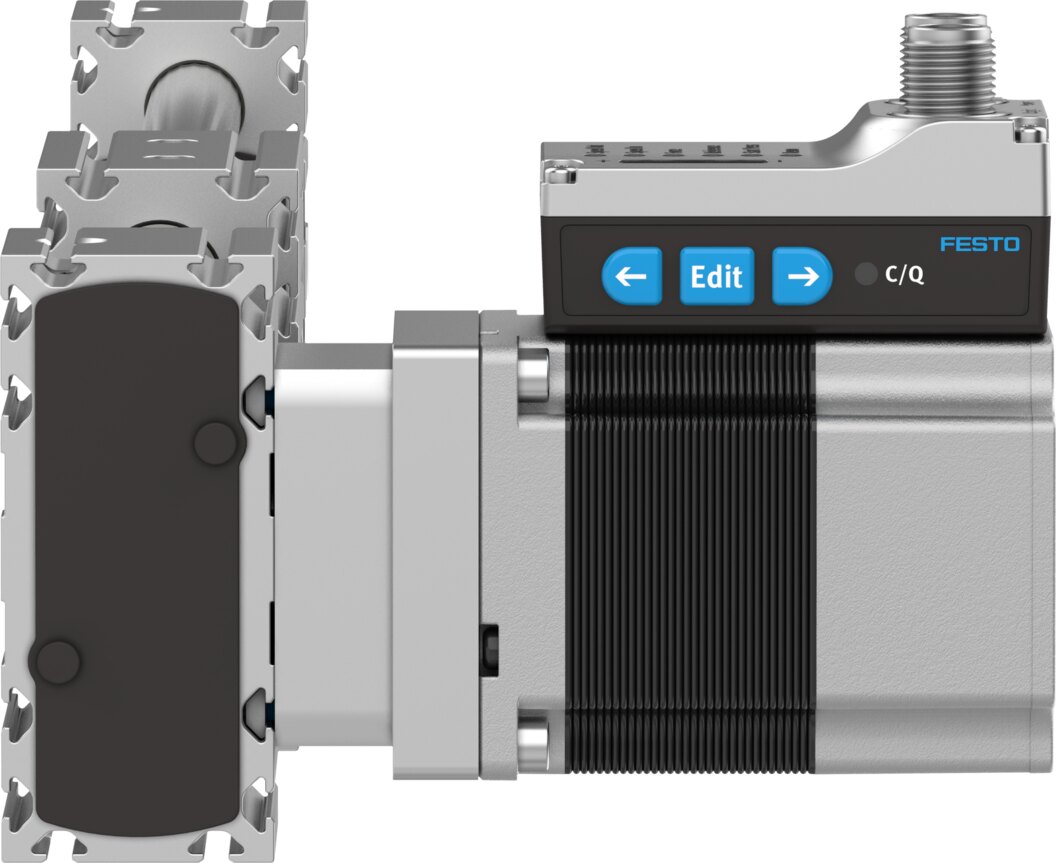

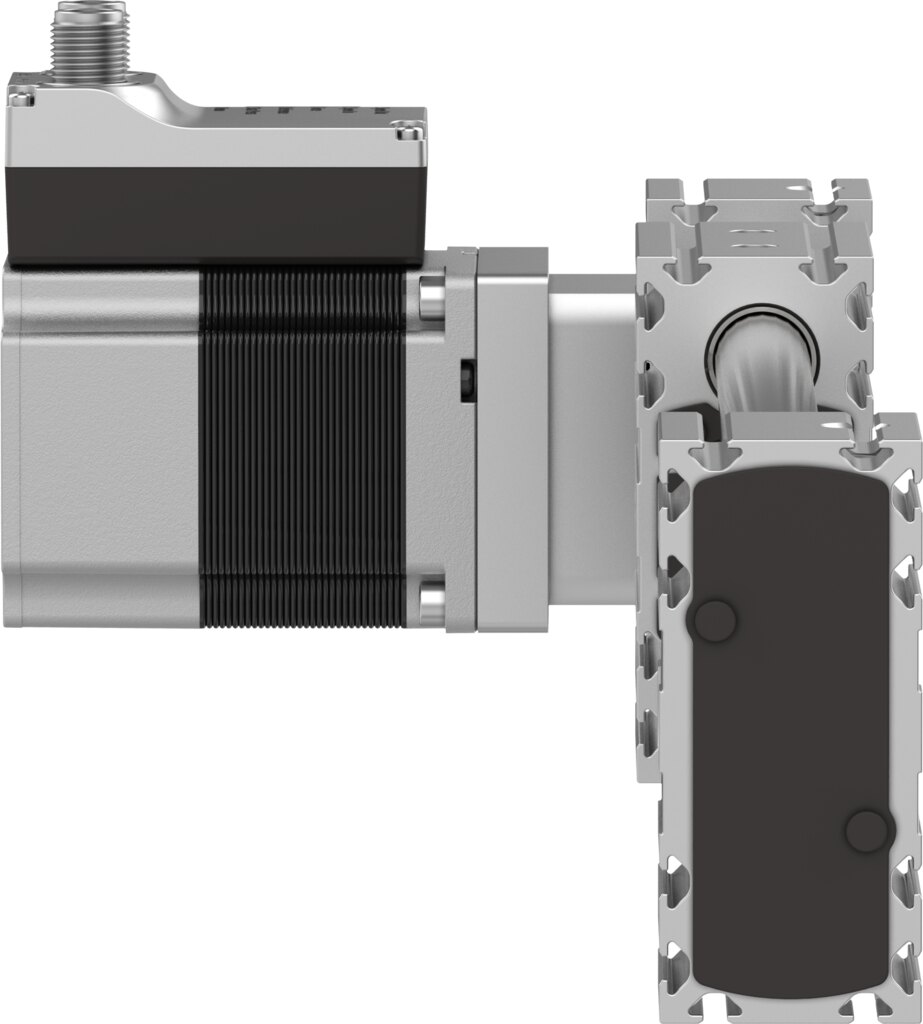

- Compact integration: motor, encoder and controller of the ELGE-35 in one unit, connected via M12 plugs for 24 V DC and logic.
- Two ways to control: the ELGE-35 runs via IO-Link Device V 1.1 or 2 digital inputs (PNP), just like a pneumatic cylinder with a valve.
- Repeatable: ±0.1 mm at up to 1.2 m/s and 8.5 m/s² acceleration.
- Guided load capacity: recirculating ball bearing guide for transverse forces Fy up to 50 N and torques My up to 8 Nm, payload up to 2.8 kg horizontal.
- Low maintenance: lifetime lubrication and 5000 km reference service life, degree of protection IP20.
Applications
In assembly and handling systems the ELGE-35 replaces pneumatic cylinders where intermediate positions or adjustable forces are needed. The axis is intended for horizontal installation, the feed constant is 58 mm/rev. The ELGE-35 is rated for 0 to 50 °C ambient temperature, with 2 % power reduction per K above 30 °C.
Technical data
| Effective diameter of drive pinion | 18.46 mm |
|---|---|
| Working stroke | 400 mm |
| Size | 35 |
| Toothed-belt stretch | 0.094 % |
| Toothed-belt pitch | 2 mm |
| Mounting position | Horizontal |
| Guide | Recirculating ball bearing guide |
| Design | With toothed belt, With integrated drive |
| Type of motor | Stepper motor |
| Position detection | Motor encoder, Via proximity switch |
| Referencing | Positive fixed stop block, Negative fixed stop block |
| Rotor position sensor | Absolute encoder, single turn |
| Rotor position sensor, encoder measuring principle | magnetic |
| Temperature monitoring | Switch-off for excessive temperature, Integrated precise CMOS temperature sensor with analogue output |
| Additional functions | User interface, Built-in end-position sensing |
| Display | LED |
| Ready status indication | LED |
| Maximum acceleration | 8.5 m/s² |
| Maximum speed | 1.2 m/s |
| Speed "Speed press" | 0.024 m/s |
| Repetition accuracy | ±0.1 mm |
| Features of digital logic outputs | Configurable, Not galvanically isolated |
| Duty cycle | 100% |
| Insulation protection class | B |
| Maximum current digital logic outputs | 100 mA |
| Maximum current consumption | 5300 mA |
| Maximum current consumption, logic | 0.3 A |
| Nominal voltage DC | 24 V |
| Nominal current | 5.3 A |
| Parameterisation interface | IO-Link, User interface |
| Rotor position transducer resolution | 16 bit |
| Permissible voltage fluctuations | +/- 15 % |
| Power supply, connection type | Plug |
| power supply, connection system | M12x1, T-coded according to EN 61076-2-111 |
| Power supply, number of pins/wires | 4 |
| Approval | RCM |
| KC mark | KC-EMV |
| CE mark (see declaration of conformity) | To EU EMC Directive, In accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC, To UK RoHS instructions |
| Vibration resistance | Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Storage temperature | -20 to 60 °C |
| Relative air humidity | 0 - 90% |
| Degree of protection | IP20 |
| Protection class | III |
| Ambient temperature | 0 to 50 °C |
| Note on ambient temperature | Power must be reduced by 2% per K at ambient temperatures above 30°C |
| 2nd moment of area Iy | 3770 mm⁴ |
| 2nd moment of area Iz | 4190 mm⁴ |
| Maximum force Fy | 50 N |
| Maximum force Fz | 50 N |
| Maximum moment Mx | 2.5 Nm |
| Maximum moment My | 8 Nm |
| Maximum moment Mz | 8 Nm |
| Maximum feed force Fx | 50 N |
| Reference value effective load, horizontal | 2.8 kg |
| Feed constant | 58 mm/rev |
| Reference service life | 5000 km |
| Maintenance interval | Lifetime lubrication |
| Additional moving mass per 10 mm stroke | 0.31 g |
| Product weight | 3490 g |
| Number of digital logic outputs 24 V DC | 2 |
| Number of digital logic inputs | 2 |
| Specification logic input | Based on IEC 61131-2, type 1 |
| Working range of logic input | 24 V |
| IO-Link, SIO-Mode support | Yes |
| Features of logic input | Configurable, Not galvanically isolated |
| IO-Link, Protocol version | Device V 1.1 |
| IO-Link, communication mode | COM3 (230.4 kBaud) |
| IO-Link, Port class | A |
| IO-Link, Number of ports | Device 1 |
| IO-Link, Process data length OUT | 2 bytes |
| IO-Link, Process data content OUT | Move in 1 bit, Move out 1 bit, Quit Error 1 bit, Move intermediate 1 bit |
| IO-Link, Process data length IN | 2 bytes |
| IO-Link, Process data content IN | State Device 1 bit, State In 1 bit, State Intermediate 1 bit, State Move 1 bit, State Out 1 bit |
| IO-Link, Service data IN | 32 bit Force, 32 bit position, 32 bit speed |
| IO-Link, Min, cycle time | 1 ms |
| IO-Link, Data storage required | 500 byte |
| Maximum cable length | 15 m outputs, 15 m inputs, 20 m with IO-Link operation |
| Switching logic for outputs | PNP (positive switching) |
| Switching logic for inputs | PNP (positive switching) |
| IO-Link, connection technology | Plug |
| Logic interface, connection type | Plug |
| Logic interface, connection technology | M12x1, A-coded according to EN 61076-2-101 |
| Logic interface, number of pins/wires | 8 |
| Type of mounting | Profile mounting |
| Material profile | Anodised wrought aluminium alloy |
| Note on materials | RoHS compliant |
| Material drive cover | Anodised wrought aluminium alloy |
| Material pulleys | High-alloy stainless steel |
| Material slide | Anodised wrought aluminium alloy |
| Material toothed belt clamping piece | Beryllium copper |
| Material toothed belt | Polychloroprene with glass filament and nylon coating |
| Weight | 3.3 kg |
| Manufacturer | Festo |
| Hersteller-Nr | ELGE-TB-35-400-0H-ST-M-H1-PLK-AA-AT-FR |
| EAN | 4052568458171 |
| Zolltarifnummer | 84798997 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Stroke [mm] | 400 |
| Operating voltage | 24 V DC |
| Protection rating | IP20 |
| Temperaturbereich | 0-50 °C |
| Temperature (max.) | 50 |
