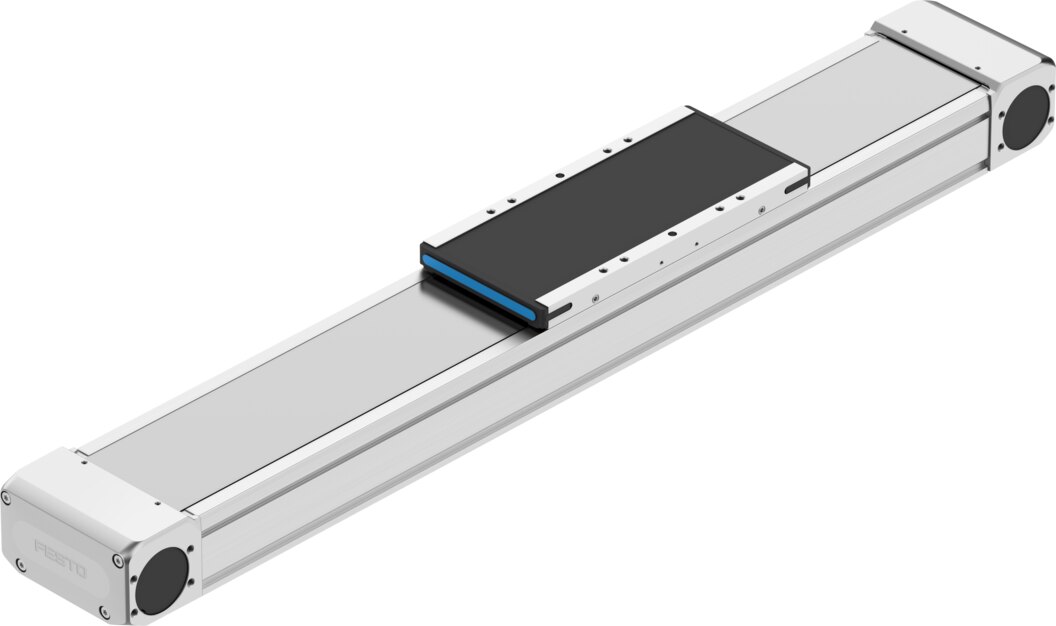

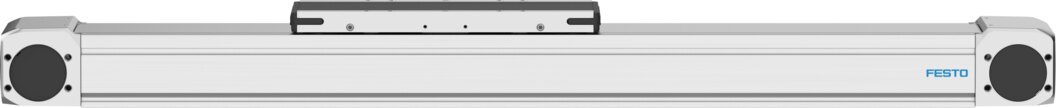

Toothed belt axis stroke 500 mm up to 3 m/s ELGD-TB-KF-WD-120-500-0H-L-PU2 - Festo 8192386

Festo ✓ Original product Brand new

The toothed belt axis ELGD-TB-KF-WD-120-500-0H-L-PU2 moves loads over a 500 mm stroke and returns to position within ±0.04 mm. Toothed belt with 5 mm pitch and 120 mm/U feed constant, feed force up to 500 N and travel speed up to 3 m/s.

Net
€1,857.54
excl. VAT
Item FES-8192386
Manufacturer no. ELGD-TB-KF-WD-120-500-0H-L-PU2
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

ELGD-TB-KF-WD-120-500-0H-L-PU2 is a Festo toothed belt axis with 500 mm stroke, size 120, up to 3 m/s. The toothed belt with 5 mm pitch delivers 120 mm feed per revolution, allowing speeds up to 3 m/s at 100 m/s² acceleration.

Advantages

  • Repeatability of ±0.04 mm over the full 500 mm stroke.
  • Feed force up to 500 N in the direction of motion.
  • Short cycles with up to 3 m/s and 100 m/s².
  • Recirculating ball bearing guide for transverse forces up to 8000 N and moments up to 330 Nm.
  • Lifetime lubrication, reference service life 5000 km.
  • Cleanroom class 6 to ISO 14644-1 (extraction: class 4).

Application

The toothed belt axis ELGD-TB-KF-WD-120-500-0H-L-PU2 suits long, fast travel over 500 mm in handling and gantry systems. Mounting position any, ambient temperature 0 to 60 °C. Designed for mounting stepper and servo motors. Price-list weight 10 kg.

Technical data

TypeELGD-TB-KF-WD-120-500-0H-L-PU2
Effective diameter of drive pinion38.2 mm
Working stroke500 mm
Size120
Stroke reserve0 mm
Toothed-belt pitch5 mm
Mounting positionAny
GuideRecirculating ball bearing guide
DesignWith toothed belt
Type of motorStepper motor, servo motor
Functional principle of measuring systemIncremental
Position detectionFor inductive sensors
Maximum acceleration100 m/s²
Maximum speed3 m/s
Repetition accuracy±0.04 mm
Duty cycle100%
LABS (PWIS) conformityVDMA24364-C1-L
Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1 (with vacuum extraction), class 6 according to ISO 14644-1
Storage temperature-20 to 60 °C
Degree of protectionIP40
Ambient temperature0 to 60 °C
Impact energy in end positions0.001 J
Note on the impact energy in the end positionsAt maximum homing speed of 0.01 m/s
2nd moment of area Iy770000 mm⁴
2nd moment of area Iz5801000 mm⁴
Maximum drive torque9.55 Nm
Maximum force Fy8000 N
Maximum force Fz7200 N
Maximum force Fy total axis5914 N
Maximum force Fz total axis5280 N
Fy at theoretical life value of 100 km (only guide consideration)35153 N
Fz at theoretical life value of 100 km (only guide consideration)35153 N
Maximum idle running transfer resistance72.1 N
Maximum moment Mx330 Nm
Maximum moment My600 Nm
Maximum moment Mz540 Nm
Maximum moment Mx total axis290 Nm
Maximum moment My total axis563 Nm
Maximum moment Mz total axis527 Nm
Mx at theoretical life value of 100 km (only guide consideration)1459 Nm
My at theoretical life value of 100 km (only guide consideration)1920 Nm
Mz at theoretical life value of 100 km (only guide consideration)1920 Nm
Distance between slide surface and guide centre51 mm
Maximum feed force Fx500 N
Frictional torque independent of load1.38 Nm
Torsional mass moment of inertia It383100 mm⁴
Mass moment of inertia JH per metre of stroke0.876 kgcm²
Mass moment of inertia JL per kg of working load3.648 kgcm²
Mass moment of inertia JO9.1687 kgcm²
Feed constant120 mm/U
Reference service life5000 km
Maintenance intervalLifetime lubrication
Moving mass2250 g
Product weight10395 g
Basic weight for 0 mm stroke6495 g
Additional weight per 10 mm stroke78 g
Dynamic deflection (moving load)0.05% of the axis length, maximum 0.5 mm
Static deflection (load in standstill)0.1% of the axis length
Interface code, actuatorN48
Material end capAluminium gravity die-cast, painted
Material profileAnodised wrought aluminium alloy
Note on materialsRoHS compliant
Material cover tapeHigh-alloy stainless steel
Material drive coverAluminium gravity die-cast, painted
Material guide slideSteel
Material guide railSteel
Material pulleysHigh-alloy stainless steel
Material slideWrought aluminium alloy
Material toothed beltPolyurethane with steel cord
Weight (price list)10 kg
Weight10 kg
ManufacturerFesto
Hersteller-NrELGD-TB-KF-WD-120-500-0H-L-PU2
EAN4052568776077
Zolltarifnummer84799070
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Stroke [mm]500
Housing materialAluminium, anodised
Protection ratingIP40
Temperaturbereich0-60 °C
Temperature (max.)60
