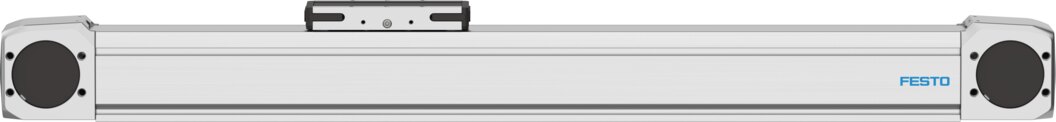

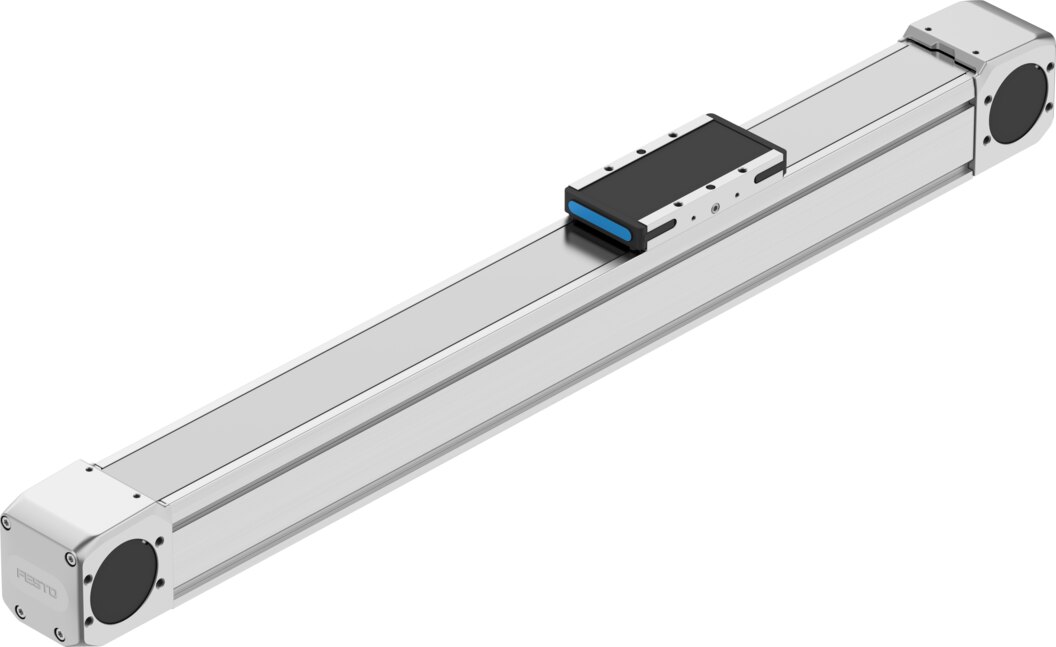

Toothed belt axis ELGD-TB-KF-60-300-0H-PU2 - Festo 8192345
Net
excl. VAT
€804.75
Item
FES-8192345
Manufacturer no.
ELGD-TB-KF-60-300-0H-PU2
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Effective diameter of drive pinion | 31.51 mm |
|---|---|
| Working stroke | 300 mm |
| Size | 60 |
| Stroke reserve | 0 mm |
| Toothed-belt pitch | 3 mm |
| Mounting position | Any |
| Guide | Recirculating ball bearing guide |
| Design | With toothed belt |
| Type of motor | Stepper motor, Servo motor |
| Functional principle of measuring system | Incremental |
| Position detection | For inductive sensors |
| Max. acceleration | 100 m/s² |
| Max. speed | 3 m/s |
| Repetition accuracy | ±0.04 mm |
| Duty cycle | 100% |
| LABS (PWIS) conformity | VDMA24364-C1-L |
| Suitability for the production of Li-ion batteries | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Cleanroom suitability, measured according to ISO 14644-14 | Class 4 according to ISO 14644-1 (with vacuum extraction), Class 6 according to ISO 14644-1 |
| Storage temperature | -20 ... 60 °C |
| Degree of protection | IP40 |
| Ambient temperature | 0 ... 60 °C |
| Impact energy in end positions | 1.25E-4 J |
| Note on the impact energy in the end positions | At maximum homing speed of 0.01 m/s |
| 2nd moment of area Iy | 485200 mm⁴ |
| 2nd moment of area Iz | 730600 mm⁴ |
| Max. drive torque | 5.5 Nm |
| Max. force Fy | 2200 N |
| Max. force Fz | 2200 N |
| Max. force Fy total axis | 1945 N |
| Max. force Fz total axis | 2000 N |
| Fy at theoretical life value of 100 km (only guide consideration) | 9208 N |
| Fz at theoretical life value of 100 km (only guide consideration) | 9208 N |
| Max. idle running transfer resistance | 29.8 N |
| Max. moment Mx | 38 Nm |
| Max. moment My | 15 Nm |
| Max. moment Mz | 15 Nm |
| Max. moment Mx total axis | 41 Nm |
| Max. moment My total axis | 36 Nm |
| Max. moment Mz total axis | 36 Nm |
| Mx at theoretical life value of 100 km (only guide consideration) | 157 Nm |
| My at theoretical life value of 100 km (only guide consideration) | 60 Nm |
| Mz at theoretical life value of 100 km (only guide consideration) | 60 Nm |
| Distance between slide surface and guide centre | 49 mm |
| Max. feed force Fx | 350 N |
| Frictional torque independent of load | 0.5 Nm |
| Torsional mass moment of inertia It | 192900 mm⁴ |
| Mass moment of inertia JH per metre of stroke | 0.3128 kgcm² |
| Mass moment of inertia JL per kg of working load | 2.4822 kgcm² |
| Mass moment of inertia JO | 2.1016 kgcm² |
| Feed constant | 99 mm/U |
| Reference service life | 5000 km |
| Maintenance interval | Lifetime lubrication |
| Moving mass | 443 g |
| Product weight | 3956 g |
| Basic weight for 0 mm stroke | 2486 g |
| Additional weight per 10 mm stroke | 49 g |
| Dynamic deflection (moving load) | 0.05% of the axis length, max. 0.5 mm |
| Static deflection (load in standstill) | 0.1% of the axis length |
| Interface code, actuator | N48 |
| Material end cap | Aluminium gravity die-cast, painted |
| Material profile | Anodised wrought aluminium alloy |
| Note on materials | RoHS compliant |
| Material cover tape | High-alloy stainless steel |
| Material drive cover | Aluminium gravity die-cast, painted |
| Material guide slide | Steel |
| Material guide rail | Steel |
| Material pulleys | High-alloy stainless steel |
| Material slide | Wrought aluminium alloy |
| Material toothed belt | Polyurethane with steel cord |
| Weight | 3.9 kg |
| Manufacturer | Festo |
| Hersteller-Nr | ELGD-TB-KF-60-300-0H-PU2 |
| EAN | 4052568644918 |
| Zolltarifnummer | 84799070 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
