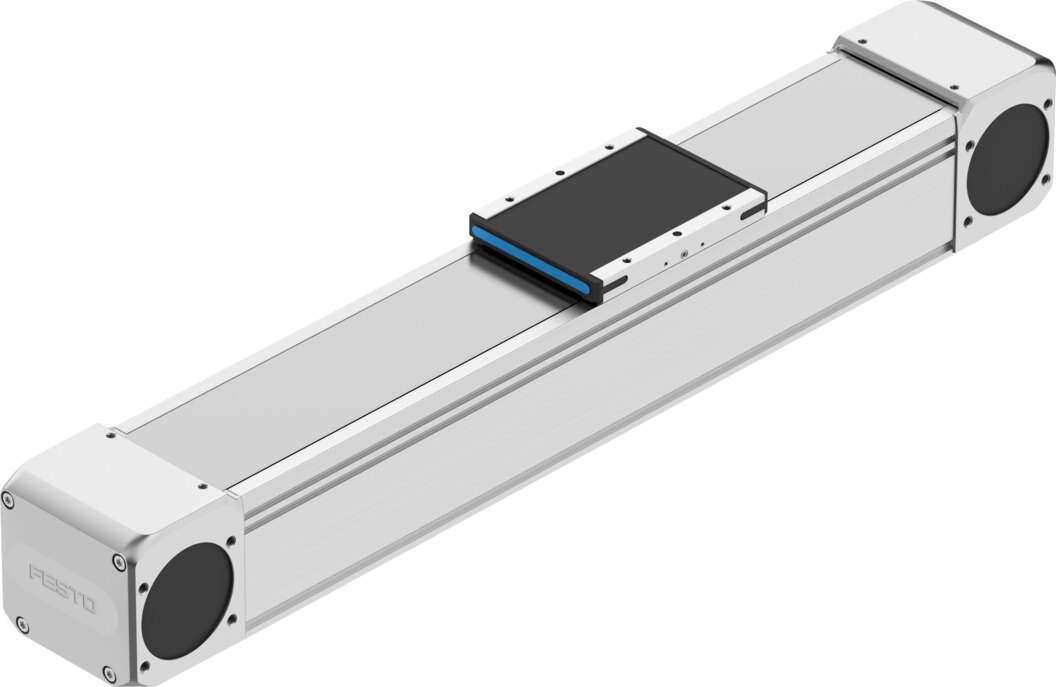

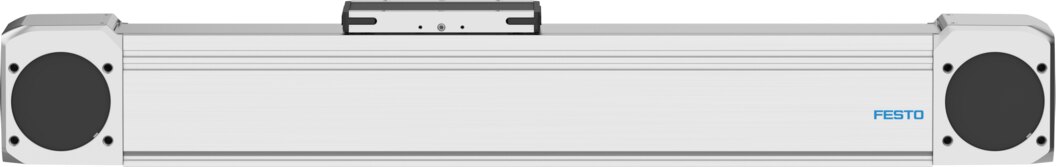

Toothed belt axis stroke 1200 mm up to 3 m/s ELGD-TB-KF-120-1200-0H-PU2 - Festo 8192370
With a 1200 mm stroke and ±0.04 mm repeatability, the toothed belt axis ELGD-TB-KF-120-1200-0H-PU2 handles exact positioning tasks. Toothed belt with 5 mm pitch and 175 mm/U feed constant, feed force up to 1300 N and travel speed up to 3 m/s.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Festo toothed belt axis ELGD-TB-KF-120-1200-0H-PU2 at a glance: 1200 mm stroke, size 120, up to 3 m/s. The toothed belt with 5 mm pitch delivers 175 mm feed per revolution, allowing speeds up to 3 m/s at 100 m/s² acceleration.
Advantages
- Repeatability of ±0.04 mm over the full 1200 mm stroke.
- Up to 3 m/s and 100 m/s² acceleration for short cycle times.
- Feed force up to 1300 N in the direction of motion.
- Recirculating ball bearing guide for transverse forces up to 4300 N and moments up to 170 Nm.
- Lifetime lubrication, reference service life 5000 km.
- Cleanroom class 6 to ISO 14644-1 (extraction: class 4).
Application
In gantries and transfer units the toothed belt axis ELGD-TB-KF-120-1200-0H-PU2 covers its 1200 mm stroke with high dynamics. Mounting position any, ambient temperature 0 to 60 °C. Designed for mounting stepper and servo motors. Price-list weight 24 kg.
Technical data
| Type | ELGD-TB-KF-120-1200-0H-PU2 |
|---|---|
| Effective diameter of drive pinion | 55.7 mm |
| Working stroke | 1200 mm |
| Size | 120 |
| Stroke reserve | 0 mm |
| Toothed-belt pitch | 5 mm |
| Mounting position | Any |
| Guide | Recirculating ball bearing guide |
| Design | With toothed belt |
| Type of motor | Stepper motor, servo motor |
| Functional principle of measuring system | Incremental |
| Position detection | For inductive sensors |
| Maximum acceleration | 100 m/s² |
| Maximum speed | 3 m/s |
| Repetition accuracy | ±0.04 mm |
| Duty cycle | 100% |
| LABS (PWIS) conformity | VDMA24364-C1-L |
| Suitability for the production of Li-ion batteries | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Cleanroom suitability, measured according to ISO 14644-14 | Class 4 according to ISO 14644-1 (with vacuum extraction), class 6 according to ISO 14644-1 |
| Storage temperature | -20 to 60 °C |
| Degree of protection | IP40 |
| Ambient temperature | 0 to 60 °C |
| Impact energy in end positions | 0.001 J |
| Note on the impact energy in the end positions | At maximum homing speed of 0.01 m/s |
| 2nd moment of area Iy | 3550000 mm⁴ |
| 2nd moment of area Iz | 8985000 mm⁴ |
| Maximum drive torque | 36.2 Nm |
| Maximum force Fy | 4300 N |
| Maximum force Fz | 4300 N |
| Maximum force Fy total axis | 2957 N |
| Maximum force Fz total axis | 6500 N |
| Fy at theoretical life value of 100 km (only guide consideration) | 17576 N |
| Fz at theoretical life value of 100 km (only guide consideration) | 17576 N |
| Maximum idle running transfer resistance | 71.8 N |
| Maximum moment Mx | 170 Nm |
| Maximum moment My | 50 Nm |
| Maximum moment Mz | 60 Nm |
| Maximum moment Mx total axis | 251 Nm |
| Maximum moment My total axis | 80 Nm |
| Maximum moment Mz total axis | 105 Nm |
| Mx at theoretical life value of 100 km (only guide consideration) | 730 Nm |
| My at theoretical life value of 100 km (only guide consideration) | 162 Nm |
| Mz at theoretical life value of 100 km (only guide consideration) | 162 Nm |
| Distance between slide surface and guide centre | 80 mm |
| Maximum feed force Fx | 1300 N |
| Frictional torque independent of load | 2 Nm |
| Torsional mass moment of inertia It | 1433600 mm⁴ |
| Mass moment of inertia JH per metre of stroke | 2.792 kgcm² |
| Mass moment of inertia JL per kg of working load | 7.7562 kgcm² |
| Mass moment of inertia JO | 30.2136 kgcm² |
| Feed constant | 175 mm/U |
| Reference service life | 5000 km |
| Maintenance interval | Lifetime lubrication |
| Moving mass | 1708 g |
| Product weight | 24345 g |
| Basic weight for 0 mm stroke | 10425 g |
| Additional weight per 10 mm stroke | 116 g |
| Dynamic deflection (moving load) | 0.05% of the axis length, maximum 0.5 mm |
| Static deflection (load in standstill) | 0.1% of the axis length |
| Interface code, actuator | N80 |
| Material end cap | Aluminium gravity die-cast, painted |
| Material profile | Anodised wrought aluminium alloy |
| Note on materials | RoHS compliant |
| Material cover tape | High-alloy stainless steel |
| Material drive cover | Aluminium gravity die-cast, painted |
| Material guide slide | Steel |
| Material guide rail | Steel |
| Material pulleys | High-alloy stainless steel |
| Material slide | Wrought aluminium alloy |
| Material toothed belt | Polyurethane with steel cord |
| Weight (price list) | 24 kg |
| Weight | 24 kg |
| Manufacturer | Festo |
| Hersteller-Nr | ELGD-TB-KF-120-1200-0H-PU2 |
| EAN | 4052568776015 |
| Zolltarifnummer | 84799070 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Stroke [mm] | 1200 |
| Housing material | Aluminium, anodised |
| Protection rating | IP40 |
| Temperaturbereich | 0-60 °C |
| Temperature (max.) | 60 |
