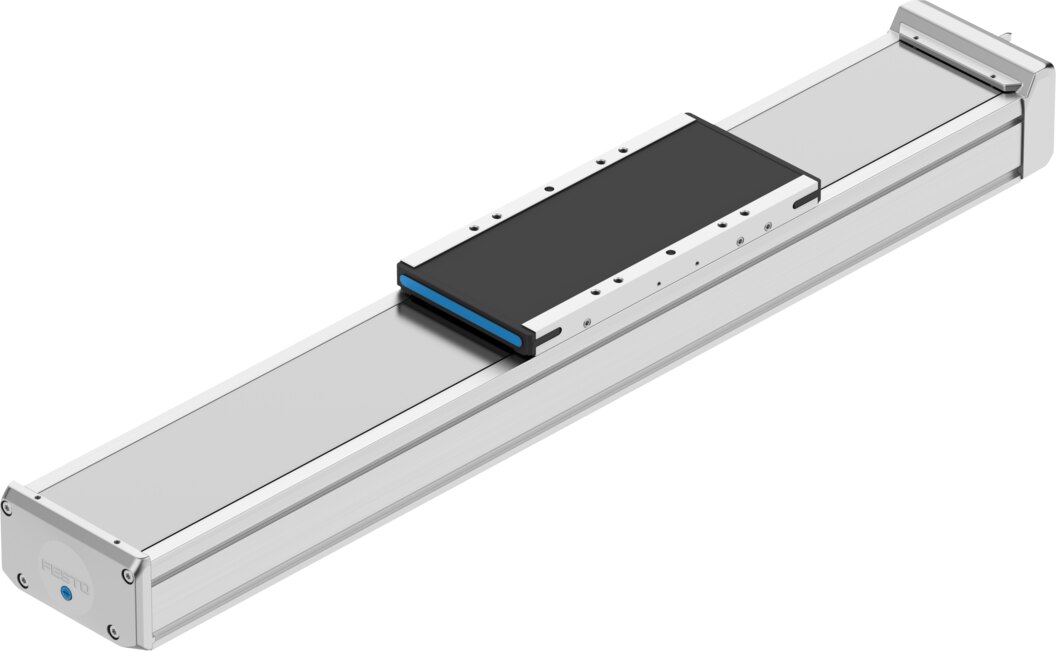

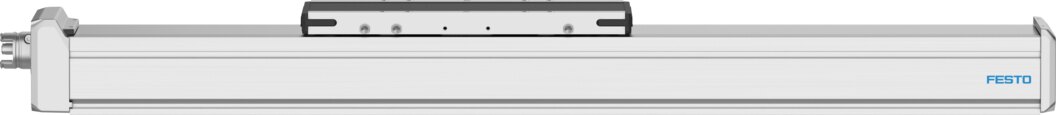

Ball screw axis stroke 1000 mm pitch 10 mm ELGD-BS-KF-WD-120-1000-0H-10P-L - Festo 8192343

Festo ✓ Original product Brand new

With a 1000 mm stroke and ±0.01 mm repeatability, the ball screw axis ELGD-BS-KF-WD-120-1000-0H-10P-L handles exact positioning tasks. Ball screw with 10 mm pitch, feed force up to 1880 N and travel speed up to 0.15 m/s. Suitable for stepper and servo motors, degree of protection IP40.

Net
€2,809.73
excl. VAT
Item FES-8192343
Manufacturer no. ELGD-BS-KF-WD-120-1000-0H-10P-L
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Festo ball screw axis ELGD-BS-KF-WD-120-1000-0H-10P-L at a glance: 1000 mm stroke, size 120, up to 0.15 m/s. The ball screw with 10 mm/rev pitch converts motor torque into up to 1880 N feed force, while the recirculating ball bearing guide carries transverse forces up to 8000 N.

Advantages

  • Reproducible end positions with ±0.01 mm repeatability.
  • Feed force up to 1880 N in the direction of motion.
  • Up to 0.15 m/s and 15 m/s² acceleration for short cycle times.
  • Transverse forces up to 8000 N and moments up to 330 Nm via the recirculating ball bearing guide.
  • Lifetime lubrication, reference service life 5000 km.
  • Cleanroom class 7 to ISO 14644-1 (extraction: class 4).

Application

Typical tasks for the ball screw axis ELGD-BS-KF-WD-120-1000-0H-10P-L are gantries, feeders and test stations needing an exact target position over 1000 mm. Mounting position any, ambient temperature 0 to 60 °C. Designed for mounting stepper and servo motors.

Technical data

TypeELGD-BS-KF-WD-120-1000-0H-10P-L
Working stroke1000 mm
Size120
Stroke reserve0 mm
Ball screw reversing backlash±0.02 mm
Spindle diameter12 mm
Spindle pitch10 mm/U
Mounting positionAny
GuideRecirculating ball bearing guide
DesignWith ball screw
Type of motorStepper motor, servo motor
Spindle typeBall screw
Functional principle of measuring systemIncremental
Position detectionFor inductive sensors
Maximum acceleration15 m/s²
Maximum rotational speed905 1/min
Maximum speed0.15 m/s
Repetition accuracy±0.01 mm
Duty cycle100%
LABS (PWIS) conformityVDMA24364-C1-L
Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1 (with vacuum extraction), class 7 according to ISO 14644-1
Storage temperature-20 to 60 °C
Degree of protectionIP40
Ambient temperature0 to 60 °C
Impact energy in end positions0.001 J
Note on the impact energy in the end positionsAt maximum homing speed of 0.01 m/s
2nd moment of area Iy770900 mm⁴
2nd moment of area Iz5801000 mm⁴
Idle torque at vmax0.246 Nm
Idle torque at vmin0.068 Nm
Maximum force Fy8000 N
Maximum force Fz7200 N
Maximum force Fy total axis5914 N
Maximum force Fz total axis5280 N
Fy at theoretical life value of 100 km (only guide consideration)35153 N
Fz at theoretical life value of 100 km (only guide consideration)35153 N
Maximum moment Mx330 Nm
Maximum moment My600 Nm
Maximum moment Mz540 Nm
Maximum moment Mx total axis290 Nm
Maximum moment My total axis590 Nm
Maximum moment Mz total axis527 Nm
Mx at theoretical life value of 100 km (only guide consideration)1459 Nm
My at theoretical life value of 100 km (only guide consideration)1920 Nm
Mz at theoretical life value of 100 km (only guide consideration)1920 Nm
Distance between slide surface and guide centre51 mm
Maximum radial force at drive shaft230 N
Maximum feed force Fx1880 N
Torsional mass moment of inertia It383100 mm⁴
Mass moment of inertia JH per metre of stroke0.13 kgcm²
Mass moment of inertia JL per kg of working load0.02533 kgcm²
Mass moment of inertia JO0.0947 kgcm²
Feed constant10 mm/U
Reference service life5000 km
Maintenance intervalLifetime lubrication
Moving mass2352 g
Product weight13890 g
Basic weight for 0 mm stroke5290 g
Additional weight per 10 mm stroke86 g
Dynamic deflection (moving load)0.05% of the axis length, maximum 0.5 mm
Static deflection (load in standstill)0.1% of the axis length
Interface code, actuatorT42
Material end capAluminium gravity die-cast, painted
Material profileAnodised wrought aluminium alloy
Note on materialsRoHS compliant
Material cover tapeHigh-alloy stainless steel
Material drive coverAluminium gravity die-cast, painted
Material guide slideSteel
Material guide railSteel
Material slideWrought aluminium alloy
Material ball screw nutSteel
Material spindleSteel
ManufacturerFesto
Hersteller-NrELGD-BS-KF-WD-120-1000-0H-10P-L
EAN4052568775940
Zolltarifnummer84799070
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Stroke [mm]1000
Housing materialAluminium, anodised
Protection ratingIP40
Temperaturbereich0-60 °C
Temperature (max.)60
