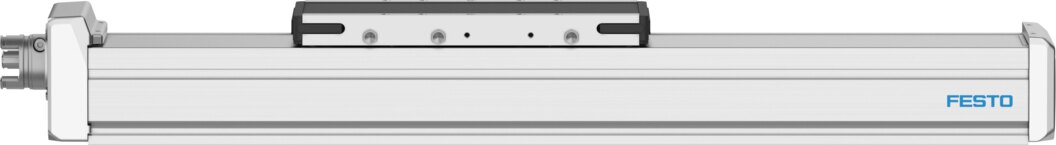

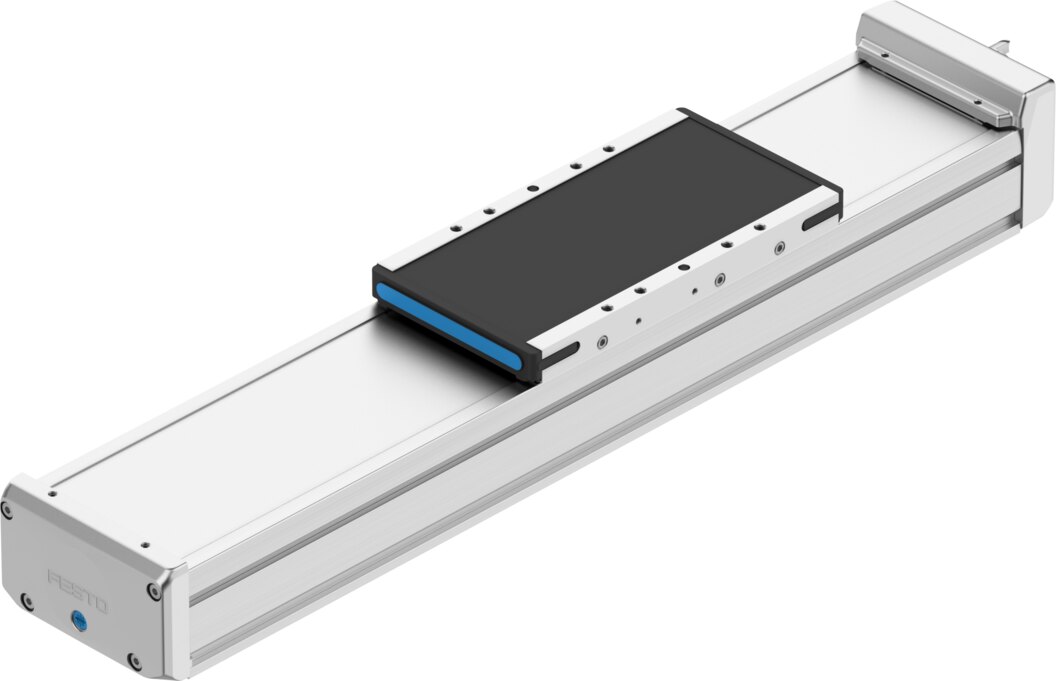

Ball screw axis stroke 300 mm pitch 5 mm ELGD-BS-KF-WD-100-300-0H-5P-L - Festo 8192314
The ball screw axis ELGD-BS-KF-WD-100-300-0H-5P-L positions over a 300 mm stroke with a repeatability of ±0.01 mm. Ball screw with 5 mm pitch, feed force up to 1100 N and travel speed up to 0.39 m/s. Suitable for stepper and servo motors, degree of protection IP40.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Festo ball screw axis ELGD-BS-KF-WD-100-300-0H-5P-L at a glance: 300 mm stroke, size 100, up to 0.39 m/s. The ball screw with 5 mm/rev pitch converts motor torque into up to 1100 N feed force, while the recirculating ball bearing guide carries transverse forces up to 4400 N.
Advantages
- Positions repeatable within ±0.01 mm.
- Short cycles with up to 0.39 m/s and 15 m/s².
- Feed force up to 1100 N in the direction of motion.
- Transverse forces up to 4400 N and moments up to 140 Nm via the recirculating ball bearing guide.
- Lifetime lubrication, reference service life 5000 km.
- Cleanroom class 7 to ISO 14644-1 (extraction: class 4).
Application
Typical tasks for the ball screw axis ELGD-BS-KF-WD-100-300-0H-5P-L are gantries, feeders and test stations needing an exact target position over 300 mm. Mounting position any, ambient temperature 0 to 60 °C. Designed for mounting stepper and servo motors. Price-list weight 4.9 kg.
Technical data
| Type | ELGD-BS-KF-WD-100-300-0H-5P-L |
|---|---|
| Working stroke | 300 mm |
| Size | 100 |
| Stroke reserve | 0 mm |
| Ball screw reversing backlash | ±0.02 mm |
| Spindle diameter | 10 mm |
| Spindle pitch | 5 mm/U |
| Mounting position | Any |
| Guide | Recirculating ball bearing guide |
| Design | With ball screw |
| Type of motor | Stepper motor, servo motor |
| Spindle type | Ball screw |
| Functional principle of measuring system | Incremental |
| Position detection | For inductive sensors |
| Maximum acceleration | 15 m/s² |
| Maximum rotational speed | 4715 1/min |
| Maximum speed | 0.39 m/s |
| Repetition accuracy | ±0.01 mm |
| Duty cycle | 100% |
| LABS (PWIS) conformity | VDMA24364-C1-L |
| Suitability for the production of Li-ion batteries | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Cleanroom suitability, measured according to ISO 14644-14 | Class 4 according to ISO 14644-1 (with vacuum extraction), class 7 according to ISO 14644-1 |
| Storage temperature | -20 to 60 °C |
| Degree of protection | IP40 |
| Ambient temperature | 0 to 60 °C |
| Impact energy in end positions | 0.001 J |
| Note on the impact energy in the end positions | At maximum homing speed of 0.01 m/s |
| 2nd moment of area Iy | 347100 mm⁴ |
| 2nd moment of area Iz | 2268000 mm⁴ |
| Idle torque at vmax | 0.14 Nm |
| Idle torque at vmin | 0.06 Nm |
| Maximum force Fy | 4400 N |
| Maximum force Fz | 4400 N |
| Maximum force Fy total axis | 4092 N |
| Maximum force Fz total axis | 2250 N |
| Fy at theoretical life value of 100 km (only guide consideration) | 18415 N |
| Fz at theoretical life value of 100 km (only guide consideration) | 18415 N |
| Maximum moment Mx | 140 Nm |
| Maximum moment My | 230 Nm |
| Maximum moment Mz | 220 Nm |
| Maximum moment Mx total axis | 160 Nm |
| Maximum moment My total axis | 191 Nm |
| Maximum moment Mz total axis | 191 Nm |
| Mx at theoretical life value of 100 km (only guide consideration) | 645 Nm |
| My at theoretical life value of 100 km (only guide consideration) | 720 Nm |
| Mz at theoretical life value of 100 km (only guide consideration) | 720 Nm |
| Distance between slide surface and guide centre | 47 mm |
| Maximum radial force at drive shaft | 180 N |
| Maximum feed force Fx | 1100 N |
| Torsional mass moment of inertia It | 108900 mm⁴ |
| Mass moment of inertia JH per metre of stroke | 0.07554 kgcm² |
| Mass moment of inertia JL per kg of working load | 0.00633 kgcm² |
| Mass moment of inertia JO | 0.05632 kgcm² |
| Feed constant | 5 mm/U |
| Reference service life | 5000 km |
| Maintenance interval | Lifetime lubrication |
| Moving mass | 1290 g |
| Product weight | 4749 g |
| Basic weight for 0 mm stroke | 2979 g |
| Additional weight per 10 mm stroke | 59 g |
| Dynamic deflection (moving load) | 0.05% of the axis length, maximum 0.5 mm |
| Static deflection (load in standstill) | 0.1% of the axis length |
| Interface code, actuator | T42 |
| Material end cap | Aluminium gravity die-cast, painted |
| Material profile | Anodised wrought aluminium alloy |
| Note on materials | RoHS compliant |
| Material cover tape | High-alloy stainless steel |
| Material drive cover | Aluminium gravity die-cast, painted |
| Material guide slide | Steel |
| Material guide rail | Steel |
| Material slide | Wrought aluminium alloy |
| Material ball screw nut | Steel |
| Material spindle | Steel |
| Weight (price list) | 4.9 kg |
| Weight | 4.9 kg |
| Manufacturer | Festo |
| Hersteller-Nr | ELGD-BS-KF-WD-100-300-0H-5P-L |
| EAN | 4052568775735 |
| Zolltarifnummer | 84799070 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Stroke [mm] | 300 |
| Housing material | Aluminium, anodised |
| Protection rating | IP40 |
| Temperaturbereich | 0-60 °C |
| Temperature (max.) | 60 |
