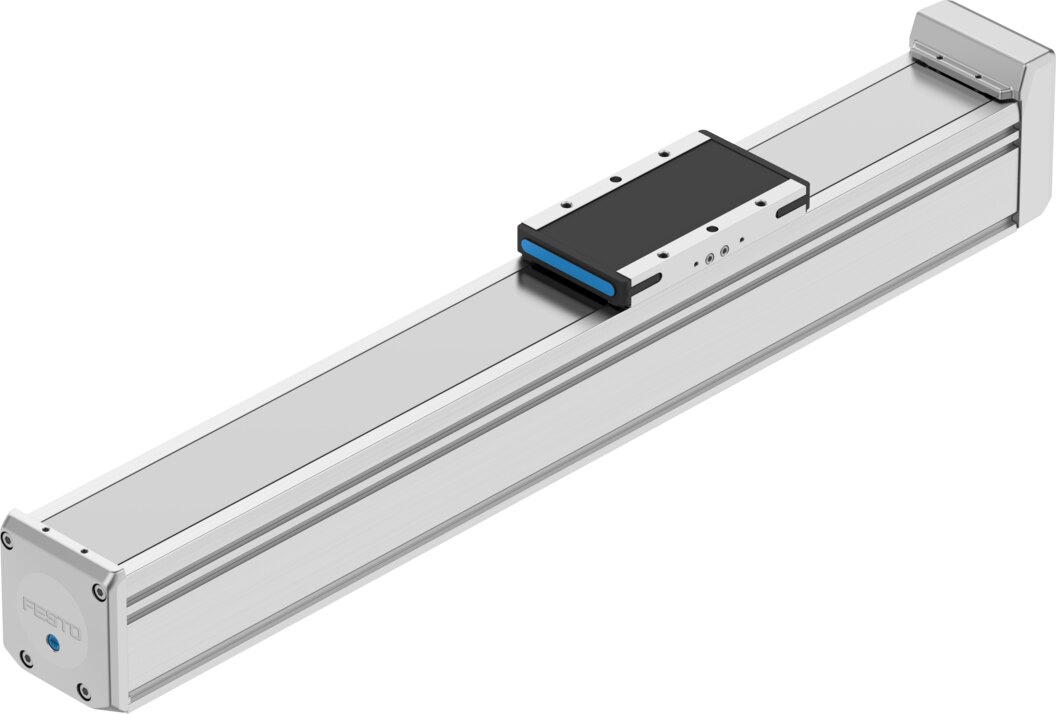

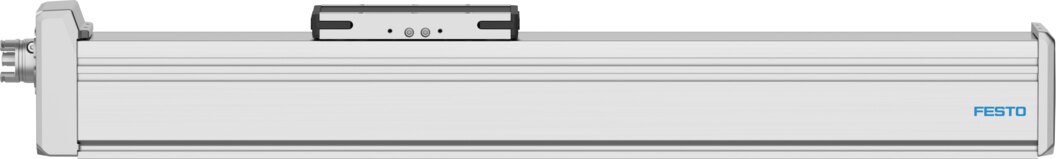

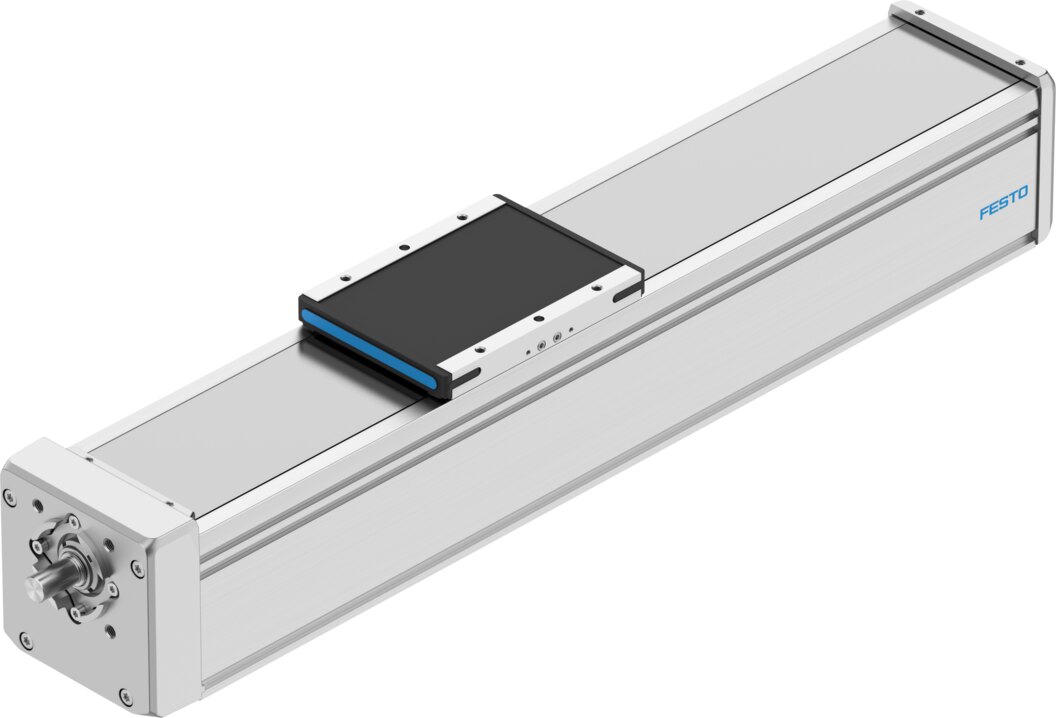

Ball screw axis size 80 stroke 200 mm pitch 10 mm ELGD-BS-KF-80-200-0H-10P - Festo 8192276
The ball screw axis ELGD-BS-KF-80-200-0H-10P travels at up to 0.83 m/s and accelerates at 15 m/s² over a working stroke of 200 mm. It positions with a repetition accuracy of ±0.01 mm and pushes with up to 2650 N. Per motor revolution the slide travels 10 mm via the ball screw. Weight 4.8 kg.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
200 mm of working stroke, up to 0.83 m/s and ±0.01 mm repetition accuracy: these are the key values of the Festo ball screw axis ELGD-BS-KF-80-200-0H-10P in size 80.
Benefits
- Up to 0.83 m/s travel speed and 15 m/s² acceleration for short cycle times
- Repetition accuracy of ±0.01 mm for reproducible positions
- Feed force up to 2650 N
- Recirculating ball bearing guide for transverse forces up to 3906 N (Fy) and 3913 N (Fz) and moments up to 42 Nm (My)
- Spindle pitch of 10 mm/rev with a 16 mm spindle diameter for a defined feed per revolution
- Cleanroom suitable: Class 4 according to ISO 14644-1 (with vacuum extraction), Class 7 according to ISO 14644-1
Applications
Positioning and infeed tasks with 200 mm of stroke where feed force and repeatability count, for example in assembly and test equipment. The ELGD-BS-KF-80-200-0H-10P is designed for stepper and servo motors, its actuator interface code is T46. Any mounting position is possible.
Technical data
| Type | ELGD-BS-KF-80-200-0H-10P |
|---|---|
| Festo part number | 8192276 |
| Working stroke | 200 mm |
| Size | 80 |
| Stroke reserve | 0 mm |
| Ball screw reversing backlash | ±0.02 mm |
| Spindle diameter | 16 mm |
| Spindle pitch | 10 mm/U |
| Mounting position | Any |
| Guide | Recirculating ball bearing guide |
| Design | With ball screw |
| Type of motor | Stepper motor, Servo motor |
| Spindle type | Ball screw |
| Functional principle of measuring system | Incremental |
| Position detection | For inductive sensors |
| Maximum acceleration | 15 m/s² |
| Maximum rotational speed | 5000 1/min |
| Maximum speed | 0.83 m/s |
| Repetition accuracy | ±0.01 mm |
| Duty cycle | 100% |
| LABS (PWIS) conformity | VDMA24364-C1-L |
| Suitability for the production of Li-ion batteries | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Cleanroom suitability, measured according to ISO 14644-14 | Class 4 according to ISO 14644-1 (with vacuum extraction), Class 7 according to ISO 14644-1 |
| Storage temperature | -20 to 60 °C |
| Degree of protection | IP40 |
| Ambient temperature | 0 to 60 °C |
| Impact energy in end positions | 0.002 J |
| Note on the impact energy in the end positions | At maximum homing speed of 0.01 m/s |
| 2nd moment of area Iy | 1213000 mm⁴ |
| 2nd moment of area Iz | 2052000 mm⁴ |
| Idle torque at vmax | 0.179 Nm |
| Idle torque at vmin | 0.065 Nm |
| Maximum force Fy | 3906 N |
| Maximum force Fz | 3913 N |
| Maximum force Fy total axis | 2500 N |
| Maximum force Fz total axis | 2500 N |
| Fy at theoretical life value of 100 km (only guide consideration) | 17576 N |
| Fz at theoretical life value of 100 km (only guide consideration) | 17576 N |
| Maximum moment Mx | 95 Nm |
| Maximum moment My | 42 Nm |
| Maximum moment Mz | 42 Nm |
| Maximum moment Mx total axis | 100 Nm |
| Maximum moment My total axis | 42 Nm |
| Maximum moment Mz total axis | 42 Nm |
| Mx at theoretical life value of 100 km (only guide consideration) | 422 Nm |
| My at theoretical life value of 100 km (only guide consideration) | 162 Nm |
| Mz at theoretical life value of 100 km (only guide consideration) | 162 Nm |
| Distance between slide surface and guide centre | 62 mm |
| Maximum radial force at drive shaft | 500 N |
| Maximum feed force Fx | 2650 N |
| Torsional mass moment of inertia It | 405000 mm⁴ |
| Mass moment of inertia JH per metre of stroke | 0.39016 kgcm² |
| Mass moment of inertia JL per kg of working load | 0.02533 kgcm² |
| Mass moment of inertia JO | 0.10619 kgcm² |
| Feed constant | 10 mm/U |
| Reference service life | 5000 km |
| Maintenance interval | Lifetime lubrication |
| Moving mass | 1014 g |
| Product weight | 4947 g |
| Basic weight for 0 mm stroke | 3147 g |
| Additional weight per 10 mm stroke | 90 g |
| Dynamic deflection (moving load) | 0.05% of the axis length, max, 0.5 mm |
| Static deflection (load in standstill) | 0.1% of the axis length |
| Interface code, actuator | T46 |
| Material end cap | Aluminium gravity die-cast, painted |
| Material profile | Anodised wrought aluminium alloy |
| Note on materials | RoHS compliant |
| Material cover tape | High-alloy stainless steel |
| Material drive cover | Aluminium gravity die-cast, painted |
| Material guide slide | Steel |
| Material guide rail | Steel |
| Material slide | Wrought aluminium alloy |
| Material ball screw nut | Steel |
| Material spindle | Steel |
| Weight | 4.8 kg |
| Manufacturer | Festo |
| Hersteller-Nr | ELGD-BS-KF-80-200-0H-10P |
| EAN | 4052568644673 |
| Zolltarifnummer | 84799070 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Stroke [mm] | 200 |
| Housing material | Aluminium, anodised |
| Protection rating | IP40 |
| Temperaturbereich | 0-60 °C |
| Temperature (max.) | 60 |
