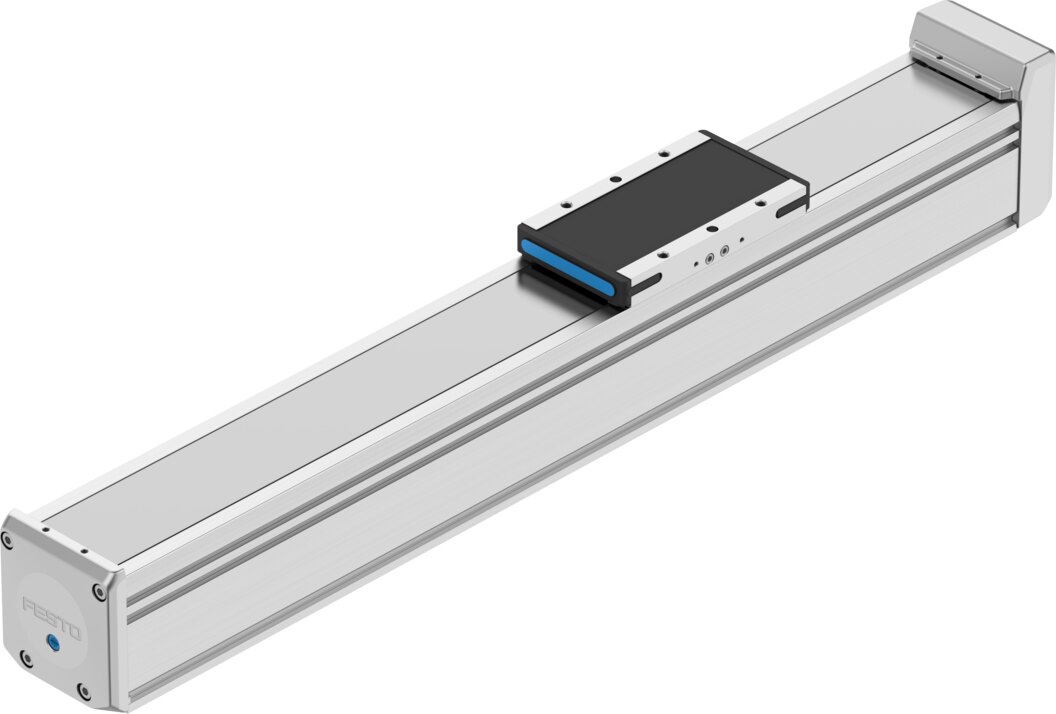

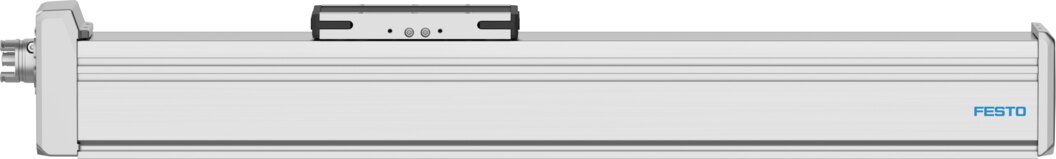

Ball screw axis size 80 stroke 100 mm pitch 10 mm ELGD-BS-KF-80-100-0H-10P - Festo 8192275

Festo ✓ Original product Brand new

The ball screw axis ELGD-BS-KF-80-100-0H-10P travels at up to 0.83 m/s and accelerates at 15 m/s² over a working stroke of 100 mm. Repetition accuracy is ±0.01 mm and feed force reaches up to 2650 N. The ball screw with a 10 mm pitch turns every motor revolution into 10 mm of feed. Weight 3.9 kg.

Net
€1,150.71
excl. VAT
Item FES-8192275
Manufacturer no. ELGD-BS-KF-80-100-0H-10P
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The ball screw axis ELGD-BS-KF-80-100-0H-10P moves loads over 100 mm at up to 0.83 m/s and arrives repeatably with ±0.01 mm repetition accuracy.

Why this axis

  • Up to 0.83 m/s travel speed and 15 m/s² acceleration for short cycle times
  • Repetition accuracy of ±0.01 mm for reproducible positions
  • Feed force up to 2650 N
  • Recirculating ball bearing guide for transverse forces up to 3906 N (Fy) and 3913 N (Fz) and moments up to 42 Nm (My)
  • Spindle pitch of 10 mm/rev with a 16 mm spindle diameter for a defined feed per revolution
  • Cleanroom suitable: Class 4 according to ISO 14644-1 (with vacuum extraction), Class 7 according to ISO 14644-1

Applications

For assembly, lab automation and test engineering, where 100 mm of stroke is approached with a defined force. The ELGD-BS-KF-80-100-0H-10P is designed for stepper and servo motors, its actuator interface code is T46. Any mounting position is possible.

Technical data

TypeELGD-BS-KF-80-100-0H-10P
Festo part number8192275
Working stroke100 mm
Size80
Stroke reserve0 mm
Ball screw reversing backlash±0.02 mm
Spindle diameter16 mm
Spindle pitch10 mm/U
Mounting positionAny
GuideRecirculating ball bearing guide
DesignWith ball screw
Type of motorStepper motor, Servo motor
Spindle typeBall screw
Functional principle of measuring systemIncremental
Position detectionFor inductive sensors
Maximum acceleration15 m/s²
Maximum rotational speed5000 1/min
Maximum speed0.83 m/s
Repetition accuracy±0.01 mm
Duty cycle100%
LABS (PWIS) conformityVDMA24364-C1-L
Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1 (with vacuum extraction), Class 7 according to ISO 14644-1
Storage temperature-20 to 60 °C
Degree of protectionIP40
Ambient temperature0 to 60 °C
Impact energy in end positions0.002 J
Note on the impact energy in the end positionsAt maximum homing speed of 0.01 m/s
2nd moment of area Iy1213000 mm⁴
2nd moment of area Iz2052000 mm⁴
Idle torque at vmax0.179 Nm
Idle torque at vmin0.065 Nm
Maximum force Fy3906 N
Maximum force Fz3913 N
Maximum force Fy total axis2500 N
Maximum force Fz total axis2500 N
Fy at theoretical life value of 100 km (only guide consideration)17576 N
Fz at theoretical life value of 100 km (only guide consideration)17576 N
Maximum moment Mx95 Nm
Maximum moment My42 Nm
Maximum moment Mz42 Nm
Maximum moment Mx total axis100 Nm
Maximum moment My total axis42 Nm
Maximum moment Mz total axis42 Nm
Mx at theoretical life value of 100 km (only guide consideration)422 Nm
My at theoretical life value of 100 km (only guide consideration)162 Nm
Mz at theoretical life value of 100 km (only guide consideration)162 Nm
Distance between slide surface and guide centre62 mm
Maximum radial force at drive shaft500 N
Maximum feed force Fx2650 N
Torsional mass moment of inertia It405000 mm⁴
Mass moment of inertia JH per metre of stroke0.39016 kgcm²
Mass moment of inertia JL per kg of working load0.02533 kgcm²
Mass moment of inertia JO0.10619 kgcm²
Feed constant10 mm/U
Reference service life5000 km
Maintenance intervalLifetime lubrication
Moving mass1014 g
Product weight4047 g
Basic weight for 0 mm stroke3147 g
Additional weight per 10 mm stroke90 g
Dynamic deflection (moving load)0.05% of the axis length, max, 0.5 mm
Static deflection (load in standstill)0.1% of the axis length
Interface code, actuatorT46
Material end capAluminium gravity die-cast, painted
Material profileAnodised wrought aluminium alloy
Note on materialsRoHS compliant
Material cover tapeHigh-alloy stainless steel
Material drive coverAluminium gravity die-cast, painted
Material guide slideSteel
Material guide railSteel
Material slideWrought aluminium alloy
Material ball screw nutSteel
Material spindleSteel
Weight3.9 kg
ManufacturerFesto
Hersteller-NrELGD-BS-KF-80-100-0H-10P
EAN4052568644666
Zolltarifnummer84799070
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Stroke [mm]100
Housing materialAluminium, anodised
Protection ratingIP40
Temperaturbereich0-60 °C
Temperature (max.)60
