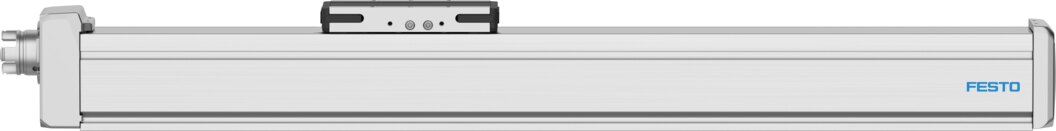

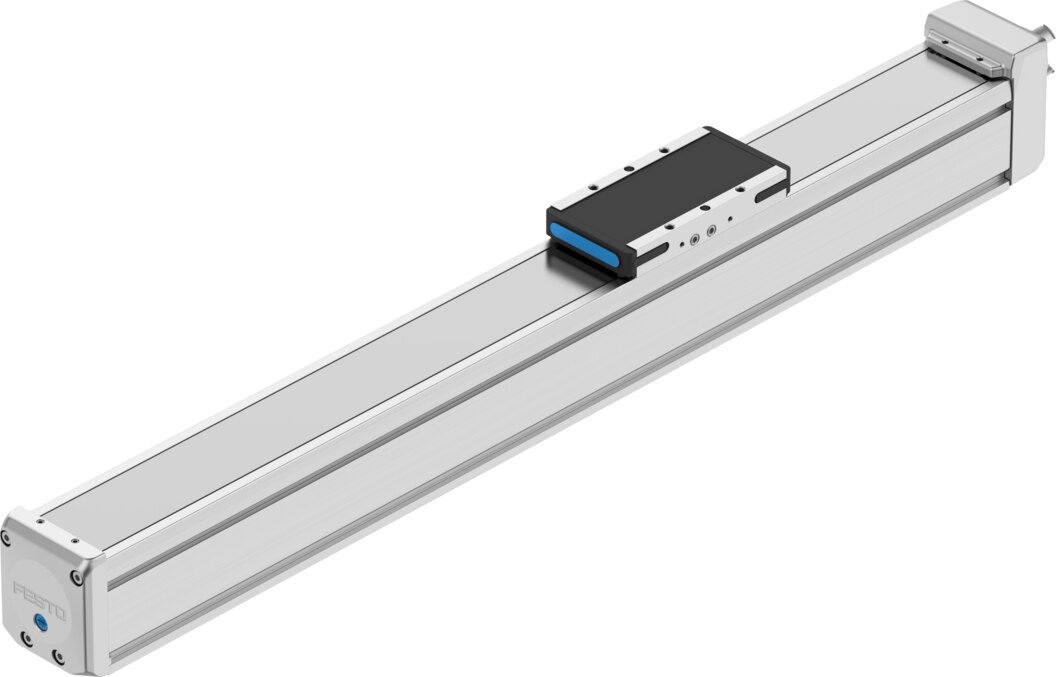

Ball screw axis size 60 stroke 500 mm pitch 5 mm ELGD-BS-KF-60-500-0H-5P - Festo 8192257

Festo ✓ Original product Brand new

Over a working stroke of 500 mm, the ball screw axis ELGD-BS-KF-60-500-0H-5P positions loads in size 60 at up to 0.3 m/s. 1550 N of feed force and ±0.01 mm repetition accuracy make the movement strong and repeatable. The ball screw with a 5 mm pitch turns every motor revolution into 5 mm of feed.

Net
€1,114.61
excl. VAT
Item FES-8192257
Manufacturer no. ELGD-BS-KF-60-500-0H-5P
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

For 500 mm of stroke travelled repeatably, the ball screw axis ELGD-BS-KF-60-500-0H-5P provides up to 0.3 m/s at ±0.01 mm repetition accuracy.

Benefits

  • Up to 0.3 m/s travel speed and 15 m/s² acceleration for short cycle times
  • Repetition accuracy of ±0.01 mm for reproducible positions
  • Feed force up to 1550 N
  • Recirculating ball bearing guide for transverse forces up to 2200 N (Fy) and 2200 N (Fz) and moments up to 15 Nm (My)
  • Spindle pitch of 5 mm/rev with a 12 mm spindle diameter for a defined feed per revolution
  • Cleanroom suitable: Class 4 according to ISO 14644-1 (with vacuum extraction), Class 7 according to ISO 14644-1

Applications

For assembly, lab automation and test engineering, where 500 mm of stroke is approached with a defined force. Suitable drives are stepper and servo motors, with motor mounting to interface code T42 for the ELGD-BS-KF-60-500-0H-5P. Any mounting position is possible.

Technical data

TypeELGD-BS-KF-60-500-0H-5P
Festo part number8192257
Working stroke500 mm
Size60
Stroke reserve0 mm
Ball screw reversing backlash±0.02 mm
Spindle diameter12 mm
Spindle pitch5 mm/U
Mounting positionAny
GuideRecirculating ball bearing guide
DesignWith ball screw
Type of motorStepper motor, Servo motor
Spindle typeBall screw
Functional principle of measuring systemIncremental
Position detectionFor inductive sensors
Maximum acceleration15 m/s²
Maximum rotational speed3656 1/min
Maximum speed0.3 m/s
Repetition accuracy±0.01 mm
Duty cycle100%
LABS (PWIS) conformityVDMA24364-C1-L
Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1 (with vacuum extraction), Class 7 according to ISO 14644-1
Storage temperature-20 to 60 °C
Degree of protectionIP40
Ambient temperature0 to 60 °C
Impact energy in end positions0.001 J
Note on the impact energy in the end positionsAt maximum homing speed of 0.01 m/s
2nd moment of area Iy508600 mm⁴
2nd moment of area Iz685700 mm⁴
Idle torque at vmax0.107 Nm
Idle torque at vmin0.045 Nm
Maximum force Fy2200 N
Maximum force Fz2200 N
Maximum force Fy total axis930 N
Maximum force Fz total axis1300 N
Fy at theoretical life value of 100 km (only guide consideration)9208 N
Fz at theoretical life value of 100 km (only guide consideration)9208 N
Maximum moment Mx37 Nm
Maximum moment My15 Nm
Maximum moment Mz15 Nm
Maximum moment Mx total axis31 Nm
Maximum moment My total axis34 Nm
Maximum moment Mz total axis26 Nm
Mx at theoretical life value of 100 km (only guide consideration)157 Nm
My at theoretical life value of 100 km (only guide consideration)60 Nm
Mz at theoretical life value of 100 km (only guide consideration)60 Nm
Distance between slide surface and guide centre60 mm
Maximum radial force at drive shaft230 N
Maximum feed force Fx1550 N
Torsional mass moment of inertia It52300 mm⁴
Mass moment of inertia JH per metre of stroke0.15716 kgcm²
Mass moment of inertia JL per kg of working load0.00633 kgcm²
Mass moment of inertia JO0.0635 kgcm²
Feed constant5 mm/U
Reference service life5000 km
Maintenance intervalLifetime lubrication
Moving mass535 g
Product weight4474 g
Basic weight for 0 mm stroke1774 g
Additional weight per 10 mm stroke54 g
Dynamic deflection (moving load)0.05% of the axis length, max, 0.5 mm
Static deflection (load in standstill)0.1% of the axis length
Interface code, actuatorT42
Material end capAluminium gravity die-cast, painted
Material profileAnodised wrought aluminium alloy
Note on materialsRoHS compliant
Material cover tapeHigh-alloy stainless steel
Material drive coverAluminium gravity die-cast, painted
Material guide slideSteel
Material guide railSteel
Material slideWrought aluminium alloy
Material ball screw nutSteel
Material spindleSteel
Weight0.01 kg
ManufacturerFesto
Hersteller-NrELGD-BS-KF-60-500-0H-5P
EAN4052568644383
Zolltarifnummer84799070
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Stroke [mm]500
Housing materialAluminium, anodised
Protection ratingIP40
Temperaturbereich0-60 °C
Temperature (max.)60
