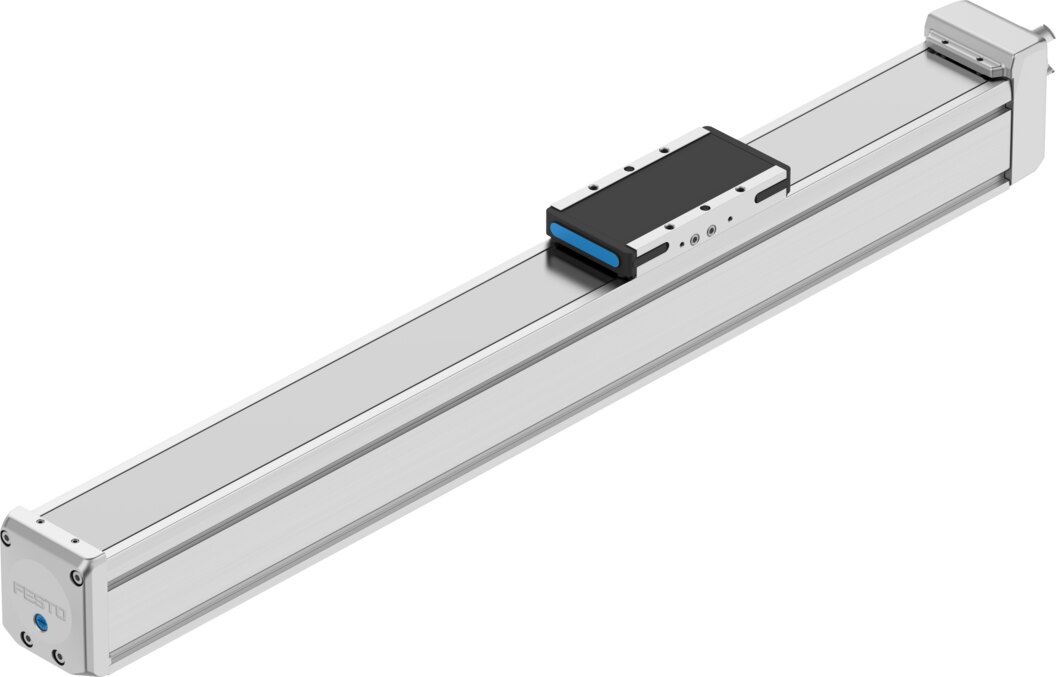

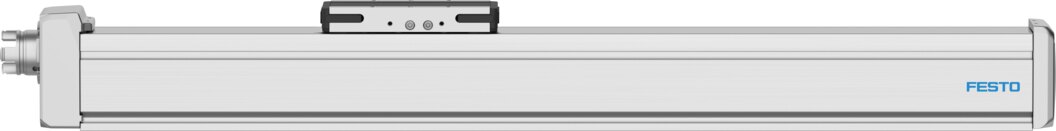

Ball screw axis size 60 stroke 400 mm pitch 10 mm ELGD-BS-KF-60-400-0H-10P - Festo 8192263

Festo ✓ Original product Brand new

Over a working stroke of 400 mm, the ball screw axis ELGD-BS-KF-60-400-0H-10P positions loads in size 60 at up to 0.86 m/s. 1550 N of feed force and ±0.01 mm repetition accuracy make the movement strong and repeatable. Per motor revolution the slide travels 10 mm via the ball screw. Weight 3.9 kg.

Net
€1,074.00
excl. VAT
Item FES-8192263
Manufacturer no. ELGD-BS-KF-60-400-0H-10P
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

For 400 mm of stroke travelled repeatably, the ball screw axis ELGD-BS-KF-60-400-0H-10P provides up to 0.86 m/s at ±0.01 mm repetition accuracy.

Benefits

  • Up to 0.86 m/s travel speed and 15 m/s² acceleration for short cycle times
  • Repetition accuracy of ±0.01 mm for reproducible positions
  • Feed force up to 1550 N
  • Recirculating ball bearing guide for transverse forces up to 2200 N (Fy) and 2200 N (Fz) and moments up to 15 Nm (My)
  • Spindle pitch of 10 mm/rev with a 12 mm spindle diameter for a defined feed per revolution
  • Cleanroom suitable: Class 4 according to ISO 14644-1 (with vacuum extraction), Class 7 according to ISO 14644-1

Applications

For assembly, lab automation and test engineering, where 400 mm of stroke is approached with a defined force. Suitable drives are stepper and servo motors, with motor mounting to interface code T42 for the ELGD-BS-KF-60-400-0H-10P. Any mounting position is possible.

Technical data

TypeELGD-BS-KF-60-400-0H-10P
Festo part number8192263
Working stroke400 mm
Size60
Stroke reserve0 mm
Ball screw reversing backlash±0.02 mm
Spindle diameter12 mm
Spindle pitch10 mm/U
Mounting positionAny
GuideRecirculating ball bearing guide
DesignWith ball screw
Type of motorStepper motor, Servo motor
Spindle typeBall screw
Functional principle of measuring systemIncremental
Position detectionFor inductive sensors
Maximum acceleration15 m/s²
Maximum rotational speed5143 1/min
Maximum speed0.86 m/s
Repetition accuracy±0.01 mm
Duty cycle100%
LABS (PWIS) conformityVDMA24364-C1-L
Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1 (with vacuum extraction), Class 7 according to ISO 14644-1
Storage temperature-20 to 60 °C
Degree of protectionIP40
Ambient temperature0 to 60 °C
Impact energy in end positions0.001 J
Note on the impact energy in the end positionsAt maximum homing speed of 0.01 m/s
2nd moment of area Iy508600 mm⁴
2nd moment of area Iz685700 mm⁴
Idle torque at vmax0.14 Nm
Idle torque at vmin0.047 Nm
Maximum force Fy2200 N
Maximum force Fz2200 N
Maximum force Fy total axis930 N
Maximum force Fz total axis1300 N
Fy at theoretical life value of 100 km (only guide consideration)9208 N
Fz at theoretical life value of 100 km (only guide consideration)9208 N
Maximum moment Mx37 Nm
Maximum moment My15 Nm
Maximum moment Mz15 Nm
Maximum moment Mx total axis31 Nm
Maximum moment My total axis34 Nm
Maximum moment Mz total axis26 Nm
Mx at theoretical life value of 100 km (only guide consideration)157 Nm
My at theoretical life value of 100 km (only guide consideration)60 Nm
Mz at theoretical life value of 100 km (only guide consideration)60 Nm
Distance between slide surface and guide centre60 mm
Maximum radial force at drive shaft230 N
Maximum feed force Fx1550 N
Torsional mass moment of inertia It52300 mm⁴
Mass moment of inertia JH per metre of stroke0.15716 kgcm²
Mass moment of inertia JL per kg of working load0.02533 kgcm²
Mass moment of inertia JO0.0635 kgcm²
Feed constant10 mm/U
Reference service life5000 km
Maintenance intervalLifetime lubrication
Moving mass535 g
Product weight3934 g
Basic weight for 0 mm stroke1774 g
Additional weight per 10 mm stroke54 g
Dynamic deflection (moving load)0.05% of the axis length, max, 0.5 mm
Static deflection (load in standstill)0.1% of the axis length
Interface code, actuatorT42
Material end capAluminium gravity die-cast, painted
Material profileAnodised wrought aluminium alloy
Note on materialsRoHS compliant
Material cover tapeHigh-alloy stainless steel
Material drive coverAluminium gravity die-cast, painted
Material guide slideSteel
Material guide railSteel
Material slideWrought aluminium alloy
Material ball screw nutSteel
Material spindleSteel
Weight3.9 kg
ManufacturerFesto
Hersteller-NrELGD-BS-KF-60-400-0H-10P
EAN4052568644543
Zolltarifnummer84799070
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Stroke [mm]400
Housing materialAluminium, anodised
Protection ratingIP40
Temperaturbereich0-60 °C
Temperature (max.)60
