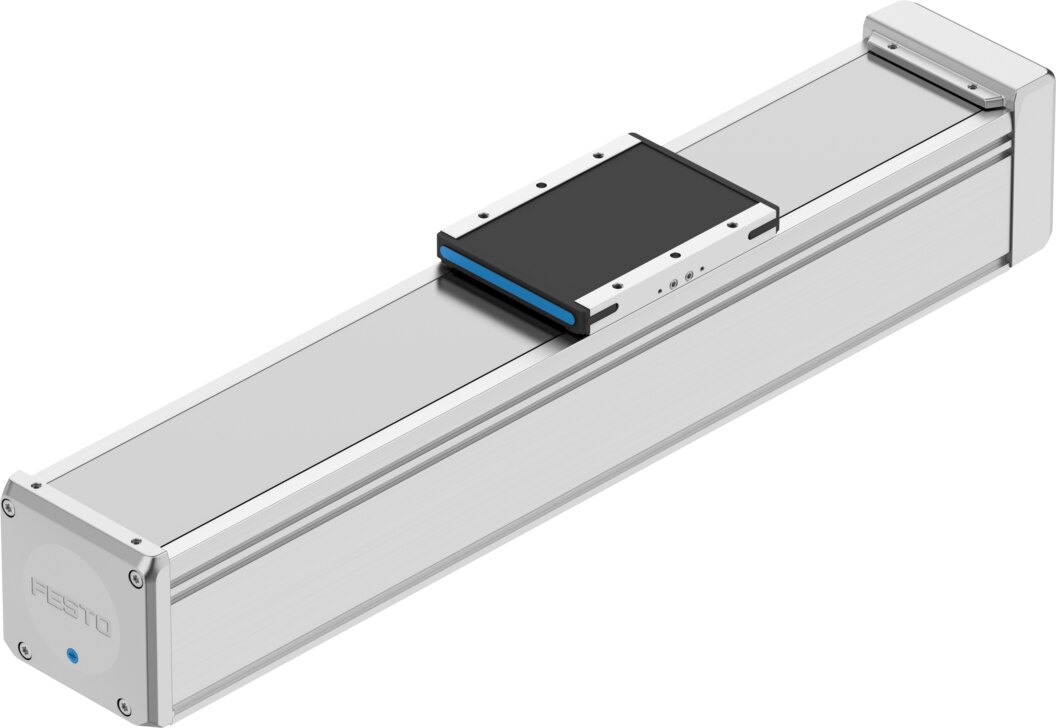

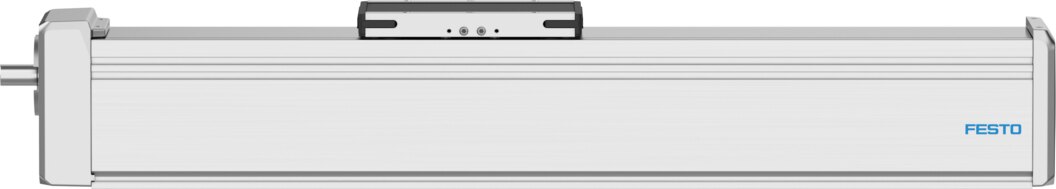

Ball screw axis stroke 600 mm pitch 30 mm ELGD-BS-KF-120-600-0H-30P - Festo 8192309

Festo ✓ Original product Brand new

With a 600 mm stroke and ±0.01 mm repeatability, the ball screw axis ELGD-BS-KF-120-600-0H-30P handles exact positioning tasks. Ball screw with 30 mm pitch, feed force up to 3520 N and travel speed up to 1.6 m/s. Suitable for stepper and servo motors, degree of protection IP40.

Net
€2,392.70
excl. VAT
Item FES-8192309
Manufacturer no. ELGD-BS-KF-120-600-0H-30P
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Festo ball screw axis ELGD-BS-KF-120-600-0H-30P at a glance: 600 mm stroke, size 120, up to 1.6 m/s. The ball screw with 30 mm/rev pitch converts motor torque into up to 3520 N feed force, while the recirculating ball bearing guide carries transverse forces up to 4300 N.

Advantages

  • Repeatability of ±0.01 mm over the full 600 mm stroke.
  • Feed force up to 3520 N in the direction of motion.
  • Short cycles with up to 1.6 m/s and 15 m/s².
  • Recirculating ball bearing guide for transverse forces up to 4300 N and moments up to 170 Nm.
  • Lifetime lubrication, reference service life 5000 km.
  • Cleanroom class 7 to ISO 14644-1 (extraction: class 4).

Application

Typical tasks for the ball screw axis ELGD-BS-KF-120-600-0H-30P are gantries, feeders and test stations needing an exact target position over 600 mm. Mounting position any, ambient temperature 0 to 60 °C. Designed for mounting stepper and servo motors. Price-list weight 15 kg.

Technical data

TypeELGD-BS-KF-120-600-0H-30P
Working stroke600 mm
Size120
Stroke reserve0 mm
Ball screw reversing backlash±0.02 mm
Spindle diameter25 mm
Spindle pitch30 mm/U
Mounting positionAny
GuideRecirculating ball bearing guide
DesignWith ball screw
Type of motorStepper motor, servo motor
Spindle typeBall screw
Functional principle of measuring systemIncremental
Position detectionFor inductive sensors
Maximum acceleration15 m/s²
Maximum rotational speed3200 1/min
Maximum speed1.6 m/s
Repetition accuracy±0.01 mm
Duty cycle100%
LABS (PWIS) conformityVDMA24364-C1-L
Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1 (with vacuum extraction), class 7 according to ISO 14644-1
Storage temperature-20 to 60 °C
Degree of protectionIP40
Ambient temperature0 to 60 °C
Impact energy in end positions0.001 J
Note on the impact energy in the end positionsAt maximum homing speed of 0.01 m/s
2nd moment of area Iy3550000 mm⁴
2nd moment of area Iz8985000 mm⁴
Idle torque at vmax0.735 Nm
Idle torque at vmin0.22 Nm
Maximum force Fy4300 N
Maximum force Fz4300 N
Maximum force Fy total axis2957 N
Maximum force Fz total axis5608 N
Fy at theoretical life value of 100 km (only guide consideration)17576 N
Fz at theoretical life value of 100 km (only guide consideration)17576 N
Maximum moment Mx170 Nm
Maximum moment My50 Nm
Maximum moment Mz60 Nm
Maximum moment Mx total axis202 Nm
Maximum moment My total axis80 Nm
Maximum moment Mz total axis95 Nm
Mx at theoretical life value of 100 km (only guide consideration)730 Nm
My at theoretical life value of 100 km (only guide consideration)162 Nm
Mz at theoretical life value of 100 km (only guide consideration)162 Nm
Distance between slide surface and guide centre80 mm
Maximum radial force at drive shaft750 N
Maximum feed force Fx3520 N
Torsional mass moment of inertia It1433600 mm⁴
Mass moment of inertia JH per metre of stroke2.719 kgcm²
Mass moment of inertia JL per kg of working load0.2282 kgcm²
Mass moment of inertia JO0.76188 kgcm²
Feed constant30 mm/U
Reference service life5000 km
Maintenance intervalLifetime lubrication
Moving mass1725 g
Product weight14907 g
Basic weight for 0 mm stroke6087 g
Additional weight per 10 mm stroke147 g
Dynamic deflection (moving load)0.05% of the axis length, maximum 0.5 mm
Static deflection (load in standstill)0.1% of the axis length
Interface code, actuatorS60
Material end capAluminium gravity die-cast, painted
Material profileAnodised wrought aluminium alloy
Note on materialsRoHS compliant
Material cover tapeHigh-alloy stainless steel
Material drive coverAluminium gravity die-cast, painted
Material guide slideSteel
Material guide railSteel
Material slideWrought aluminium alloy
Material ball screw nutSteel
Material spindleSteel
Weight (price list)15 kg
Weight15 kg
ManufacturerFesto
Hersteller-NrELGD-BS-KF-120-600-0H-30P
EAN4052568775681
Zolltarifnummer84799070
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Stroke [mm]600
Housing materialAluminium, anodised
Protection ratingIP40
Temperaturbereich0-60 °C
Temperature (max.)60
