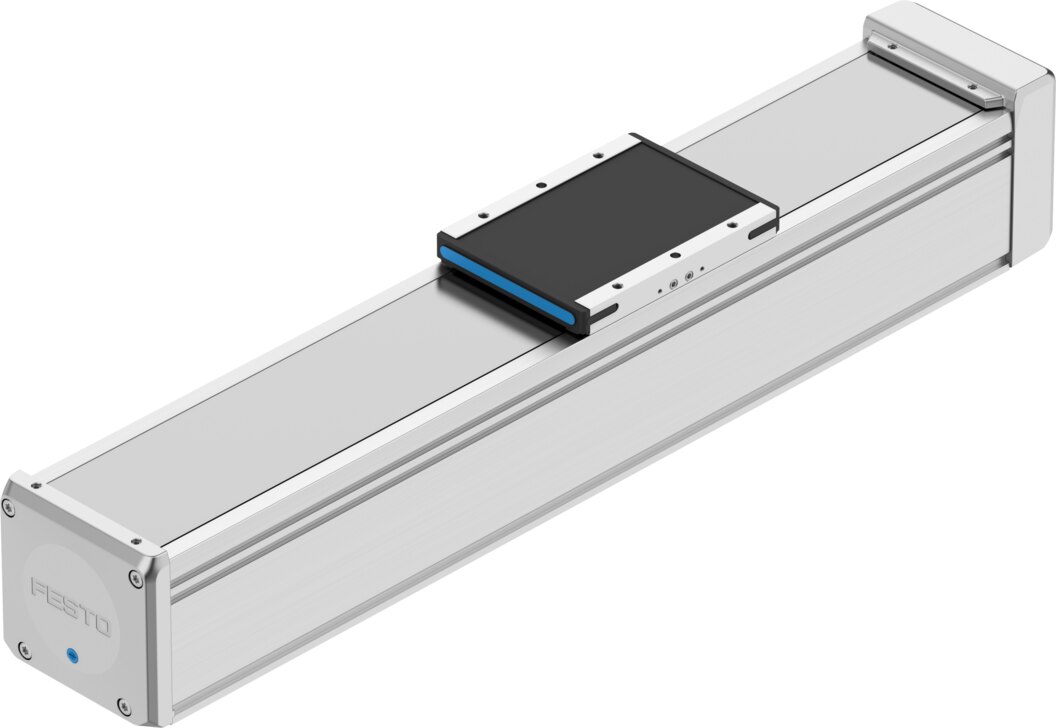

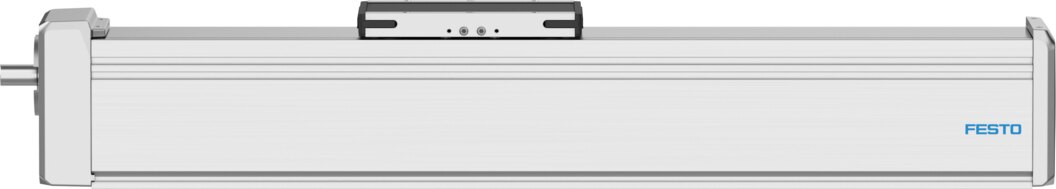

Ball screw axis stroke 200 mm pitch 10 mm ELGD-BS-KF-120-200-0H-10P - Festo 8192298

Festo ✓ Original product Brand new

With a 200 mm stroke and ±0.01 mm repeatability, the ball screw axis ELGD-BS-KF-120-200-0H-10P handles exact positioning tasks. Ball screw with 10 mm pitch, feed force up to 3520 N and travel speed up to 0.53 m/s. Suitable for stepper and servo motors, degree of protection IP40.

Net
€2,053.58
excl. VAT
Item FES-8192298
Manufacturer no. ELGD-BS-KF-120-200-0H-10P
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

ELGD-BS-KF-120-200-0H-10P is a Festo ball screw axis with 200 mm stroke, size 120, up to 0.53 m/s. The ball screw with 10 mm/rev pitch converts motor torque into up to 3520 N feed force, while the recirculating ball bearing guide carries transverse forces up to 4300 N.

Advantages

  • Repeatability of ±0.01 mm over the full 200 mm stroke.
  • Up to 0.53 m/s and 15 m/s² acceleration for short cycle times.
  • Feed force up to 3520 N in the direction of motion.
  • Recirculating ball bearing guide for transverse forces up to 4300 N and moments up to 170 Nm.
  • Lifetime lubrication, reference service life 5000 km.
  • Cleanroom class 7 to ISO 14644-1 (extraction: class 4).

Application

Typical tasks for the ball screw axis ELGD-BS-KF-120-200-0H-10P are gantries, feeders and test stations needing an exact target position over 200 mm. Mounting position any, ambient temperature 0 to 60 °C. Designed for mounting stepper and servo motors. Price-list weight 9 kg.

Technical data

TypeELGD-BS-KF-120-200-0H-10P
Working stroke200 mm
Size120
Stroke reserve0 mm
Ball screw reversing backlash±0.02 mm
Spindle diameter25 mm
Spindle pitch10 mm/U
Mounting positionAny
GuideRecirculating ball bearing guide
DesignWith ball screw
Type of motorStepper motor, servo motor
Spindle typeBall screw
Functional principle of measuring systemIncremental
Position detectionFor inductive sensors
Maximum acceleration15 m/s²
Maximum rotational speed3200 1/min
Maximum speed0.53 m/s
Repetition accuracy±0.01 mm
Duty cycle100%
LABS (PWIS) conformityVDMA24364-C1-L
Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1 (with vacuum extraction), class 7 according to ISO 14644-1
Storage temperature-20 to 60 °C
Degree of protectionIP40
Ambient temperature0 to 60 °C
Impact energy in end positions0.001 J
Note on the impact energy in the end positionsAt maximum homing speed of 0.01 m/s
2nd moment of area Iy3550000 mm⁴
2nd moment of area Iz8985000 mm⁴
Idle torque at vmax0.957 Nm
Idle torque at vmin0.254 Nm
Maximum force Fy4300 N
Maximum force Fz4300 N
Maximum force Fy total axis2957 N
Maximum force Fz total axis5608 N
Fy at theoretical life value of 100 km (only guide consideration)17576 N
Fz at theoretical life value of 100 km (only guide consideration)17576 N
Maximum moment Mx170 Nm
Maximum moment My50 Nm
Maximum moment Mz60 Nm
Maximum moment Mx total axis202 Nm
Maximum moment My total axis80 Nm
Maximum moment Mz total axis95 Nm
Mx at theoretical life value of 100 km (only guide consideration)730 Nm
My at theoretical life value of 100 km (only guide consideration)162 Nm
Mz at theoretical life value of 100 km (only guide consideration)162 Nm
Distance between slide surface and guide centre80 mm
Maximum radial force at drive shaft750 N
Maximum feed force Fx3520 N
Torsional mass moment of inertia It1433600 mm⁴
Mass moment of inertia JH per metre of stroke2.633 kgcm²
Mass moment of inertia JL per kg of working load0.00633 kgcm²
Mass moment of inertia JO0.76031 kgcm²
Feed constant10 mm/U
Reference service life5000 km
Maintenance intervalLifetime lubrication
Moving mass1725 g
Product weight9027 g
Basic weight for 0 mm stroke6087 g
Additional weight per 10 mm stroke147 g
Dynamic deflection (moving load)0.05% of the axis length, maximum 0.5 mm
Static deflection (load in standstill)0.1% of the axis length
Interface code, actuatorS60
Material end capAluminium gravity die-cast, painted
Material profileAnodised wrought aluminium alloy
Note on materialsRoHS compliant
Material cover tapeHigh-alloy stainless steel
Material drive coverAluminium gravity die-cast, painted
Material guide slideSteel
Material guide railSteel
Material slideWrought aluminium alloy
Material ball screw nutSteel
Material spindleSteel
Weight (price list)9 kg
Weight9 kg
ManufacturerFesto
Hersteller-NrELGD-BS-KF-120-200-0H-10P
EAN4052568775575
Zolltarifnummer84799070
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Stroke [mm]200
Housing materialAluminium, anodised
Protection ratingIP40
Temperaturbereich0-60 °C
Temperature (max.)60
