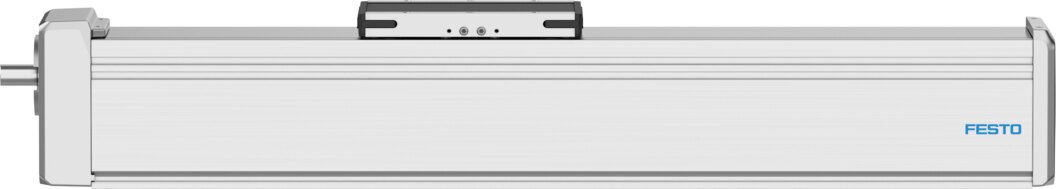

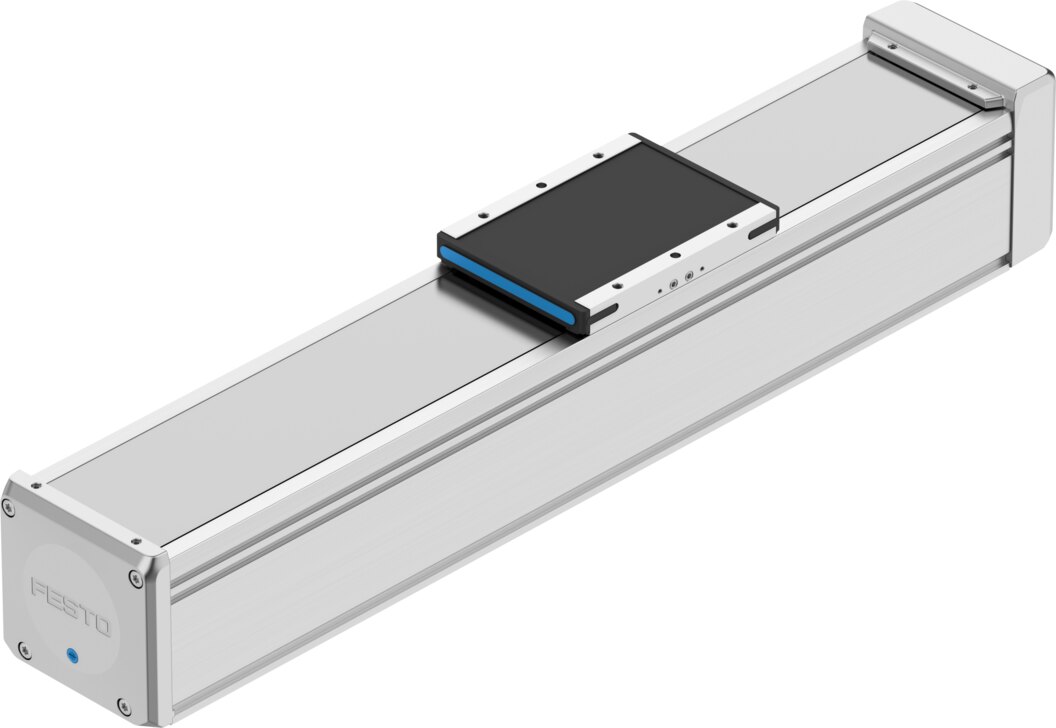

Ball screw axis stroke 1000 mm pitch 5 mm ELGD-BS-KF-120-1000-0H-5P - Festo 8192297

Festo ✓ Original product Brand new

The ball screw axis ELGD-BS-KF-120-1000-0H-5P positions over a 1000 mm stroke with a repeatability of ±0.01 mm. Ball screw with 5 mm pitch, feed force up to 3520 N and travel speed up to 0.2 m/s. Suitable for stepper and servo motors, degree of protection IP40.

Net
€2,731.82
excl. VAT
Item FES-8192297
Manufacturer no. ELGD-BS-KF-120-1000-0H-5P
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Festo ball screw axis ELGD-BS-KF-120-1000-0H-5P at a glance: 1000 mm stroke, size 120, up to 0.2 m/s. The ball screw with 5 mm/rev pitch converts motor torque into up to 3520 N feed force, while the recirculating ball bearing guide carries transverse forces up to 4300 N.

Advantages

  • Positions repeatable within ±0.01 mm.
  • Feed force up to 3520 N in the direction of motion.
  • Short cycles with up to 0.2 m/s and 15 m/s².
  • Recirculating ball bearing guide for transverse forces up to 4300 N and moments up to 170 Nm.
  • Lifetime lubrication, reference service life 5000 km.
  • Cleanroom class 7 to ISO 14644-1 (extraction: class 4).

Application

The ball screw axis ELGD-BS-KF-120-1000-0H-5P fits gantries, joining and test stations that require exact positioning over a 1000 mm stroke. Mounting position any, ambient temperature 0 to 60 °C. Designed for mounting stepper and servo motors.

Technical data

TypeELGD-BS-KF-120-1000-0H-5P
Working stroke1000 mm
Size120
Stroke reserve0 mm
Ball screw reversing backlash±0.02 mm
Spindle diameter25 mm
Spindle pitch5 mm/U
Mounting positionAny
GuideRecirculating ball bearing guide
DesignWith ball screw
Type of motorStepper motor, servo motor
Spindle typeBall screw
Functional principle of measuring systemIncremental
Position detectionFor inductive sensors
Maximum acceleration15 m/s²
Maximum rotational speed2342 1/min
Maximum speed0.2 m/s
Repetition accuracy±0.01 mm
Duty cycle100%
LABS (PWIS) conformityVDMA24364-C1-L
Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1 (with vacuum extraction), class 7 according to ISO 14644-1
Storage temperature-20 to 60 °C
Degree of protectionIP40
Ambient temperature0 to 60 °C
Impact energy in end positions0.001 J
Note on the impact energy in the end positionsAt maximum homing speed of 0.01 m/s
2nd moment of area Iy3550000 mm⁴
2nd moment of area Iz8985000 mm⁴
Idle torque at vmax0.344 Nm
Idle torque at vmin0.167 Nm
Maximum force Fy4300 N
Maximum force Fz4300 N
Maximum force Fy total axis2957 N
Maximum force Fz total axis5608 N
Fy at theoretical life value of 100 km (only guide consideration)17576 N
Fz at theoretical life value of 100 km (only guide consideration)17576 N
Maximum moment Mx170 Nm
Maximum moment My50 Nm
Maximum moment Mz60 Nm
Maximum moment Mx total axis202 Nm
Maximum moment My total axis80 Nm
Maximum moment Mz total axis95 Nm
Mx at theoretical life value of 100 km (only guide consideration)730 Nm
My at theoretical life value of 100 km (only guide consideration)162 Nm
Mz at theoretical life value of 100 km (only guide consideration)162 Nm
Distance between slide surface and guide centre80 mm
Maximum radial force at drive shaft750 N
Maximum feed force Fx3520 N
Torsional mass moment of inertia It1433600 mm⁴
Mass moment of inertia JH per metre of stroke2.633 kgcm²
Mass moment of inertia JL per kg of working load0.00633 kgcm²
Mass moment of inertia JO0.76031 kgcm²
Feed constant5 mm/U
Reference service life5000 km
Maintenance intervalLifetime lubrication
Moving mass1725 g
Product weight20787 g
Basic weight for 0 mm stroke6087 g
Additional weight per 10 mm stroke147 g
Dynamic deflection (moving load)0.05% of the axis length, maximum 0.5 mm
Static deflection (load in standstill)0.1% of the axis length
Interface code, actuatorS60
Material end capAluminium gravity die-cast, painted
Material profileAnodised wrought aluminium alloy
Note on materialsRoHS compliant
Material cover tapeHigh-alloy stainless steel
Material drive coverAluminium gravity die-cast, painted
Material guide slideSteel
Material guide railSteel
Material slideWrought aluminium alloy
Material ball screw nutSteel
Material spindleSteel
ManufacturerFesto
Hersteller-NrELGD-BS-KF-120-1000-0H-5P
EAN4052568775568
Zolltarifnummer84799070
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Stroke [mm]1000
Housing materialAluminium, anodised
Protection ratingIP40
Temperaturbereich0-60 °C
Temperature (max.)60
