Electric circular beveler ECB-0203 230V, 0C ~ 3C, * 2R, 3R - Nitto Kohki 135800300

The electric circular beveler chamfers hole edges and round cut outs where no compressed air is available. It runs from the 230 V mains, weighs 2.5 kg and produces a chamfer at a fixed angle of 45 degrees.

• Mains operation at 220 V with 450 W power consumption, no compressed air supply needed at the workstation
• Fixed chamfer angle of 45 degrees, the chamfer is identical on every part without readjustment

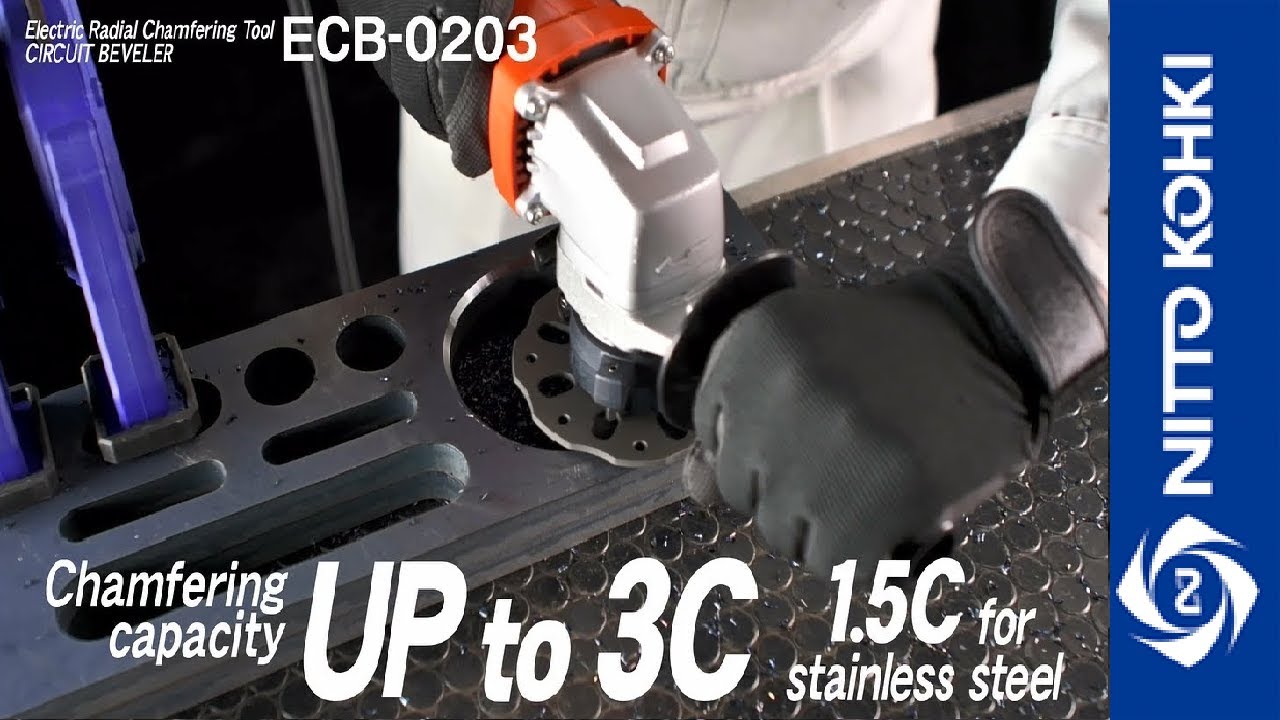

• Chamfer capacity up to 3C with radii 2R and 3R, and a separately stated capacity of up to 1.5C and 2R for stainless steel
• Weight of 2.5 kg, so the tool can be guided along the part over longer periods
• Power cord of 2.5 m, giving a usable working radius around the socket without an extension
• A rated duty of 30 minutes is stated, which makes work sections and breaks plannable

Applications

• Chamfering hole edges on sheet metal and steel parts
• Deburring round cut outs in housings
• Edge breaking on punched contours
• Rework on stainless steel parts within the stated capacity
• Assembly and repair work without a compressed air connection

Standard accessories

• Insert with hole 12.7: 1 pc.
• Insert Set Screw : 1 pc.
• 5 mm Hex.Socket Screw Key: 1 pc.
• Spanner 8x10: 1 pc.

Operating principle

An electric motor drives the cutter head with its indexable insert. The tool supports itself on the contour and is guided along the edge, with the infeed set before the cut.
