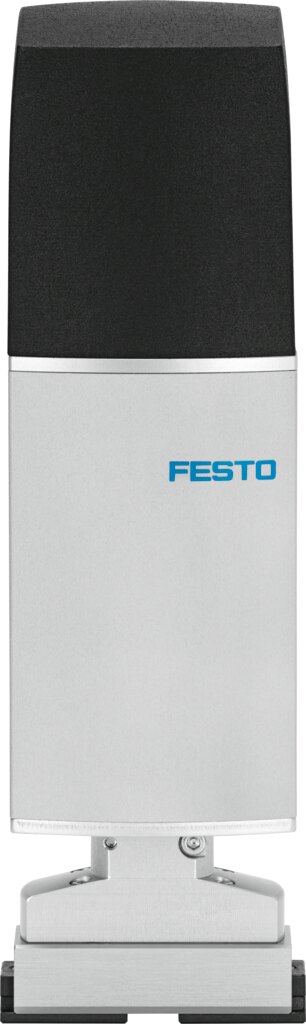

Rotary gripper module with electric parallel gripper, infinite rotation, 5 mm stroke per jaw EHMD-40-RE-GE - Festo 4788875
The rotary gripper module EHMD-40-RE-GE combines an infinitely rotating electric rotary drive and a electric parallel gripper with 5 mm of stroke per jaw. Gripping force 35 N per jaw, output torque up to 0.3 Nm at a maximum of 240 1/min. Rated load 0.25 kg, degree of protection IP20.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Gripping and rotating in one module: the EHMD-40-RE-GE rotates infinitely and grips with 5 mm of stroke per jaw. With the EHMD-40-RE-GE there is no need for a separate swivel unit between handling axis and gripper.
Benefits
- Infinite rotation at up to 240 1/min and 0.3 Nm output torque
- Gripping force 35 N per jaw, adjustable within 7 to 35 N
- Stroke of 5 mm per gripper jaw, rated load 0.25 kg
- Motor encoder for rotating and gripping, 24 V DC nominal operating voltage
- Degree of protection IP20, ambient temperature 0 to 40 °C
Applications
Assembly, testing and handling of small parts up to 0.25 kg where workpieces are gripped and aligned, for example in electronics and small parts assembly.
Technical data
| Type | EHMD-40-RE-GE |
|---|---|
| Festo part number | 4788875 |
| Size | 40 |
| Rotation angle | Infinite |
| Stroke per gripper jaws | 5 mm |
| Controllable stroke range per gripper jaw | 0 to 5 mm |
| Reversing backlash, theoretical | 300 µm |
| Stepper angle for complete step | 1.8 deg |
| Step angle full step, rotation | 1.8 deg |
| Stepping angle tolerance | ±5% |
| Step angle tolerance, rotation | ±5% |
| Number of gripper jaws | 2 |
| Mounting position | Any |
| Design | Electric rotary drive, Electric gripper |
| Mode of operation | Electric parallel gripper |
| Operating mode, rotation | Hybrid stepper motor |
| Gear unit ratio | 1:1 |
| Position detection | Turning: Motor encoder, Gripping: Motor encoder |
| Gripper function | Parallel |
| Type of motor | Stepper motor |
| Referencing | Turning: Encoder index, Gripping: Fixed-stop block |
| Rotor position sensor | Incremental encoder |
| Rotor position encoder interface | RS422 TTL AB channels + zero index |
| Rotor position sensor, encoder measuring principle | Optical |
| Maximum drive output speed | 240 1/min |
| Maximum speed | 0.025 m/s |
| Maximum homing speed | 0.002 m/s |
| Maximum gripping speed per gripper jaw | 25 mm/s |
| Duty cycle | 100% |
| Insulation protection class | B |
| Maximum current consumption | 60 mA |
| Maximum current consumption, rotation | 60 mA |
| Nominal operating voltage DC | 24 V |
| Nominal operating voltage DC, rotation | 5 V |
| Note on motor nominal current | 0.5 A for gripper drive |
| Nominal voltage DC | 24 V |
| Phase winding inductance | 4 mH |
| Winding inductance phase, rotation | 11 mH |
| Phase winding resistance | 5.6 Ohm |
| Winding resistance phase, rotation | 5.8 Ohm |
| Pulses per revolution | 500 |
| Pulses per revolution, rotation | 500 |
| Nominal current per phase | 0.5 A |
| Nominal current per phase, rotation | 0.9 A |
| Approval | RCM |
| KC mark | KC-EMV |
| CE mark (see declaration of conformity) | To EU EMC Directive, In accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC |
| Vibration resistance | Transport application test with severity level 1 to FN 942017-4 and EN 60068-2-6 |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Storage temperature | -20 to 70 °C |
| Relative air humidity | Non-condensing |
| Degree of protection | IP20 |
| Ambient temperature | 0 to 40 °C |
| Gripping force per gripper jaw | 7 to 35 N |
| Residual gripping force in the event of a power failure | 10 N |
| Gripping force at nominal current | 35 N |
| Motor holding torque | 0.043 Nm |
| Holding torque motor, rotation | 0.3 Nm |
| Mass moment of inertia | 0.009 kgcm² |
| Mass moment of inertia, rotation | 0.125 kgcm² |
| Maximum output torque | 0.3 Nm |
| Maximum force on gripper jaw Fz static | 30 N |
| Maximum torque at gripper Mx static | 0.7 Nm |
| Maximum torque at gripper My static | 1.5 Nm |
| Maximum torque at gripper Mz static | 0.7 Nm |
| Maximum nominal load | 0.25 kg |
| Feed constant | 1.48 mm/U |
| Product weight | 681 g |
| Electrical connection 1, function | 2x encoder, 2x motor |
| Electrical connection 1, connection type | Plug |
| Electrical connection 1, connector system | Connection pattern F1 |
| Electrical connection 1, number of connections/cores | 31 |
| Type of mounting | Via dovetail slot |
| Note on materials | RoHS compliant |
| Material cover | Reinforced PA |
| Material housing | Anodised wrought aluminium alloy |
| Weight | 0.75 kg |
| Manufacturer | Festo |
| Hersteller-Nr | EHMD-40-RE-GE |
| EAN | 4052568292041 |
| Zolltarifnummer | 84798997 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Housing material | Aluminium, anodised |
| Operating voltage | 24 V DC |
| Protection rating | IP20 |
| Temperaturbereich | 0-40 °C |
| Temperature (max.) | 40 |
