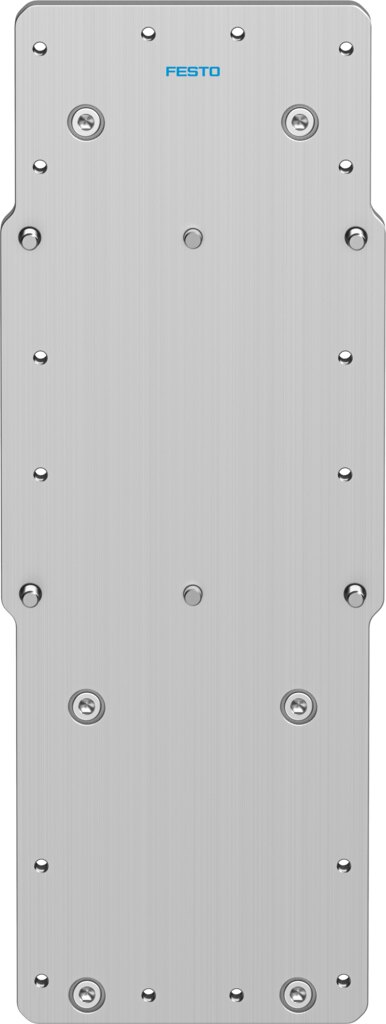

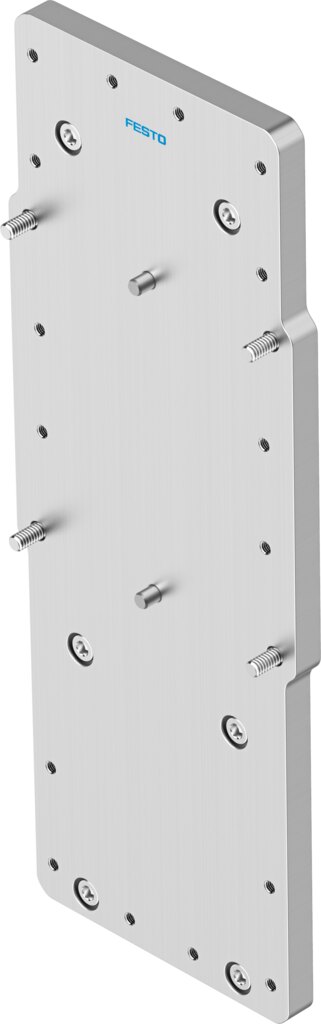

Adapter kit interface L9-120 to L9-90, made of anodised aluminium EHAM-MA-L9-120-L9-90 - Festo 8128227

Festo ✓ Original product Brand new

The adapter kit EHAM-MA-L9-120-L9-90 connects and mounts Festo handling components with a precise mechanical fit. Interface code base L9-120, mounted component L9-90, size 120, adapter plate made of anodised aluminium, mounting with through-hole and screw. Weight 1.5 kg.

Net
€146.88
excl. VAT
Item FES-8128227
Manufacturer no. EHAM-MA-L9-120-L9-90
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Interface L9-120 at the base, L9-90 for the mounted component: the adapter kit EHAM-MA-L9-120-L9-90 joins two Festo components with these interface codes into a mechanically defined assembly. The exact order code EHAM-MA-L9-120-L9-90 defines which components the part fits.

Benefits

  • Adapter plate made of anodised aluminium
  • Centring elements made of high-alloy steel for repeatable positioning
  • Screws made of nickel-plated steel
  • Corrosion resistance class CRC 0 - no corrosion stress
  • LABS (PWIS) conformity VDMA24364-B2-L
  • Ambient temperature -10 to 80 °C

Applications

Used in handling and assembly setups with the Festo components for which the adapter kit EHAM-MA-L9-120-L9-90 is intended. Any mounting position.

Technical data

FeatureValue
TypeEHAM-MA-L9-120-L9-90
Festo part number8128227
Size120
Mounting positionAny
Design structureStandard version
Corrosion resistance class CRC0 - no corrosion stress
LABS (PWIS) conformityVDMA24364-B2-L
Ambient temperature-10 to 80 °C
Type of mountingWith through-hole and screw
Interface code, baseL9-120
Interface code, mounted componentL9-90
Note on materialsRoHS-compliant
Material adapter plateAnodised aluminium
Material screwsNickel-plated steel
Material centring elementsHigh-alloy steel
Weight1.5 kg
ManufacturerFesto
Hersteller-NrEHAM-MA-L9-120-L9-90
EAN4052568557492
Zolltarifnummer76169990
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium, anodised
SeriesEHAM
Temperaturbereich-10-80 °C
