Adapter kit interface L9-120 to L9-90, short version EHAM-MA-L9-120-L9-90-S - Festo 8128232

Festo ✓ Original product Brand new

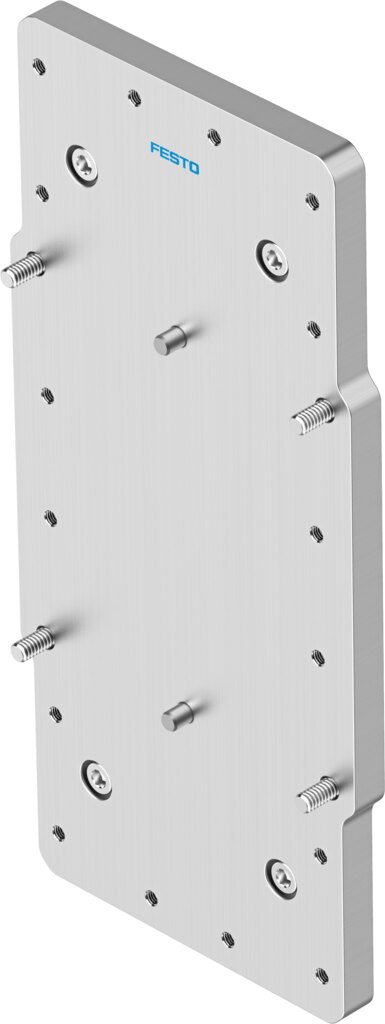

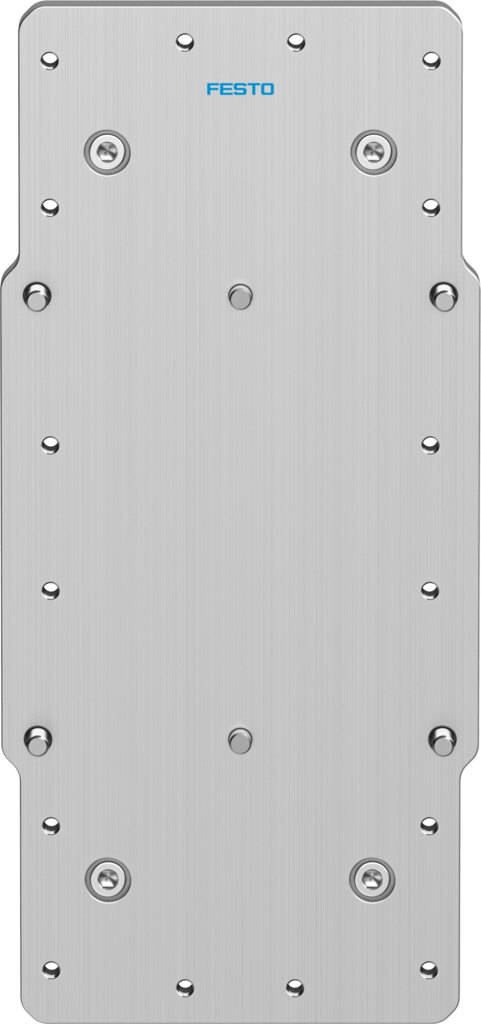

The adapter kit EHAM-MA-L9-120-L9-90-S is a genuine Festo accessory for the mechanical assembly of handling systems. Interface code base L9-120, mounted component L9-90, size 120, adapter plate made of anodised aluminium, mounting with through-hole and screw.

Net
€124.40
excl. VAT
Item FES-8128232
Manufacturer no. EHAM-MA-L9-120-L9-90-S
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Interface L9-120 at the base, L9-90 for the mounted component: the adapter kit EHAM-MA-L9-120-L9-90-S joins two Festo components with these interface codes into a mechanically defined assembly. Type EHAM-MA-L9-120-L9-90-S and part number 8128232 determine the assignment.

Benefits

  • Adapter plate made of anodised aluminium
  • Centring elements made of high-alloy steel for repeatable positioning
  • Screws made of nickel-plated steel
  • Corrosion resistance class CRC 0 - no corrosion stress
  • LABS (PWIS) conformity VDMA24364-B2-L
  • Ambient temperature -10 to 80 °C

Applications

For replacement, compare the type EHAM-MA-L9-120-L9-90-S with the installed part, for a new setup with the interfaces of the components involved. Any mounting position.

Technical data

FeatureValue
TypeEHAM-MA-L9-120-L9-90-S
Festo part number8128232
Size120
Mounting positionAny
Design structureShort version
Corrosion resistance class CRC0 - no corrosion stress
LABS (PWIS) conformityVDMA24364-B2-L
Ambient temperature-10 to 80 °C
Type of mountingWith through-hole and screw
Interface code, baseL9-120
Interface code, mounted componentL9-90
Note on materialsRoHS-compliant
Material adapter plateAnodised aluminium
Material screwsNickel-plated steel
Material centring elementsHigh-alloy steel
ManufacturerFesto
Hersteller-NrEHAM-MA-L9-120-L9-90-S
EAN4052568557546
Zolltarifnummer76169990
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium, anodised
SeriesEHAM
Temperaturbereich-10-80 °C
