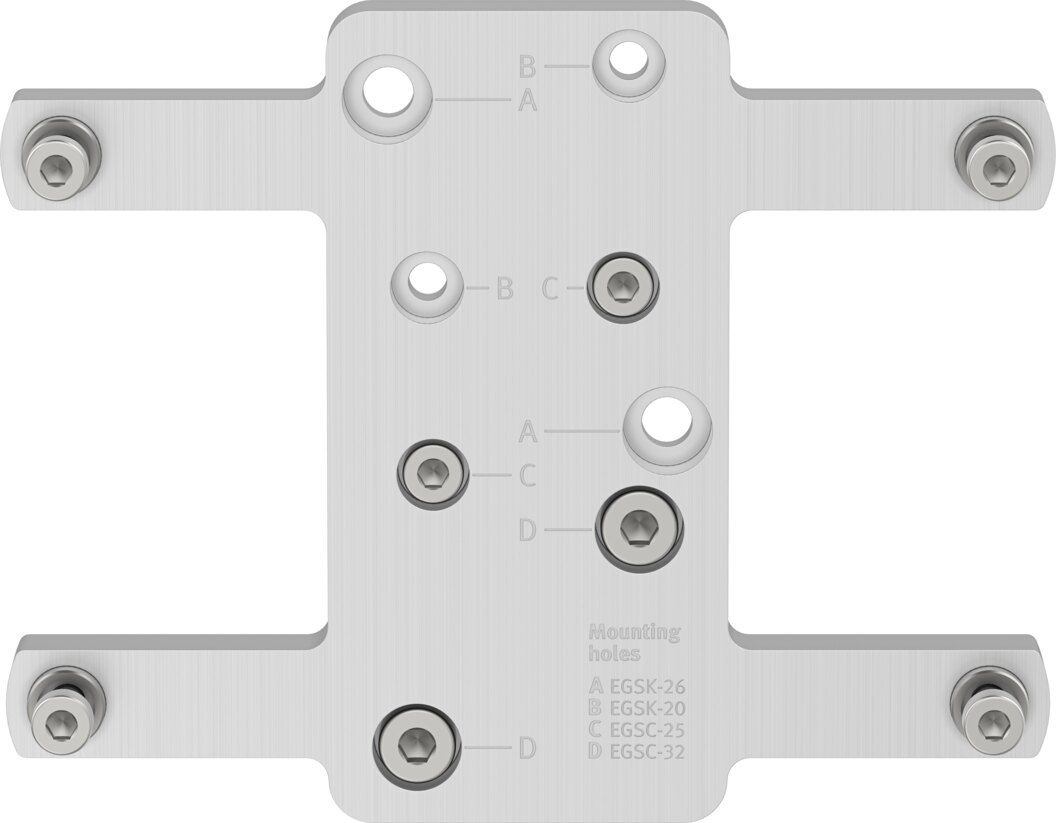

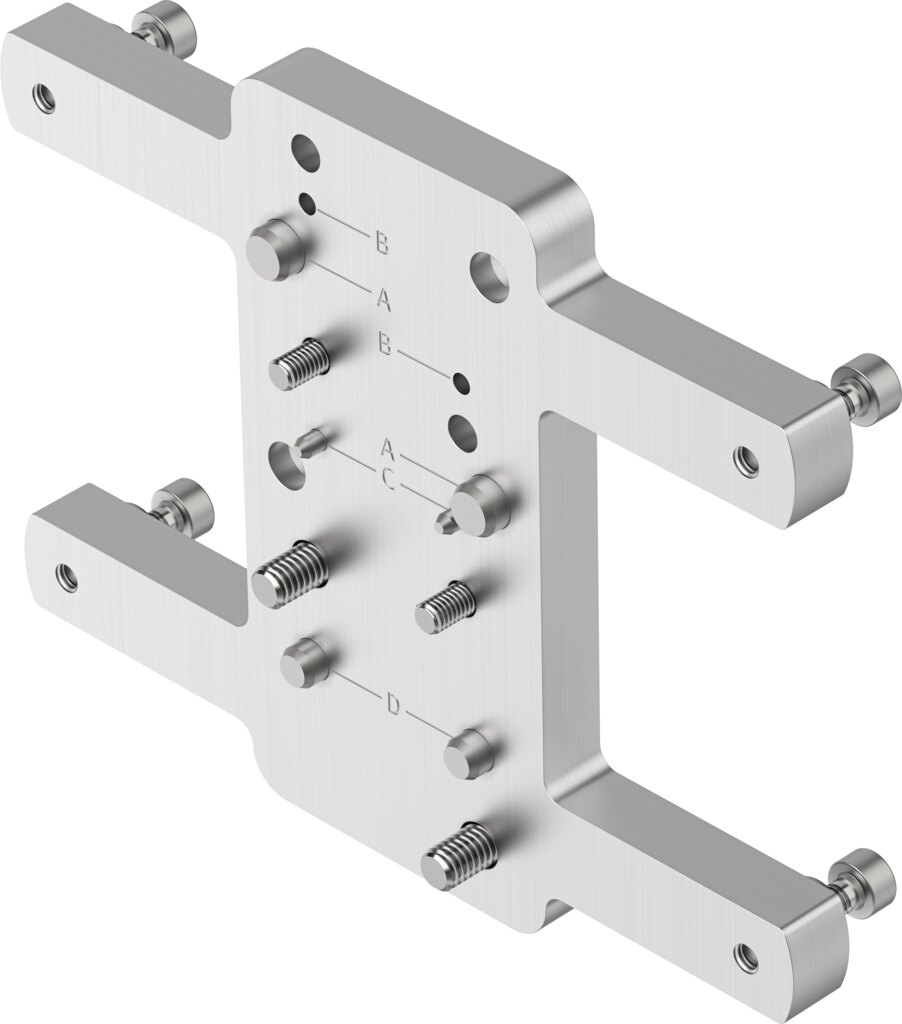

Adapter plate kit interface E8-35, made of anodised aluminium EHAM-MA-E19-25-V3 - Festo 8140776

Festo ✓ Original product Brand new

The adapter plate kit EHAM-MA-E19-25-V3 is a genuine Festo accessory for the mechanical assembly of handling systems. Interface code base E8-35, mounted component E8-35, size 20, 25, 26, 32, adapter plate made of anodised aluminium, mounting with through-hole and screw.

Net
€108.43
excl. VAT
Item FES-8140776
Manufacturer no. EHAM-MA-E19-25-V3
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Interface E8-35 at the base, E8-35 for the mounted component: the adapter plate kit EHAM-MA-E19-25-V3 joins two Festo components with these interface codes into a mechanically defined assembly. Which components fit together is defined by the type EHAM-MA-E19-25-V3 and Festo part number 8140776.

Benefits

  • Adapter plate made of anodised aluminium
  • Centring elements made of high-alloy steel for repeatable positioning
  • Screws made of steel
  • Corrosion resistance class CRC 2 - moderate corrosion stress
  • LABS (PWIS) conformity VDMA24364-B2-L
  • Ambient temperature -20 to 80 °C

Applications

The adapter plate kit EHAM-MA-E19-25-V3 is used when building or modifying handling systems, as a spare part or for extension. Mounting position vertical.

Technical data

FeatureValue
TypeEHAM-MA-E19-25-V3
Festo part number8140776
Size20, 25, 26, 32
Mounting positionVertical
Design structureMounting kit
Corrosion resistance class CRC2 - moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B2-L
Ambient temperature-20 to 80 °C
Type of mountingWith through-hole and screw
Interface code, baseE8-35
Interface code, mounted componentE8-35
Note on materialsRoHS-compliant
Material adapter plateAnodised aluminium
Material screwsSteel
Material centring elementsHigh-alloy steel
ManufacturerFesto
Hersteller-NrEHAM-MA-E19-25-V3
EAN4052568568054
Zolltarifnummer76169990
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium, anodised
SeriesEHAM
Temperaturbereich-20-80 °C
