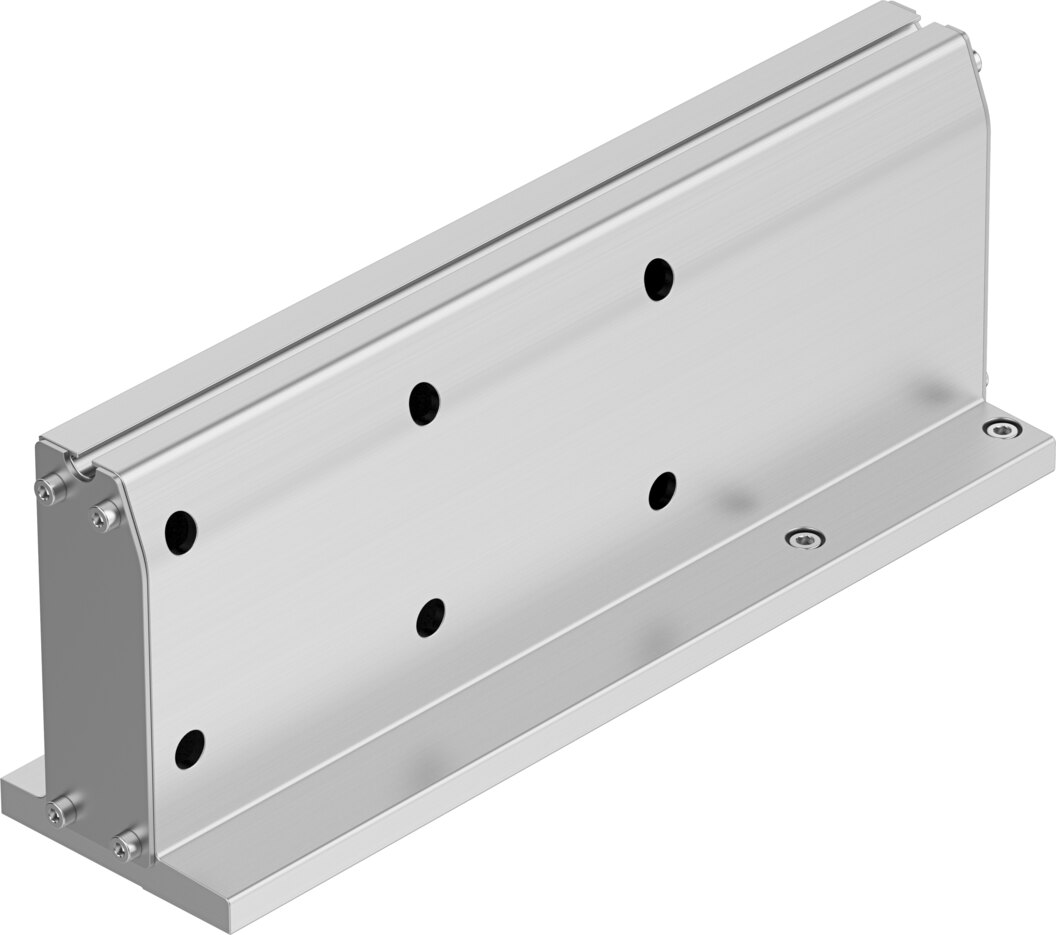

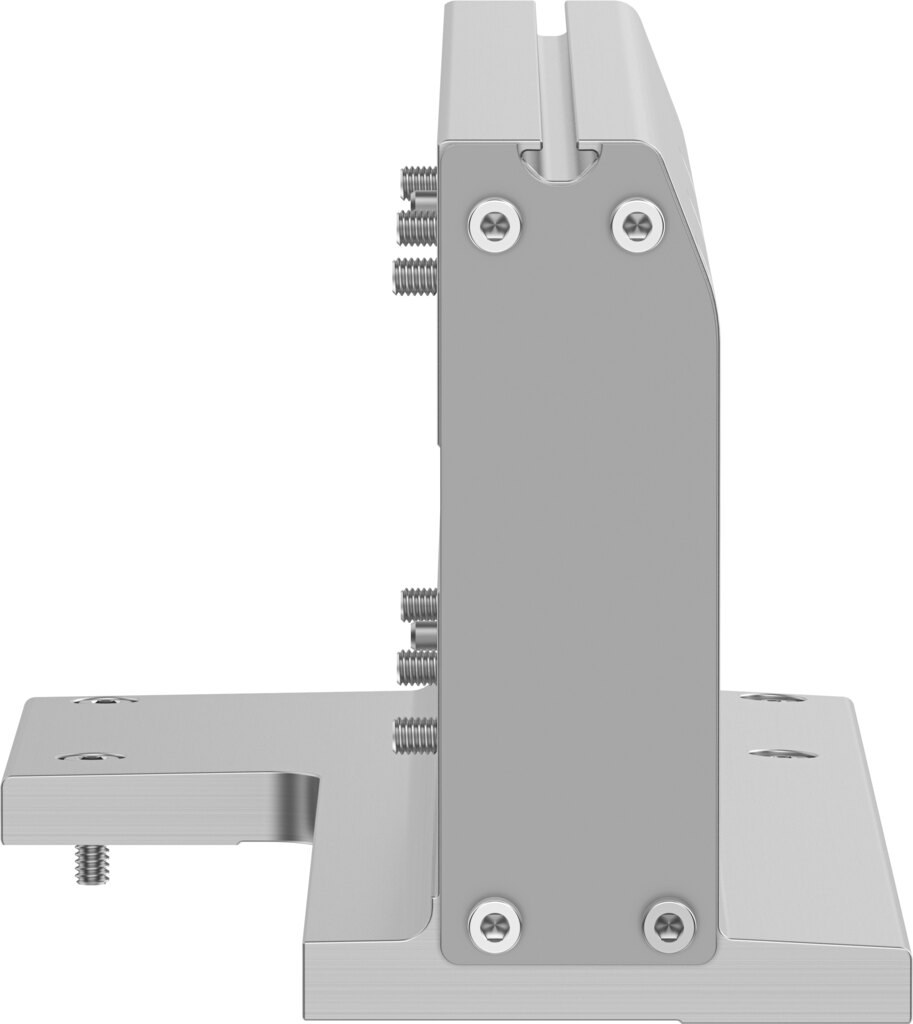

Angle kit interface L9-90, mounting position left EHAM-AK-L9-90-L9-90-ML - Festo 8128210
The angle kit EHAM-AK-L9-90-L9-90-ML connects and mounts Festo handling components with a precise mechanical fit. Interface code base L9-90, mounted component L9-90, size 90, adapter plate made of anodised aluminium, mounting with through-hole and screw. Weight 3.9 kg.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Interface L9-90 at the base, L9-90 for the mounted component: the angle kit EHAM-AK-L9-90-L9-90-ML joins two Festo components with these interface codes into a mechanically defined assembly. Type EHAM-AK-L9-90-L9-90-ML and part number 8128210 determine the assignment.
Benefits
- Adapter plate made of anodised aluminium
- Centring elements made of high-alloy steel for repeatable positioning
- Screws made of nickel-plated steel
- Corrosion resistance class CRC 0 - no corrosion stress
- LABS (PWIS) conformity VDMA24364-B2-L
- Ambient temperature -10 to 80 °C
Applications
The angle kit EHAM-AK-L9-90-L9-90-ML is used when building or modifying handling systems, as a spare part or for extension. Mounting position left.
Technical data
| Feature | Value |
|---|---|
| Type | EHAM-AK-L9-90-L9-90-ML |
| Festo part number | 8128210 |
| Size | 90 |
| Mounting position | Left |
| Design structure | Standard version |
| Corrosion resistance class CRC | 0 - no corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -10 to 80 °C |
| Type of mounting | With through-hole and screw |
| Interface code, base | L9-90 |
| Interface code, mounted component | L9-90 |
| Note on materials | RoHS-compliant |
| Material adapter plate | Anodised aluminium |
| Material screws | Nickel-plated steel |
| Material centring elements | High-alloy steel |
| Weight | 3.9 kg |
| Manufacturer | Festo |
| Hersteller-Nr | EHAM-AK-L9-90-L9-90-ML |
| EAN | 4052568557423 |
| Zolltarifnummer | 76169990 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Aluminium, anodised |
| Series | EHAM |
| Temperaturbereich | -10-80 °C |
