Angle kit interface L9-160, mounting position left EHAM-AK-L9-160-L9-160-ML - Festo 8128206

Festo ✓ Original product Brand new

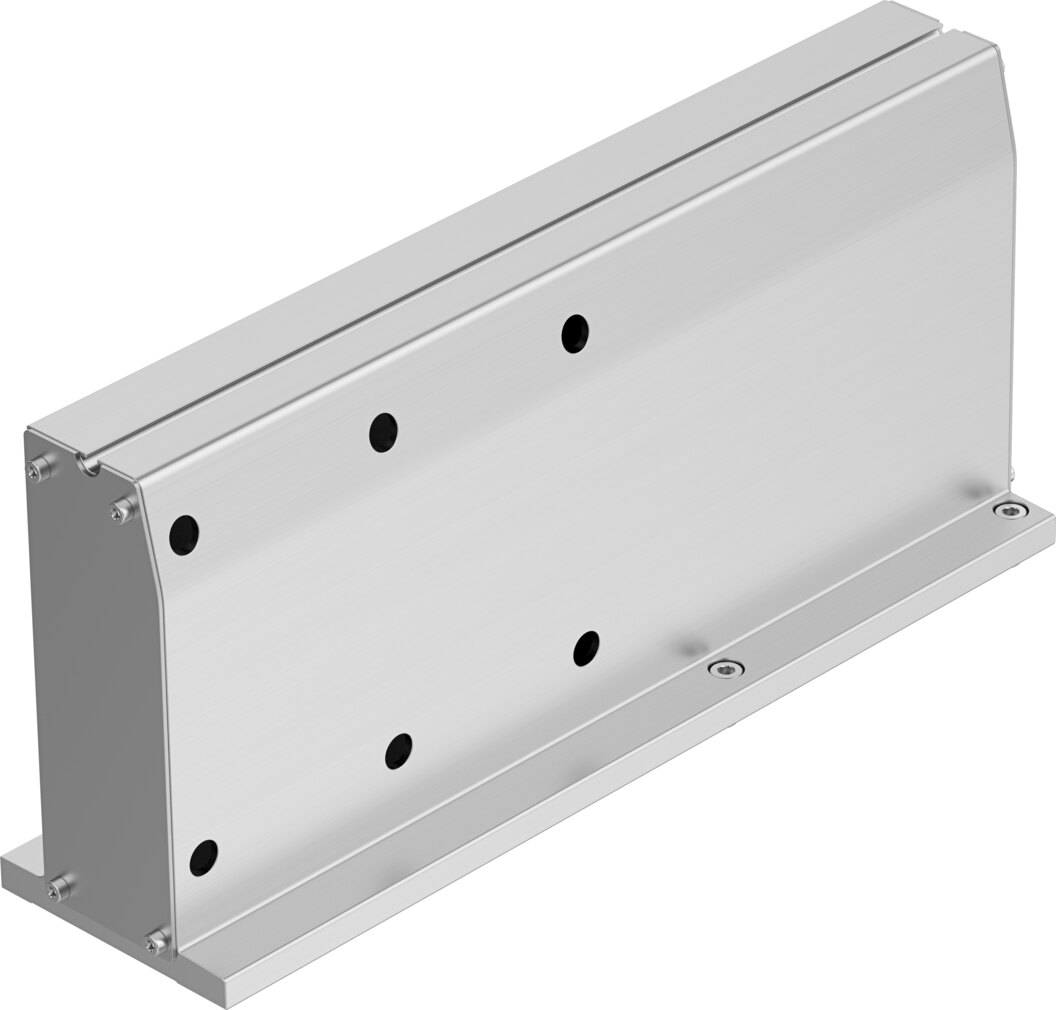

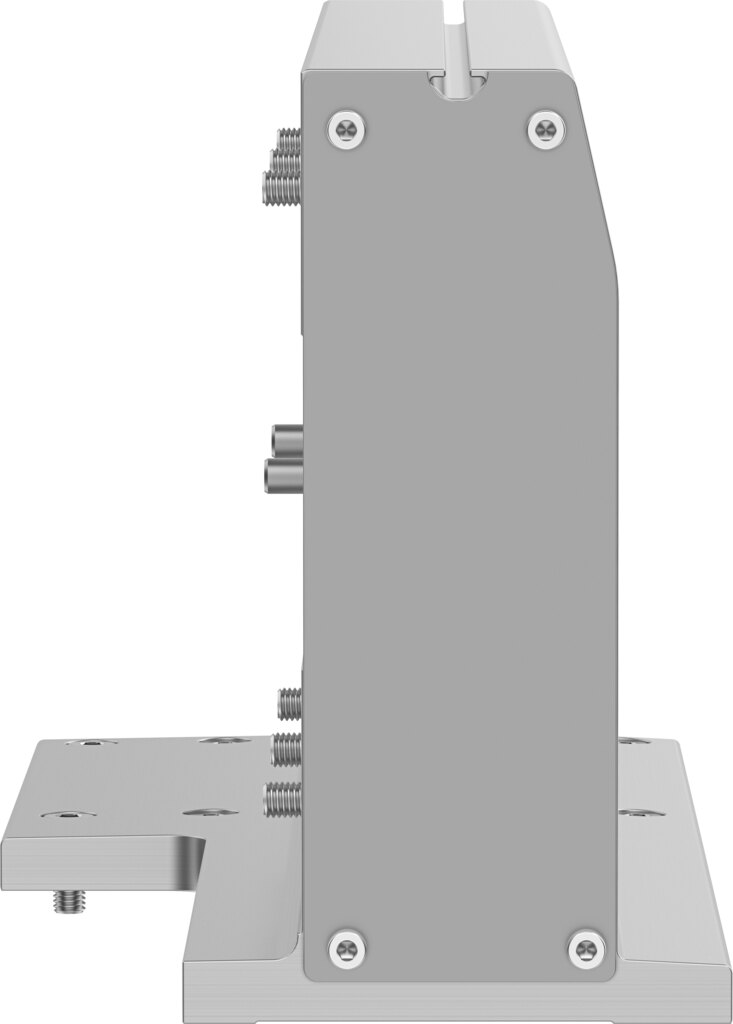

The angle kit EHAM-AK-L9-160-L9-160-ML connects and mounts Festo handling components with a precise mechanical fit. Interface code base L9-160, mounted component L9-160, size 160, adapter plate made of anodised aluminium, mounting with through-hole and screw.

Net
€394.22
excl. VAT
Item FES-8128206
Manufacturer no. EHAM-AK-L9-160-L9-160-ML
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Interface L9-160 at the base, L9-160 for the mounted component: the angle kit EHAM-AK-L9-160-L9-160-ML joins two Festo components with these interface codes into a mechanically defined assembly. Which components fit together is defined by the type EHAM-AK-L9-160-L9-160-ML and Festo part number 8128206.

Benefits

  • Adapter plate made of anodised aluminium
  • Centring elements made of high-alloy steel for repeatable positioning
  • Screws made of nickel-plated steel
  • Corrosion resistance class CRC 0 - no corrosion stress
  • LABS (PWIS) conformity VDMA24364-B2-L
  • Ambient temperature -10 to 80 °C

Applications

Used in handling and assembly setups with the Festo components for which the angle kit EHAM-AK-L9-160-L9-160-ML is intended. Mounting position left.

Technical data

FeatureValue
TypeEHAM-AK-L9-160-L9-160-ML
Festo part number8128206
Size160
Mounting positionLeft
Design structureStandard version
Corrosion resistance class CRC0 - no corrosion stress
LABS (PWIS) conformityVDMA24364-B2-L
Ambient temperature-10 to 80 °C
Type of mountingWith through-hole and screw
Interface code, baseL9-160
Interface code, mounted componentL9-160
Note on materialsRoHS-compliant
Material adapter plateAnodised aluminium
Material screwsNickel-plated steel
Material centring elementsHigh-alloy steel
ManufacturerFesto
Hersteller-NrEHAM-AK-L9-160-L9-160-ML
EAN4052568557287
Zolltarifnummer76169990
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium, anodised
SeriesEHAM
Temperaturbereich-10-80 °C
