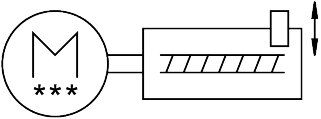

Stopper cylinder EFSD-100-PV-M12 - Festo 2942447
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Design | Electric stopper cylinder |
|---|---|
| Size | 100 |
| Mounting position | Any |
| Position detection | With Hall sensor |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| Ambient temperature | -10 ... 60 °C |
| Storage temperature | -20 ... 60 °C |
| Relative air humidity | Non-condensing |
| Cushioning length | 18.2 mm |
| Product weight | 985 g |
| Max. cycle frequency | 0.33 Hz |
| Type of mounting | With mounting kit |
| Return-stroke time | 300 ms |
| Advance time | 200 ms |
| Permissible lateral force during switching operation | 100 N |
| Approval | RCM |
| Note on materials | RoHS compliant |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Material cover | PA, Reinforced PA |
| Material seals | NBR |
| Material housing | Hard anodised wrought aluminium alloy |
| Material piston rod | High-alloy stainless steel |
| Material screws | Coated steel |
| Max. current consumption | 2000 mA |
| Nominal operating voltage DC | 24 V |
| Permissible voltage fluctuations | +/- 15 % |
| Type of motor | Stepper motor |
| KC mark | KC-EMV |
| CE mark (see declaration of conformity) | To EU EMC Directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC |
| Degree of protection | IP40 |
| Max. cable length | 30 M |
| Ready status indication | LED |
| Electrical connection for actuator, connection type | Plug |
| Electrical connection for actuator, connection technology | M12x1, A-coded to EN 61076-2-101 |
| Electrical connection for actuator, number of pins/wires | 5 |
| Electrical connection actuator, max. current consumption | 1.4 A |
| Electrical connection for sensor, connection type | Plug |
| Electrical connection for sensor, connection technology | M12x1, A-coded to EN 61076-2-101 |
| Electrical connection for sensor, number of pins/wires | 5 |
| Electrical connection sensor, max. current consumption | 0.3 A |
| Weight | 1 kg |
| Manufacturer | Festo |
| Hersteller-Nr | EFSD-100-PV-M12 |
| EAN | 4052568290962 |
| Zolltarifnummer | 84798997 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
