This stainless steel pipe clamp holds pipes, hoses and cables on the supporting structure and damps vibration. A key figure is a tube diameter of 18 mm. Size tube 18 mm, height 48 mm, width 30 mm, plastic clamp with weld plate and cover plate, size 1, heavy series, material polypropylene with parts of stainless steel 1.4571.
Stainless steel pipe clamp DIN 3015 T2, weld plate and cover plate, tube 18 mm, size 1
HYDAC
Original product
Net price (excl. VAT)
€45.06
Item
FL-030691
Manufacturer no.
GR 118 SDP ES
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.GR 118 SDP ES
EAN4050571330491
Customs tariff number73071990
ConditionNew
Artikel
FL-030691
Frequently Bought Together
-
This Item:
€45.06
-

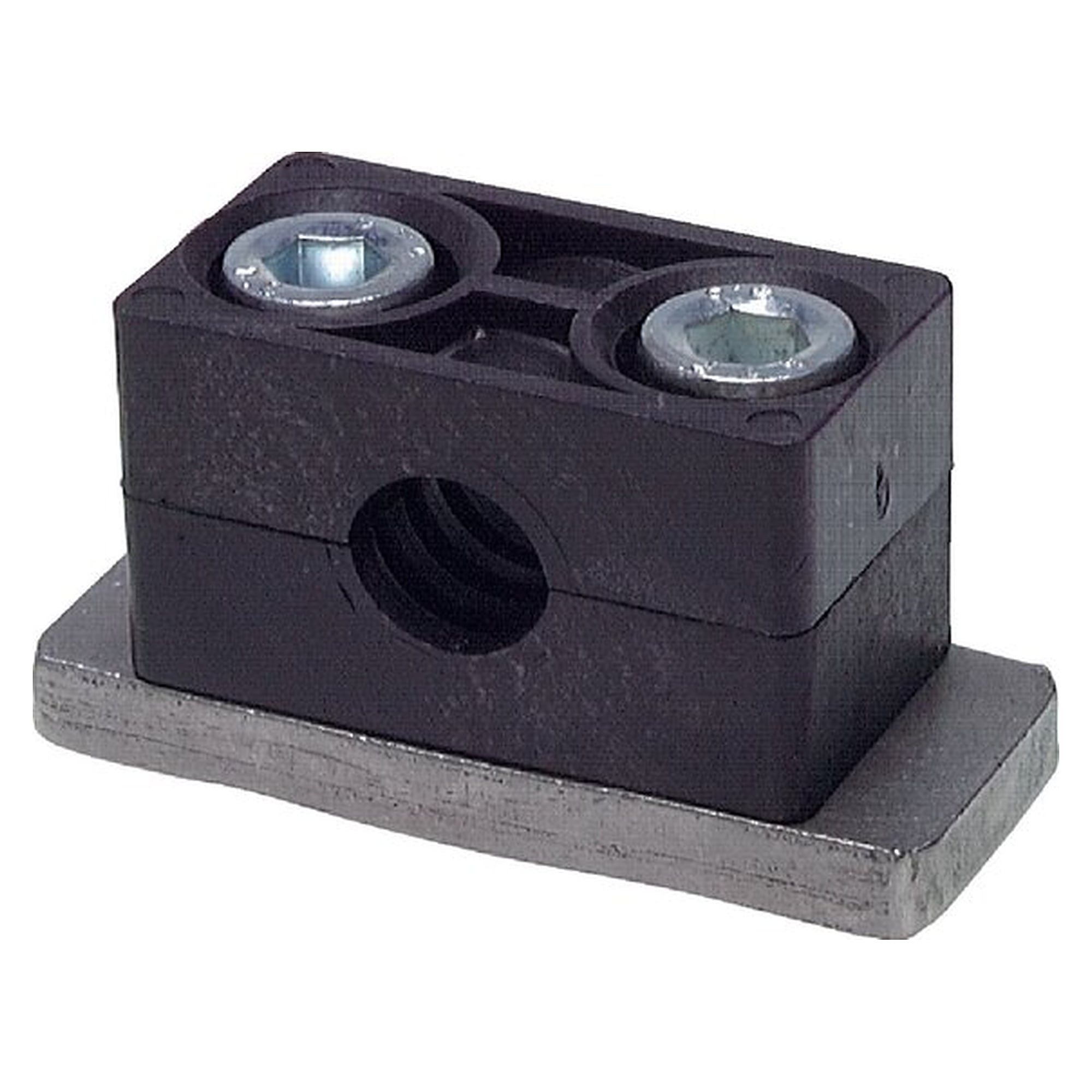

Stainless steel pipe clamp DIN 3015 T2, weld plate, tube 28 mm, size 2
€37.54
-
Stainless steel pipe clamp DIN 3015 T2, weld plate, tube 42 mm, size 3
€43.35
Total price
The stainless steel pipe clamp holds pipes, hoses and cables on the supporting structure and damps vibration and follows DIN 3015 T2. Material polypropylene with parts of stainless steel 1.4571 is listed for this version. The data sheet gives a tube diameter of 18 mm. Also stated are size 1, heavy series.
Benefits
- Tube diameter 18 mm in size 1, heavy series.
- Clamp body of polypropylene that grips the pipe and damps vibration, height 48 mm.
- Version plastic clamp with weld plate and cover plate with a width of 30 mm.
- Dimensions to DIN 3015 T2, so that clamp, cover plate and accessories of the same size fit together.
- Layout dimensions a1 33.0 mm and a3 55 mm for the arrangement on the supporting structure.
Technical data
| Version | plastic clamp with weld plate and cover plate |
|---|---|
| Frame size | size 1, heavy series |
| Tube outside diameter [mm] | 18 |
| Height H [mm] | 48 |
| Width B [mm] | 30 |
| Dimension a1 [mm] | 33.0 |
| Dimension a2 [mm] | 73 |
| Dimension a3 [mm] | 55 |
| Dimension S [mm] | 8 |
| Clamp material | polypropylene |
| Material of the metal parts | stainless steel 1.4571 |
| Screw material | stainless steel 1.4301 |
Applications
In Anlagenbau pipes of 18 mm outside diameter are held in size 1, heavy series.
Standards and conformity
Dimensions and sizes follow DIN 3015 T2, here size 1, heavy series.
| Weight | 0.300000 |
|---|---|
| Manufacturer | Hydac |
| Hersteller-Nr | GR 118 SDP ES |
| EAN | 4050571330491 |
| Zolltarifnummer | 73071990 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Ausführung | Kunststoffschelle mit Anschweißplatte & Deckplatte |
| Rohrdurchmesser (außen) [mm] | 18 |
| Norm | DIN 3015 |
