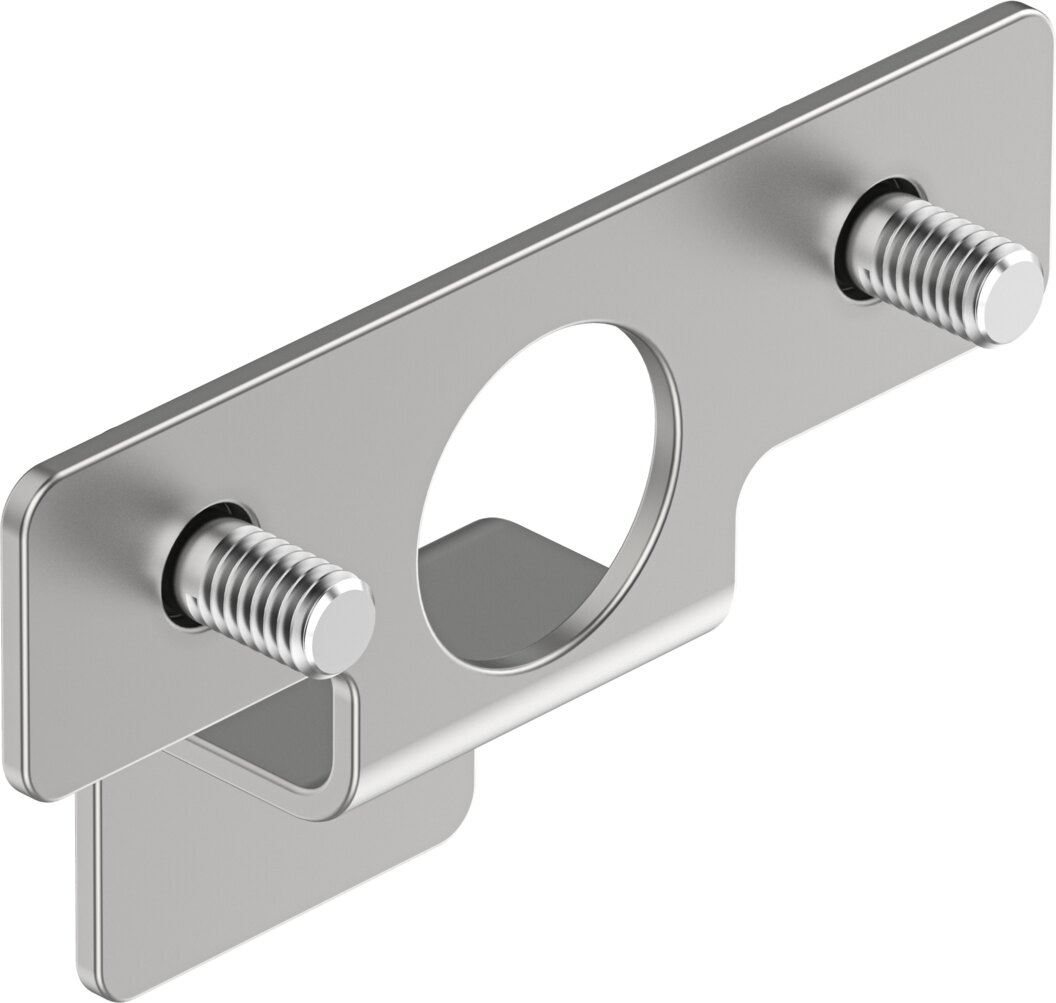

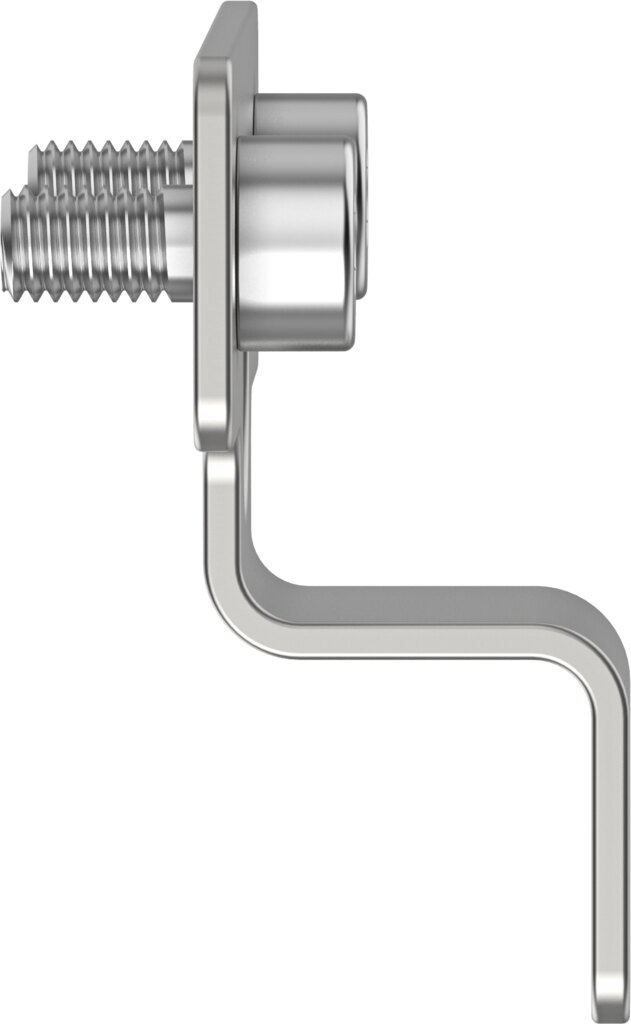

Switch lug size 120 made of high-alloy steel for position detection EAPM-L9-120-SLE - Festo 8120124
The switch lug EAPM-L9-120-SLE is the counterpart to the sensor for position detection on size 120 drives. It is made of high-alloy steel and weighs 9 g. Ambient temperature -10 to 80 °C, CRC 0.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Festo switch lug EAPM-L9-120-SLE triggers the position detection sensor when the size 120 drive reaches the sensed position. Material high-alloy steel, product weight 9 g.
Benefits
- Size 120 to match the drive
- Material high-alloy steel, product weight 9 g
- Ambient temperature -10 to 80 °C
- Corrosion resistance class CRC 0, LABS (PWIS) conformity VDMA24364-B2-L
Applications
The switch lug is mounted on the moving part of the drive and used together with a proximity or position sensor for end and reference positions. Any mounting position, size 120.
Technical data
| Size | 120 |
|---|---|
| Mounting position | Any |
| Corrosion resistance class CRC | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -10 to 80 °C |
| Product weight | 9 g |
| Note on materials | RoHS compliant |
| Material switch lug | High-alloy steel |
| Weight | 0.007 kg |
| Manufacturer | Festo |
| Hersteller-Nr | EAPM-L9-120-SLE |
| EAN | 4052568552497 |
| Zolltarifnummer | 73269098 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Series | EAPM |
| Temperaturbereich | -10-80 °C |
| Temperature (max.) | 80 |
