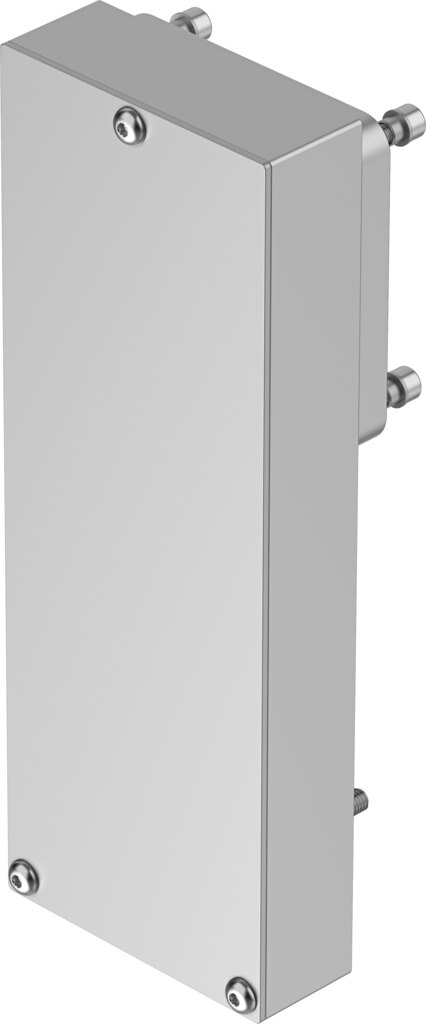

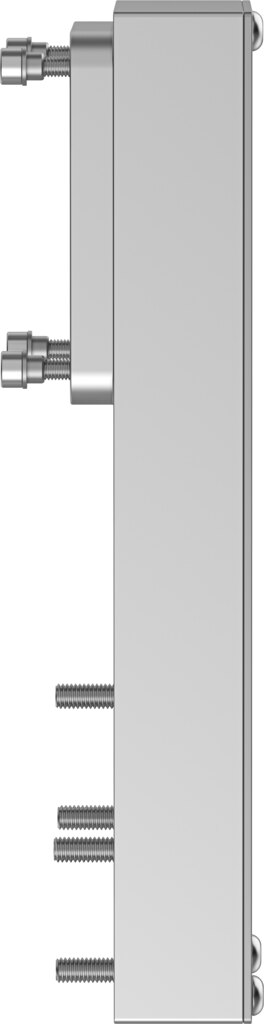

Parallel kit size 87 for motor mounting, actuator T46, motor 85AA, 3 Nm EAMM-U-87-T46-85AA-147 - Festo 8126169

Festo ✓ Original product Brand new

Where space along the axis is tight, the parallel kit EAMM-U-87-T46-85AA-147 mounts the motor (85AA) next to the drive with interface T46. It transmits up to 3 Nm. Speed up to 3000 1/min, degree of protection IP40. Mass moment of inertia 41.2 kgmm².

Net
€276.21
excl. VAT
Item FES-8126169
Manufacturer no. EAMM-U-87-T46-85AA-147
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Festo parallel kit EAMM-U-87-T46-85AA-147 mounts the motor (interface 85AA) parallel to the drive (interface T46). It transmits up to 3 Nm at a ratio of 1:1.

Benefits

  • Transmittable torque 3 Nm between motor and drive
  • Speed up to 3000 1/min
  • Mass moment of inertia 41.2 kgmm² as input for drive sizing
  • No-load driving torque 0.22 Nm
  • Ratio 1:1, centre distance 147 mm
  • Interfaces actuator T46, motor 85AA

Applications

The kit sits between motor and electric drive, for example when building handling systems, gantries and feeders. On the drive side it fits interface code T46, on the motor side 85AA.

Technical data

Size87
Centre-to-centre distance147 mm
Mounting positionAny
Gear unit ratio1:1
Max. rotational speed3000 1/min
LABS (PWIS) conformityVDMA24364 zone III
Storage temperature-20 to 60 °C
Relative air humidity0 - 95%
Degree of protectionIP40
Ambient temperature0 to 50 °C
Mass moment of inertia41.2 kgmm²
Frictional torque independent of load0.22 Nm
Transmittable torque3 Nm
Product weight1097 g
Interface code, actuatorT46
Interface code, motor in85AA
Note on materialsRoHS compliant
ManufacturerFesto
Hersteller-NrEAMM-U-87-T46-85AA-147
EAN4052568552725
Zolltarifnummer84839089
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
SeriesEAMM
Protection ratingIP40
Temperaturbereich0-50 °C
Temperature (max.)50
