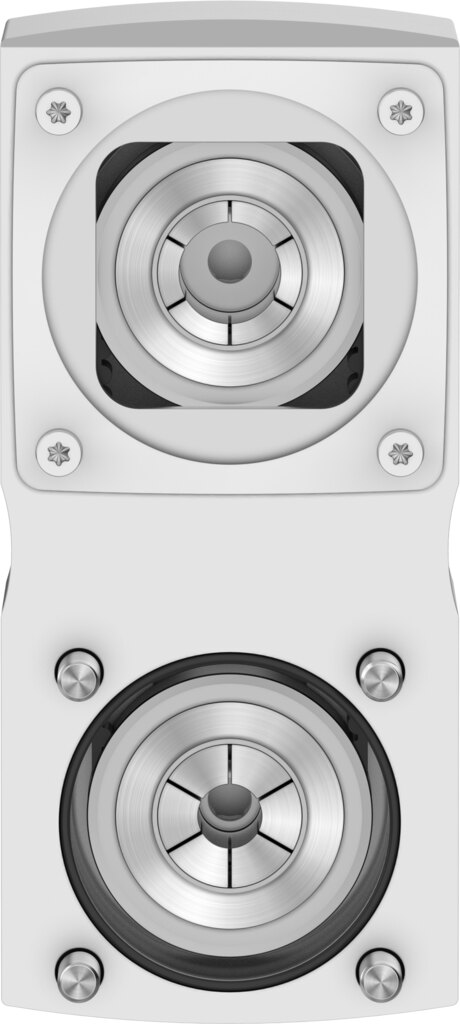

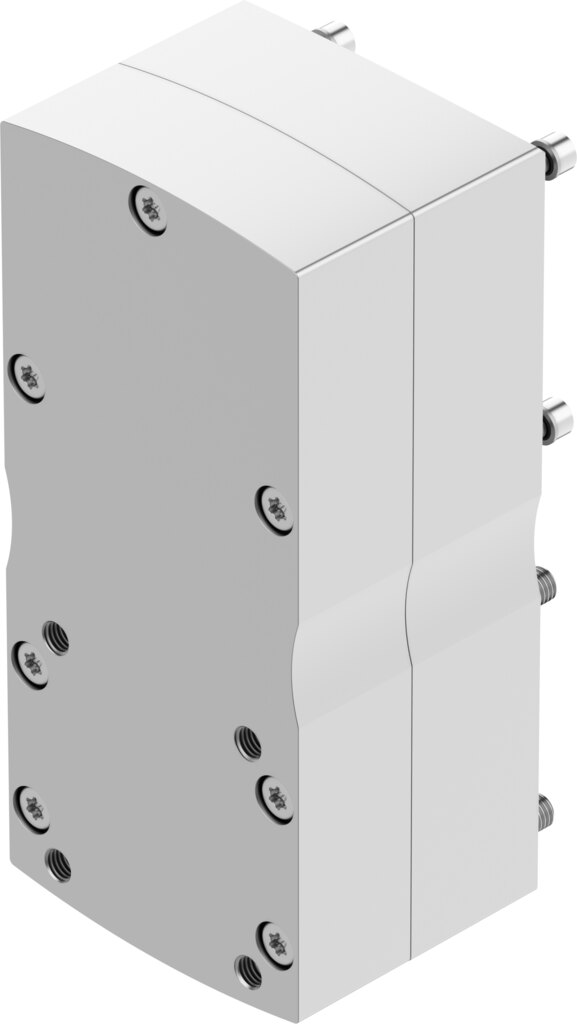

Parallel kit for motor mounting, 9.5 Nm, actuator D60, motor 80P EAMM-U-86-D60-80P-102-S1-G2 - Festo 8234873

Festo ✓ Original product Brand new

With the parallel kit EAMM-U-86-D60-80P-102-S1-G2 the motor sits alongside the axis instead of extending it. It transmits up to 9.5 Nm of torque, the part is rated for up to 5000 1/min. Actuator interface code D60, motor side 80P.

Net
€785.91
excl. VAT
Item FES-8234873
Manufacturer no. EAMM-U-86-D60-80P-102-S1-G2
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

With the parallel kit EAMM-U-86-D60-80P-102-S1-G2 the motor sits alongside the axis instead of extending it. It transmits up to 9.5 Nm of torque, the part is rated for up to 5000 1/min.

Why this part

  • Transmittable torque 9.5 Nm
  • Speeds up to 5000 1/min
  • Ratio 1:1, motor speed and torque reach the axis unchanged
  • No-load driving torque only 0.25 Nm
  • Mass moment of inertia 175 kgmm² for sizing the drive
  • Degree of protection IP65, dust-tight and protected against water jets

Application

For mounting a motor to Festo electric axes. Before ordering, compare the interface codes of axis and motor with the table, so EAMM-U-86-D60-80P-102-S1-G2 fits without rework.

Technical data

TypeEAMM-U-86-D60-80P-102-S1-G2
Festo part no.8234873
Size86
Gear unit ratio1:1
Transmittable torque9.5 Nm
Frictional torque independent of load0.25 Nm
Max. rotational speed5000 1/min
Mass moment of inertia175 kgmm²
Interface code, actuatorD60
Interface code, motor in80P
Degree of protectionIP65
Mounting positionAny
Ambient temperature-10 to 60 °C
Storage temperature-25 to 60 °C
Relative air humidity0 - 95 %
LABS (PWIS) conformityVDMA 24364-zone III
Product weight2320 g
Note on materialsRoHS compliant
ManufacturerFesto
Hersteller-NrEAMM-U-86-D60-80P-102-S1-G2
EAN4052568783532
Zolltarifnummer84839089
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
SeriesEAMM
Protection ratingIP65
Temperaturbereich-10-60 °C
Temperature (max.)60
