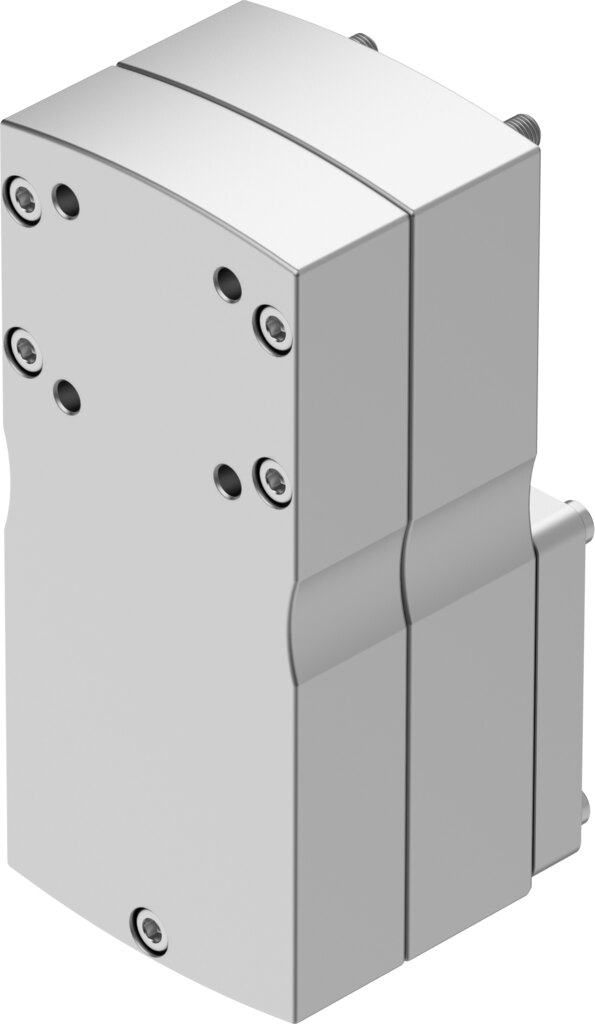

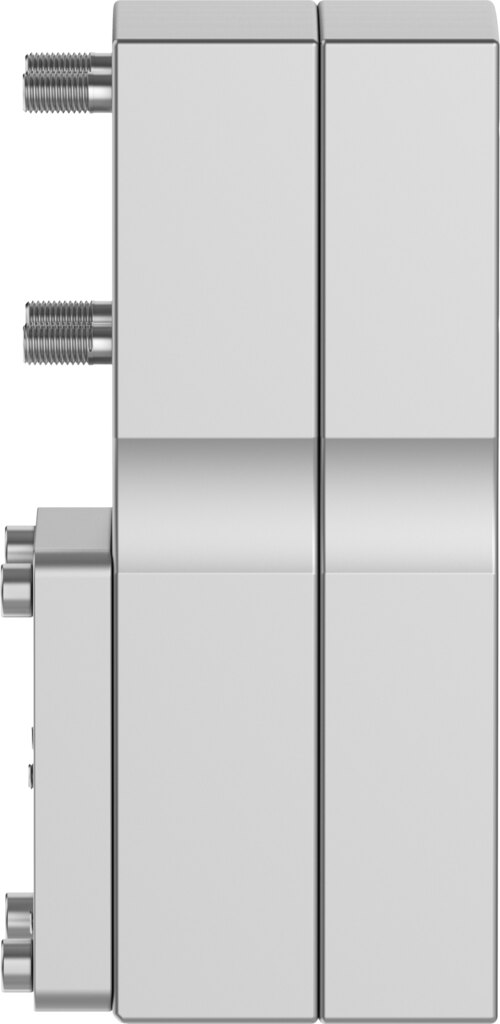

Parallel kit size 86 for motor mounting, actuator D50, motor 70GA, 9.5 Nm EAMM-U-86-D50-70GA-102 - Festo 8107044
Where space along the axis is tight, the parallel kit EAMM-U-86-D50-70GA-102 mounts the motor (70GA) next to the drive with interface D50. It transmits up to 9.5 Nm. Speed up to 5000 1/min, degree of protection IP40. Mass moment of inertia 175 kgmm².
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Size 86, 9.5 Nm transmittable torque and interfaces for actuator D50 and motor 70GA: the parallel kit EAMM-U-86-D50-70GA-102 shortens the installed length because the motor sits next to the drive instead of behind it.
Benefits
- Transmittable torque 9.5 Nm between motor and drive
- Speed up to 5000 1/min
- Mass moment of inertia 175 kgmm² as input for drive sizing
- No-load driving torque 0.25 Nm
- Interfaces actuator D50, motor 70GA
- Degree of protection IP40, ambient temperature -10 to 60 °C
Applications
When sizing the axis, the mass moment of inertia of 175 kgmm² and the transmittable torque of 9.5 Nm feed into the choice of motor and controller. The kit is mounted between motor (70GA) and drive (D50).
Technical data
| Size | 86 |
|---|---|
| Mounting position | Any |
| Max. rotational speed | 5000 1/min |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Storage temperature | -25 to 60 °C |
| Relative air humidity | 0 - 95% |
| Degree of protection | IP40 |
| Ambient temperature | -10 to 60 °C |
| Mass moment of inertia | 175 kgmm² |
| Frictional torque independent of load | 0.25 Nm |
| Transmittable torque | 9.5 Nm |
| Product weight | 2500 g |
| Interface code, actuator | D50 |
| Interface code, motor in | 70GA |
| Note on materials | RoHS compliant |
| Weight | 2.8 kg |
| Manufacturer | Festo |
| Hersteller-Nr | EAMM-U-86-D50-70GA-102 |
| EAN | 4052568551957 |
| Zolltarifnummer | 84839089 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Series | EAMM |
| Protection rating | IP40 |
| Temperaturbereich | -10-60 °C |
| Temperature (max.) | 60 |
