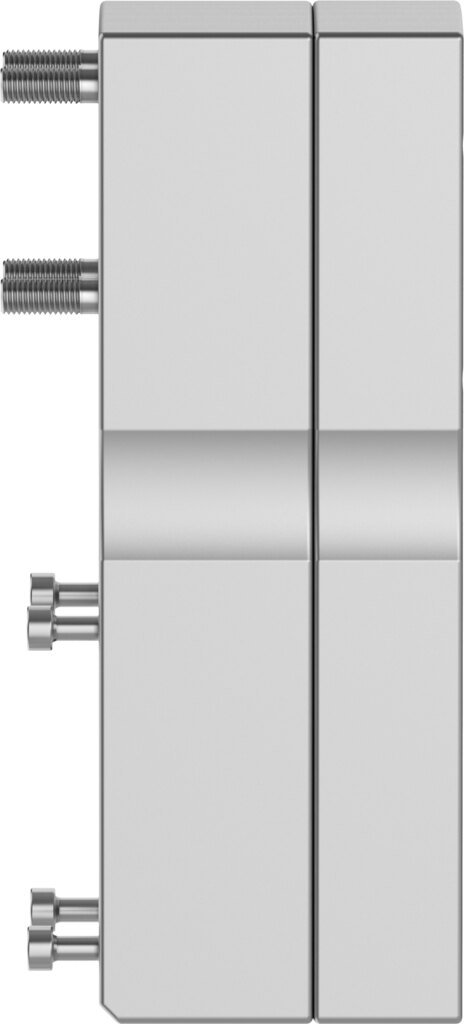

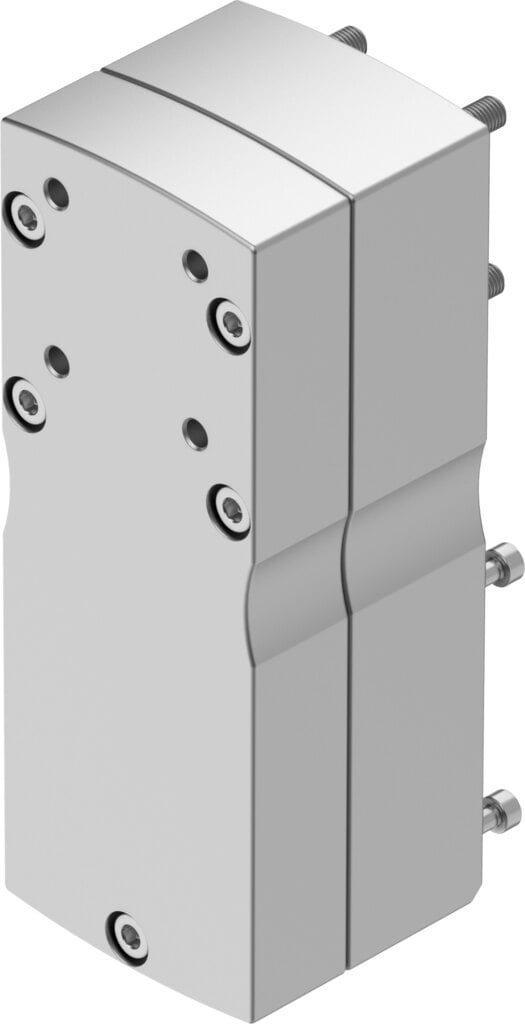

Parallel kit for motor mounting, 3 Nm, actuator D40B, motor 60P, 60PA EAMM-U-60-D40-60P-61 - Festo 8164735
With the parallel kit EAMM-U-60-D40-60P-61 the motor sits alongside the axis instead of extending it. Up to 3 Nm of torque is transmitted, speeds of up to 6000 1/min are permitted. Matches actuator interface D40B and motor interface 60P, 60PA.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
With the parallel kit EAMM-U-60-D40-60P-61 the motor sits alongside the axis instead of extending it. Up to 3 Nm of torque is transmitted, speeds of up to 6000 1/min are permitted.
Why this part
- Transmittable torque 3 Nm
- Speeds up to 6000 1/min
- Ratio 1:1, motor speed and torque reach the axis unchanged
- No-load driving torque only 0.07 Nm
- Mass moment of inertia 26.7 kgmm² for sizing the drive
- Degree of protection IP40, protected against solid objects from 1 mm
Application
For mounting a motor to Festo electric axes. Before ordering, compare the interface codes of axis and motor with the table, so EAMM-U-60-D40-60P-61 fits without rework.
Technical data
| Type | EAMM-U-60-D40-60P-61 |
|---|---|
| Festo part no. | 8164735 |
| Size | 60 |
| Gear unit ratio | 1:1 |
| Transmittable torque | 3 Nm |
| Frictional torque independent of load | 0.07 Nm |
| Max. rotational speed | 6000 1/min |
| Mass moment of inertia | 26.7 kgmm² |
| Interface code, actuator | D40B |
| Interface code, motor in | 60P, 60PA |
| Degree of protection | IP40 |
| Mounting position | Any |
| Ambient temperature | -10 to 60 °C |
| Storage temperature | -25 to 60 °C |
| Relative air humidity | 0 - 95 % |
| LABS (PWIS) conformity | VDMA 24364-zone III |
| Product weight | 926 g |
| Note on materials | RoHS compliant |
| Manufacturer | Festo |
| Hersteller-Nr | EAMM-U-60-D40-60P-61 |
| EAN | 4052568590642 |
| Zolltarifnummer | 84839089 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Series | EAMM |
| Protection rating | IP40 |
| Temperaturbereich | -10-60 °C |
| Temperature (max.) | 60 |
