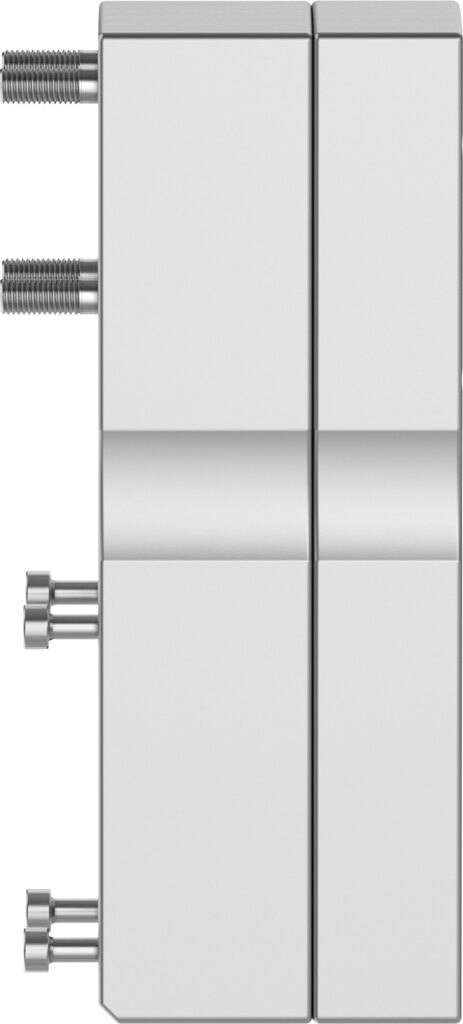

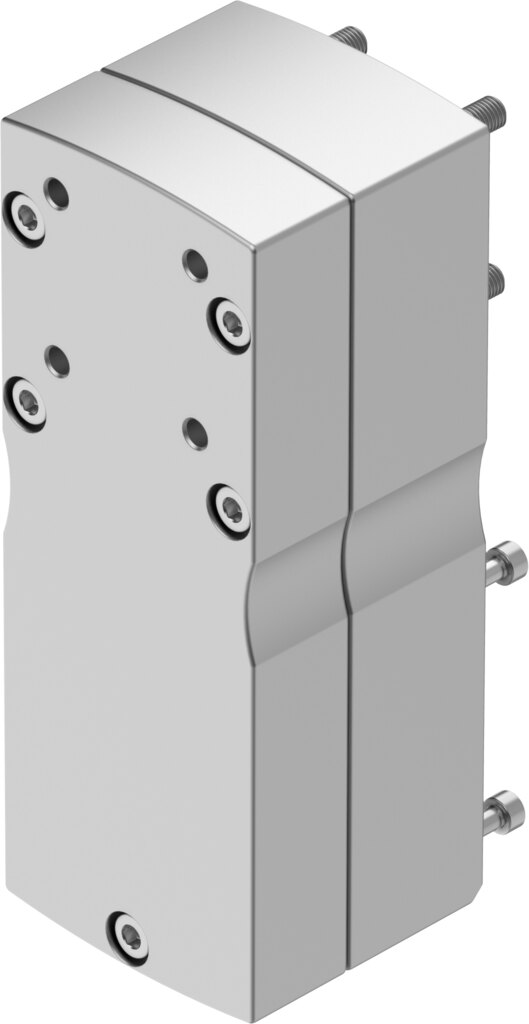

Parallel kit size 60 for motor mounting, actuator D32, motor 60AA, 3 Nm EAMM-U-60-D32-60AA-91 - Festo 8123498

Festo ✓ Original product Brand new

Motor alongside instead of in line with the axis: the kit EAMM-U-60-D32-60AA-91 connects motors with code 60AA to drives with interface D32 at up to 3 Nm torque. Speed up to 6000 1/min, degree of protection IP40. Mass moment of inertia 26.7 kgmm².

Net
€593.86
excl. VAT
Item FES-8123498
Manufacturer no. EAMM-U-60-D32-60AA-91
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Size 60, 3 Nm transmittable torque and interfaces for actuator D32 and motor 60AA: the parallel kit EAMM-U-60-D32-60AA-91 shortens the installed length because the motor sits next to the drive instead of behind it.

Benefits

  • Transmittable torque 3 Nm between motor and drive
  • Speed up to 6000 1/min
  • Mass moment of inertia 26.7 kgmm² as input for drive sizing
  • No-load driving torque 0.07 Nm
  • Interfaces actuator D32, motor 60AA
  • Degree of protection IP40, ambient temperature -10 to 60 °C

Applications

When sizing the axis, the mass moment of inertia of 26.7 kgmm² and the transmittable torque of 3 Nm feed into the choice of motor and controller. The kit is mounted between motor (60AA) and drive (D32).

Technical data

Size60
Mounting positionAny
Max. rotational speed6000 1/min
LABS (PWIS) conformityVDMA24364-B2-L
Storage temperature-25 to 60 °C
Relative air humidity0 - 95%
Degree of protectionIP40
Ambient temperature-10 to 60 °C
Mass moment of inertia26.7 kgmm²
Frictional torque independent of load0.07 Nm
Transmittable torque3 Nm
Product weight1150 g
Interface code, actuatorD32
Interface code, motor in60AA
Note on materialsRoHS compliant
ManufacturerFesto
Hersteller-NrEAMM-U-60-D32-60AA-91
EAN4052568552039
Zolltarifnummer84839089
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
SeriesEAMM
Protection ratingIP40
Temperaturbereich-10-60 °C
Temperature (max.)60
