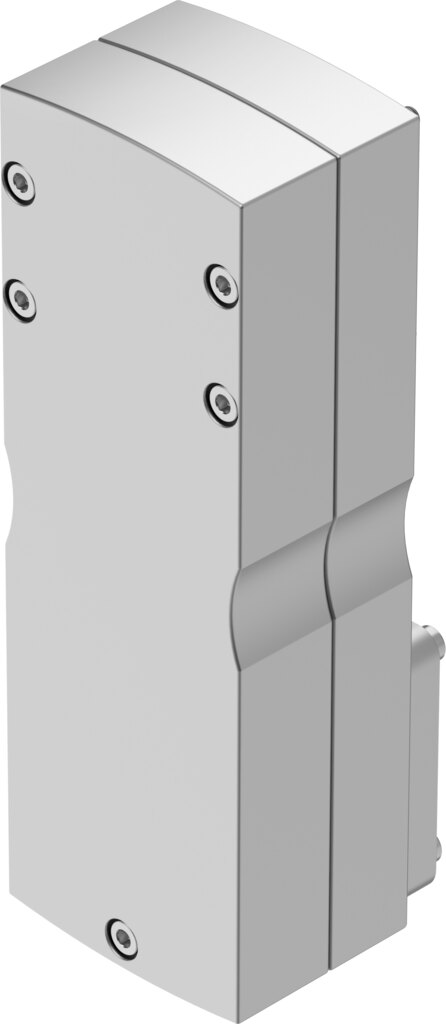

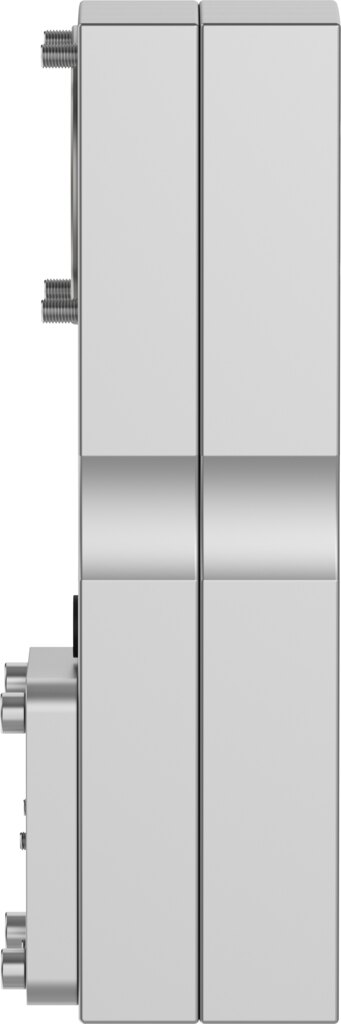

Parallel kit size 110 for motor mounting, actuator S95, motor 90GA, 25 Nm EAMM-U-110-S95-90GA-207 - Festo 8105907

Festo ✓ Original product Brand new

The parallel kit EAMM-U-110-S95-90GA-207 places a motor with interface 90GA parallel to the drive with code S95, keeping the overall length short. It transmits up to 25 Nm. Speed up to 5000 1/min, degree of protection IP40. Mass moment of inertia 799 kgmm².

Net
€1,353.42
excl. VAT
Item FES-8105907
Manufacturer no. EAMM-U-110-S95-90GA-207
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Festo parallel kit EAMM-U-110-S95-90GA-207 mounts the motor (interface 90GA) parallel to the drive (interface S95). It transmits up to 25 Nm at a ratio of 1:1.

Benefits

  • Transmittable torque 25 Nm between motor and drive
  • Speed up to 5000 1/min
  • Mass moment of inertia 799 kgmm² as input for drive sizing
  • No-load driving torque 0.3 Nm
  • Ratio 1:1
  • Interfaces actuator S95, motor 90GA

Applications

When sizing the axis, the mass moment of inertia of 799 kgmm² and the transmittable torque of 25 Nm feed into the choice of motor and controller. The kit is mounted between motor (90GA) and drive (S95).

Technical data

Size110
Mounting positionAny
Gear unit ratio1:1
Max. rotational speed5000 1/min
LABS (PWIS) conformityVDMA24364-B2-L
Storage temperature-25 to 60 °C
Relative air humidity0 - 95%
Degree of protectionIP40
Ambient temperature-10 to 60 °C
Mass moment of inertia799 kgmm²
Frictional torque independent of load0.3 Nm
Transmittable torque25 Nm
Product weight6900 g
Interface code, actuatorS95
Interface code, motor in90GA
Note on materialsRoHS compliant
Weight7 kg
ManufacturerFesto
Hersteller-NrEAMM-U-110-S95-90GA-207
EAN4052568551926
Zolltarifnummer84839089
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
SeriesEAMM
Protection ratingIP40
Temperaturbereich-10-60 °C
Temperature (max.)60
