Images are examples, some edited with AI. The technical data are authoritative. AI notice

Axial kit for motor mounting, 17 Nm, actuator X48, motor 87A EAMM-A-X48-87A - Festo 8210061

Festo ✓ Original product Brand new

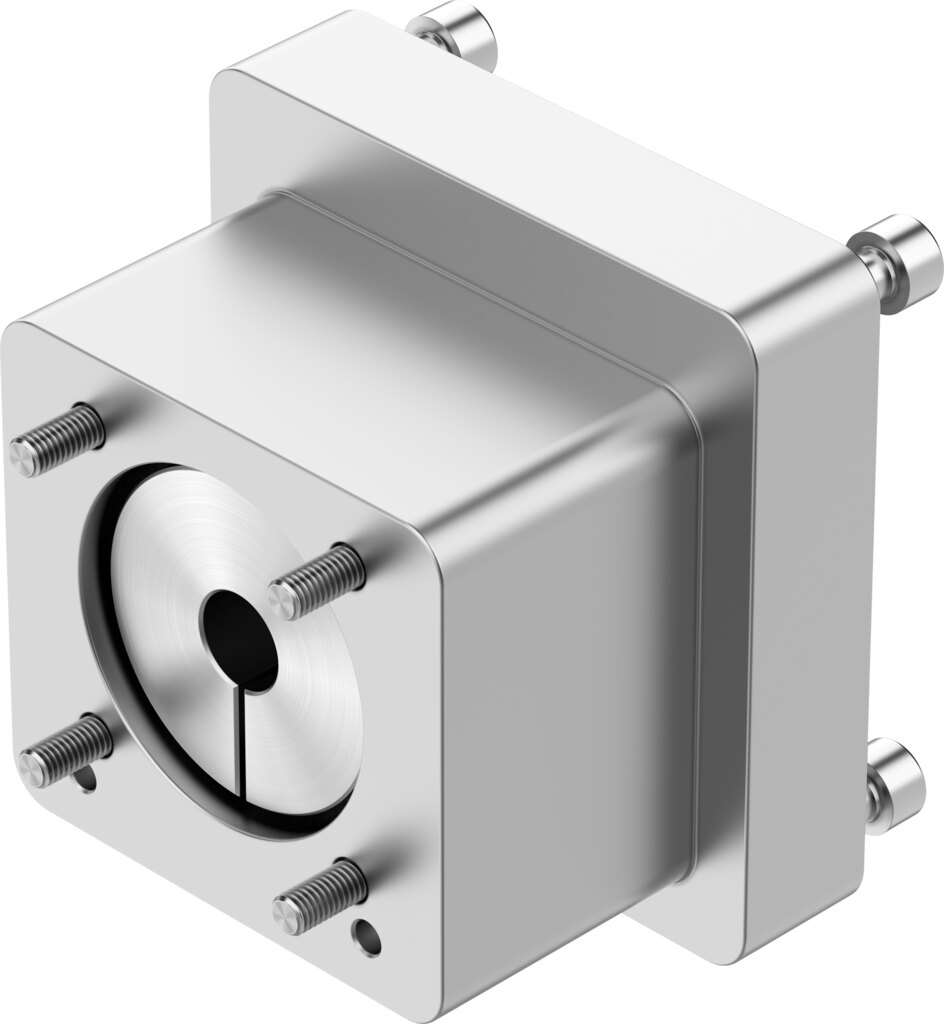

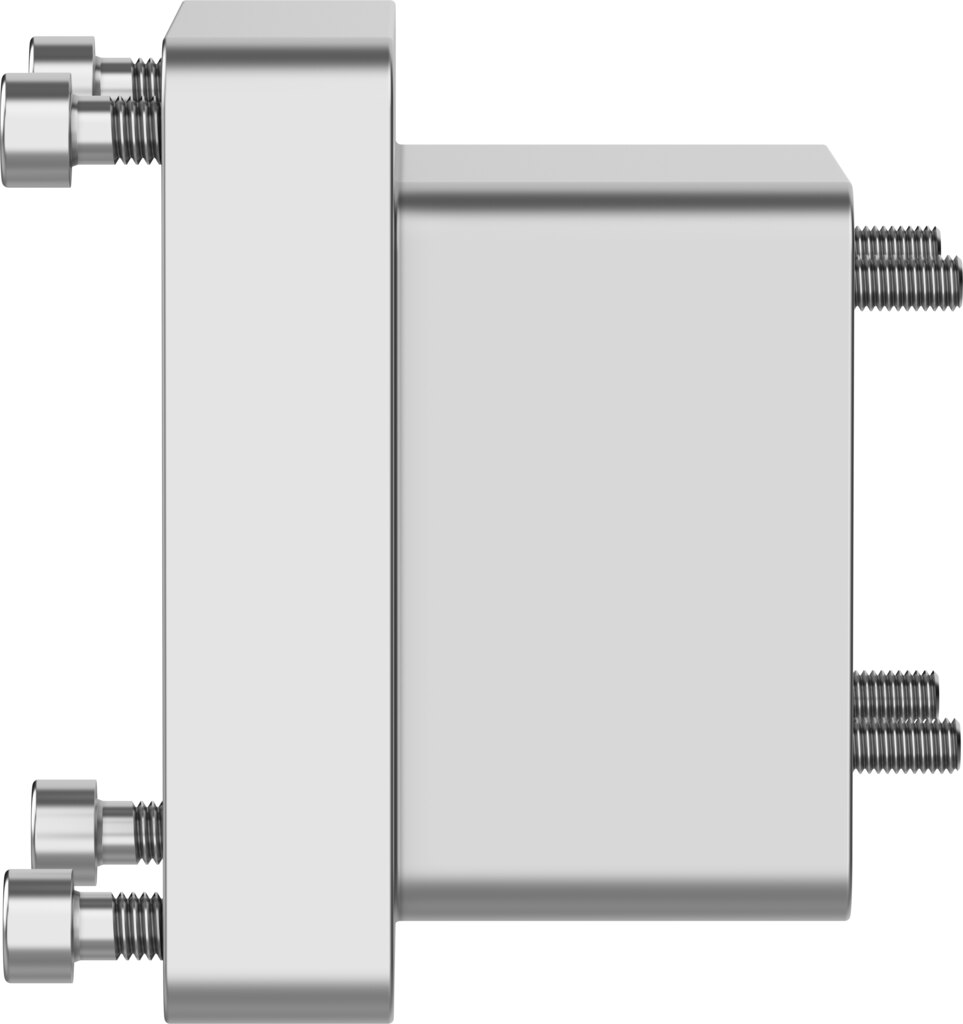

The axial kit EAMM-A-X48-87A connects motor and axis on a common centre line. Up to 17 Nm of torque is transmitted, the maximum speed is 6000 1/min. Actuator interface code X48, motor side 87A.

Net
€293.25
excl. VAT
Item FES-8210061
Manufacturer no. EAMM-A-X48-87A
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The axial kit EAMM-A-X48-87A connects motor and axis on a common centre line. Up to 17 Nm of torque is transmitted, the maximum speed is 6000 1/min.

Key benefits

  • Transmittable torque 17 Nm
  • Speeds up to 6000 1/min
  • Degree of protection IP40, protected against solid objects from 1 mm
  • LABS (PWIS) conform to VDMA 24364-zone III, for paint-sensitive areas
  • Ambient temperature -10 to 60 °C
  • Any mounting position

Application

Typical in machine building and handling, wherever a motor is connected to an electric axis. The values in the table are decisive for selection and apply to EAMM-A-X48-87A.

Technical data

TypeEAMM-A-X48-87A
Festo part no.8210061
Transmittable torque17 Nm
Max. rotational speed6000 1/min
Interface code, actuatorX48
Interface code, motor in87A
Degree of protectionIP40
Mounting positionAny
Ambient temperature-10 to 60 °C
Storage temperature-25 to 60 °C
Relative air humidity0 - 95 %
LABS (PWIS) conformityVDMA 24364-zone III
Product weight808 g
Note on materialsRoHS compliant
Weight0.85 kg
ManufacturerFesto
Hersteller-NrEAMM-A-X48-87A
EAN4052568784546
Zolltarifnummer84836080
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
SeriesEAMM
Protection ratingIP40
Temperaturbereich-10-60 °C
Temperature (max.)60

Downloads

Questions about this item

Any other question?

Send us the item number and your question. We clarify technical details directly with the manufacturer and usually reply on the next working day.
