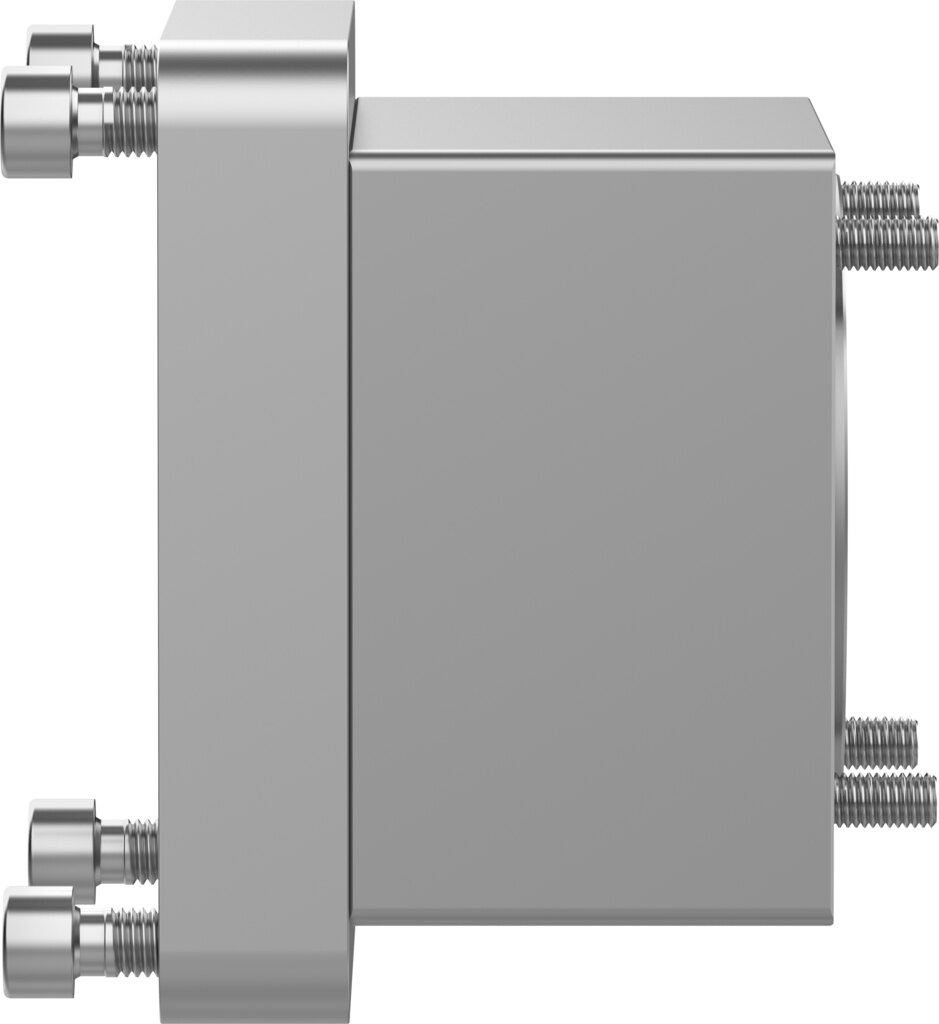

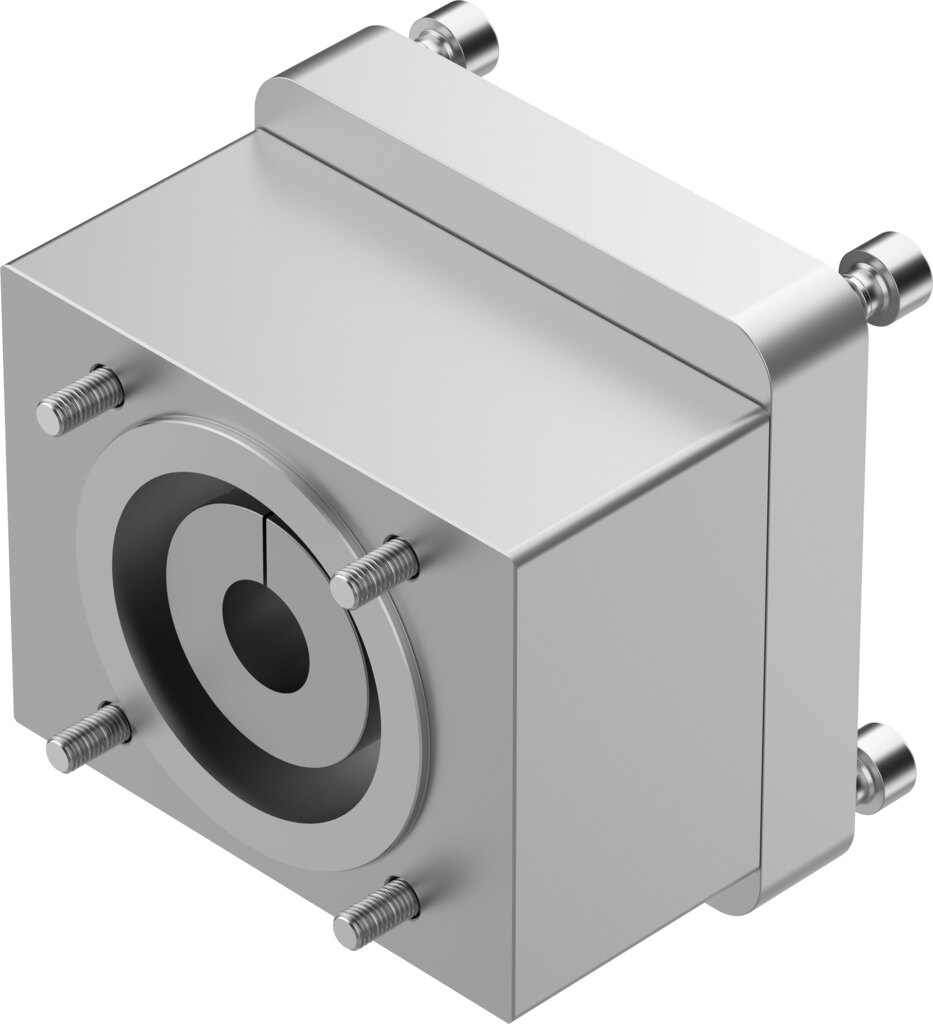

Axial kit for motor mounting, actuator S95, motor 140A or 150A, 60 Nm EAMM-A-S95-150A-G2 - Festo 8157279

Festo ✓ Original product Brand new

For axial motor mounting on drives with interface S95: the kit EAMM-A-S95-150A-G2 takes motors with code 140A or 150A and transmits a torque of up to 60 Nm. Speed up to 5500 1/min, degree of protection IP40. Mass moment of inertia 128 kgmm².

Net
€460.80
excl. VAT
Item FES-8157279
Manufacturer no. EAMM-A-S95-150A-G2
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Festo axial kit EAMM-A-S95-150A-G2 connects a motor with interface code 140A or 150A coaxially to an electric drive with interface S95. Transmittable torque is 60 Nm, maximum speed 5500 1/min.

Benefits

  • Transmittable torque 60 Nm between motor and drive
  • Speed up to 5500 1/min
  • Mass moment of inertia 128 kgmm² as input for drive sizing
  • Interfaces actuator S95, motor 140A or 150A
  • Degree of protection IP40, ambient temperature -10 to 60 °C

Applications

When sizing the axis, the mass moment of inertia of 128 kgmm² and the transmittable torque of 60 Nm feed into the choice of motor and controller. The kit is mounted between motor (140A or 150A) and drive (S95).

Technical data

Nominal length85.5 mm
Mounting positionAny
Max. rotational speed5500 1/min
LABS (PWIS) conformityVDMA24364-B2-L
Storage temperature-25 to 60 °C
Relative air humidity0 - 95%
Degree of protectionIP40
Ambient temperature-10 to 60 °C
Mass moment of inertia128 kgmm²
Transmittable torque60 Nm
Product weight3768 g
Interface code, actuatorS95
Interface code, motor in140A, 150A
Note on materialsRoHS compliant
ManufacturerFesto
Hersteller-NrEAMM-A-S95-150A-G2
EAN4052568597023
Zolltarifnummer84836080
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
SeriesEAMM
Protection ratingIP40
Temperaturbereich-10-60 °C
Temperature (max.)60
