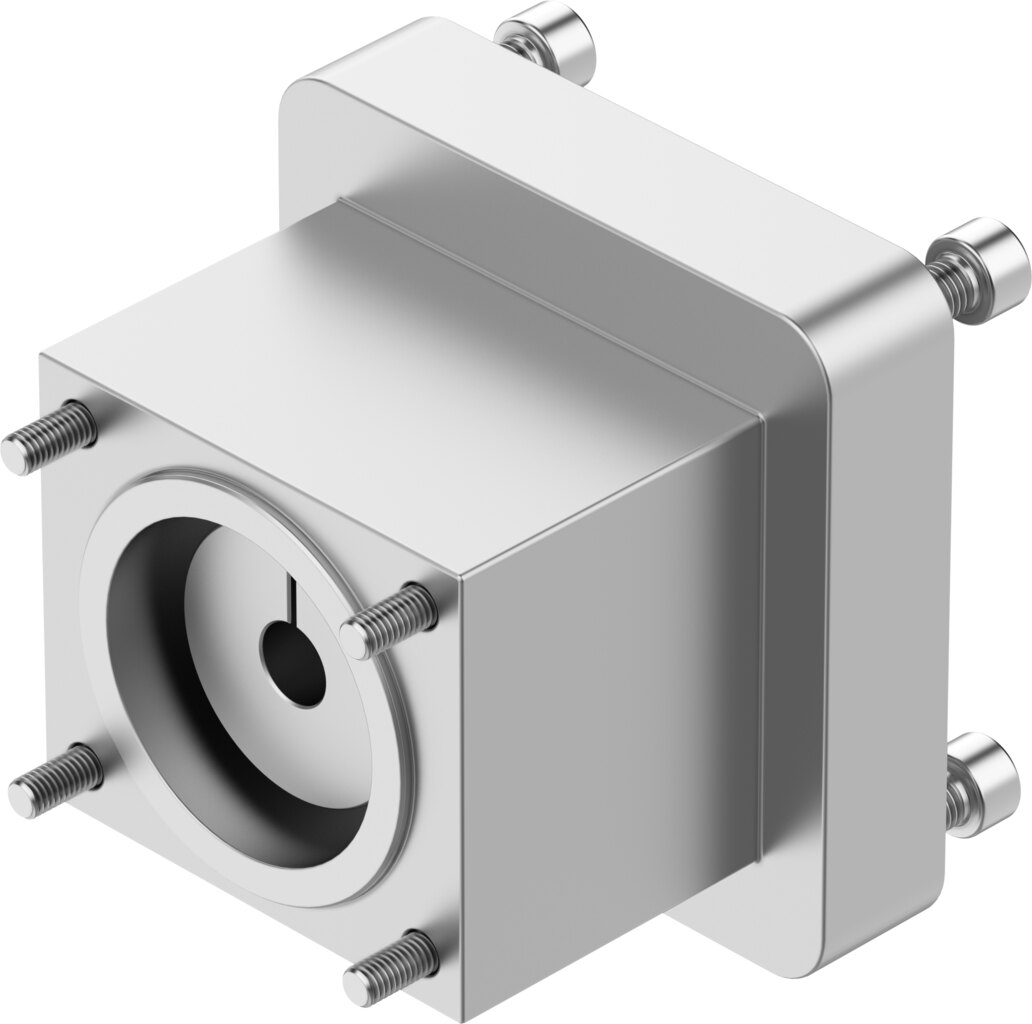

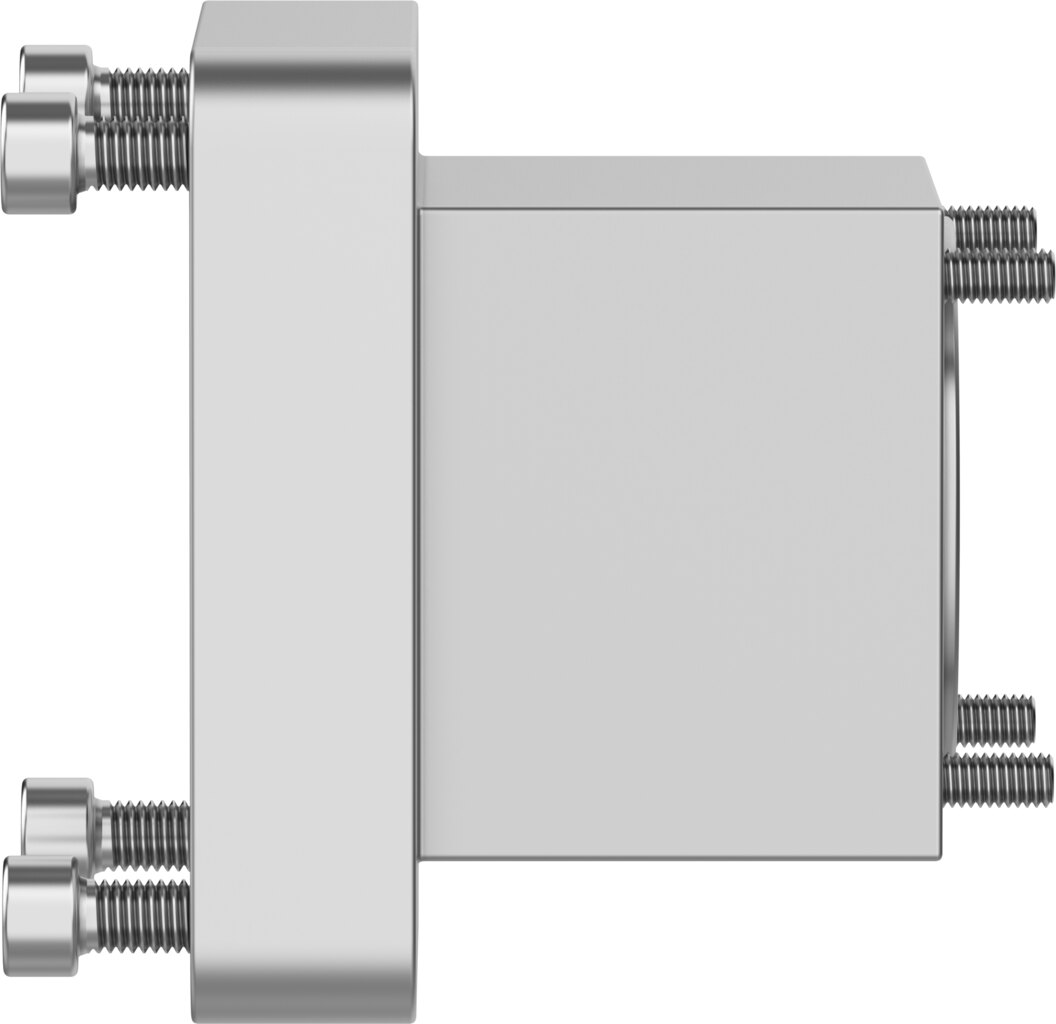

Axial kit for motor mounting, 21 Nm, actuator S62, motor 100A EAMM-A-S62-100A-G3 - Festo 8197486

Festo ✓ Original product Brand new

The axial kit EAMM-A-S62-100A-G3 mounts the motor in line with the electric axis. Up to 21 Nm of torque is transmitted, speeds of up to 6000 1/min are permitted. Matches actuator interface S62 and motor interface 100A.

Net
€211.14
excl. VAT
Item FES-8197486
Manufacturer no. EAMM-A-S62-100A-G3
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The axial kit EAMM-A-S62-100A-G3 mounts the motor in line with the electric axis. Up to 21 Nm of torque is transmitted, speeds of up to 6000 1/min are permitted.

Benefits

  • Transmittable torque 21 Nm
  • Speeds up to 6000 1/min
  • Mass moment of inertia 34.8 kgmm² for sizing the drive
  • Degree of protection IP40, protected against solid objects from 1 mm
  • LABS (PWIS) conform to VDMA 24364-B2-L, for paint-sensitive areas
  • Ambient temperature -10 to 60 °C

Application

Used when mounting a motor to a Festo electric axis, as original equipment or as a spare part. The table data come from Festo and apply to EAMM-A-S62-100A-G3.

Technical data

TypeEAMM-A-S62-100A-G3
Festo part no.8197486
Nominal length80 mm
Transmittable torque21 Nm
Max. rotational speed6000 1/min
Mass moment of inertia34.8 kgmm²
Interface code, actuatorS62
Interface code, motor in100A
Degree of protectionIP40
Mounting positionAny
Ambient temperature-10 to 60 °C
Storage temperature-25 to 60 °C
Relative air humidity0 - 95 %
LABS (PWIS) conformityVDMA 24364-B2-L
Product weight1250 g
Note on materialsRoHS compliant
Weight1.3 kg
ManufacturerFesto
Hersteller-NrEAMM-A-S62-100A-G3
EAN4052568648213
Zolltarifnummer84836080
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
SeriesEAMM
Protection ratingIP40
Temperaturbereich-10-60 °C
Temperature (max.)60
