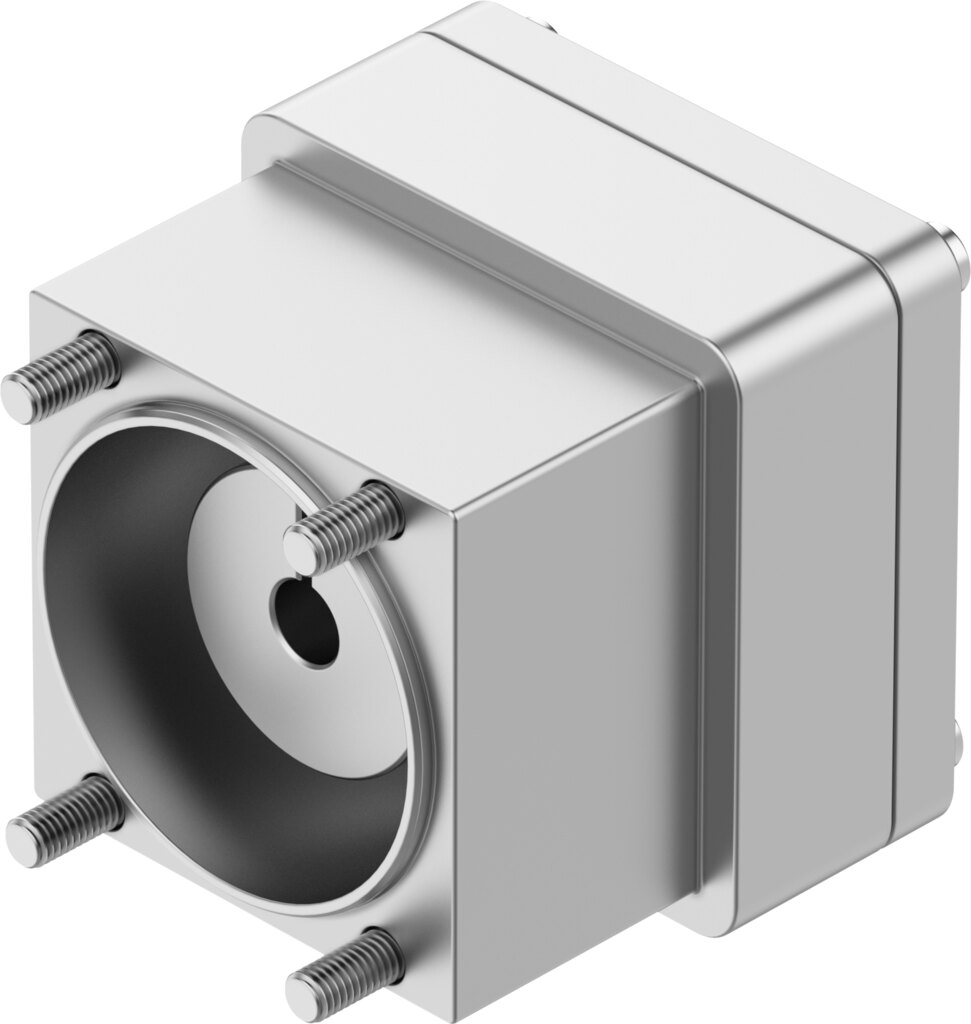

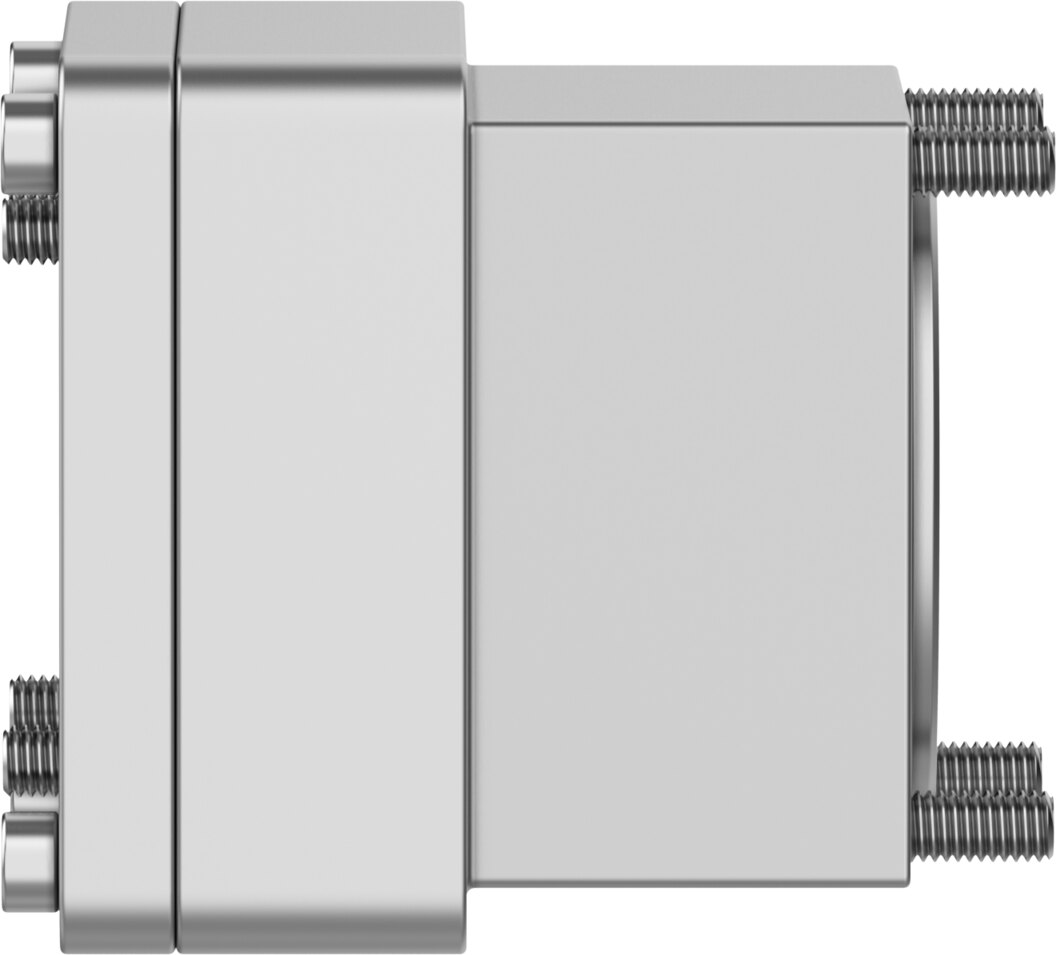

Axial kit for motor mounting, 12.5 Nm, actuator S48, motor 60H EAMM-A-S48-60H-G3 - Festo 8197482

Festo ✓ Original product Brand new

The axial kit EAMM-A-S48-60H-G3 connects motor and axis on a common centre line. It transmits up to 12.5 Nm of torque, speeds of up to 8000 1/min are permitted. Actuator interface code S48, motor side 60H.

Net
€258.06
excl. VAT
Item FES-8197482
Manufacturer no. EAMM-A-S48-60H-G3
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The axial kit EAMM-A-S48-60H-G3 connects motor and axis on a common centre line. It transmits up to 12.5 Nm of torque, speeds of up to 8000 1/min are permitted.

Why this part

  • Transmittable torque 12.5 Nm
  • Speeds up to 8000 1/min
  • Mass moment of inertia 5.87 kgmm² for sizing the drive
  • Degree of protection IP40, protected against solid objects from 1 mm
  • LABS (PWIS) conform to VDMA 24364-B2-L, for paint-sensitive areas
  • Ambient temperature -10 to 60 °C

Application

Typical in machine building and handling, wherever a motor is connected to an electric axis. The values in the table are decisive for selection and apply to EAMM-A-S48-60H-G3.

Technical data

TypeEAMM-A-S48-60H-G3
Festo part no.8197482
Nominal length55.5 mm
Transmittable torque12.5 Nm
Max. rotational speed8000 1/min
Mass moment of inertia5.87 kgmm²
Interface code, actuatorS48
Interface code, motor in60H
Degree of protectionIP40
Mounting positionAny
Ambient temperature-10 to 60 °C
Storage temperature-25 to 60 °C
Relative air humidity0 - 95 %
LABS (PWIS) conformityVDMA 24364-B2-L
Product weight340 g
Note on materialsRoHS compliant
Weight0.4 kg
ManufacturerFesto
Hersteller-NrEAMM-A-S48-60H-G3
EAN4052568648190
Zolltarifnummer84836080
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
SeriesEAMM
Protection ratingIP40
Temperaturbereich-10-60 °C
Temperature (max.)60
